Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

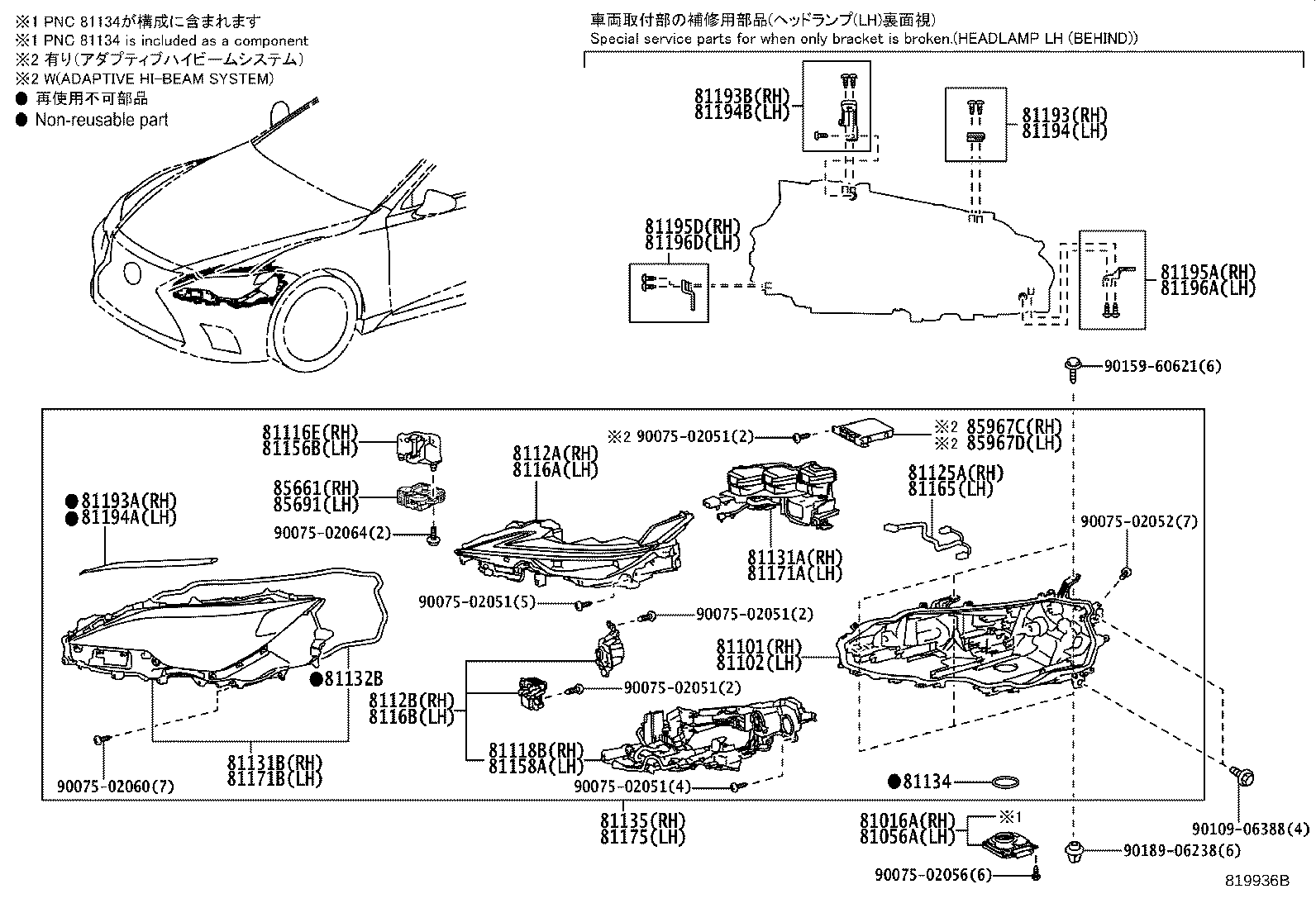

Headlamp
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 81116E | Bracket, Headlamp, RH NO.2 |
| 81118A | Bracket, Headlamp, RH |
| 81118B | Bracket, Headlamp, RH NO.1 |
| 81118H | Base, Headlamp |
| 8111A | Unit, Headlamp Cornering Led, RH |
| 81125A | Cord, Headlamp, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 8112B | Unit, Headlamp Clearance Led, NO.2 RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81136H | Rim, Headlamp Fitting, RH NO.1 |
| 81137C | Rim, Headlamp Fitting, RH NO.2 |
| 81156B | Bracket, Headlamp, LH NO.2 |
| 81158 | Bracket, Headlamp, LH |
| 81158A | Bracket, Headlamp, LH NO.1 |
| 8115A | Unit, Headlamp Cornering Led, LH |
| 81165 | Cord, Headlamp, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 8116B | Unit, Headlamp Clearance Led, NO.2 LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81176D | Rim, Headlamp Fitting, LH NO.1 |
| 81177B | Rim, Headlamp Fitting, LH NO.2 |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81195D | Retainer, Headlamp Protector, Lower RH NO.2 |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81196D | Retainer, Headlamp Protector, Lower LH NO.2 |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
