Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 3 illustrations

Illustrations

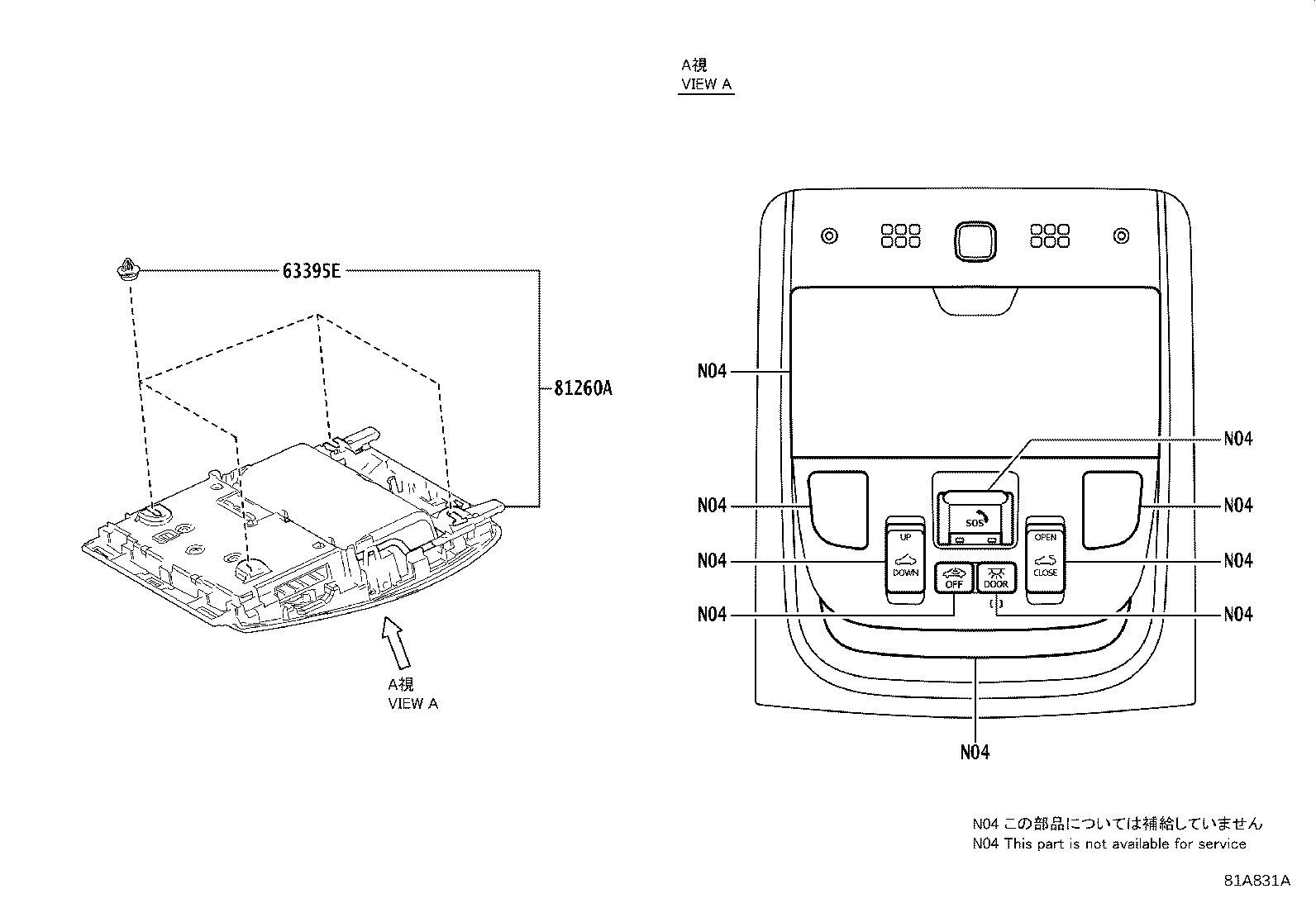

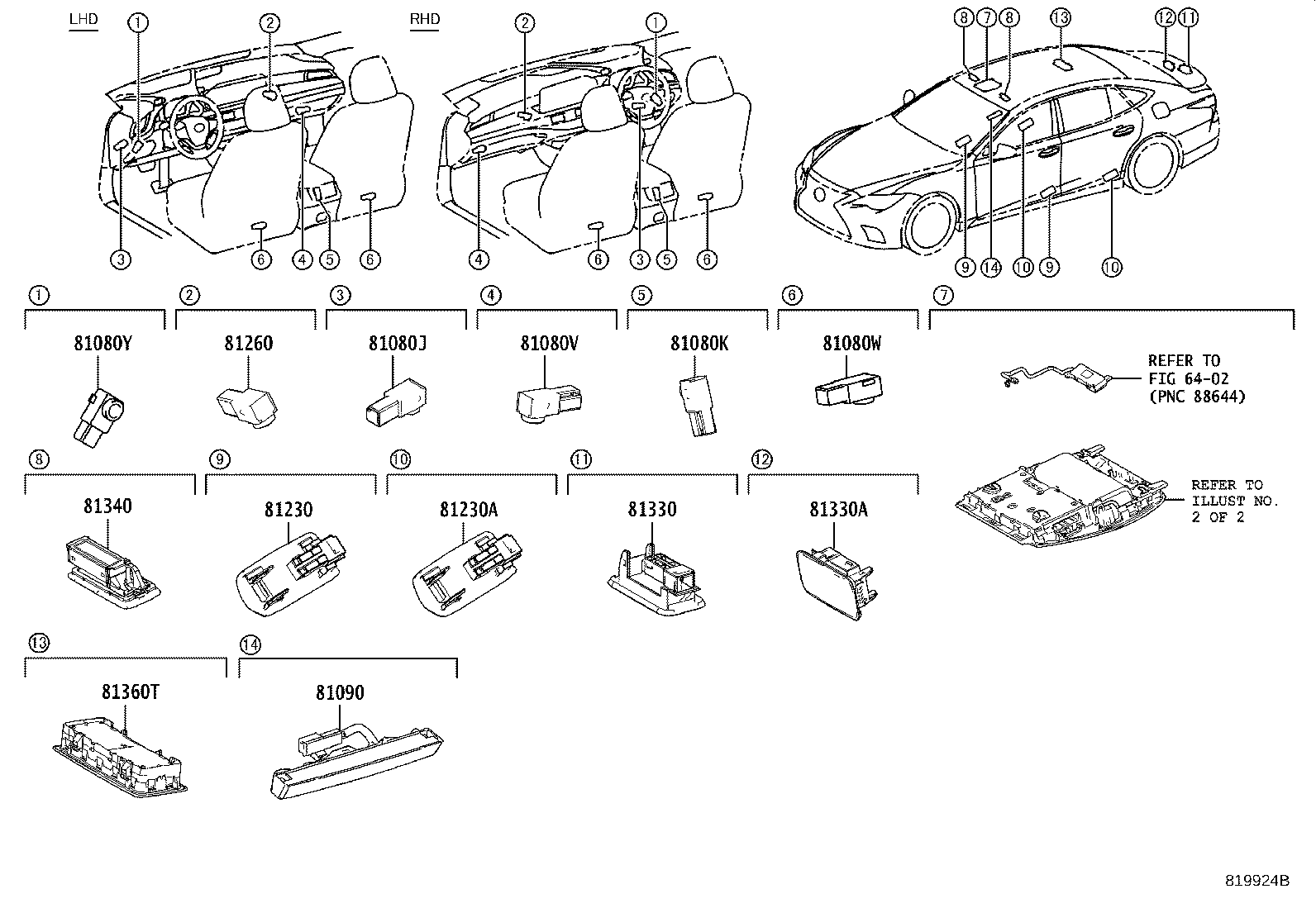

Figure 818397E 818397E 2017-10 → 2020-11 Figure 819924B 819924B 2020-11 → — Figure 81A831A 81A831A 2017-10 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81080X Lamp Assy, Meter Hood Illumination
81080Y Lamp Assy, Coin Box
81090 Lamp Assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81230A Lamp Assy, Courtesy, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81330A Lamp Assy, Luggage Compartment, NO.2
81340 Lamp Assy, Vanity
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
