Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

198 part groups · 34 illustrations

Illustrations

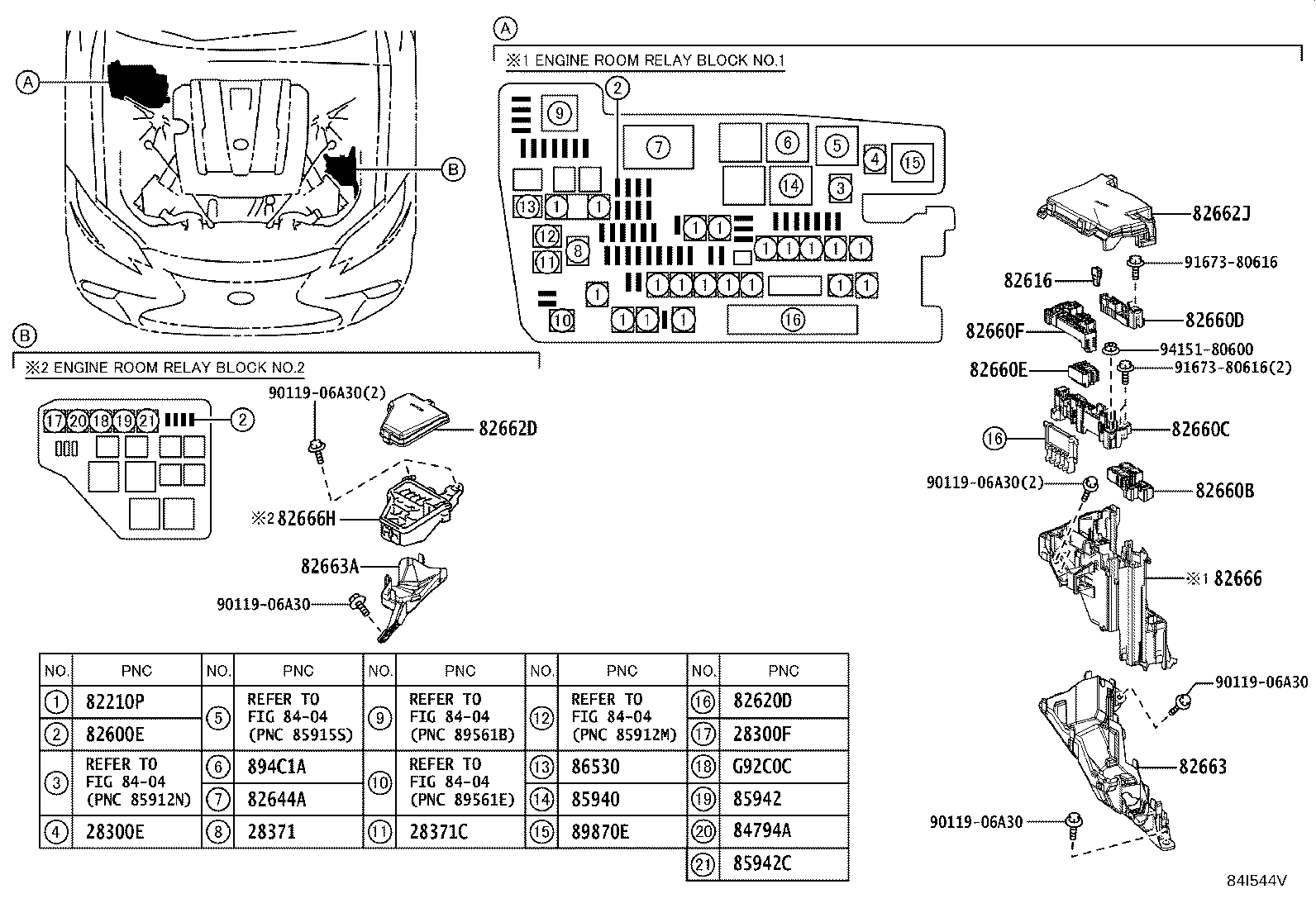

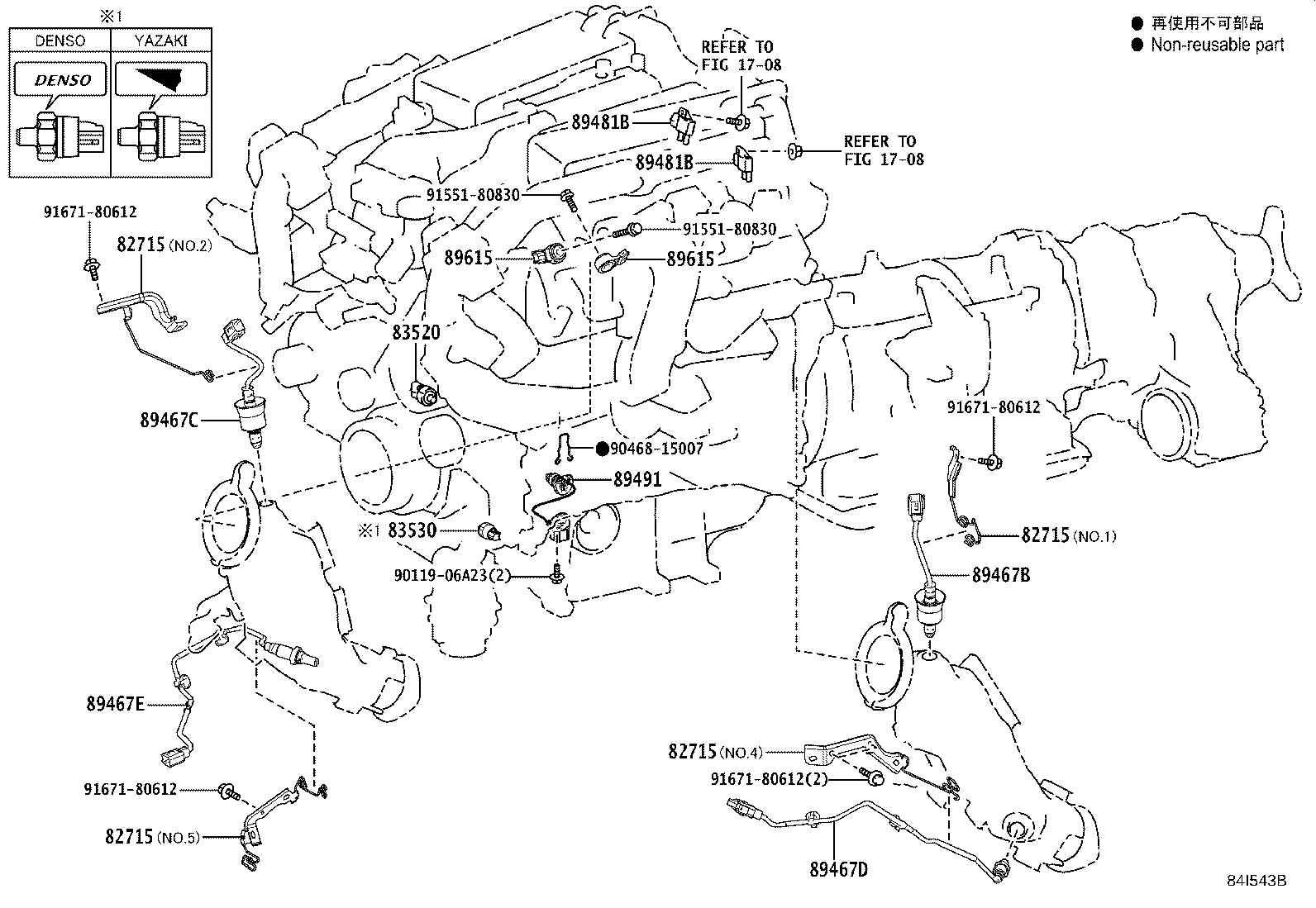

84I544V 2017-10 → 2023-10

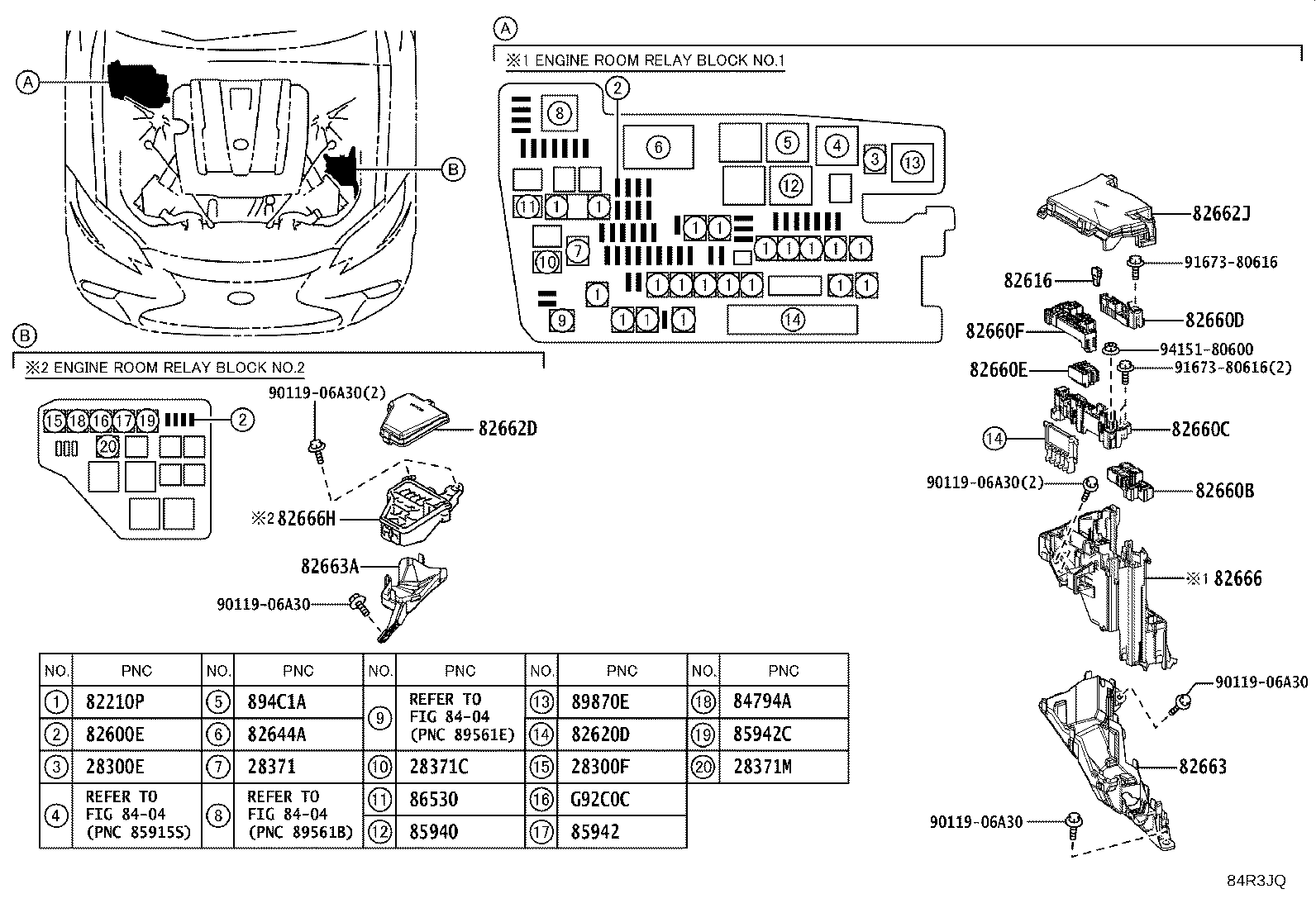

84R3JQ 2023-10 → —

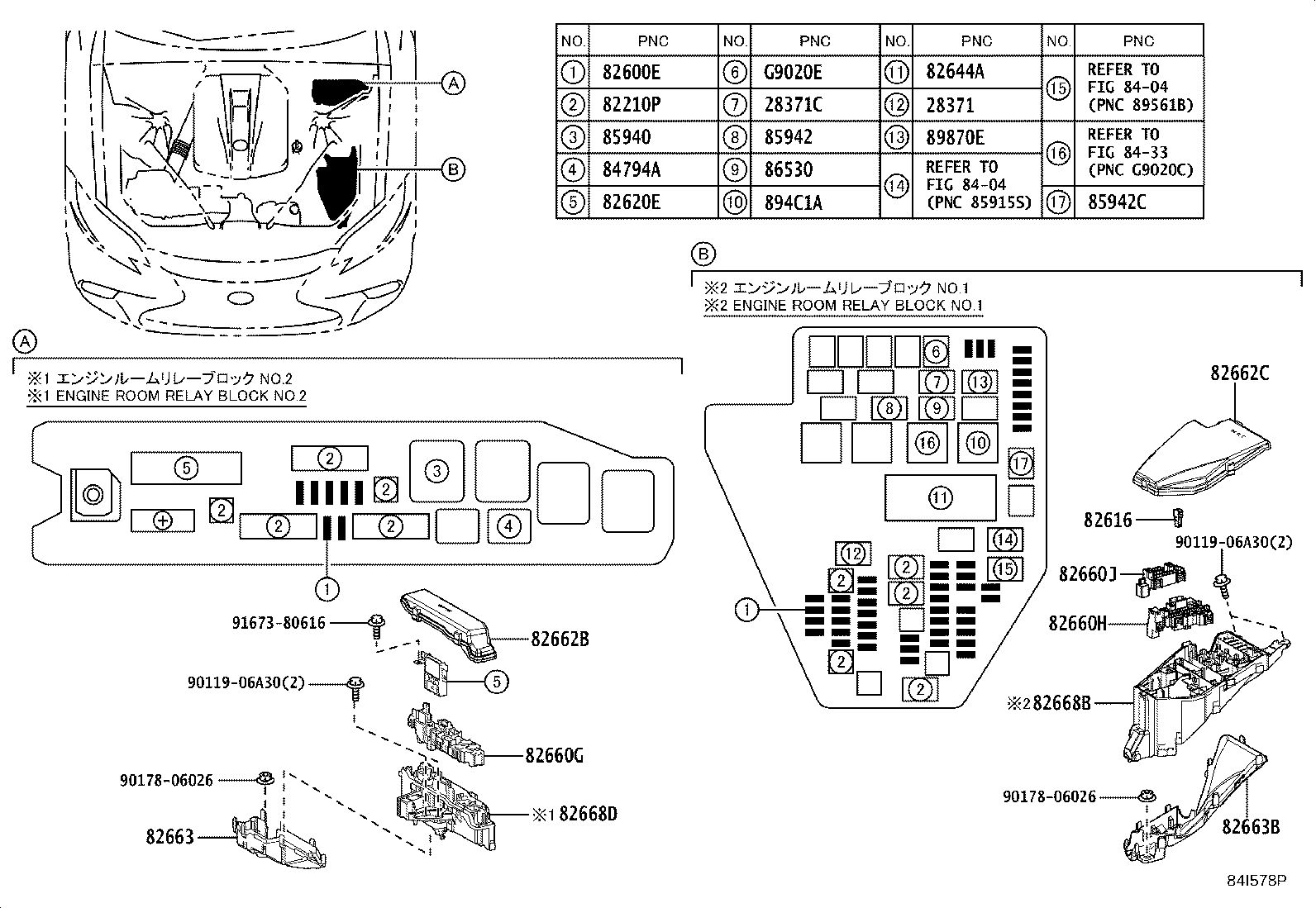

84I578P 2017-10 → 2023-10

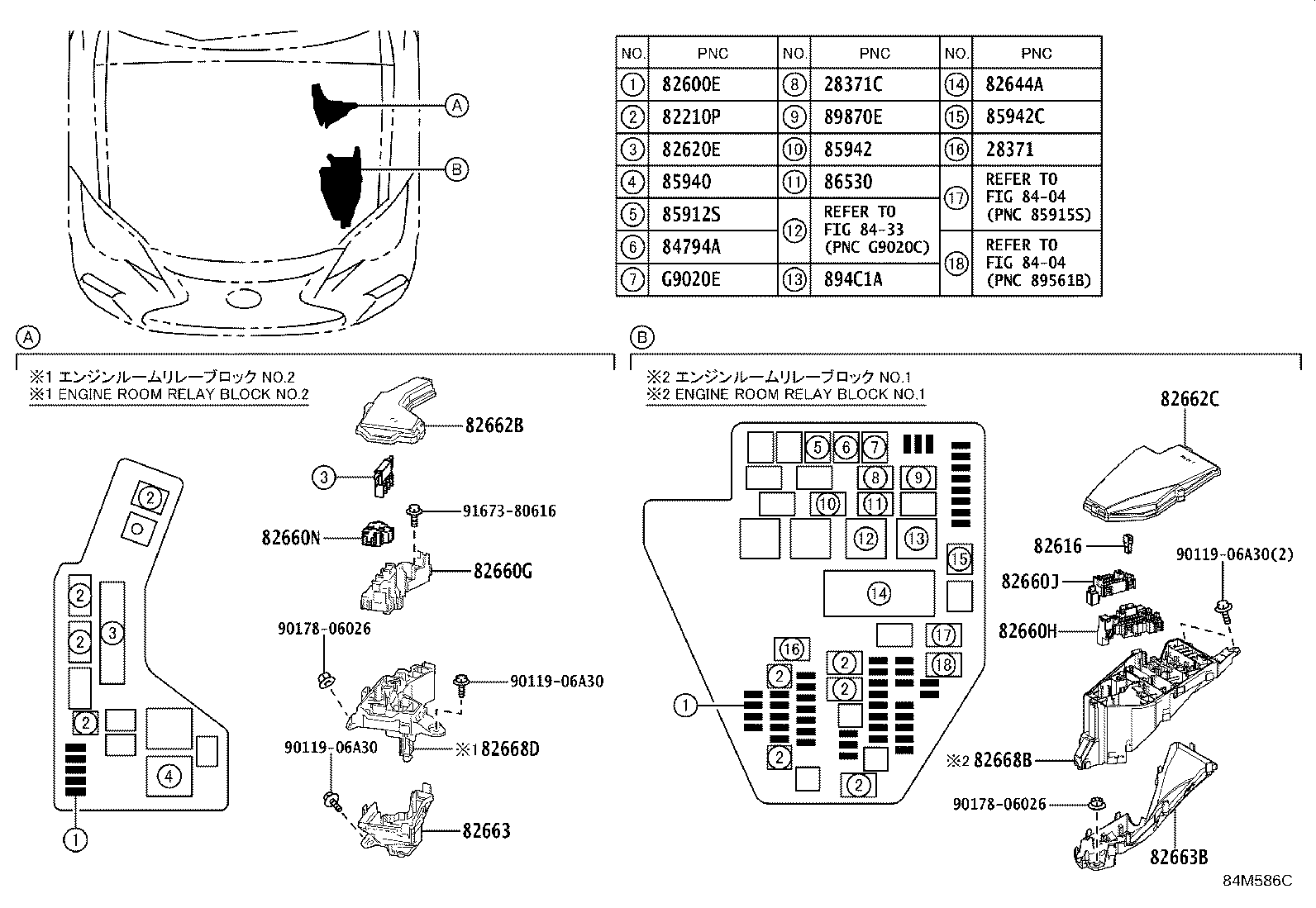

84M586C 2020-11 → 2023-10

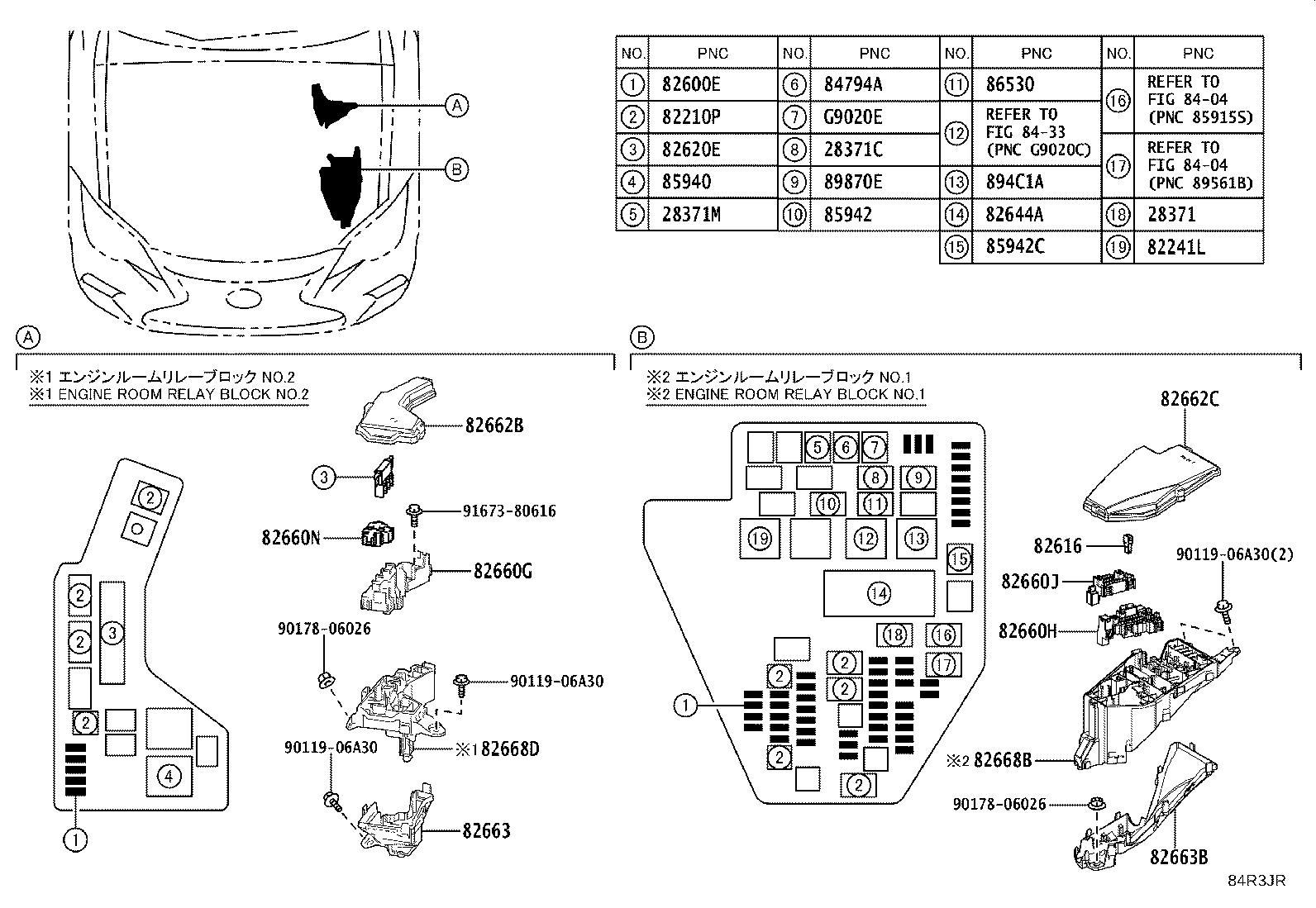

84R3JR 2023-10 → —

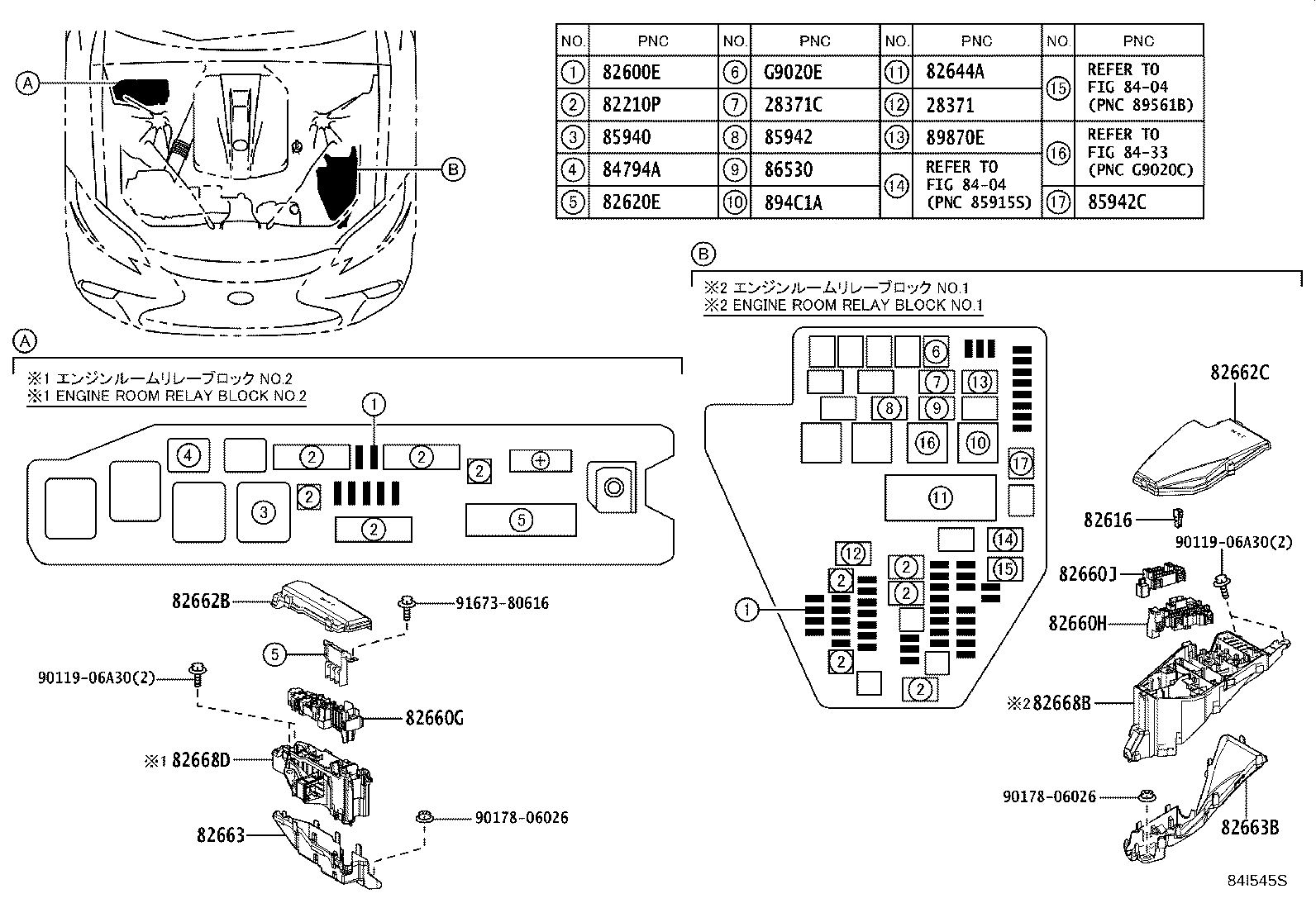

84I545S 2017-10 → 2023-10

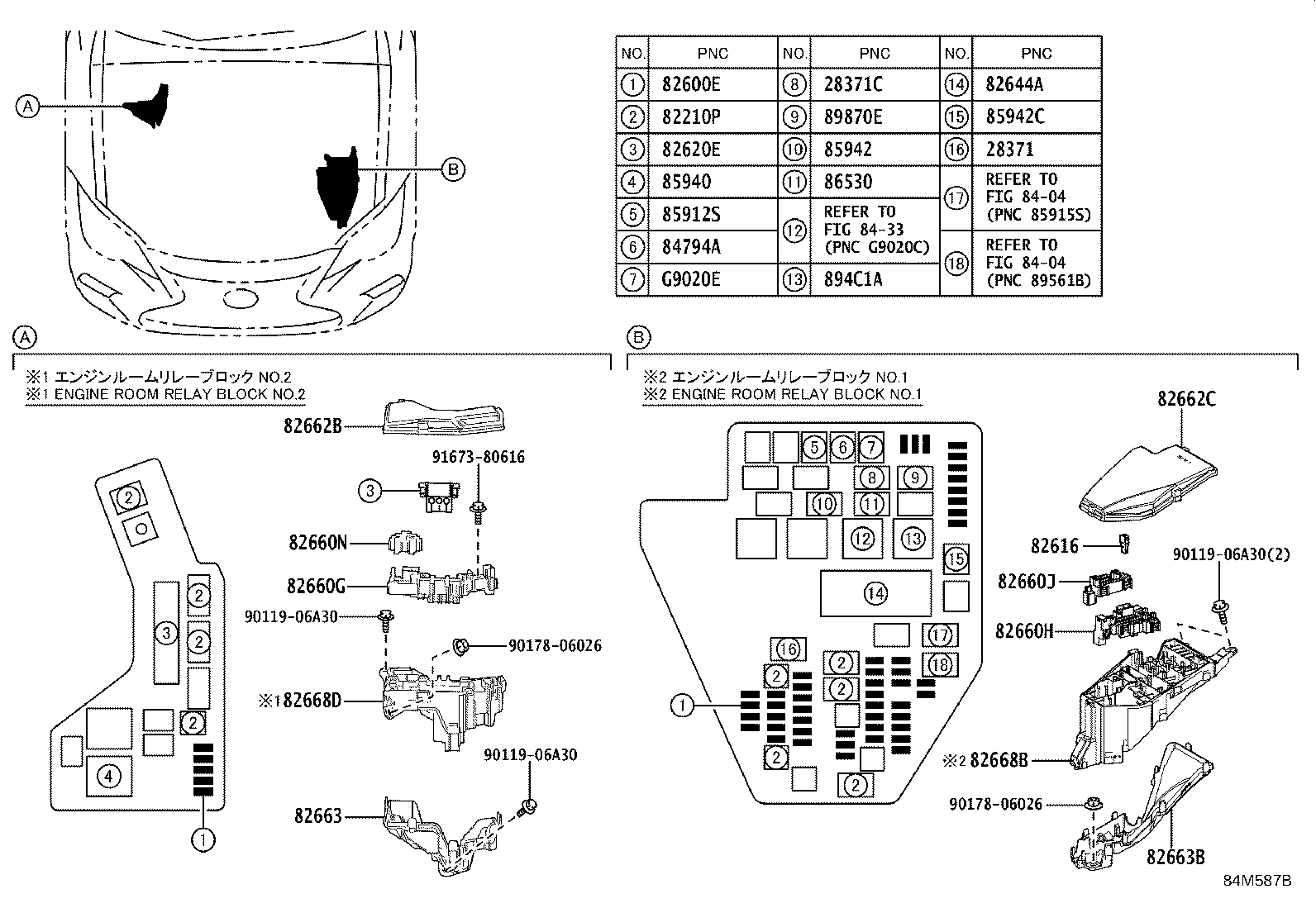

84M587B 2020-11 → 2023-10

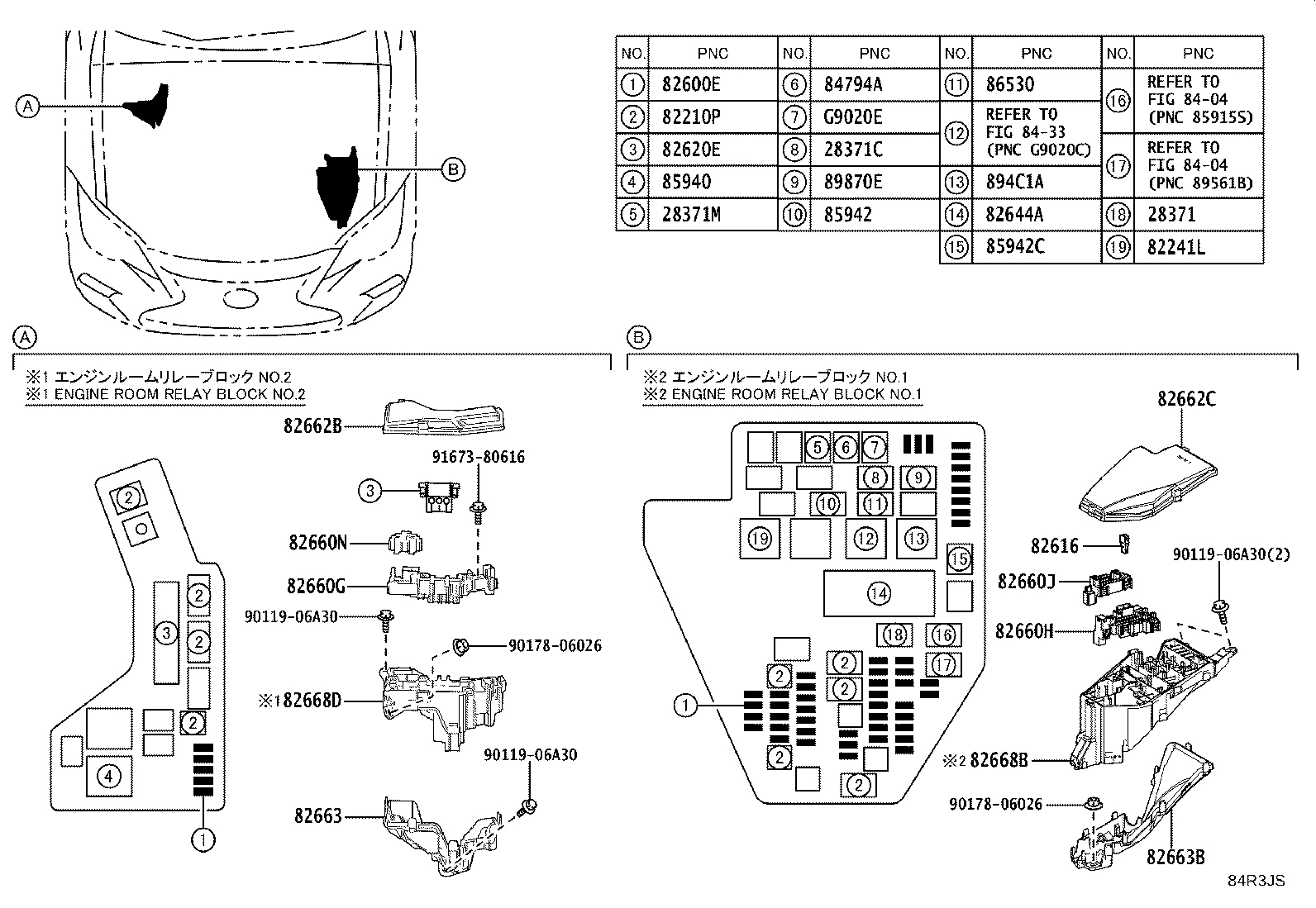

84R3JS 2023-10 → —

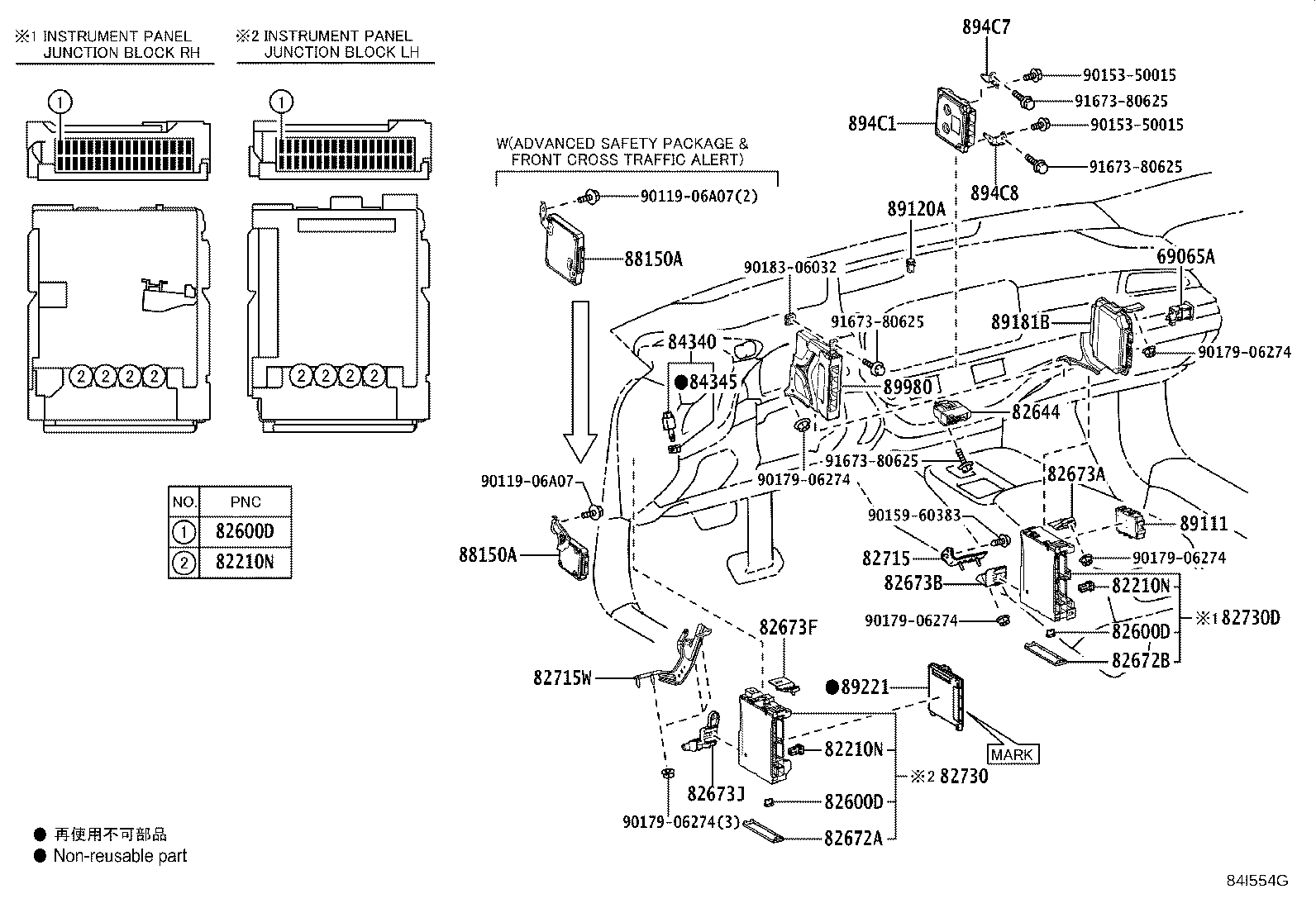

84I554G 2017-10 → 2023-10

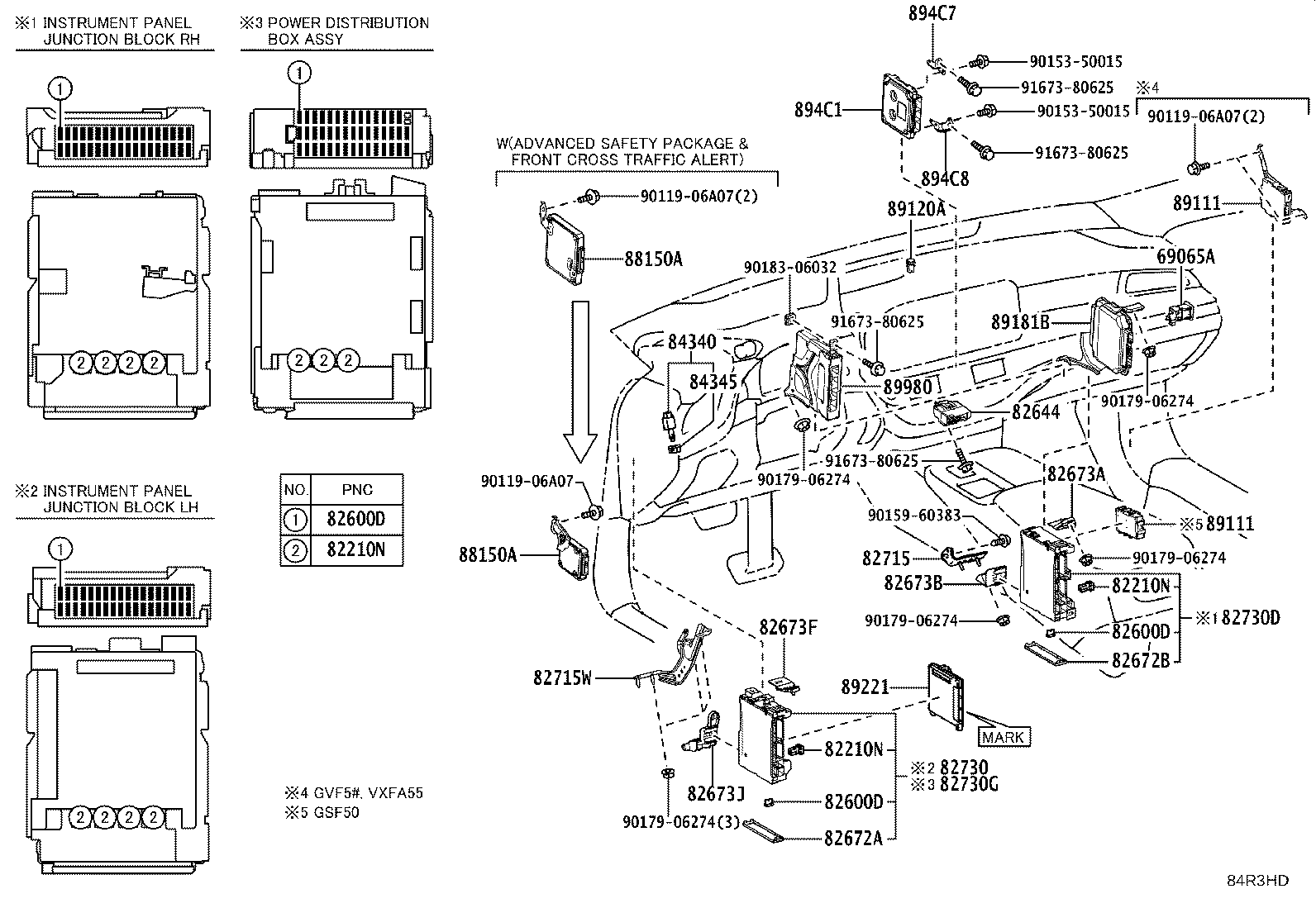

84R3HD 2023-10 → —

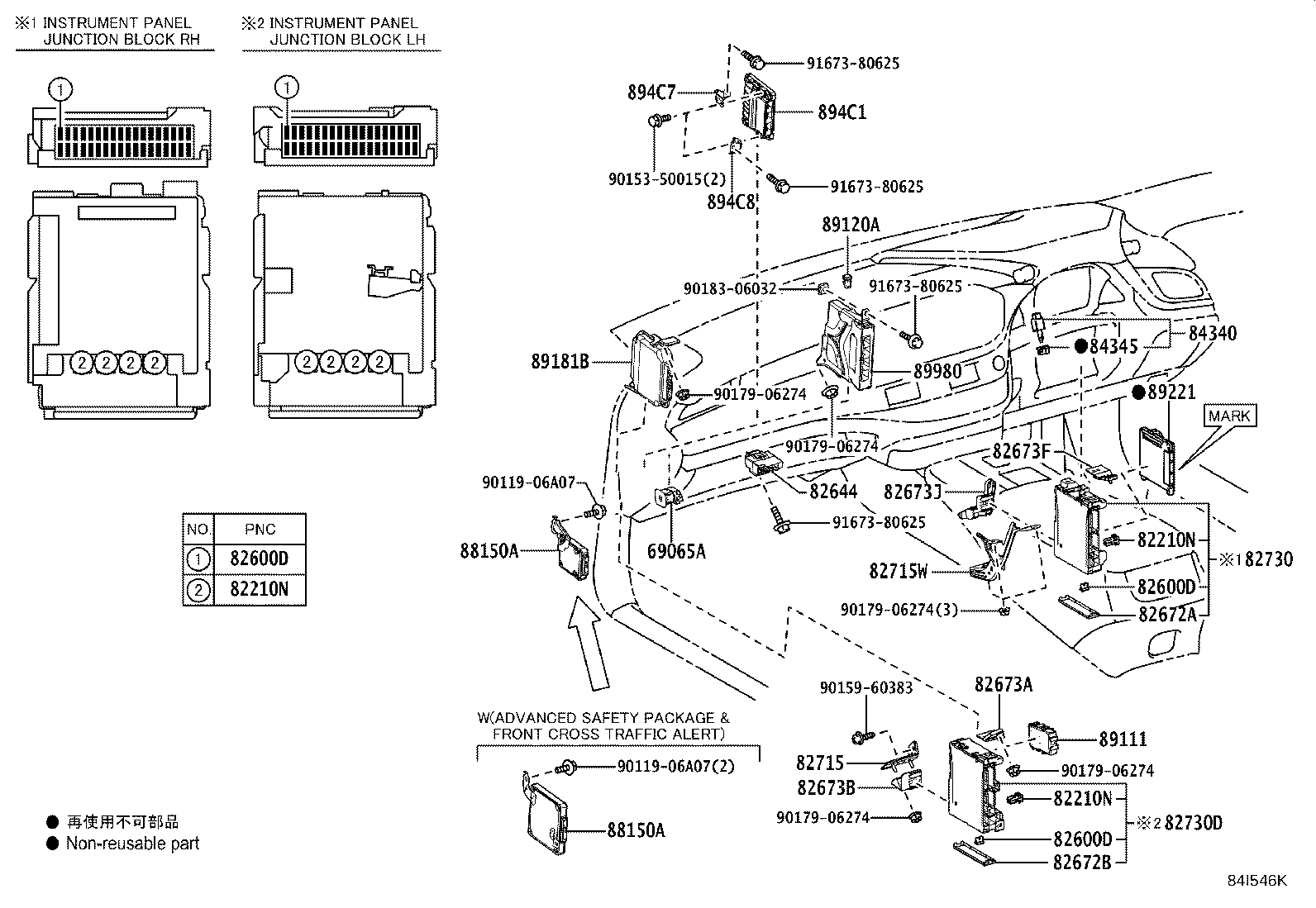

84I546K 2017-10 → 2023-10

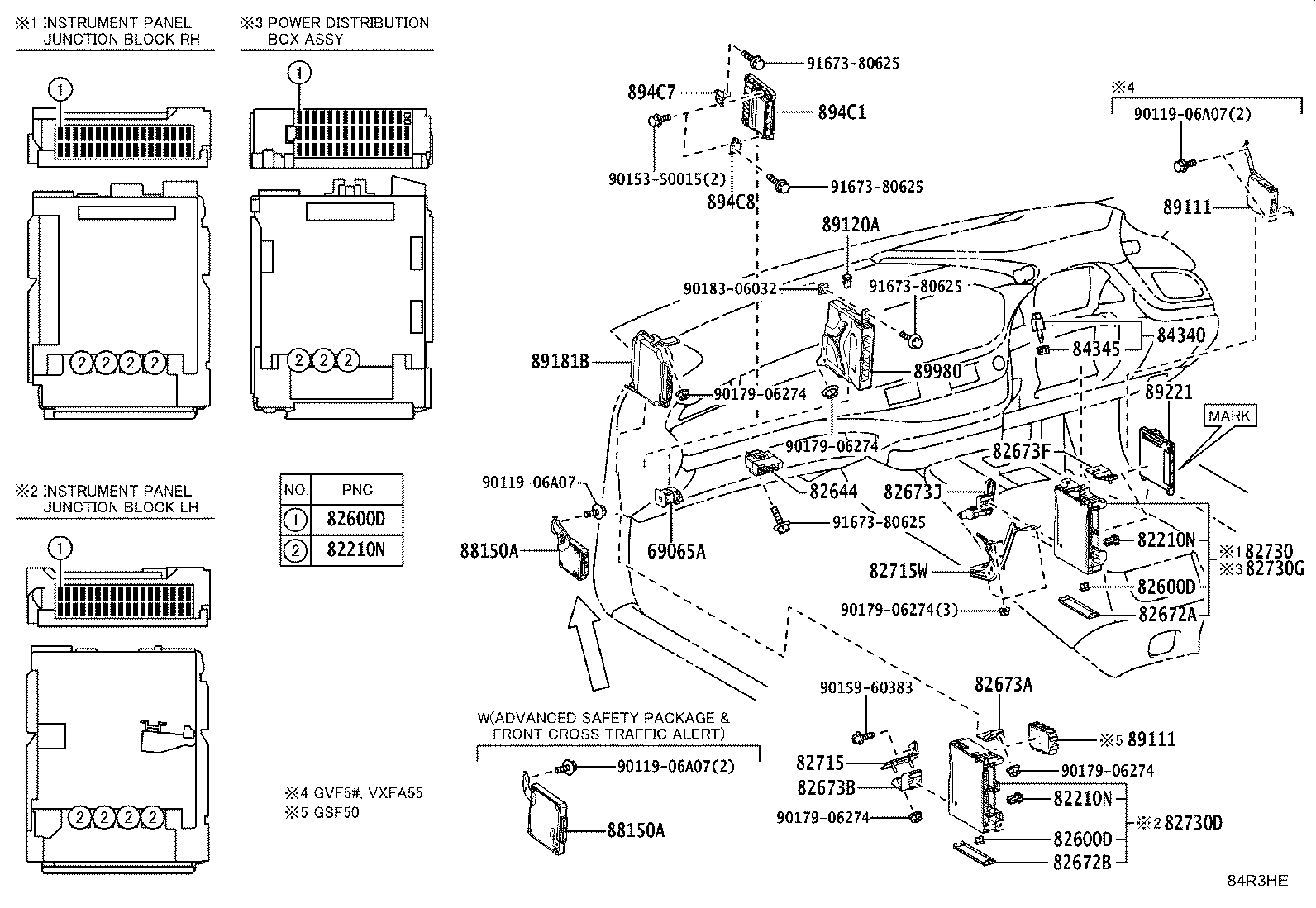

84R3HE 2023-10 → —

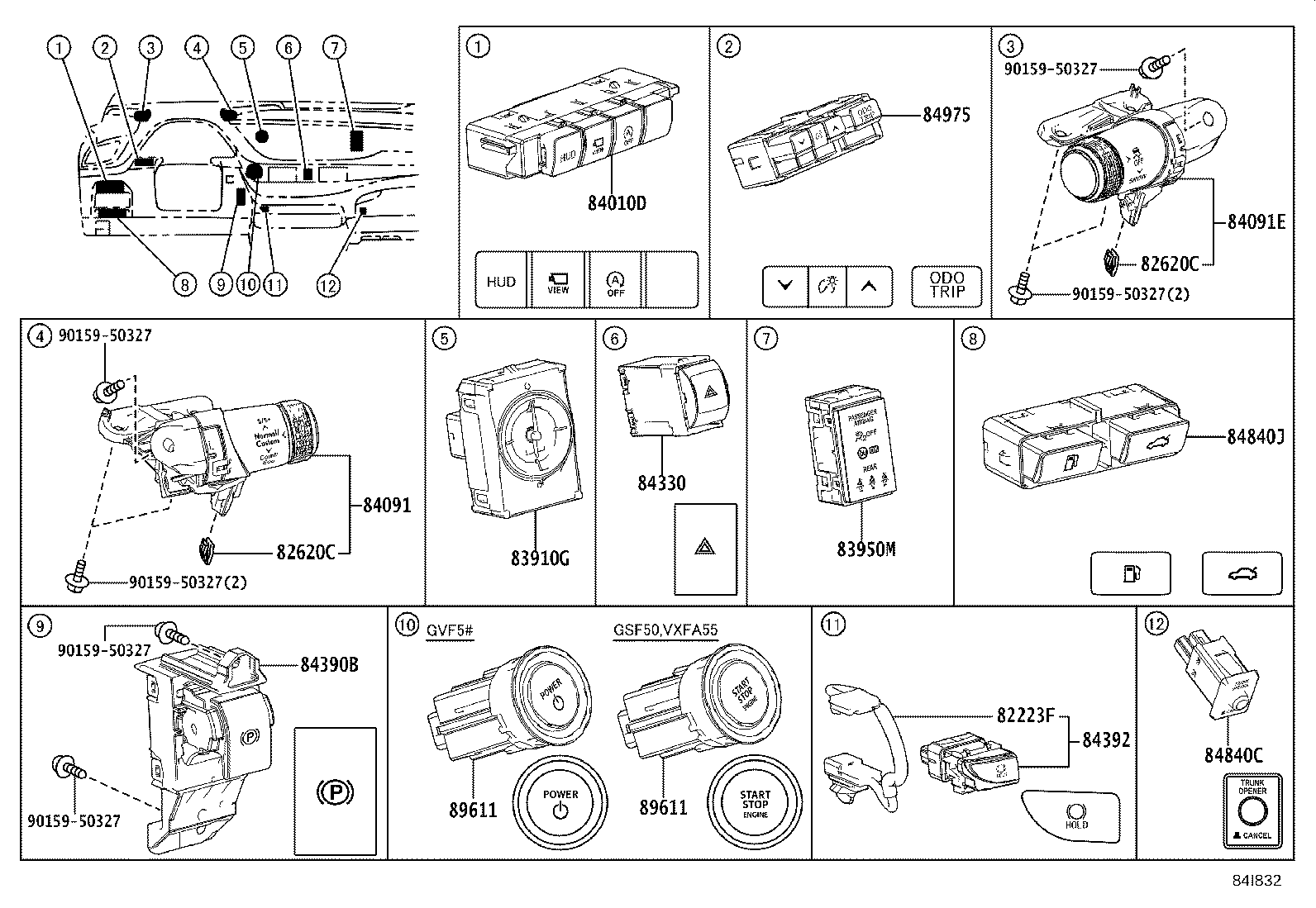

84I832 2017-10 → 2020-10

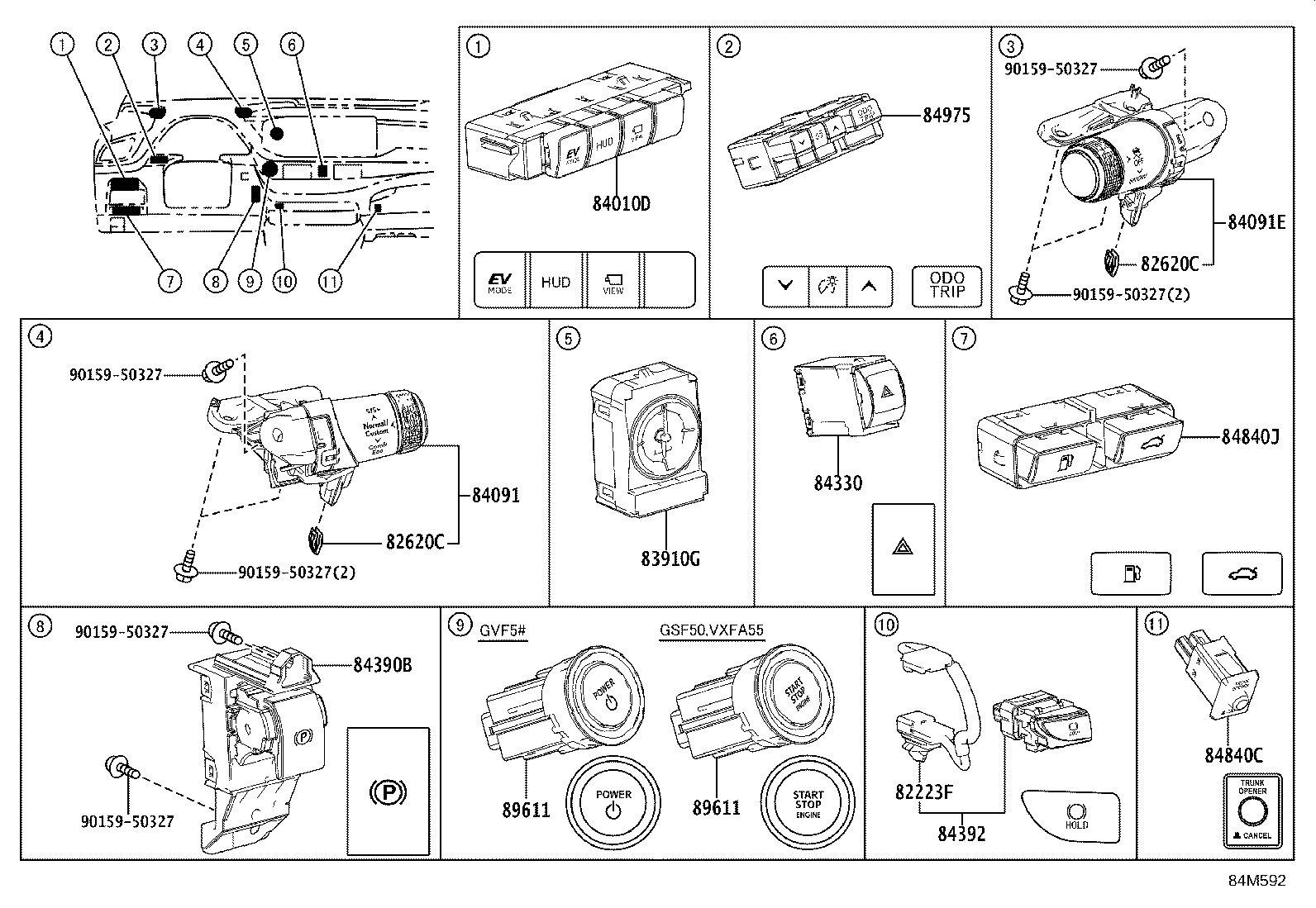

84M592 2020-11 → 2022-10

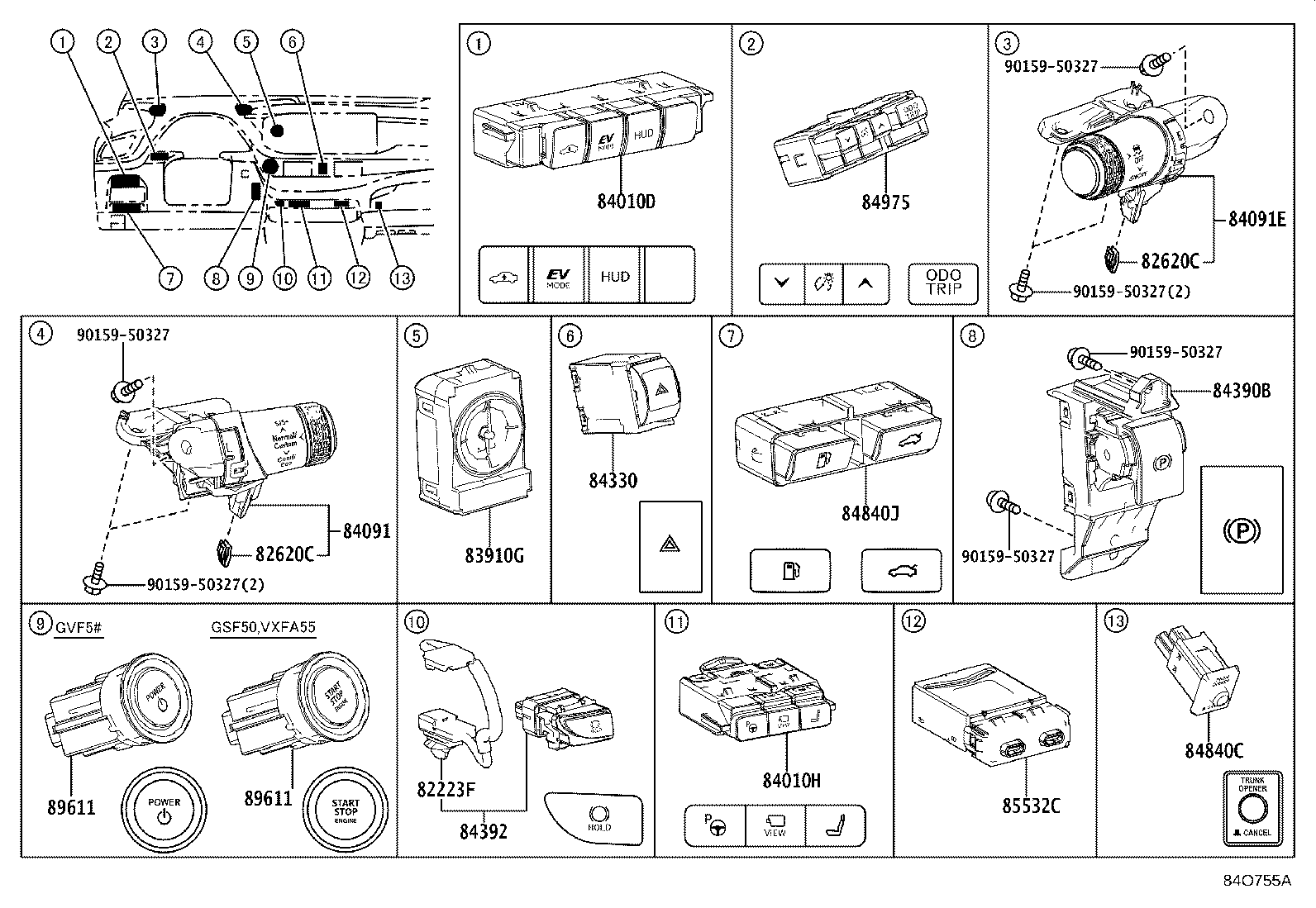

84O755A 2022-10 → —

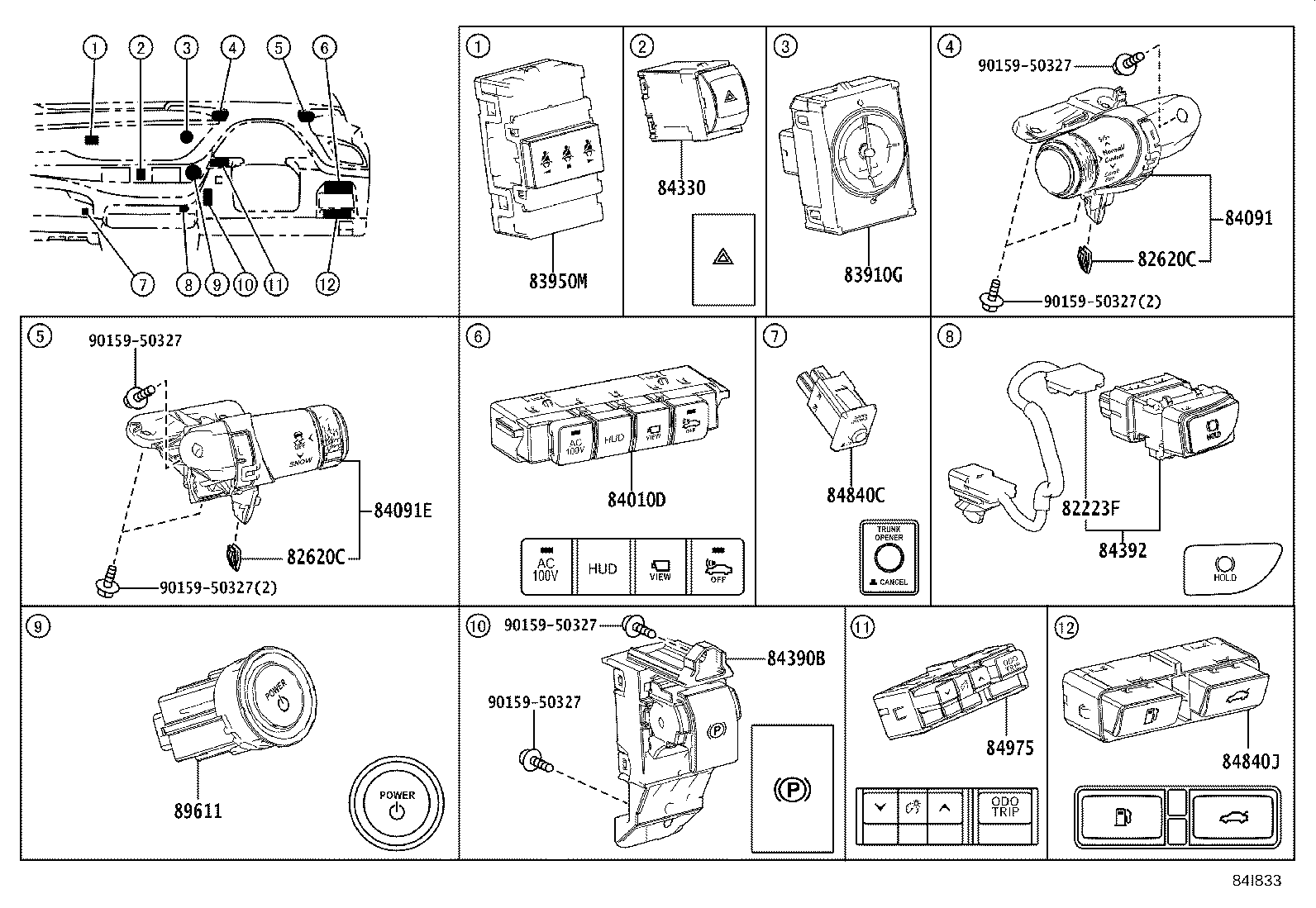

84I833 2017-10 → 2020-10

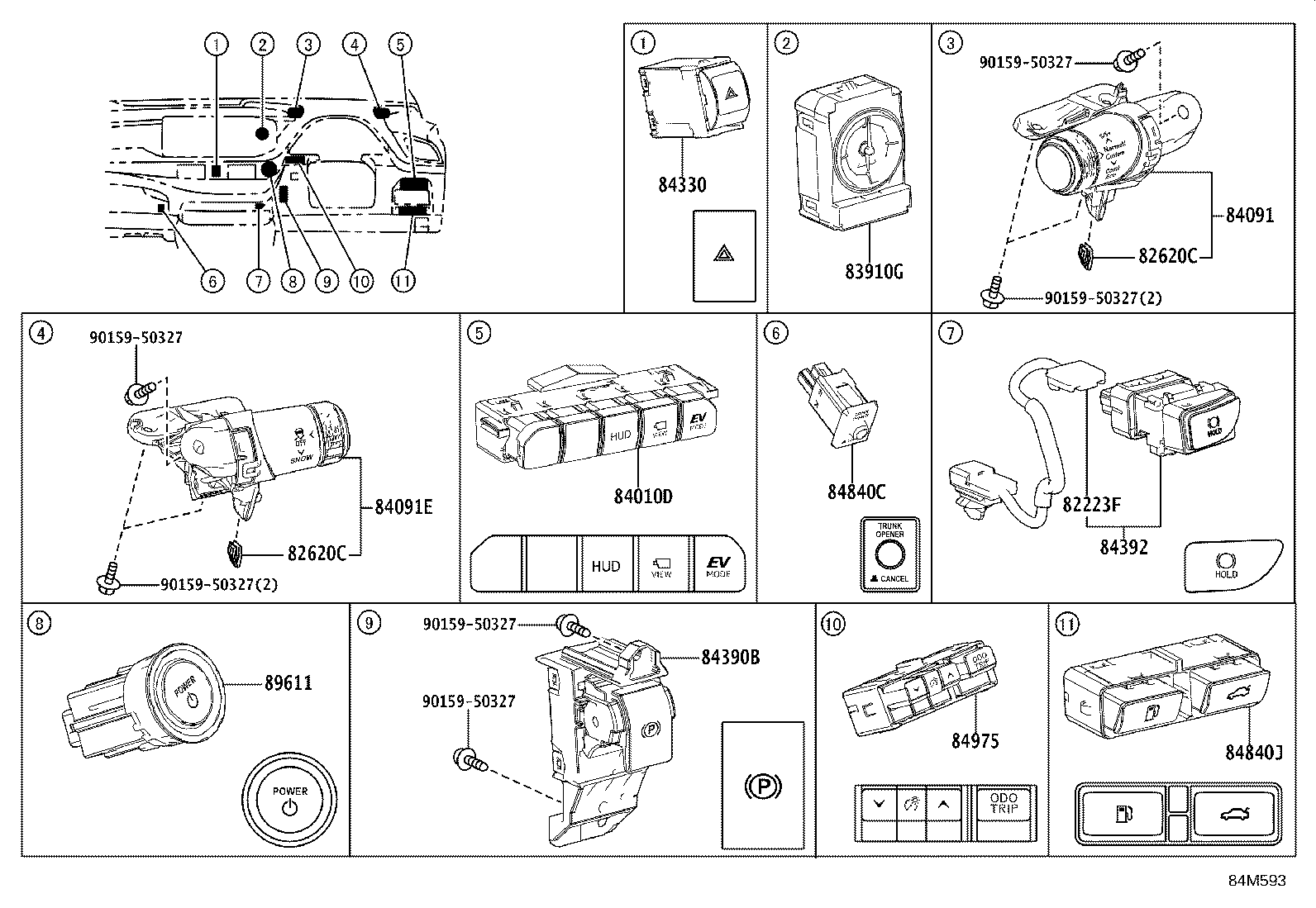

84M593 2020-11 → 2022-10

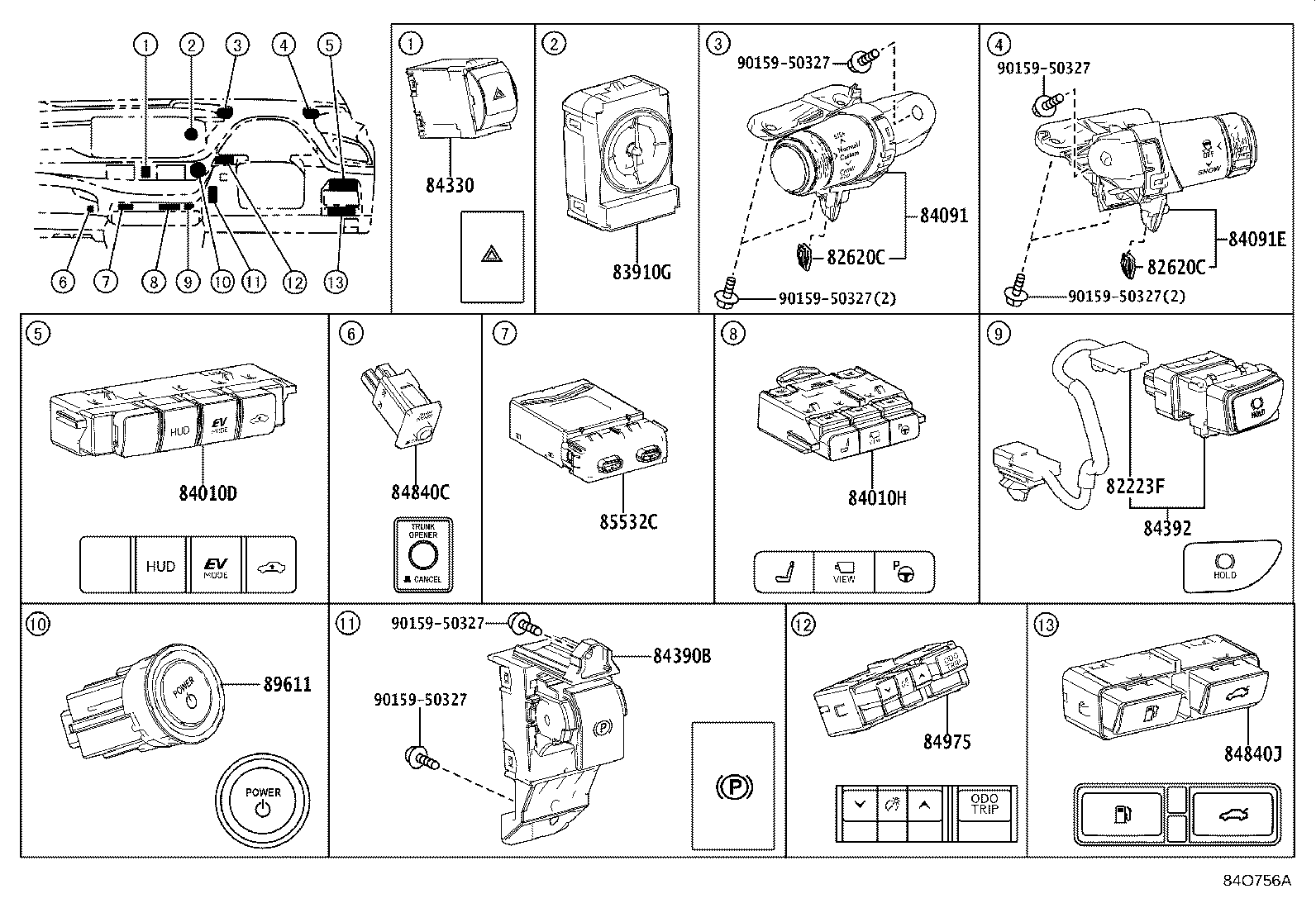

84O756A 2022-10 → —

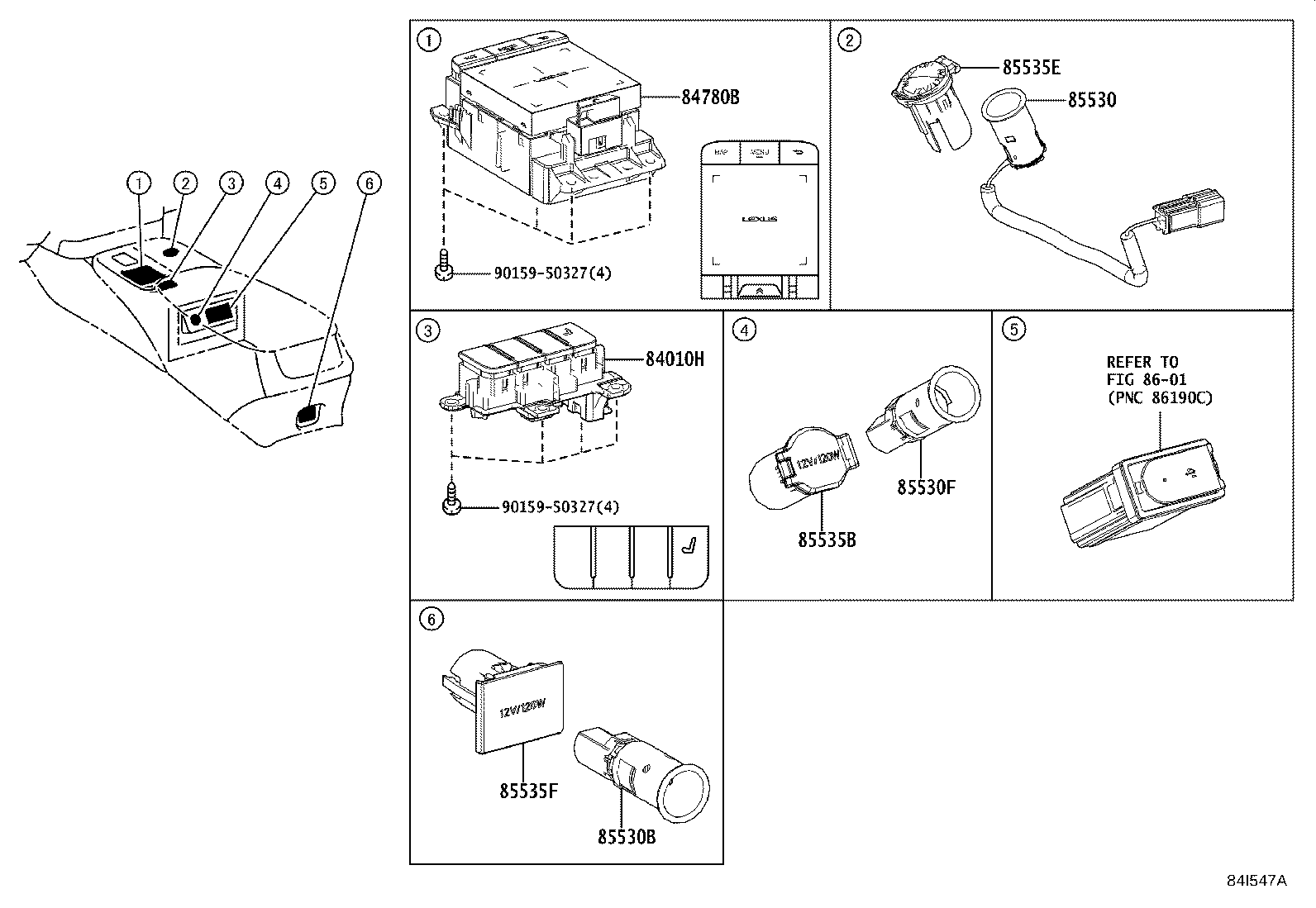

84I547A 2017-10 → 2022-10

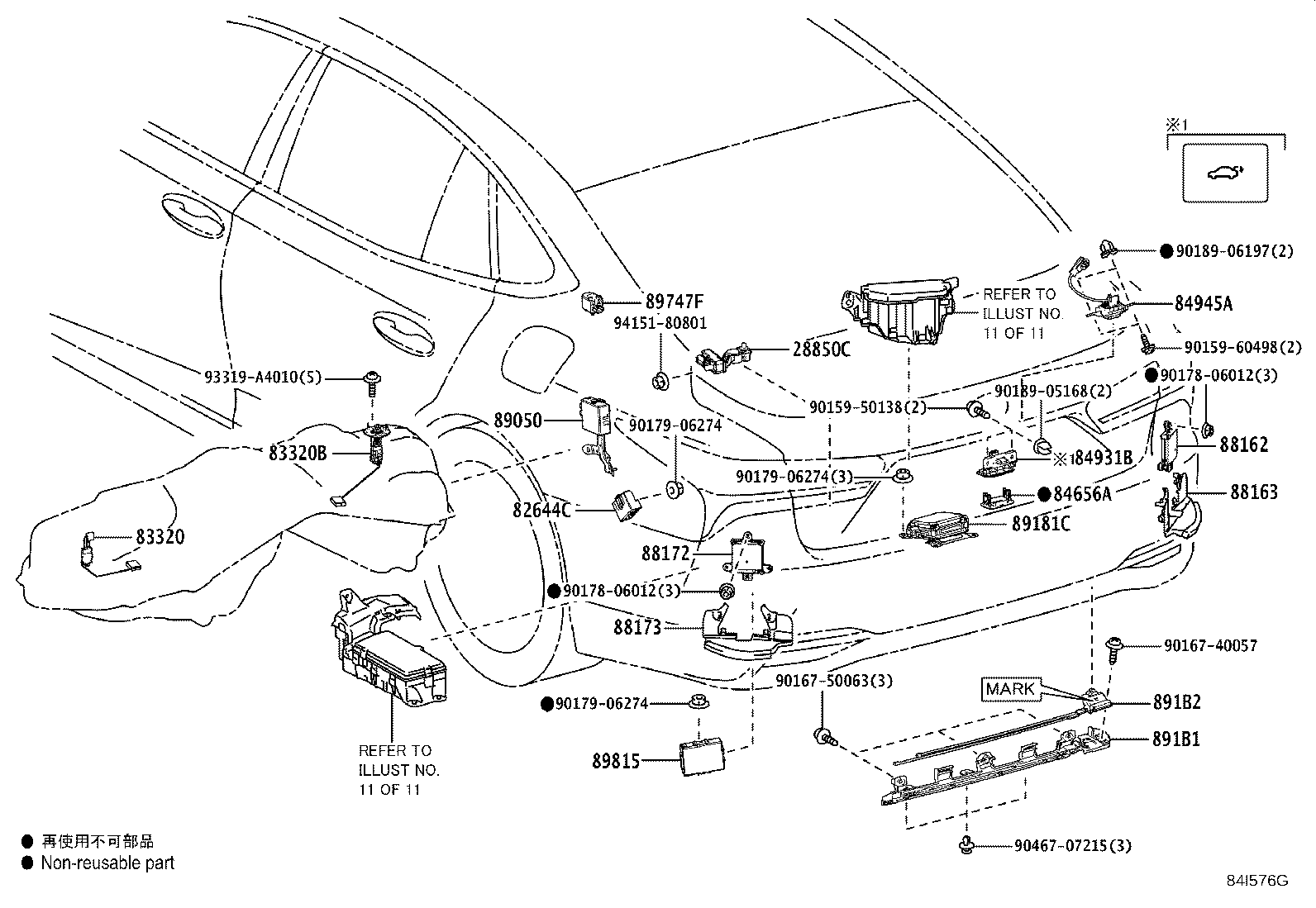

84I576G 2017-10 → 2023-10

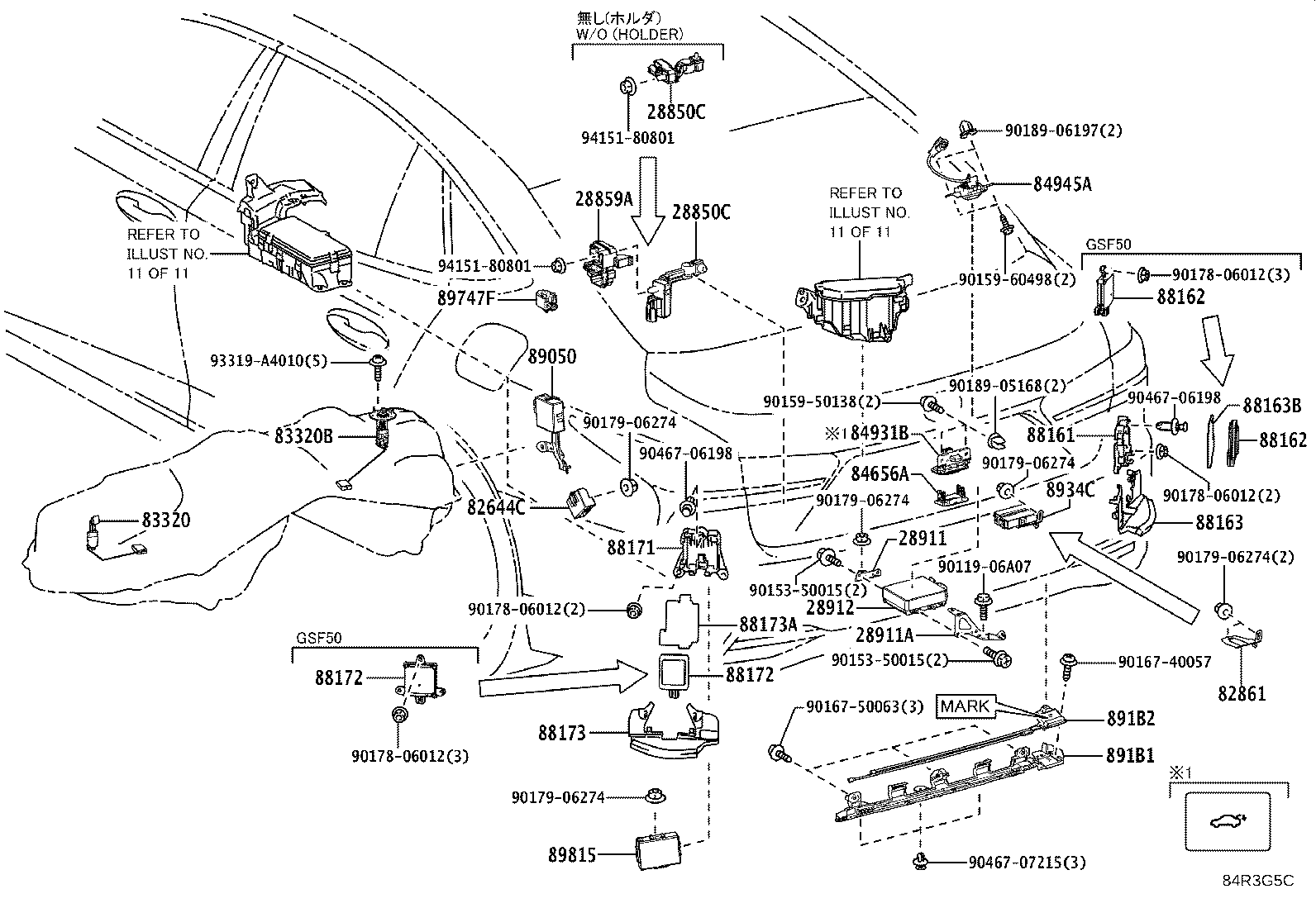

84R3G5C 2023-10 → —

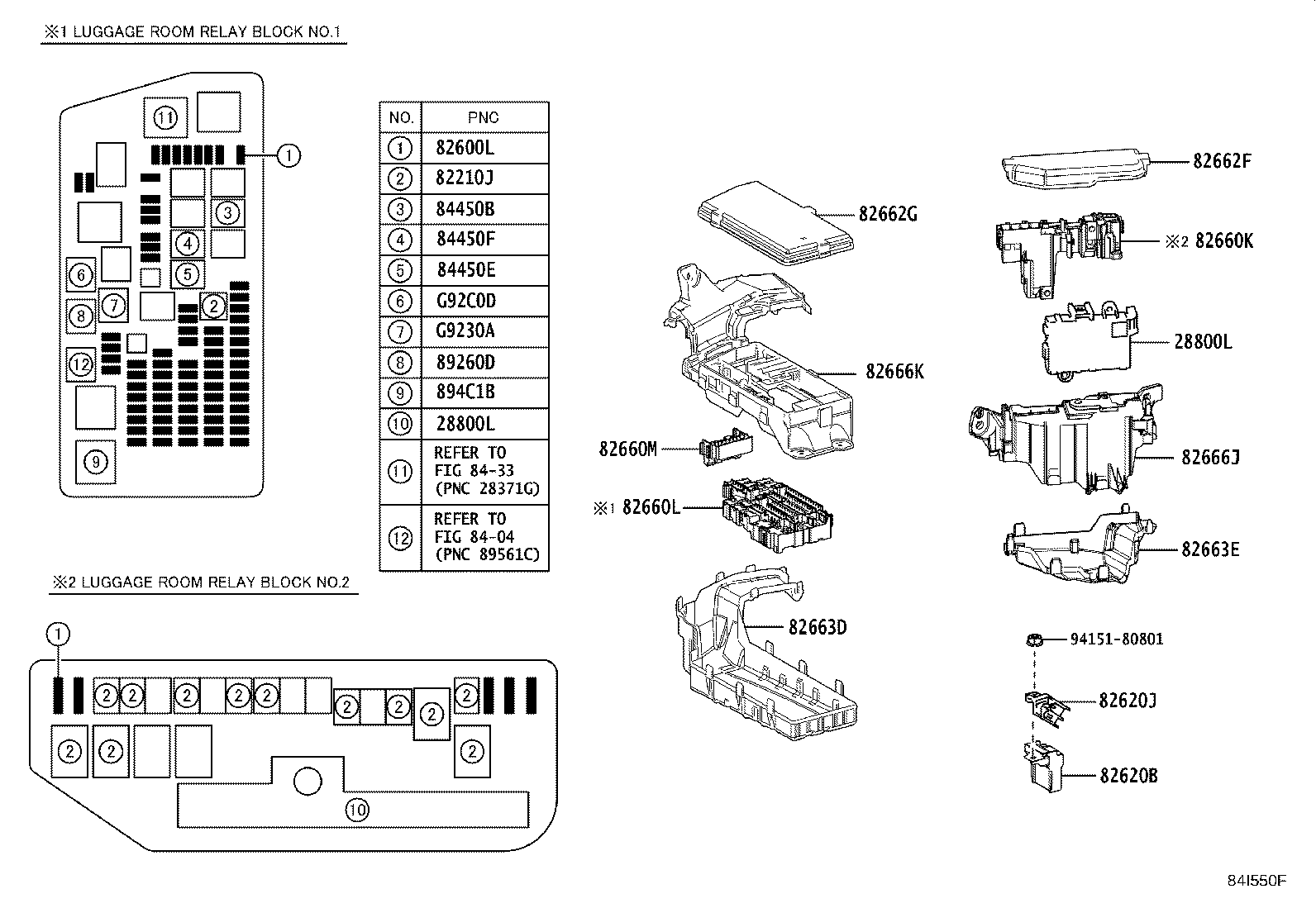

84I550F 2017-10 → 2019-09

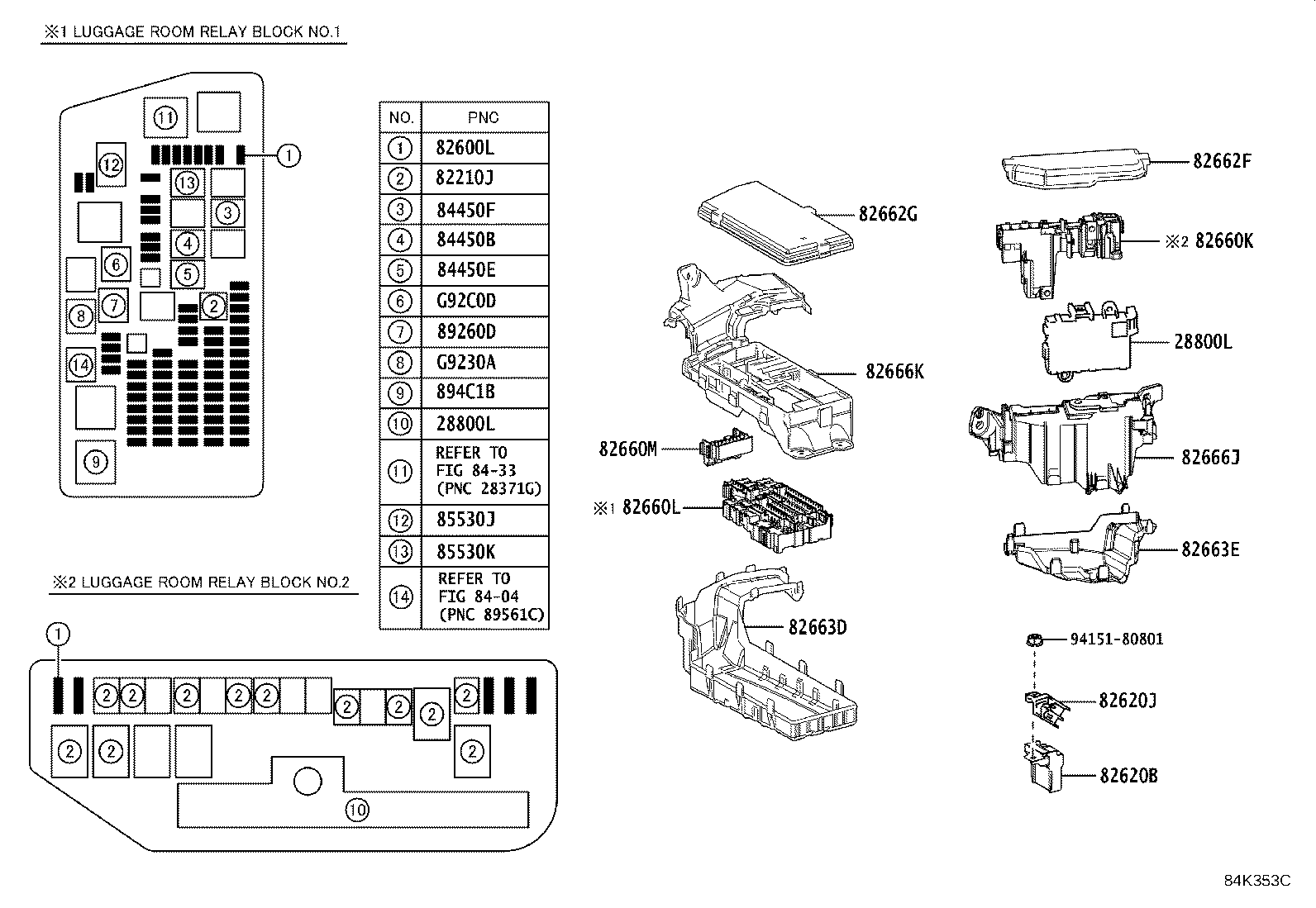

84K353C 2019-09 → 2020-10

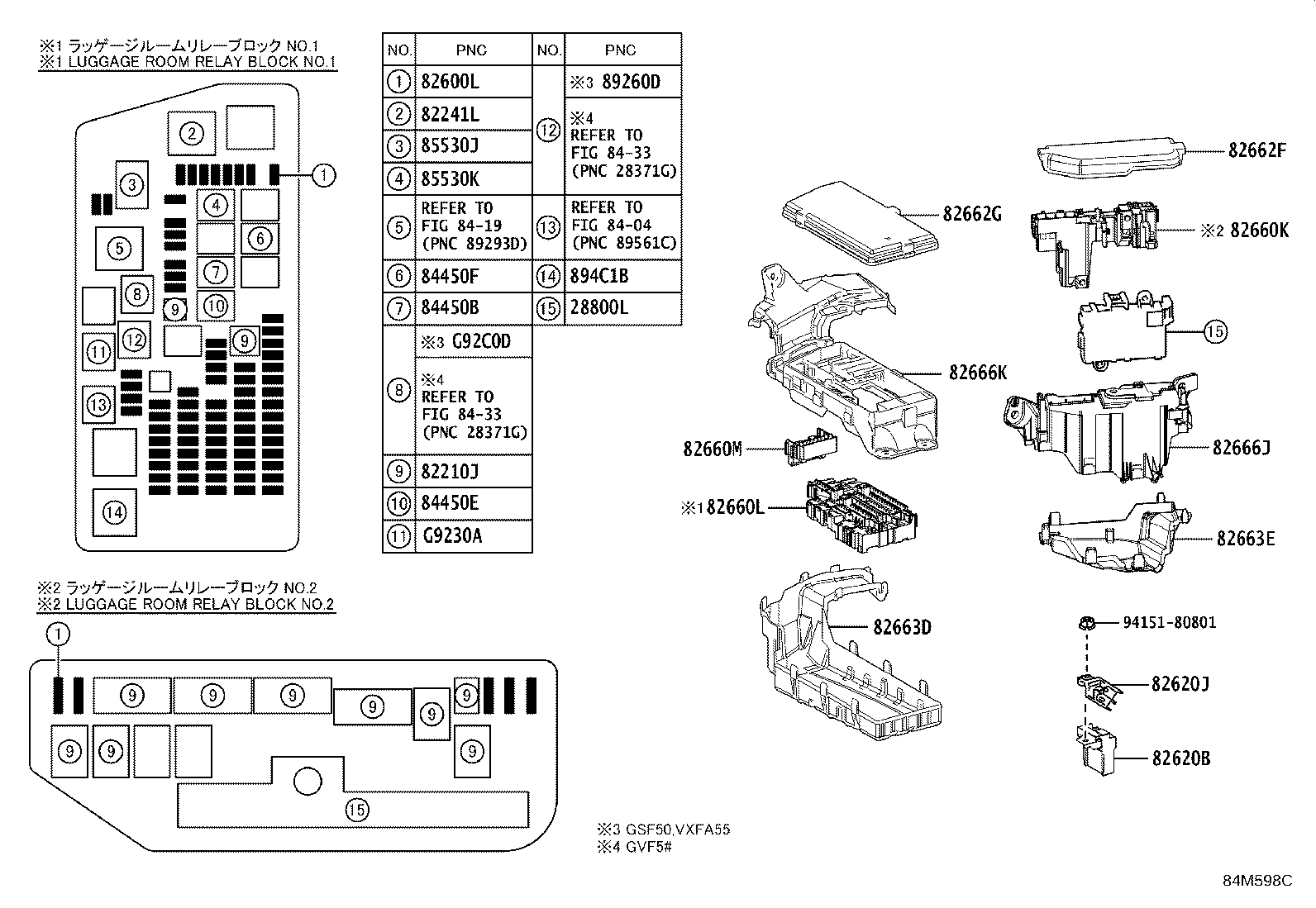

84M598D 2020-11 → —

Part groups

PNC	Description
28300E	Relay Assy, Starter, NO.1
28300F	Relay Assy, Starter, NO.2
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28371M	Relay, Igp, NO.2
28800L	Relay, Sub Battery
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
69065A	Cylinder Sub-assy, Airbag Cut Off Switch
82210J	Fusible Link
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82223F	Wire, Switch
82241L	Wire, Relay
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82616	Puller, Fuse
82620B	Block Assy, Fusible Link
82620C	Clip
82620D	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link
82620G	Block Assy, Fusible Link
82620J	Block Assy, Fusible Link
82644	Computer, Semiconductor Power Integration
82644A	Computer, Semiconductor Power Integration, NO.1
82644C	Computer, Semiconductor Power Integration, NO.3
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660G	Block Assy, Relay
82660H	Block Assy, Relay
82660J	Block Assy, Relay
82660K	Block Assy, Relay
82660L	Block Assy, Relay
82660M	Block Assy, Relay
82660N	Block Assy, Relay

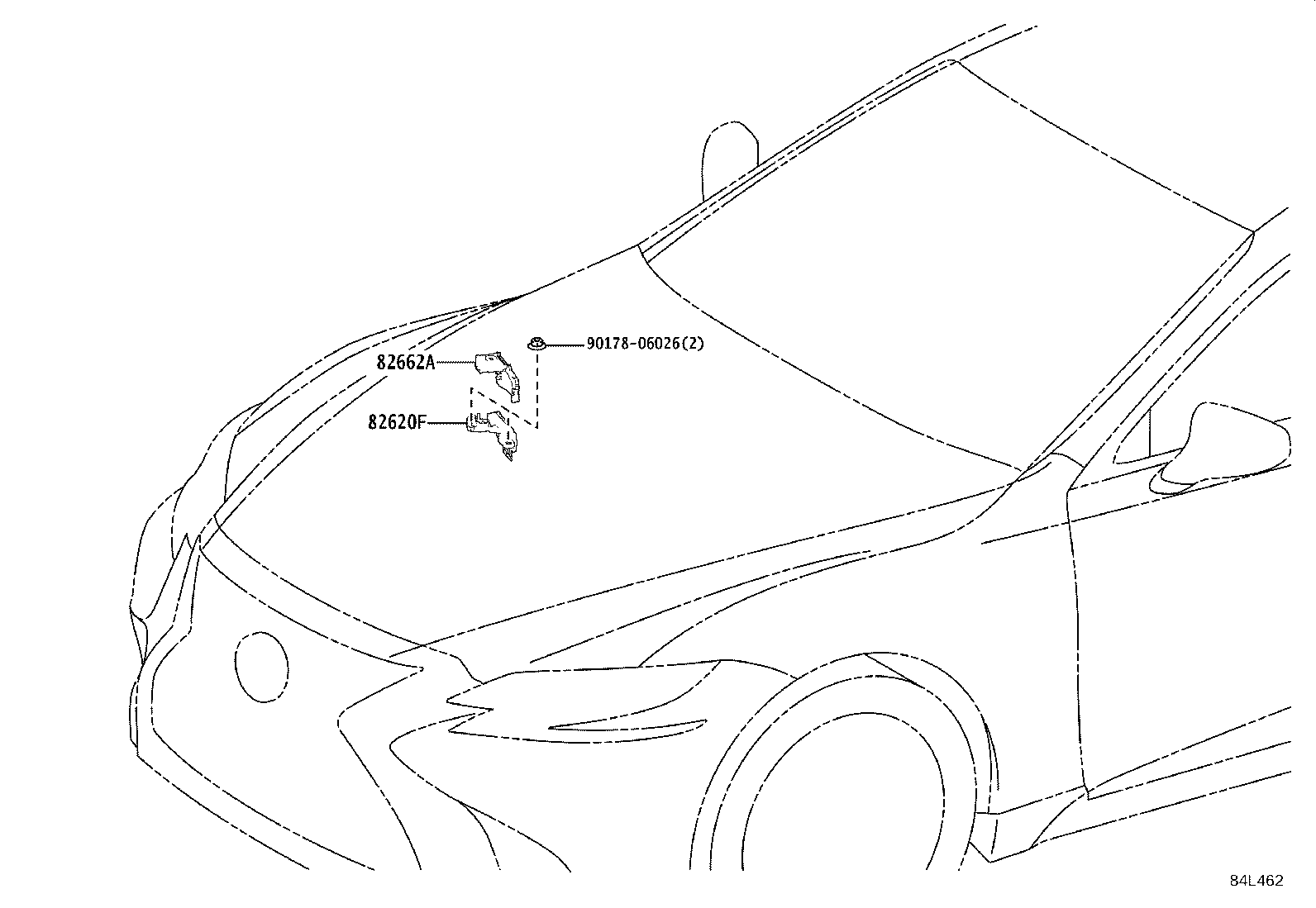

82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82662F	Cover, Relay Block, Upper, NO.8
82662G	Cover, Relay Block, Upper, NO.9
82662J	Cover, Relay Block, Upper, NO.5
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663D	Cover, Relay Block, Lower, NO.5
82663E	Cover, Relay Block, Lower, NO.7
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82666J	Holder, Connector, NO.3
82666K	Holder, Connector, NO.4
82668B	Holder, Connector, NO.5
82668D	Holder, Connector, NO.7
82672A	Cover, Junction Block
82672B	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673F	Bracket, Junction Block
82673J	Bracket, Junction Block
82715	Bracket,Wiring Harness Clamp
82715W	Bracket, Wiring Harness Clamp
82730	Block Assy, Instrument Panel Junction
82730D	Block Assy, Passenger Side Junction
82730G	Box Assy, Power Distribution
82861	Bracket, Computer Integration, NO.1
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83520	Gage Assy,Oil Pressure Sender

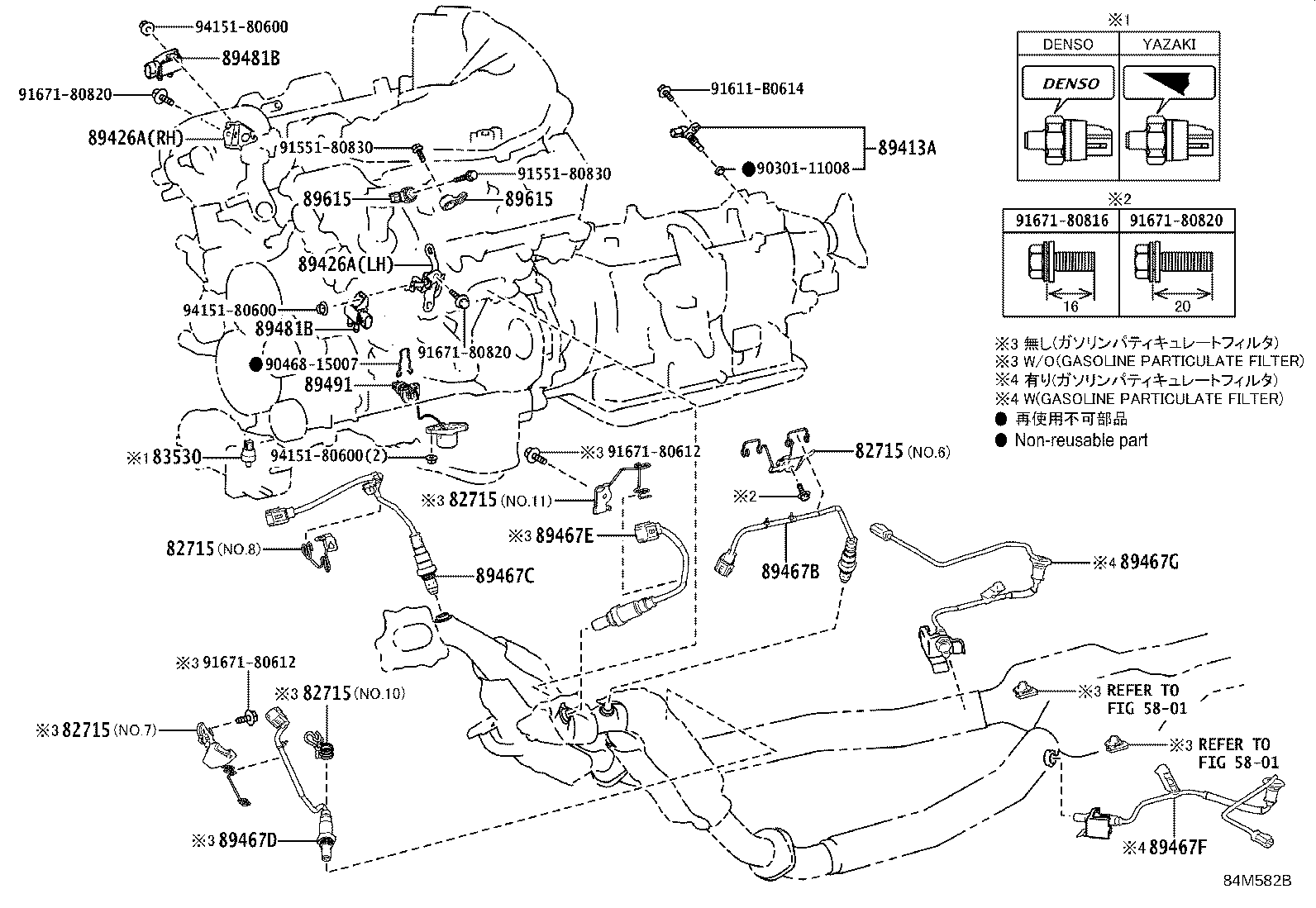

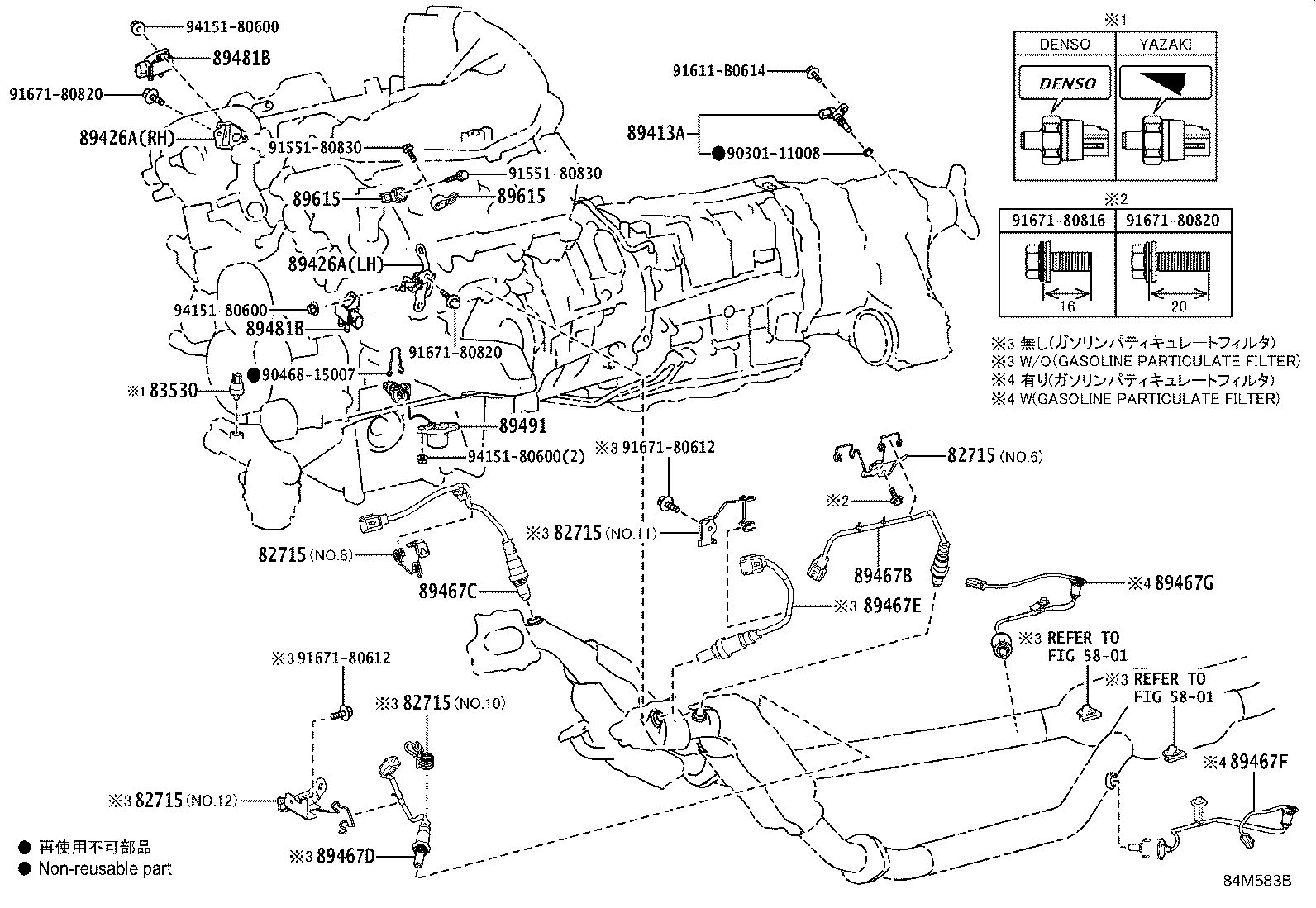

83530	Switch Assy, Oil Pressure (FOR ENGINE)
83910G	Clock Assy
83950M	Lamp Assy, Telltale
84010D	Control & Panel Assy, Integration
84010H	Control & Panel Assy, Integration

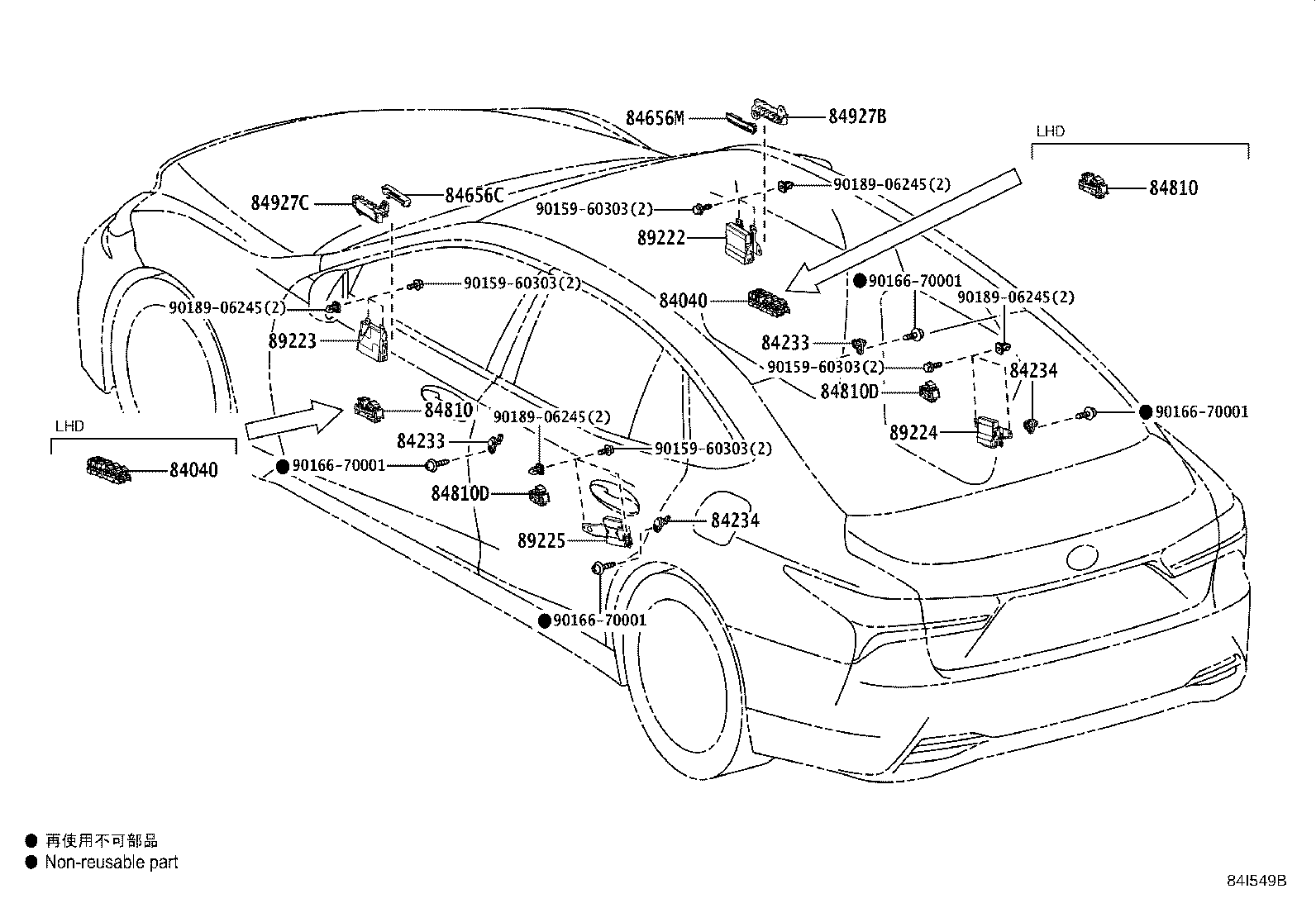

84040	Master Switch Assy,Multiplex Network
84091	Switch Set, Satellite
84091E	Switch Set, Satellite NO.2
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad

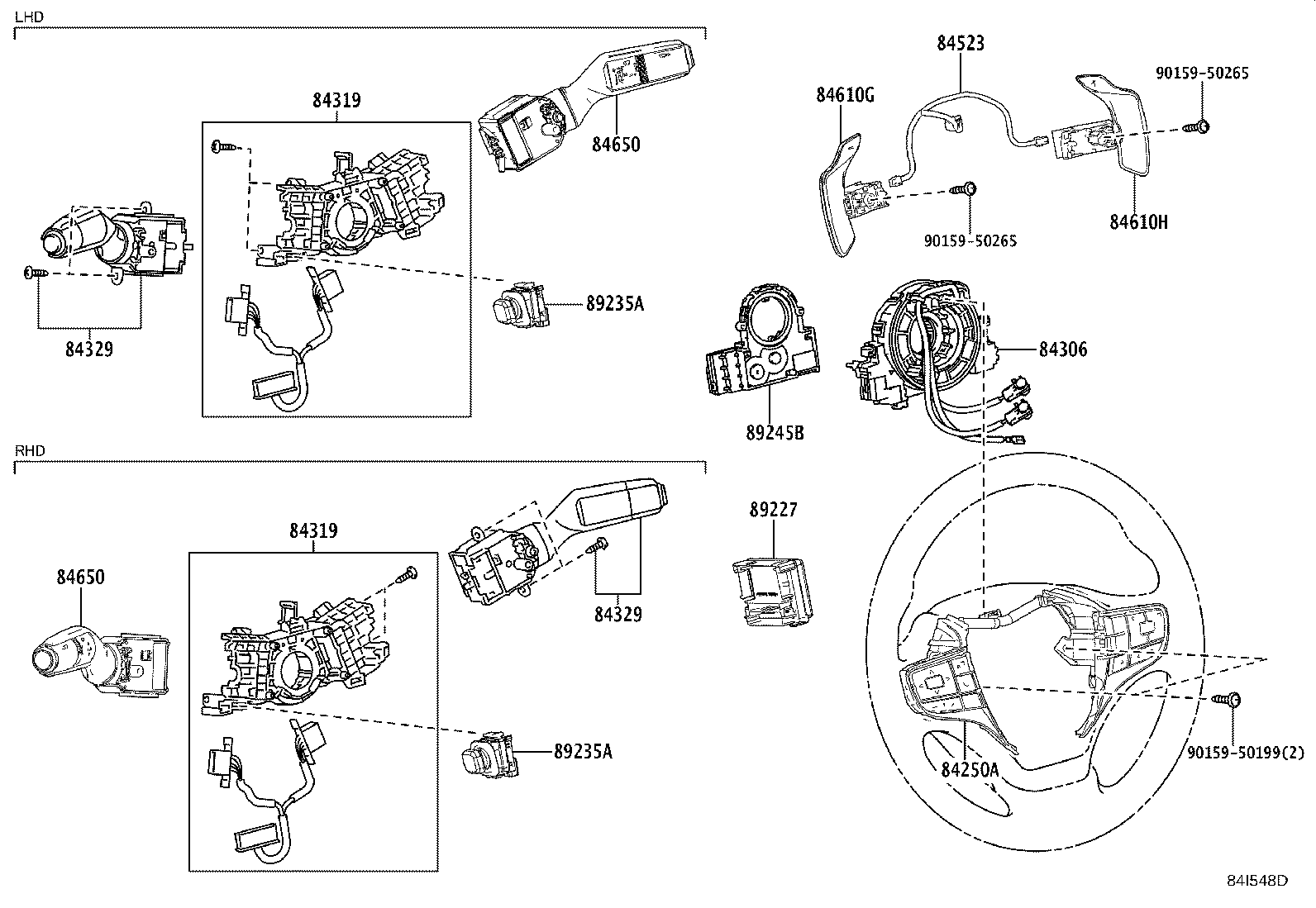

84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84390B	Switch Assy, Electric Parking Brake
84392	Switch, Brake Hold
84450B	Relay, Luggage Accessory
84450E	Relay, Luggage Ignition 1, NO.1
84450F	Relay, Luggage Ignition 1, NO.2
84523	Wire, Switch NO.1
84610G	Switch Assy, Transmission Shift, NO.1
84610H	Switch Assy, Transmission Shift, NO.2
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84656C	Bezel, Switch NO.2
84656D	Cover, Bezel Switch Hole
84656G	Cover, Bezel Switch Hole
84656M	Bezel, Switch

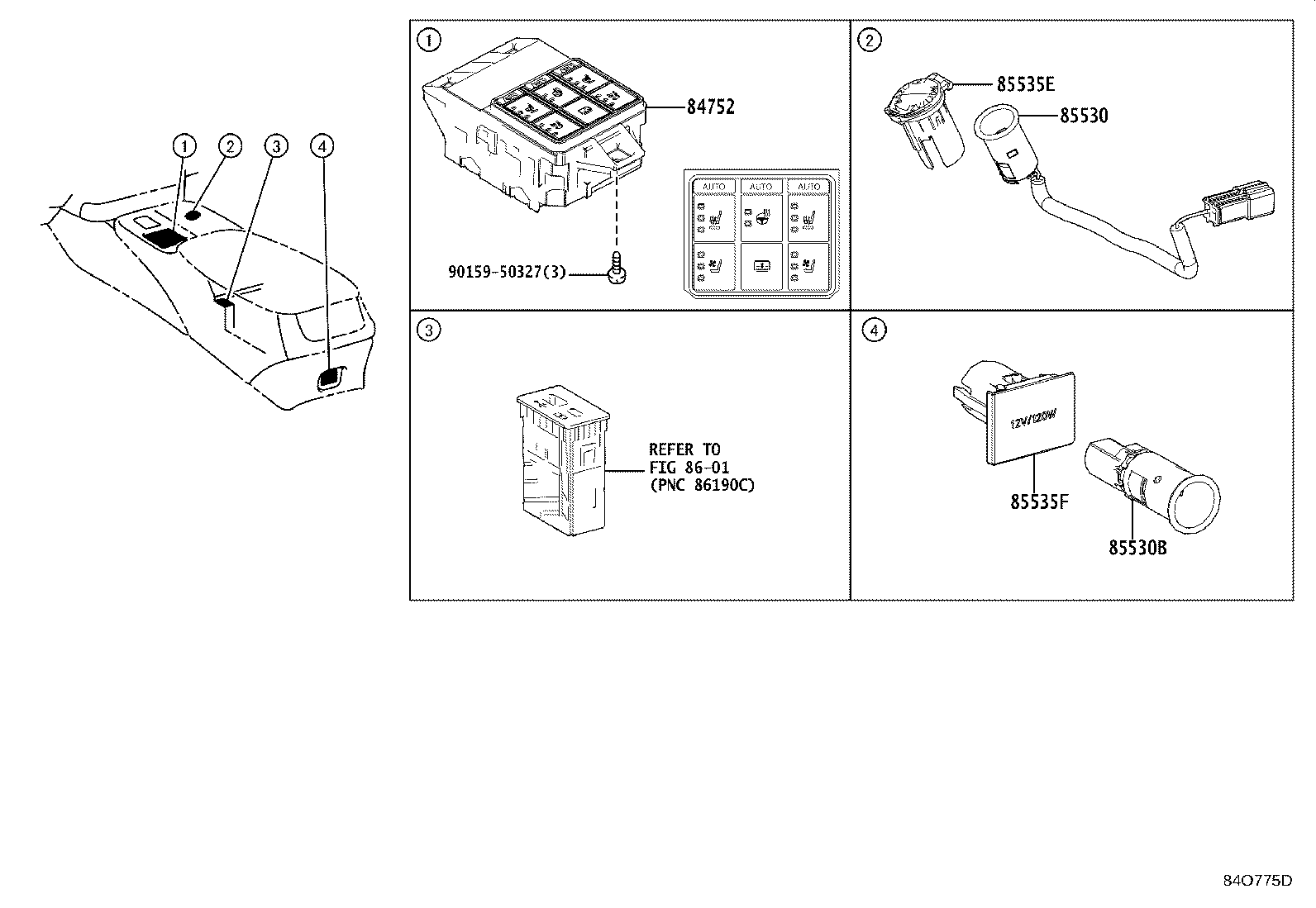

84752	Switch, Refreshing Seat
84780B	Controller Assy, Remote Operation
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840C	Switch Assy, Luggage Door Opening, Cancel
84840J	Switch Assy, Trunk & Fuel

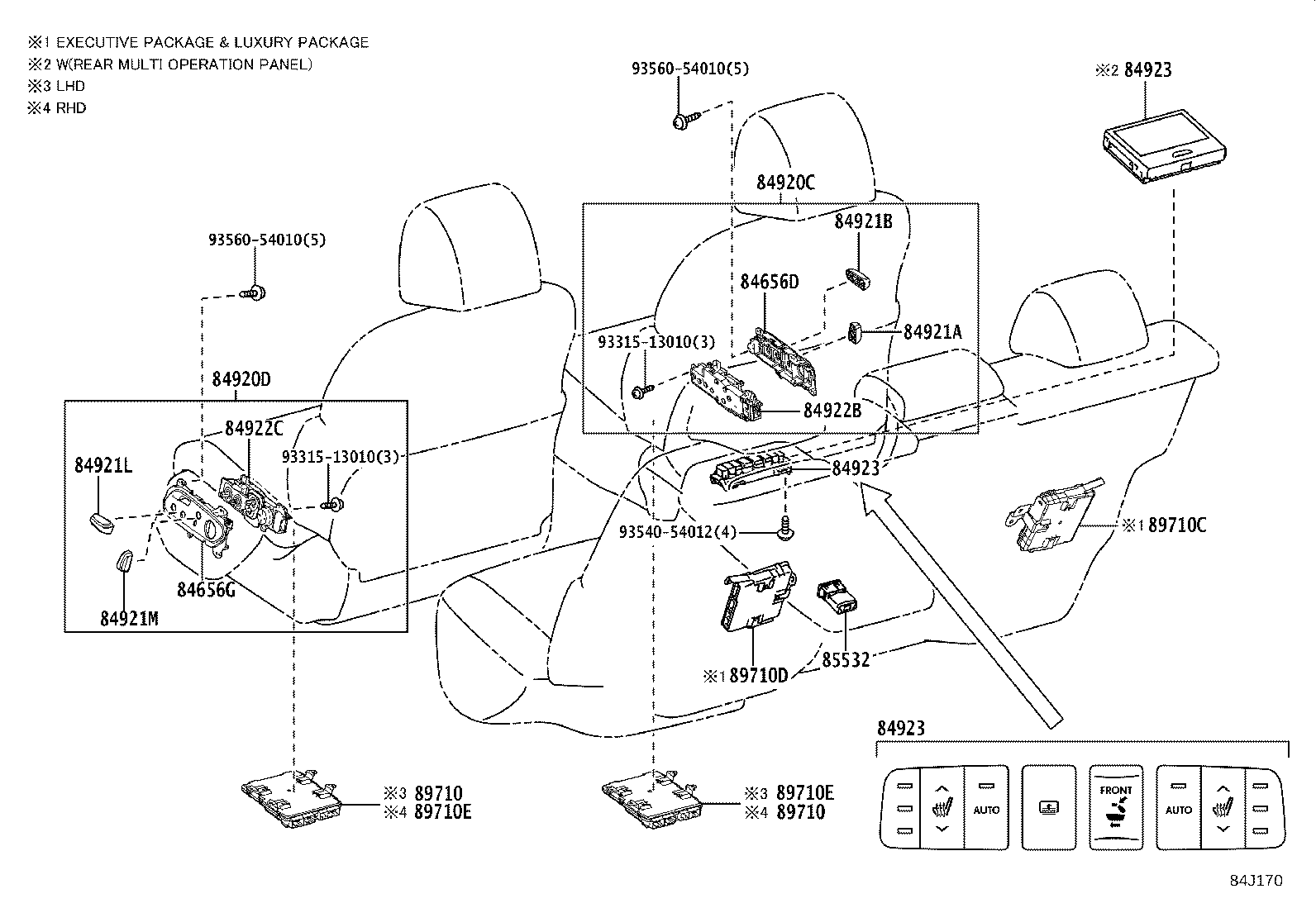

84920C	Switch Assy, Power Seat Front, RH
84920D	Switch Assy, Power Seat Front, LH
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84921L	Knob, Power Seat Switch(FOR SLIDE & VERTICAL), NO.2
84921M	Knob, Power Seat Switch(FOR RECLINING), NO.2
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84923	Switch, Rear Power Seat
84927B	Switch, Seat Memory, RH
84927C	Switch, Seat Memory, LH
84931B	Switch, Door Control
84945A	Switch, Luggage Electrical Key
84975	Switch, Trip
85530	Socket Assy, Power Outlet, NO.1
85530B	Socket Assy, Power Outlet, Rear NO.1
85530F	Socket Assy, Power Outlet, Rear NO.2
85530J	Relay, Power Outlet Socket, NO.3
85530K	Relay, Power Outlet Socket, NO.4
85532	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85535F	Cover, Power Outlet Socket, Rear
85912S	Relay, IR
85940	Relay Assy, Windshield Wiper
85942	Relay, Headlamp Cleaner Control
85942C	Relay, Camera Cleaner
86530	Relay Assy, Horn
88150A	Computer Assy, Driving Support
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88163	Cover, Blind Spot Monitor, RH
88163B	Cover, Blind Spot Monitor, RH, NO.2
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
88173	Cover, Blind Spot Monitor, LH
88173A	Cover, Blind Spot Monitor, LH, NO.2
89050	Computer Assy, Parking Brake
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89181B	Computer, Steering Control, FR
89181C	Computer, Steering Control, RR
891B1	Bracket, Kick Door Control
891B2	Sensor, Kick Door Control
89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89260D	Relay, Engine Stop & Start System Dome Cut
8934C	Circuit, Second Power Supply Remote Parking
89413A	Sensor, Transmission Revolution
89426A	Bracket, Vacuum Sensor
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89467D	Sensor, Air Fuel Ratio, NO.3
89467E	Sensor, Air Fuel Ratio, NO.4
89467F	Sensor, Air Fuel Ratio, NO.5
89467G	Sensor, Air Fuel Ratio, NO.6
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
894C1	Computer, Shift Control
894C1A	Relay, Parking Control Motor, NO.1
894C1B	Relay, Parking Control Motor, NO.2
894C7	Bracket, Shift Control Computer, NO.1
894C8	Bracket, Shift Control Computer, NO.2
89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89710C	Computer Assy, Position Control, RH
89710D	Computer Assy, Position Control, LH
89710E	Computer Assy, Position Control, NO.2
89747F	Buzzer, Blind Spot Monitor
89815	Computer, Seat Belt Control
89870E	Relay, Electronic Driver Unit
89980	Computer Assy, Hybrid Vehicle Control
G9020E	Relay, Hybrid Water Pump
G9230A	Relay, Battery Fan, NO.1
G92C0C	Relay, Back-up Boost Converter
G92C0D	Relay, Back-up Boost Converter Ignition, NO.1
