Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

19 part groups · 3 illustrations

Illustrations

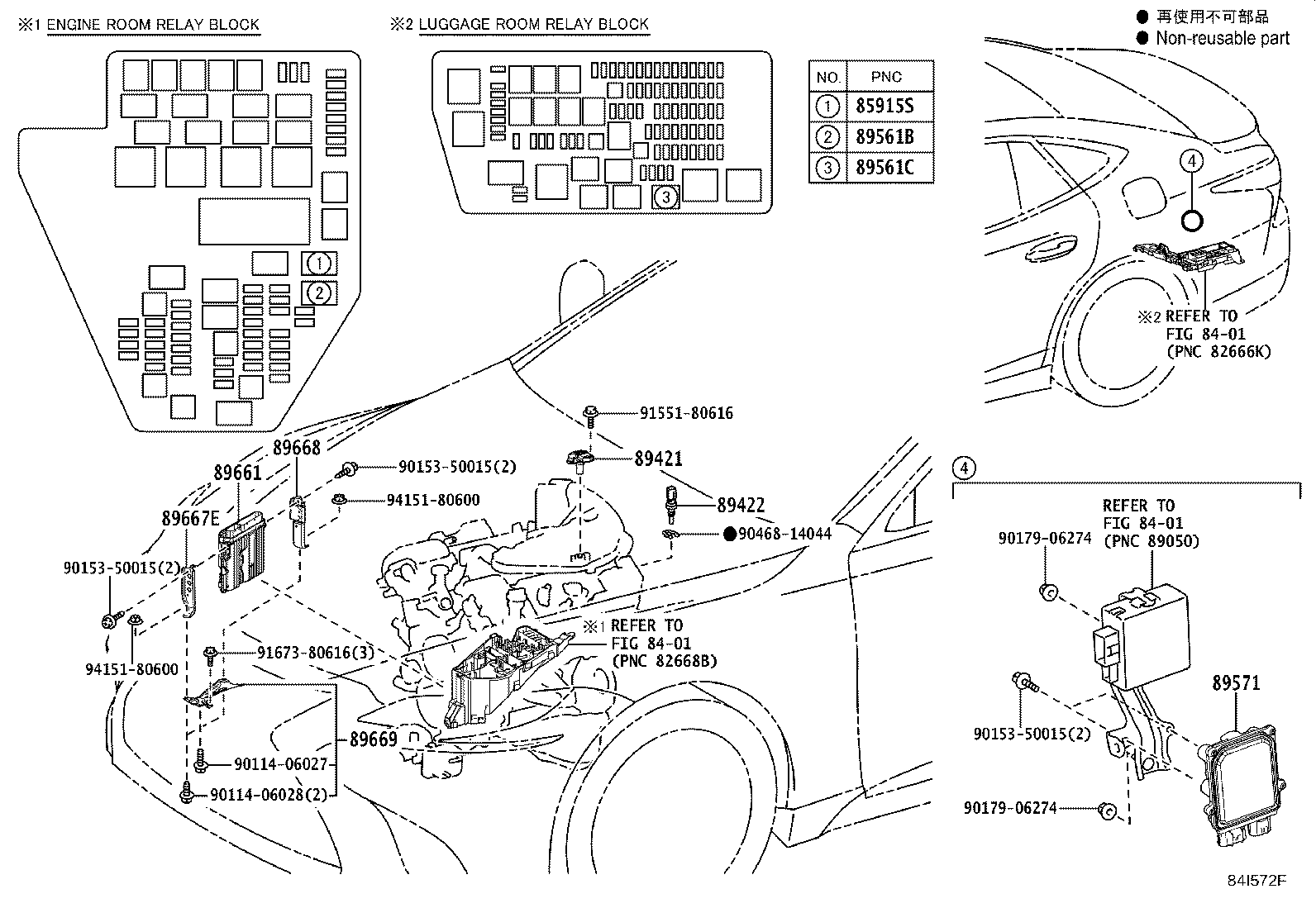

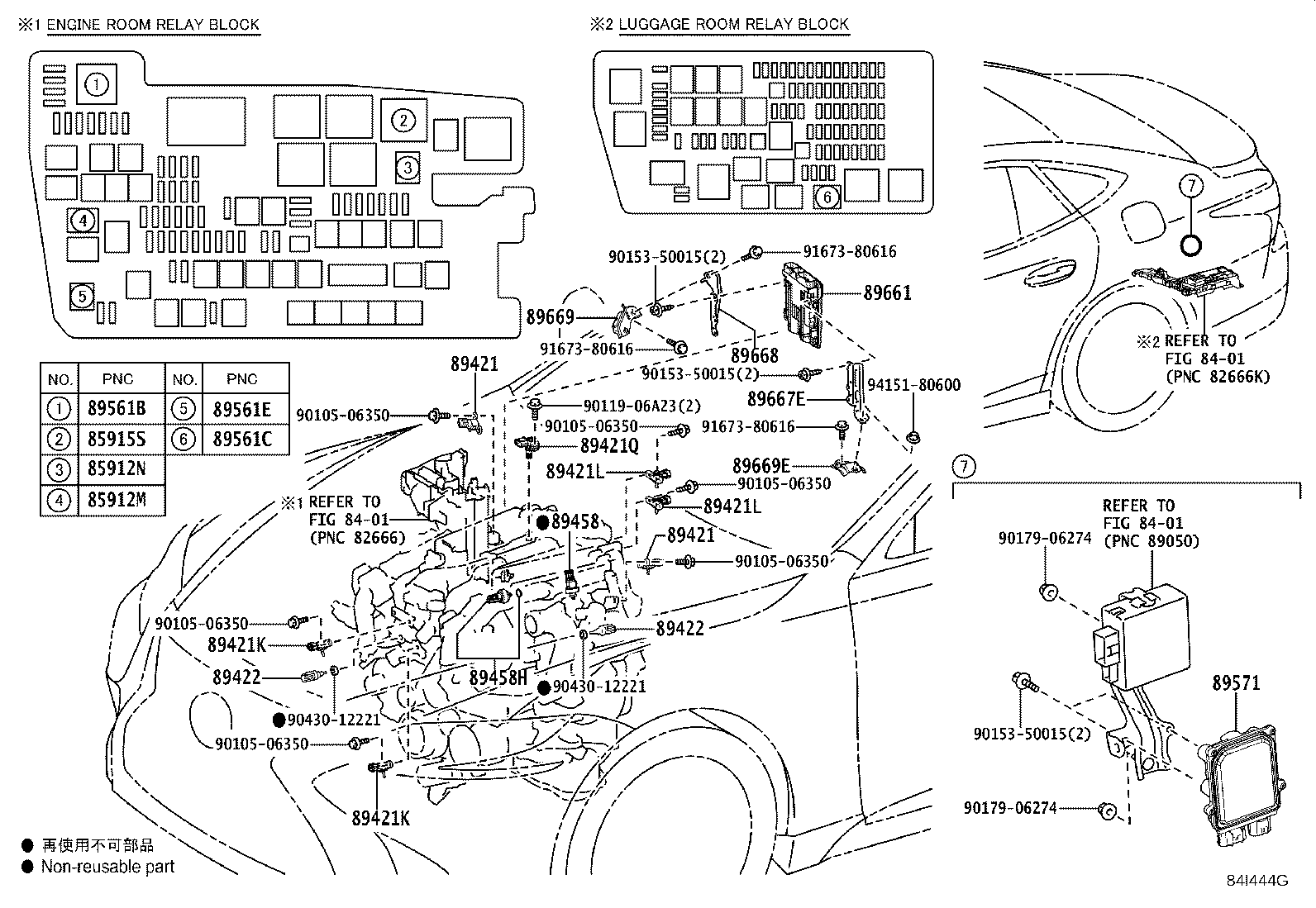

Figure 84I446G 84I446G 2017-10 → — Figure 84I572F 84I572F 2017-10 → — Figure 84I444G 84I444G 2017-10 → —

Part groups

PNCDescription
85912M Relay, Vvt, NO.1
85912N Relay, Vvt, NO.2
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89421Q Sensor, Turbo Pressure, NO.3
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89561E Relay, Electronic Fuel Injection Main, NO.3
89571 Computer, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89669E Bracket, Engine Control Computer, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
