Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

5 part groups · 2 illustrations

Illustrations

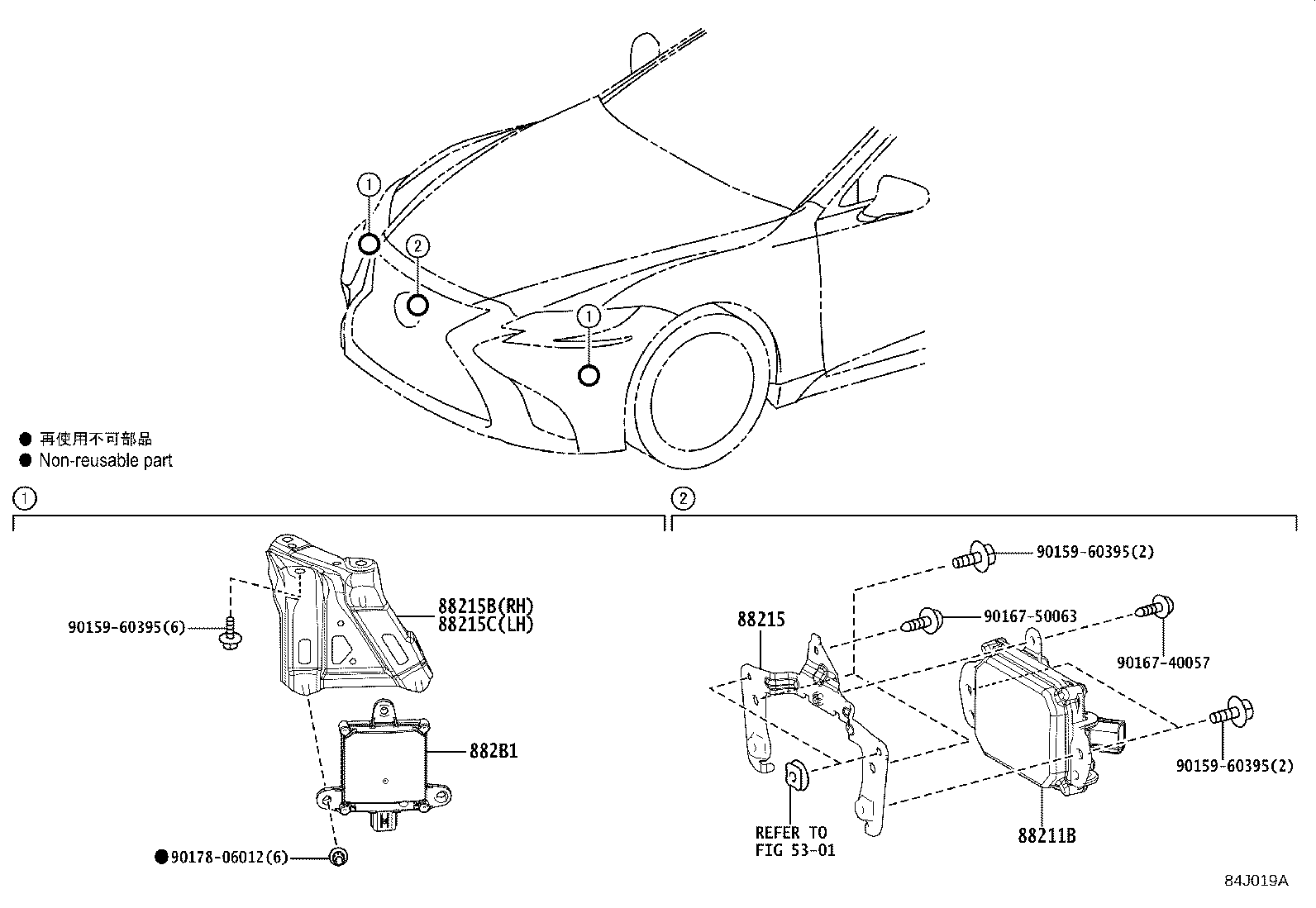

Figure 84I503B 84I503B 2017-10 → 2018-09 Figure 84J019A 84J019A 2018-09 → —

Part groups

PNCDescription
88211B Sensor Assy, Millimeter Wave Radar
88215 Bracket, Millimeter Wave Radar Sensor, NO.1
88215B Bracket, Front Side Radar Sensor, RH
88215C Bracket, Front Side Radar Sensor, LH
882B1 Sensor, Front Side Radar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
