Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 8 illustrations

Illustrations

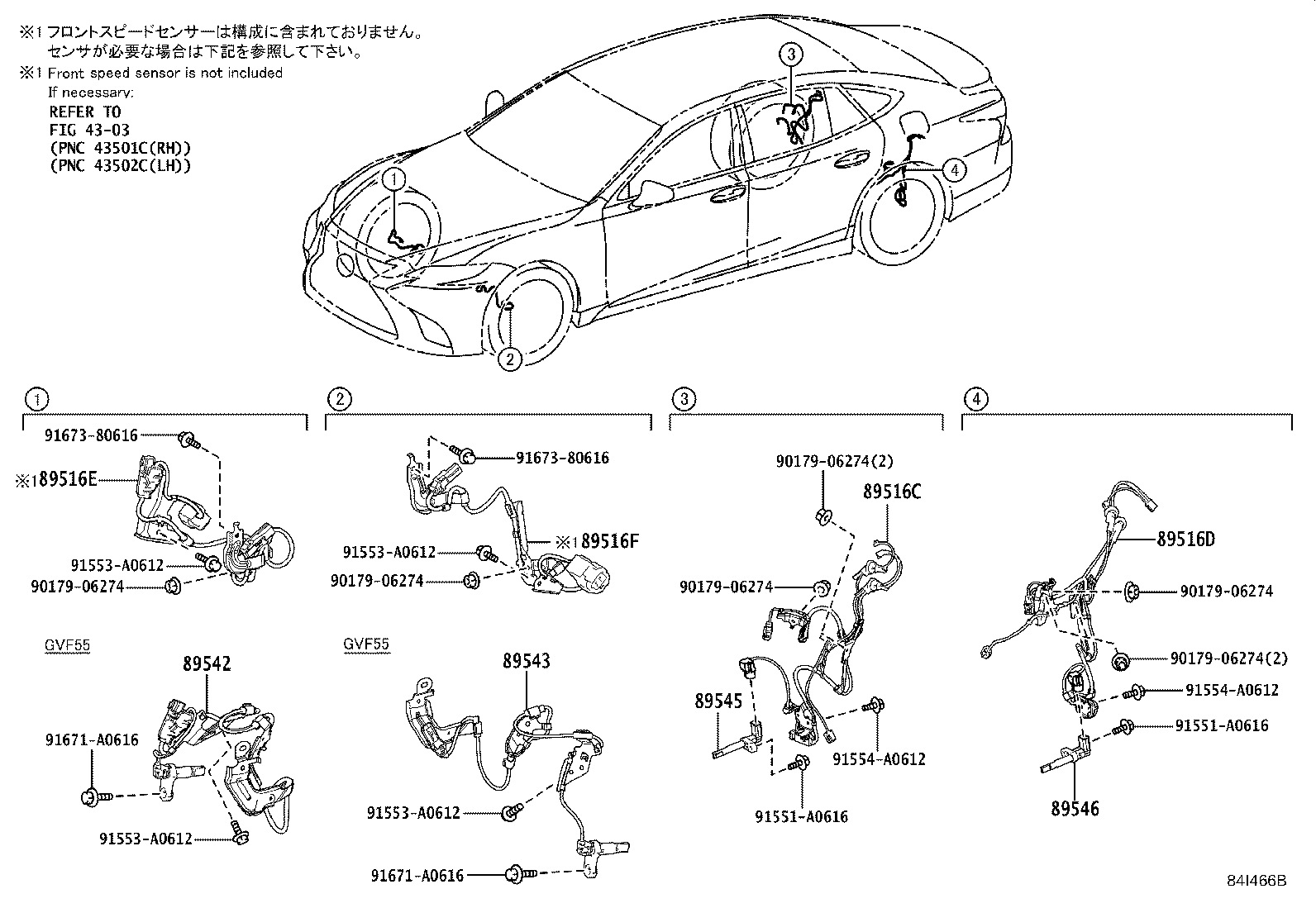

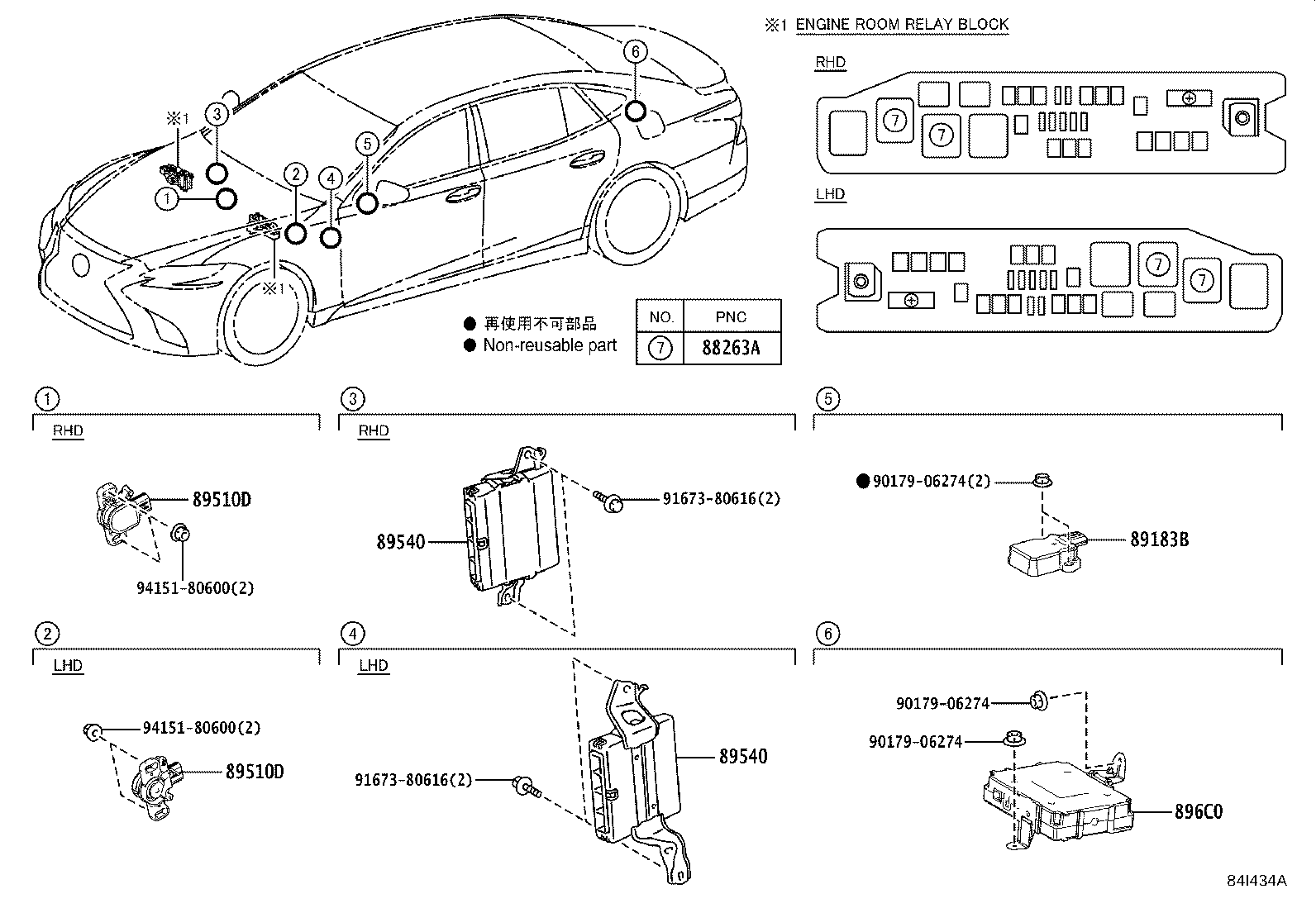

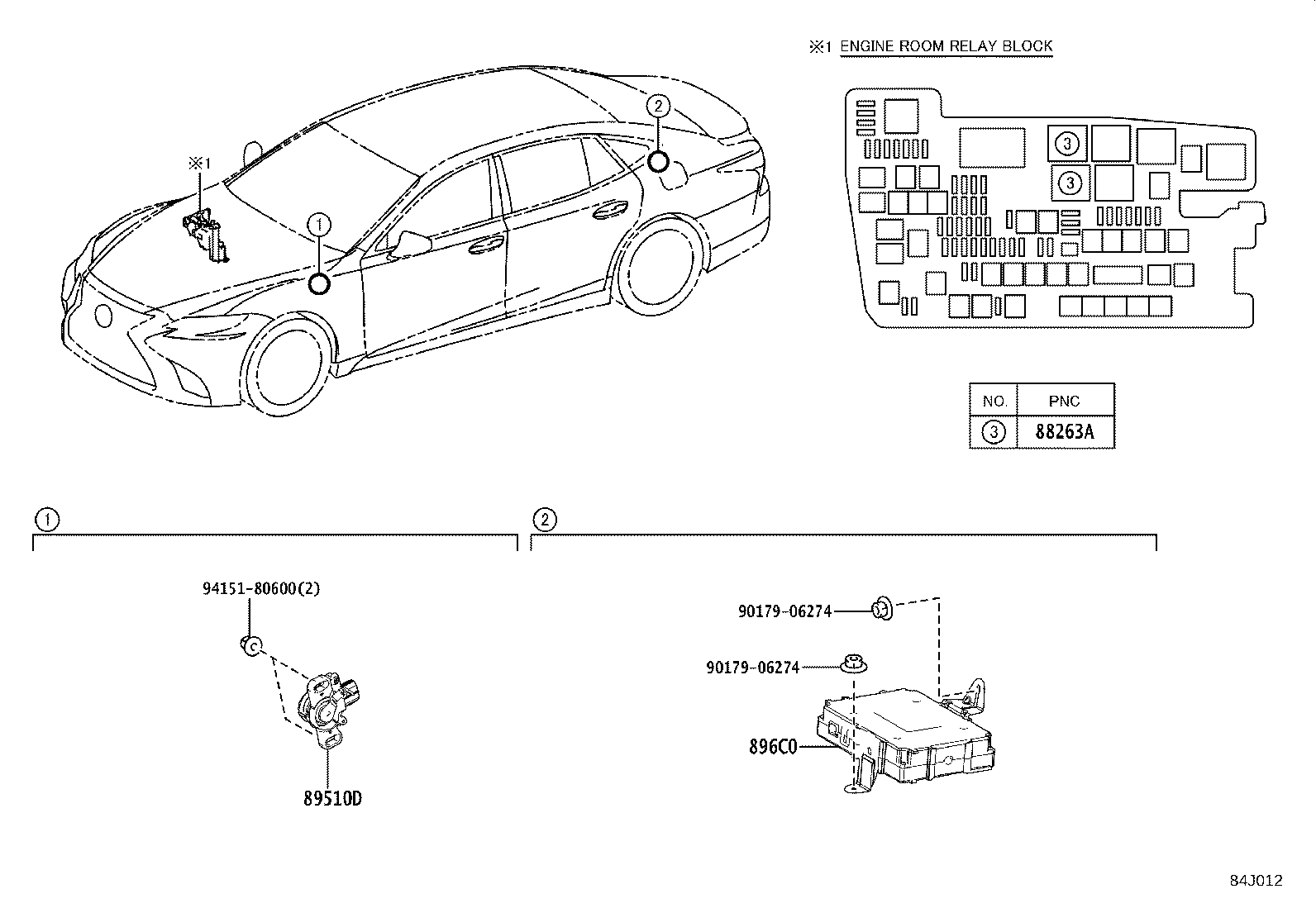

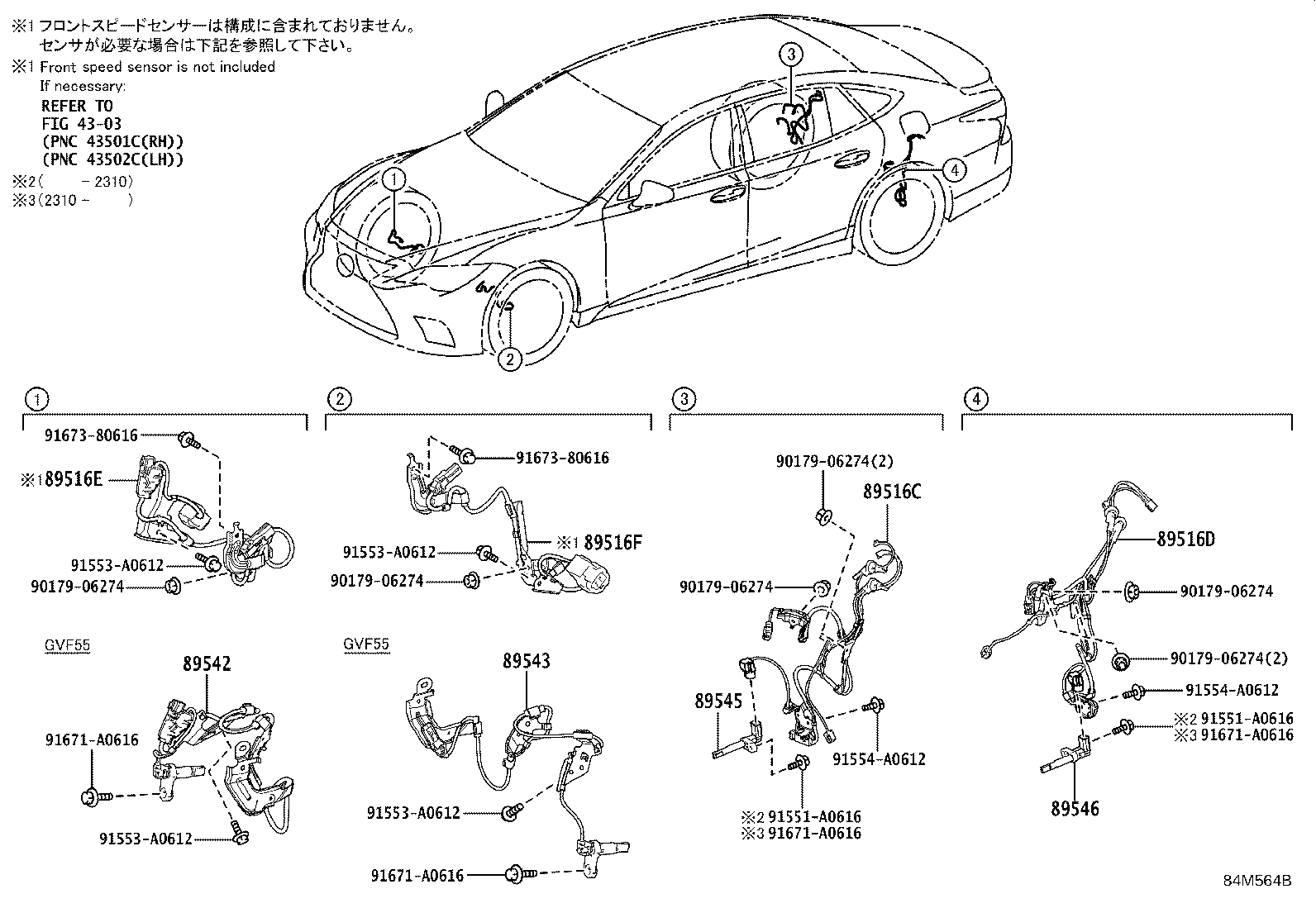

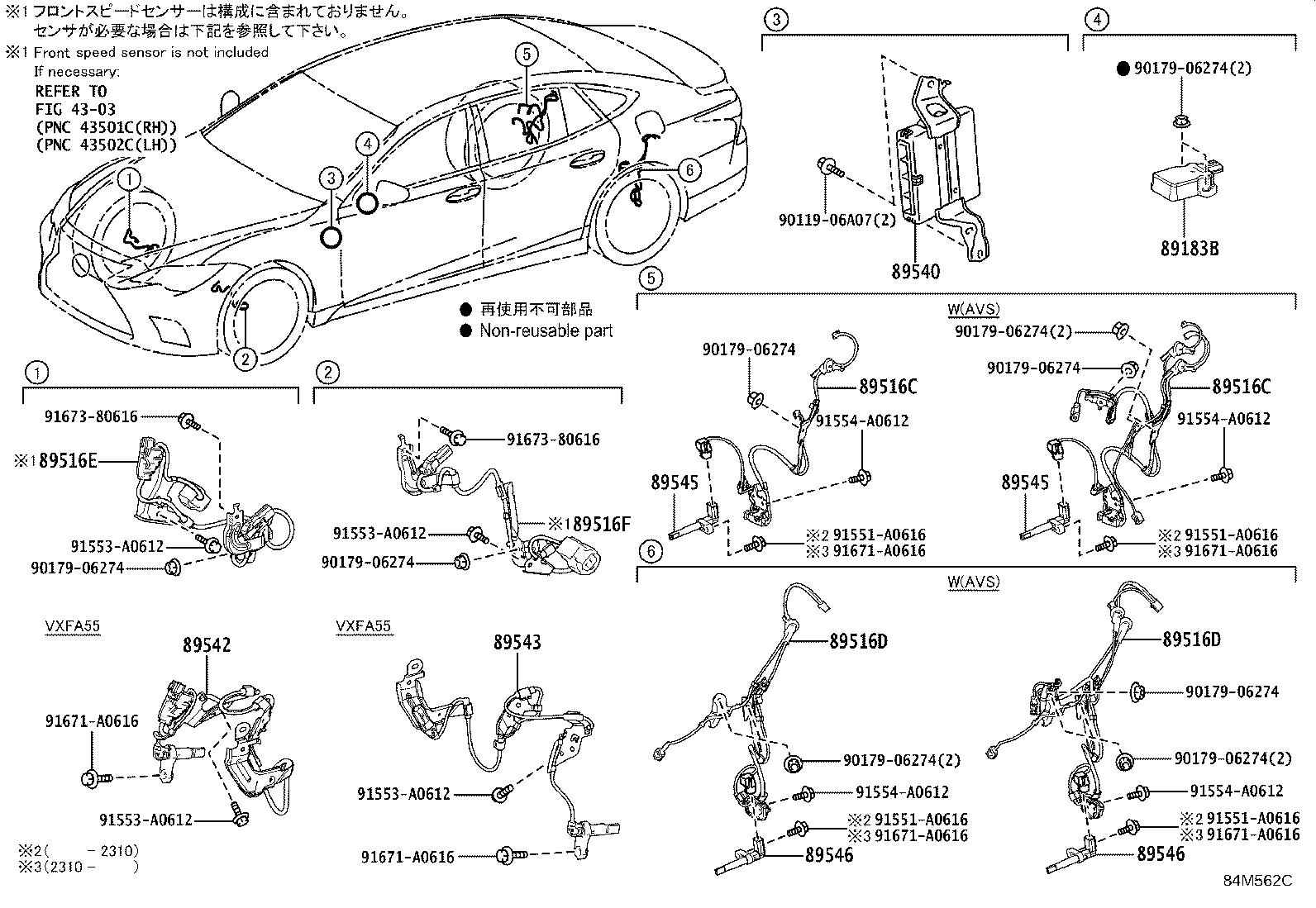

Figure 84I433D 84I433D 2017-10 → 2020-11 Figure 84M562C 84M562C 2020-11 → — Figure 84J012 84J012 2018-09 → 2020-11 Figure 84M563A 84M563A 2020-11 → — Figure 84I466B 84I466B 2017-10 → 2020-11 Figure 84M564B 84M564B 2020-11 → — Figure 84I434A 84I434A 2017-10 → 2020-11 Figure 84M565A 84M565A 2020-11 → —

Part groups

PNCDescription
88263A Relay, Skid Control
89183B Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
896C0 Supply Assy, Brake Control Power W/Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
