Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 4 illustrations

Illustrations

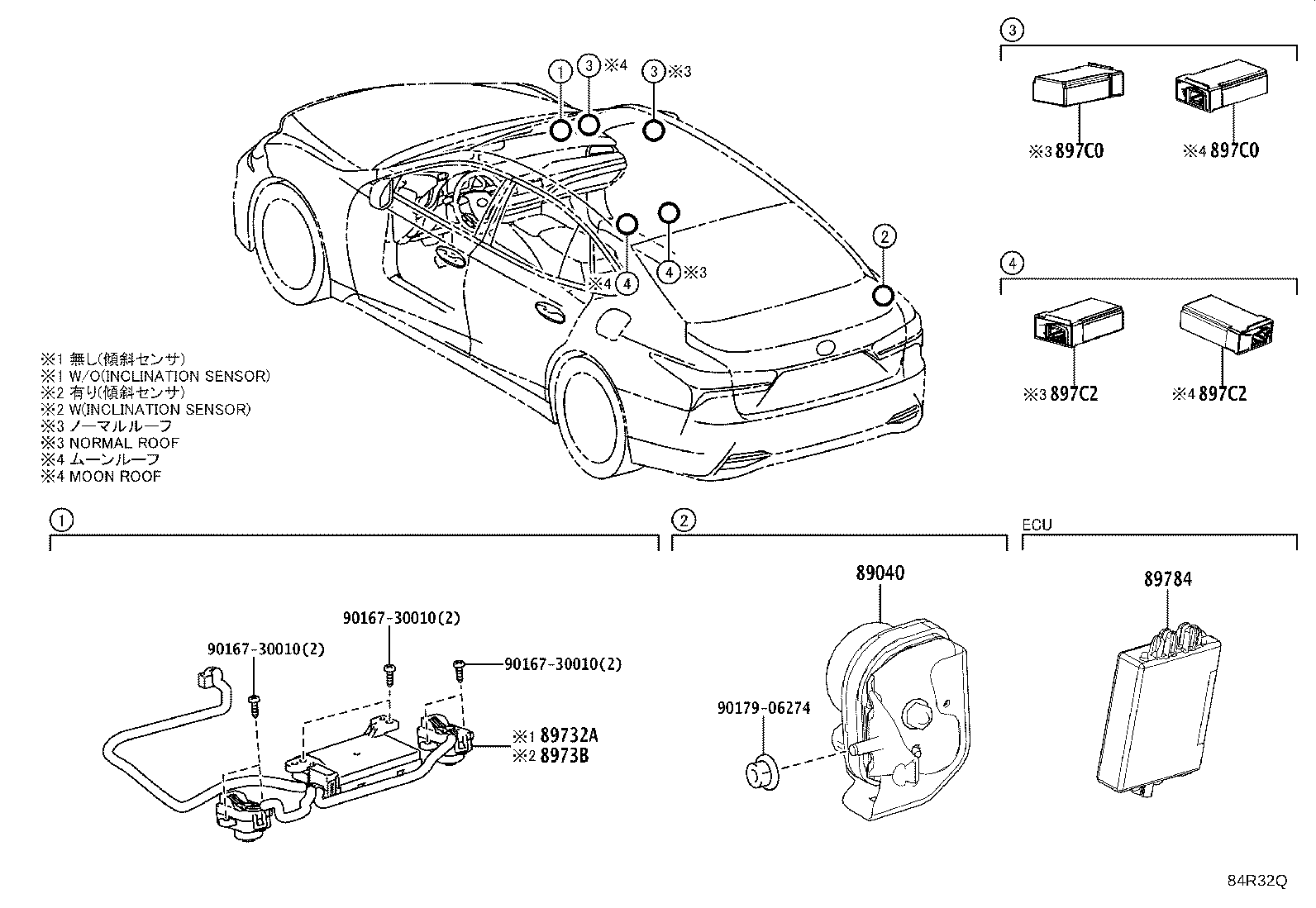

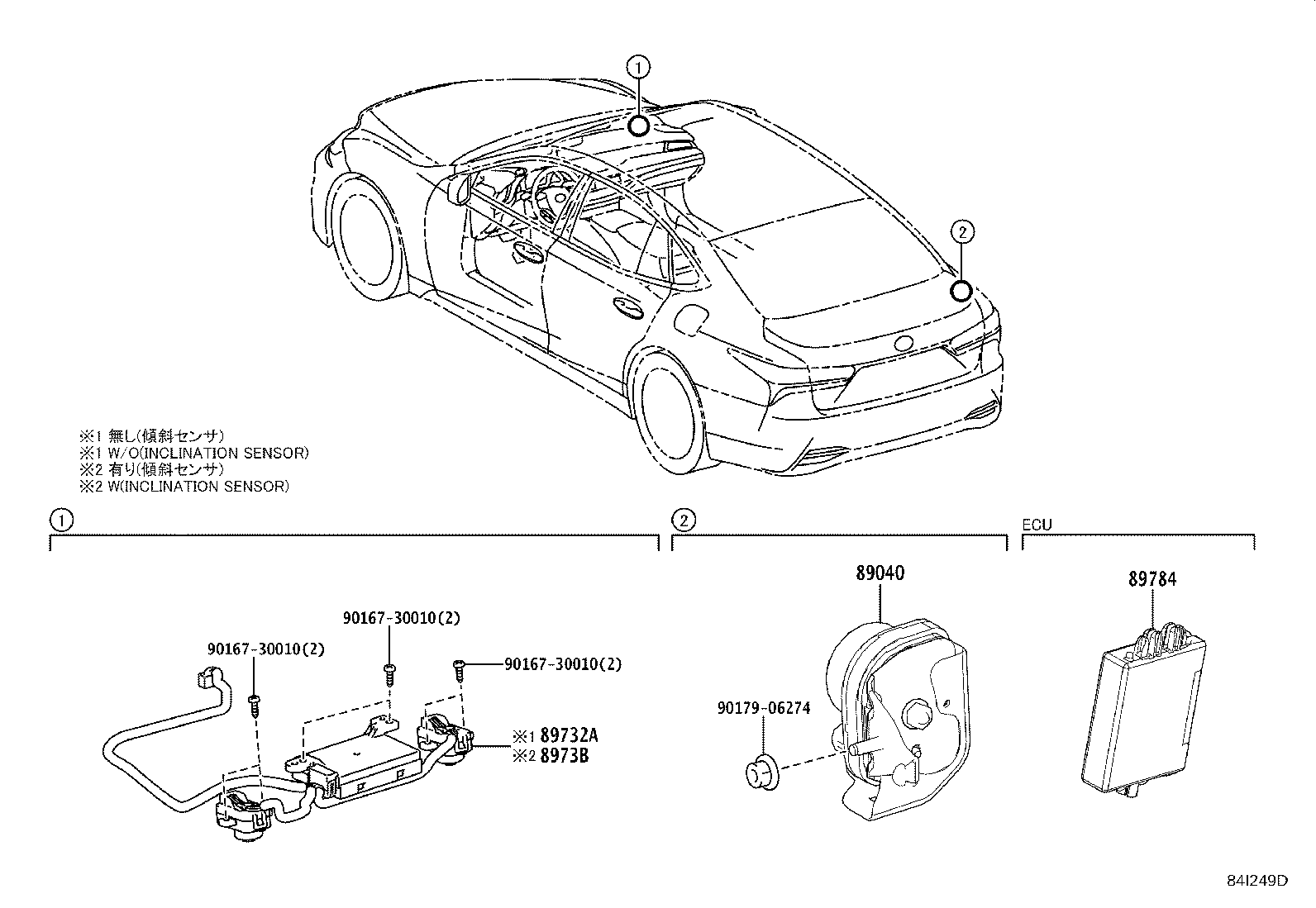

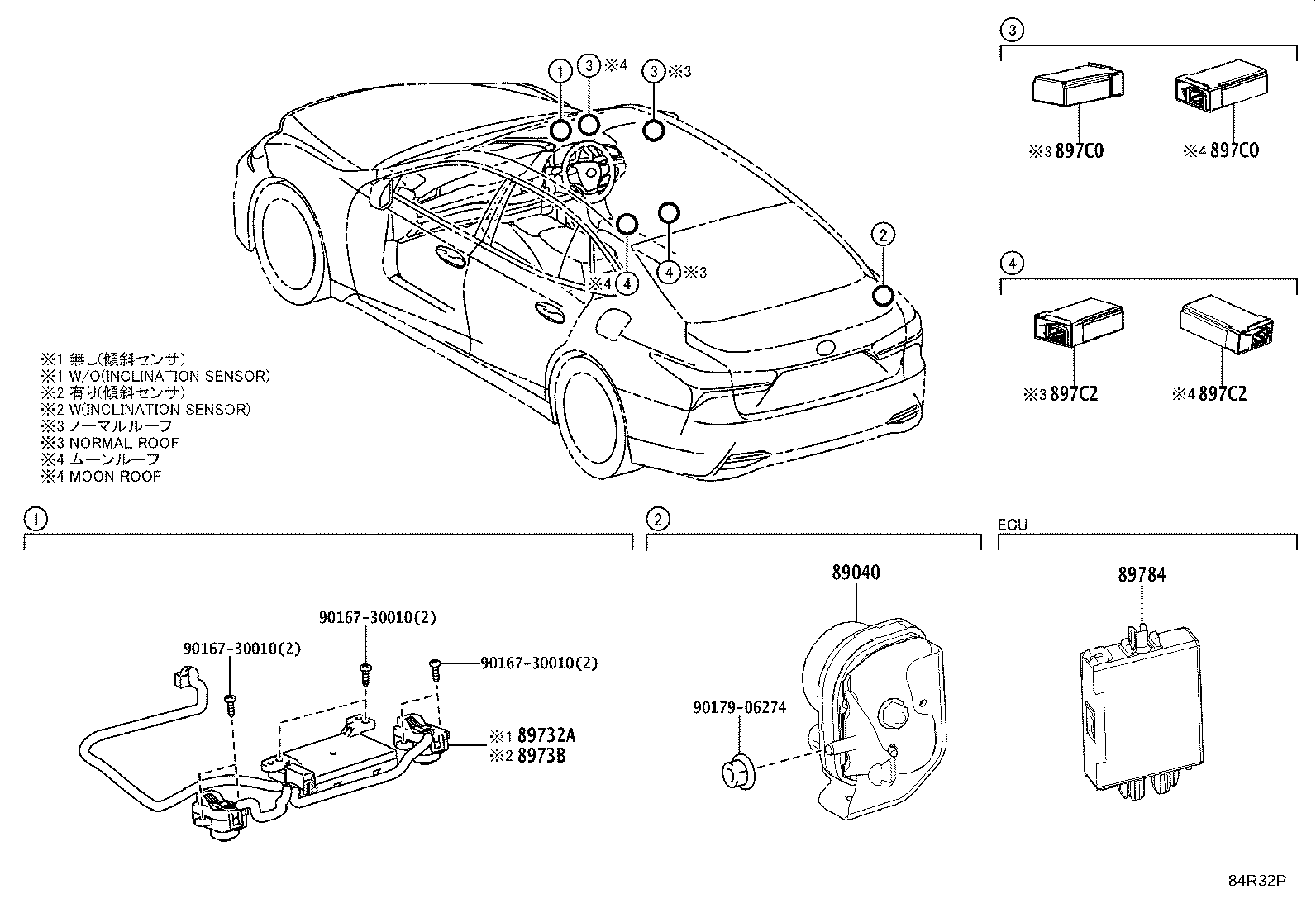

Figure 84I248D 84I248D 2017-10 → 2023-10 Figure 84R32P 84R32P 2023-10 → — Figure 84I249D 84I249D 2017-10 → 2023-10 Figure 84R32Q 84R32Q 2023-10 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89732A Sensor, Theft Warning Ultrasonic
8973B Sensor, Theft Warning Ultrasonic & Tilt
89784 Computer, Immobilizer Code
897C0 Transceiver Assy, Electrical Key Ranging
897C2 Transceiver, Electrical Key Ranging
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
