Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11
Hev Inverter
12 part groups · 4 illustrations
Part groups

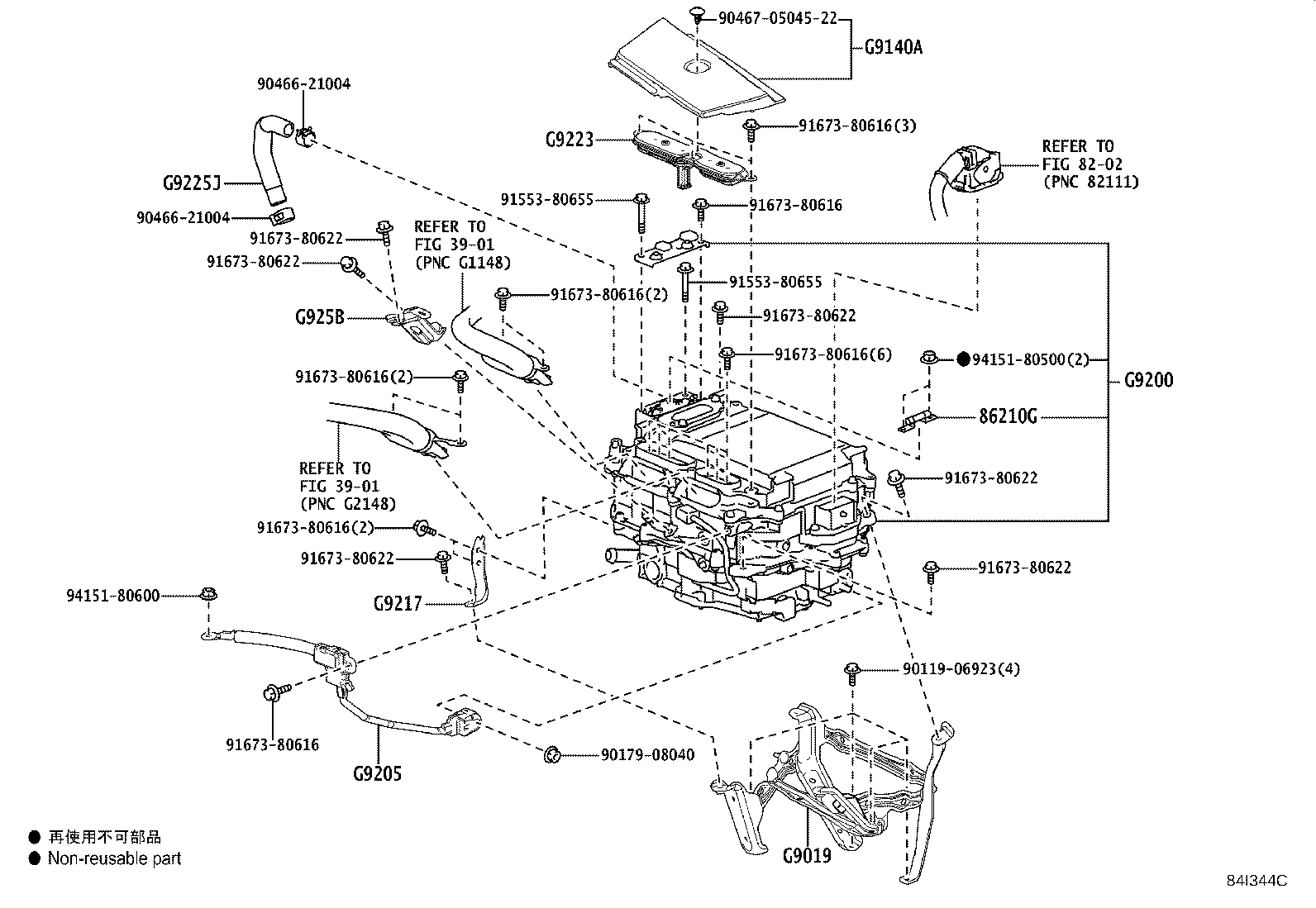

| PNC | Description |
|---|---|
| 86210G | Fuse, High Voltage |
| G9019 | Bracket Sub-assy, Inverter Tray |
| G9118A | Label, HV Motor Control Inverter Caution |
| G9130A | Cover Assy, Inverter, RH |
| G9140A | Cover Assy, Inverter, LH |
| G9200 | Inverter Assy, W/Converter |
| G9205 | Plate Sub-assy, Inverter Bus-bar |

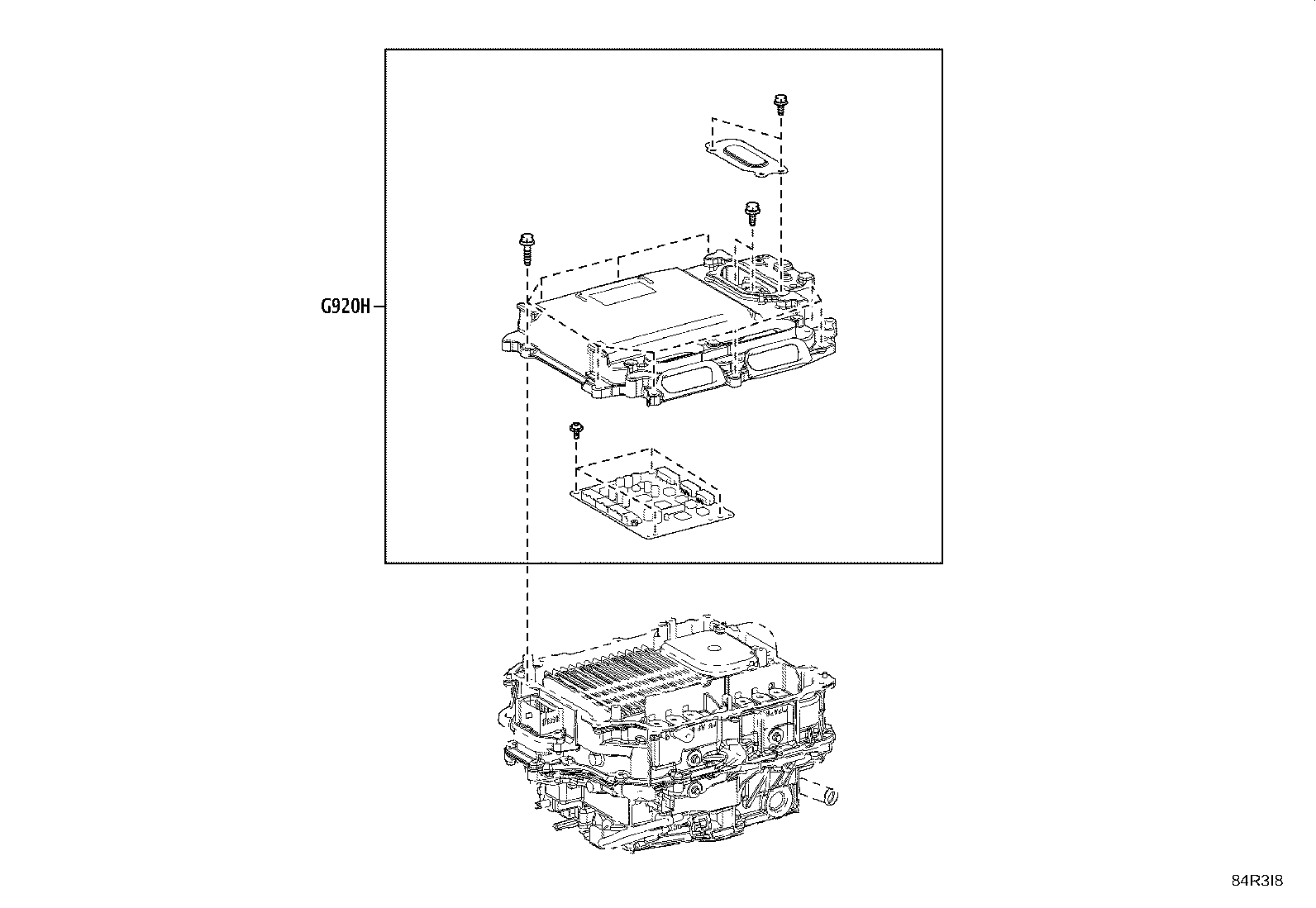

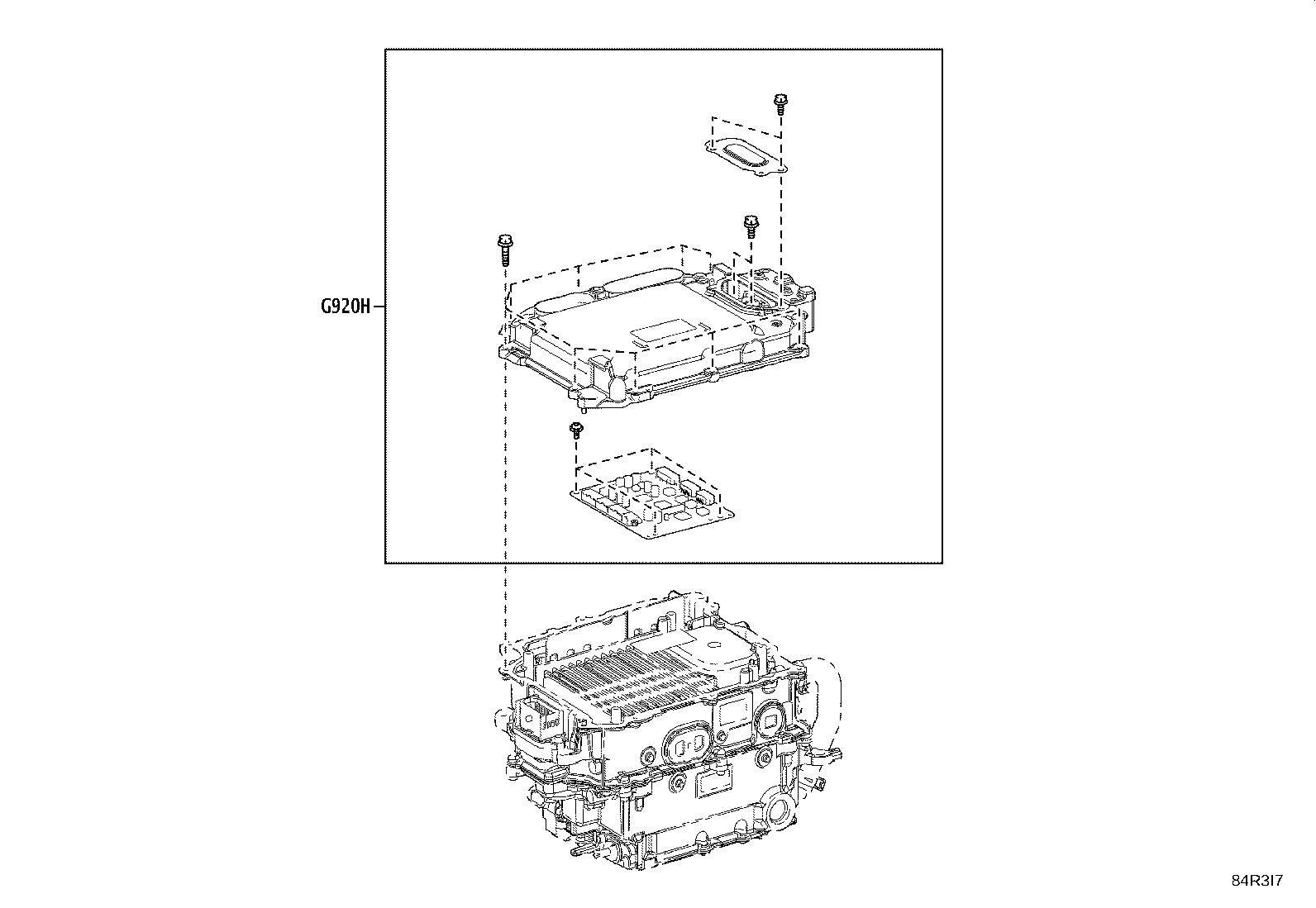

| G920H | Computer Sub-assy, Motor Generator Control |
| G9217 | Bracket, Inverter, NO.4 |
| G9223 | Cover, Inverter Terminal |
| G9225J | Hose, Inverter Cooling, NO.1 |
| G925B | Bracket, Inverter, NO.6 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
