Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

71 part groups · 8 illustrations

Illustrations

853834F 2017-10 → 2019-03

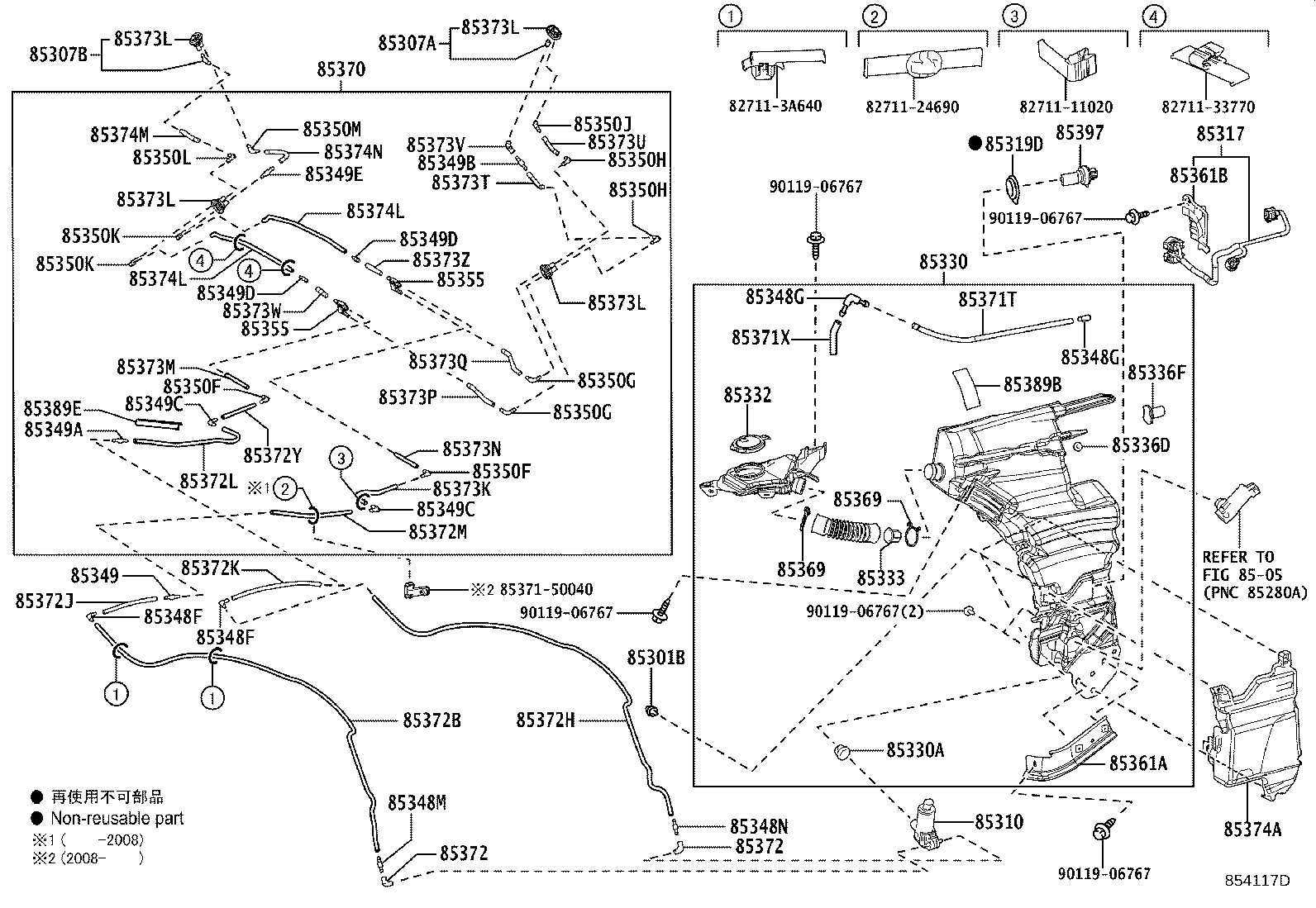

854117D 2019-03 → 2020-10

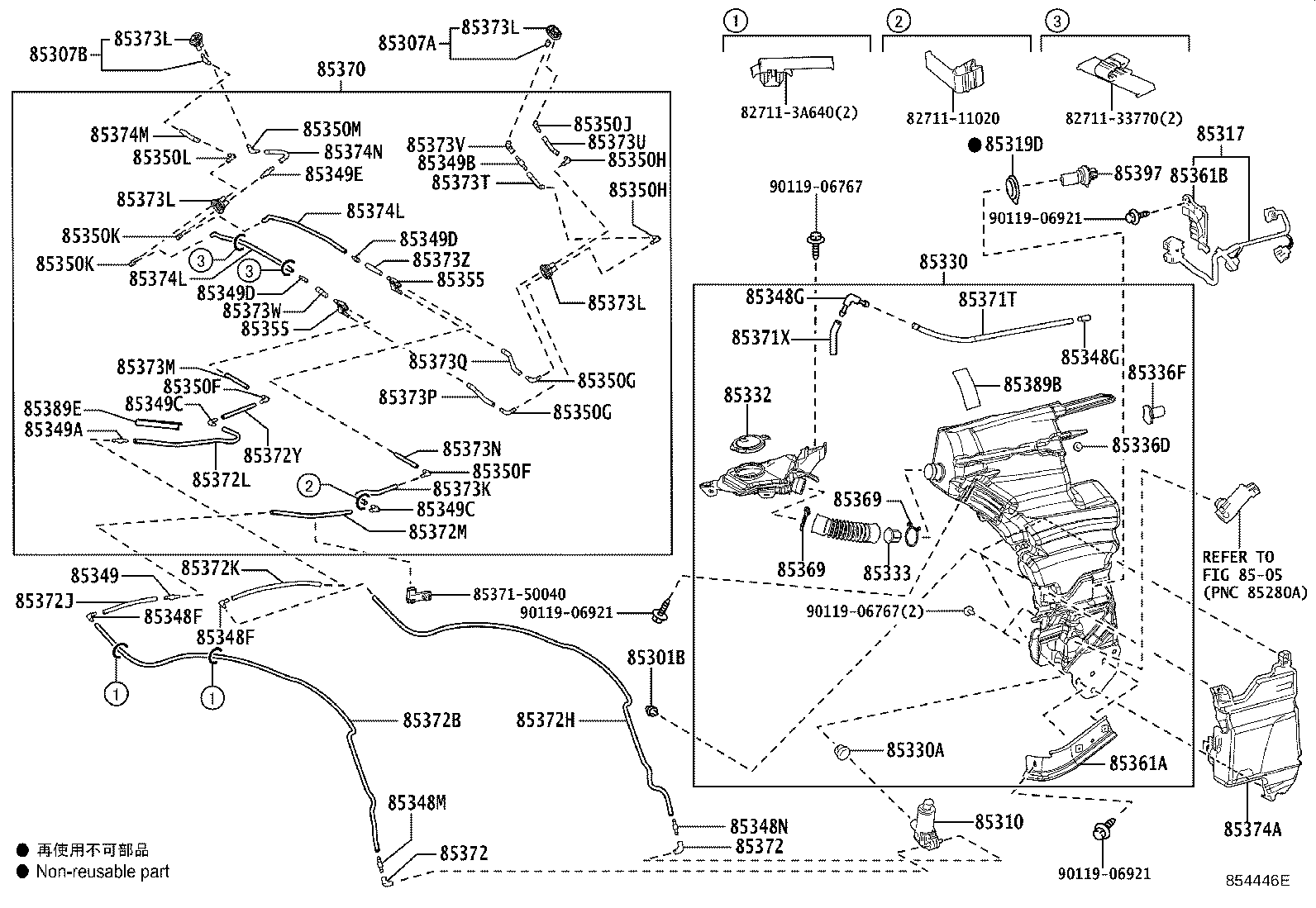

854446E 2020-10 → —

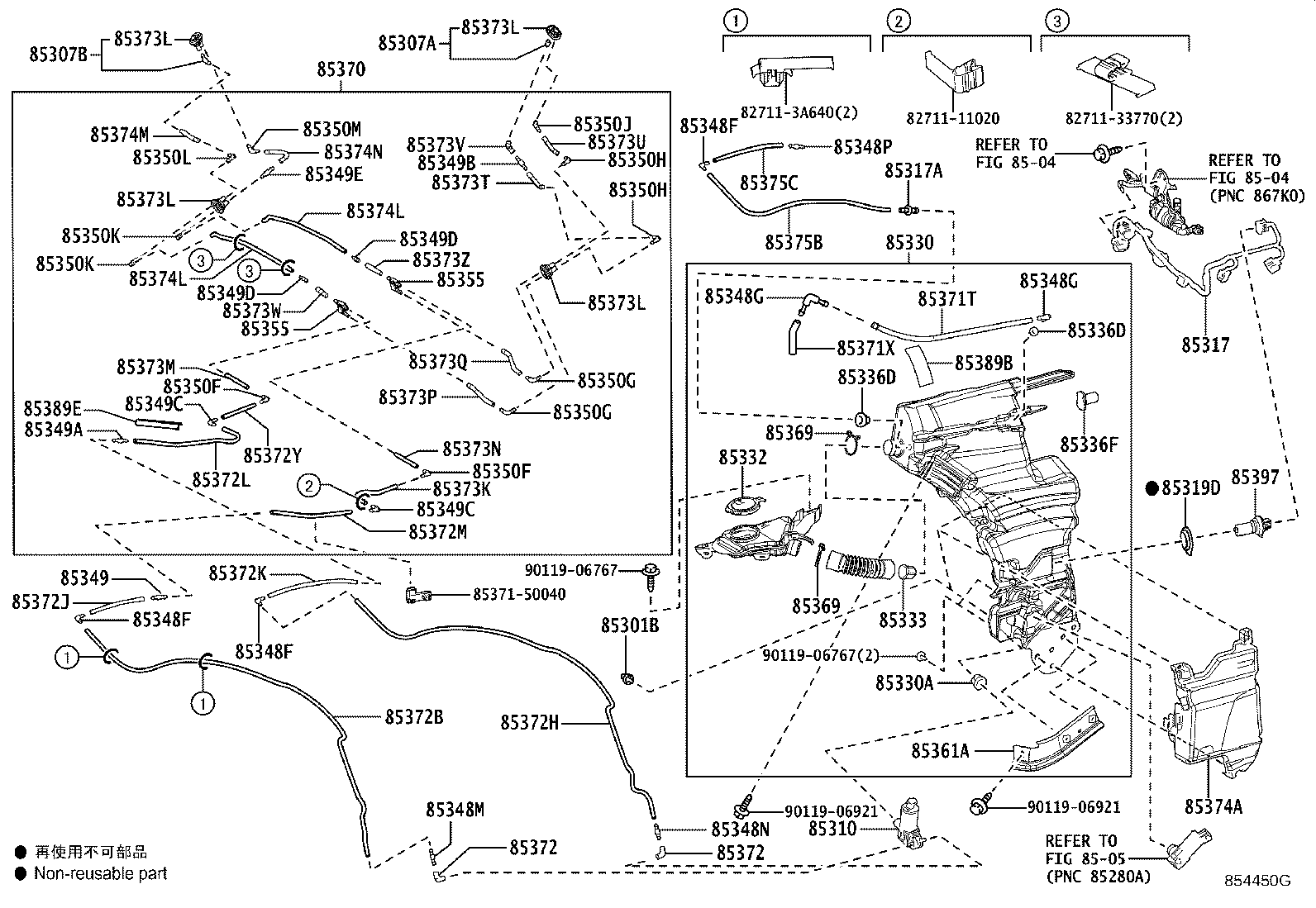

854450G 2020-10 → —

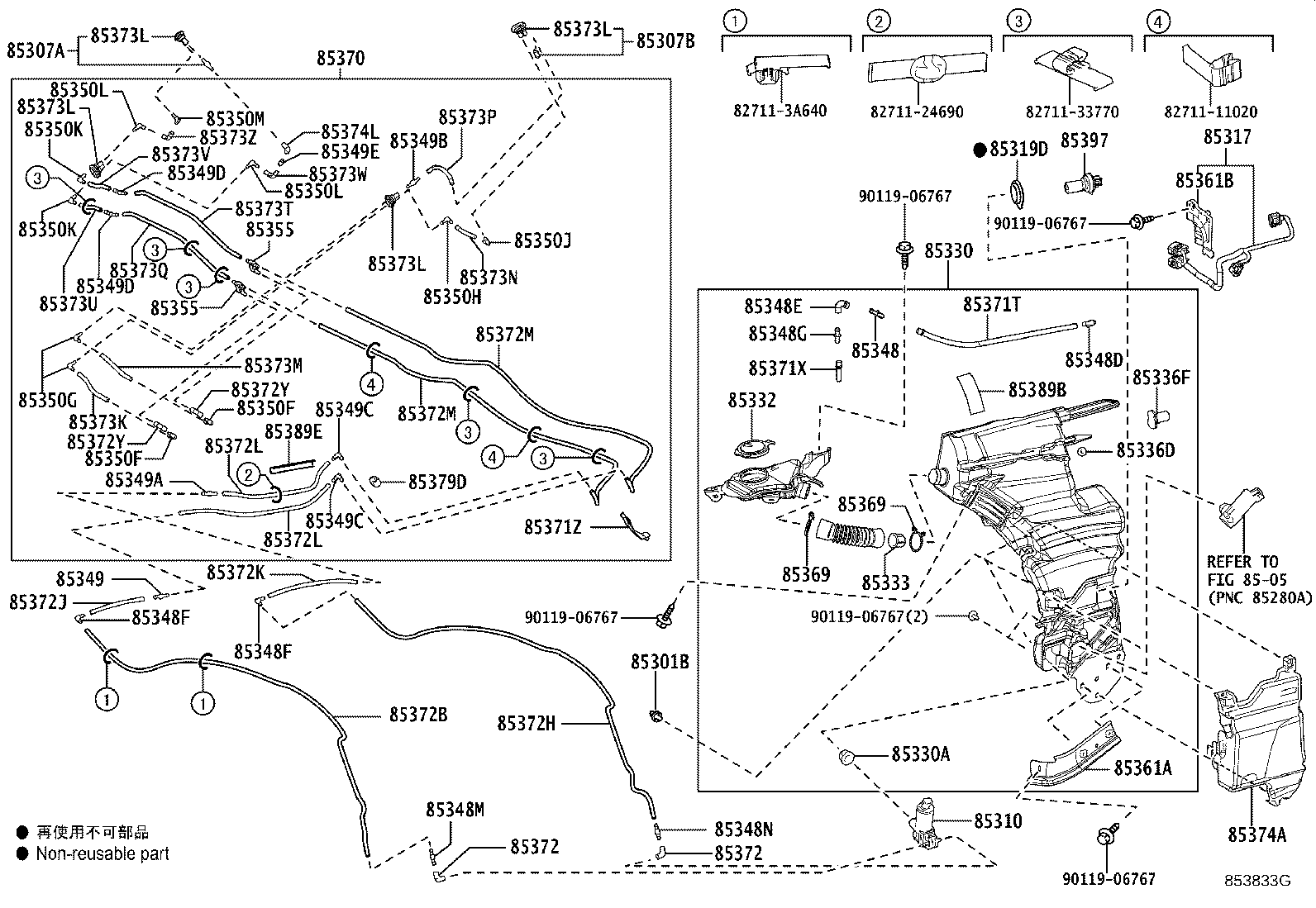

853833G 2017-10 → 2019-03

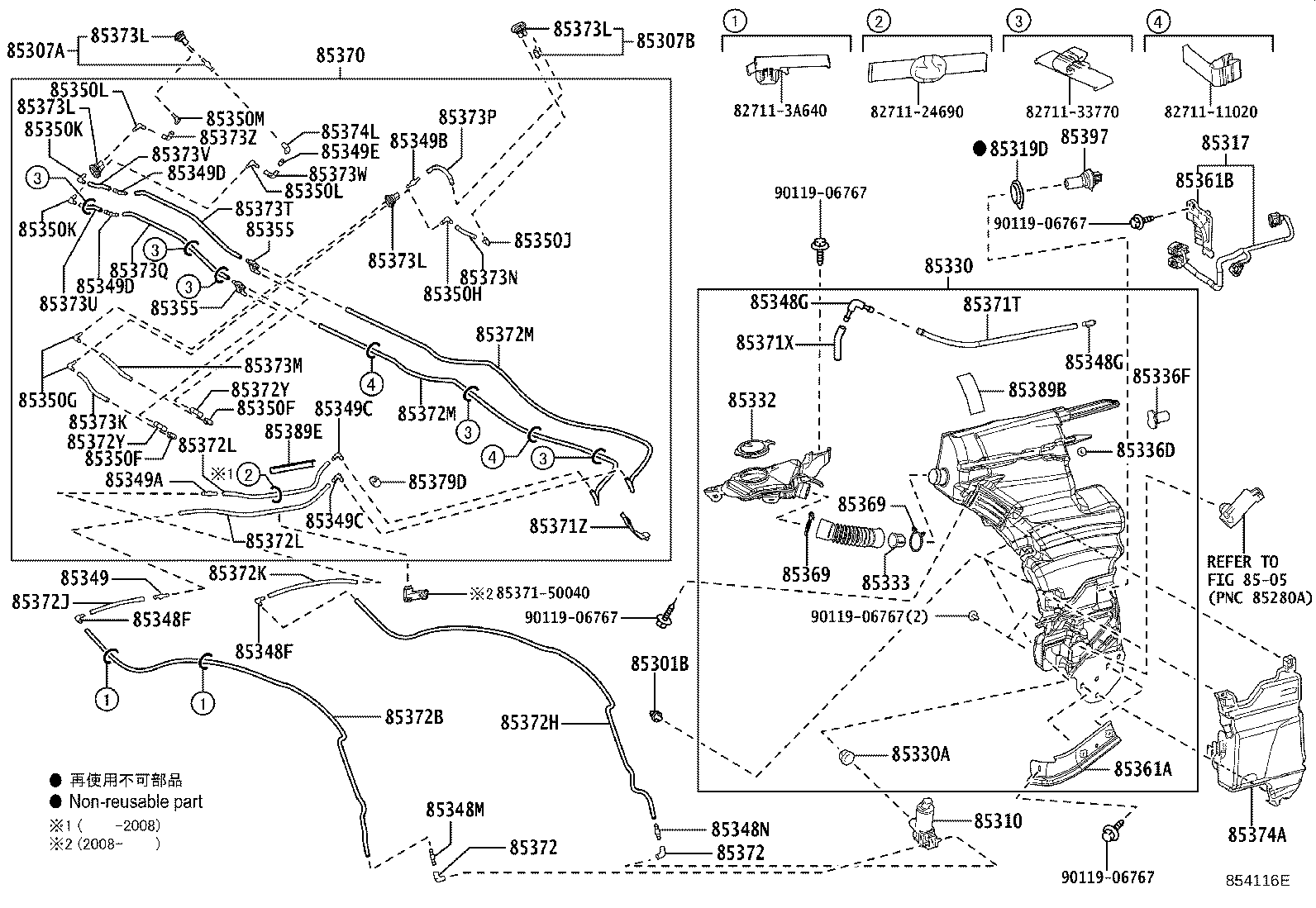

854116E 2019-03 → 2020-10

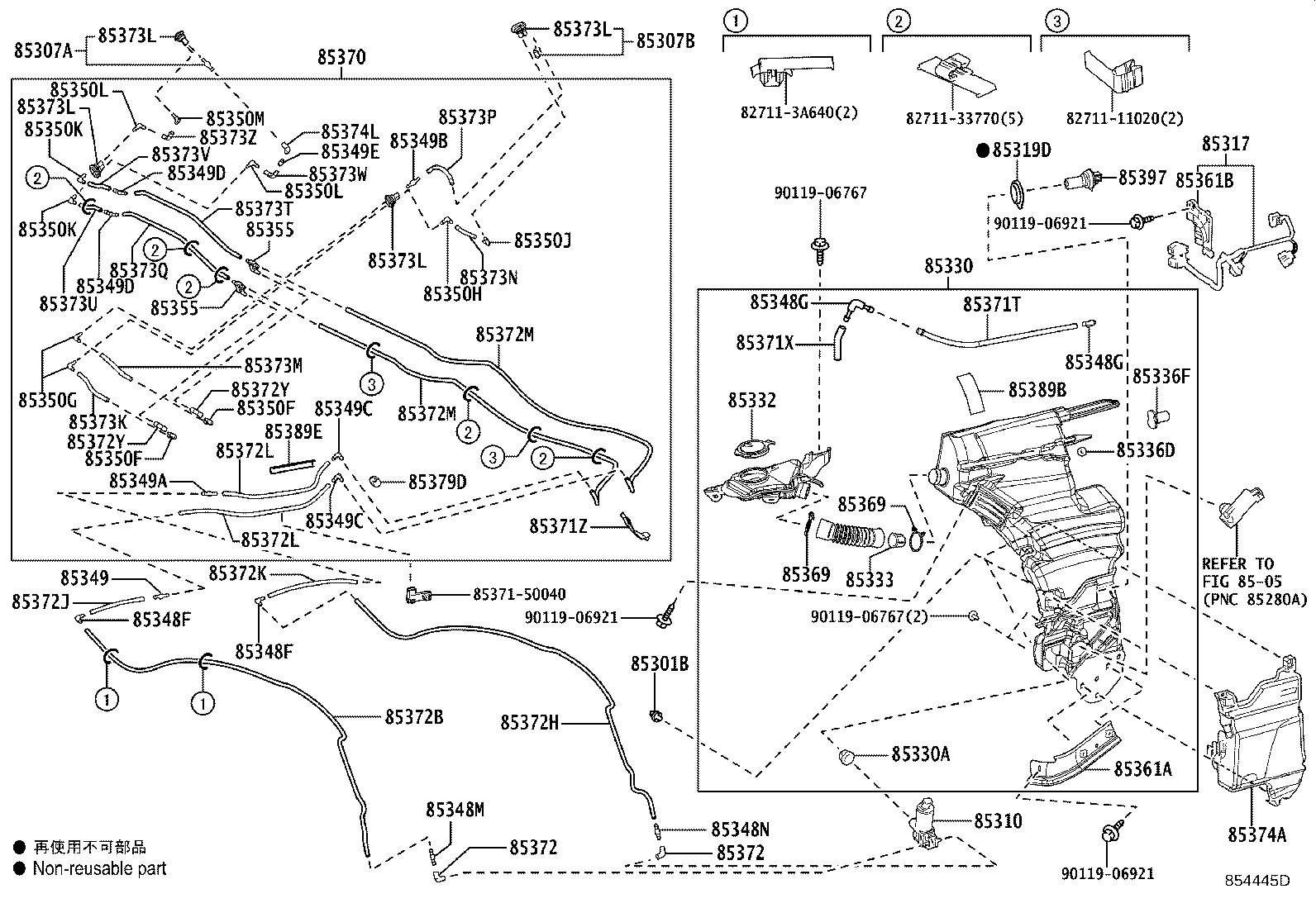

854445D 2020-10 → —

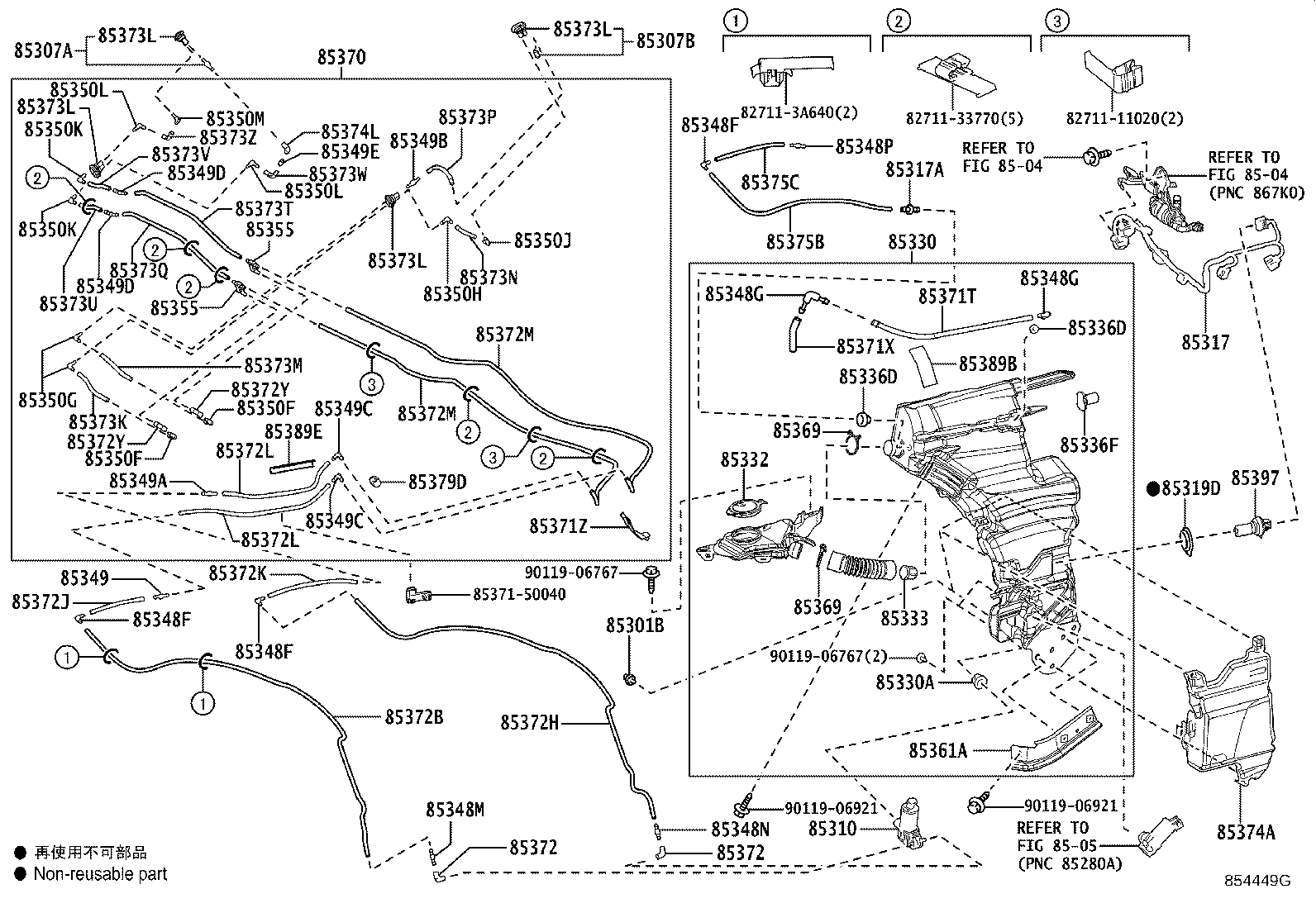

854449G 2020-10 → —

Part groups

PNC	Description
85301B	Clip, Washer
85307A	Grommet Sub-assy, Washer, NO.1
85307B	Grommet Sub-assy, Washer, NO.2
85310	Motor And Pump Assy, Windshield Washer
85317	Wiring Assy, Washer
85317A	Joint, Washer Tank
85319D	Packing, Front Washer
85330	Jar Assy, Windshield Washer
85330A	Bush, Windshield Washer Jar
85332	Cap, Windshield Washer Jar
85333	Filter, Windshield Washer Jar
85336D	Packing, Windshield Washer Jar
85336F	Packing, Windshield Washer Jar
85348	Joint, Windshield Washer Hose, NO.1
85348D	Joint, Windshield Washer Elbow, NO.1
85348E	Joint, Windshield Washer Elbow, NO.2
85348F	Joint, Windshield Washer Elbow, NO.3
85348G	Joint, Windshield Washer Hose, NO.2
85348M	Joint, Windshield Washer Hose, NO.3
85348N	Joint, Windshield Washer Hose, NO.4
85348P	Joint, Windshield Washer Hose, NO.1
85349	Joint, Windshield Washer Hose, NO.1
85349A	Joint, Windshield Washer Hose, NO.2
85349B	Joint, Windshield Washer Hose, NO.3
85349C	Joint, Windshield Washer Elbow, NO.4
85349D	Joint, Windshield Washer Hose, NO.4
85349E	Joint, Windshield Washer Hose, NO.5
85350F	Joint, Windshield Washer Elbow, NO.5
85350G	Joint, Windshield Washer Elbow, NO.6
85350H	Joint, Windshield Washer Elbow, NO.7
85350J	Joint, Windshield Washer Elbow, NO.8
85350K	Joint, Windshield Washer Elbow, NO.9
85350L	Joint, Windshield Washer Elbow, NO.10
85350M	Joint, Windshield Washer Elbow, NO.11
85355	Valve, Windshield Washer Hose
85361A	Bracket, Windshield Washer, NO.1
85361B	Bracket, Windshield Washer, NO.2
85369	Clamp
85370	Hose Assy, Windshield Washer
85371T	Hose, Windshield Washer (FROM JOINT TO JOINT)
85371X	Hose, Windshield Washer(FROM JOINT TO TOINT)
85371Z	Clamp, Washer Hose
85372	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85372L	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6
85372M	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7
85372Y	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.8
85373K	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.9
85373L	Grommet, Washer
85373M	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.10
85373N	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.11
85373P	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.12
85373Q	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.13
85373T	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.14
85373U	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.15
85373V	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.16
85373W	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.17
85373Z	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.18
85374A	Protector, Washer Hose
85374L	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.19
85374M	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.20
85374N	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.21
85375B	Hose, Windshield Washer (OIL REMOVING NO.1)
85375C	Hose, Windshield Washer (OIL REMOVING NO.2)
85379D	Grommet, Washer, A
85389B	Protector, Windshield Washer
85389E	Protector, Windshield Washer, NO.2
85397	Switch Assy,Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
