Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 5 illustrations

Illustrations

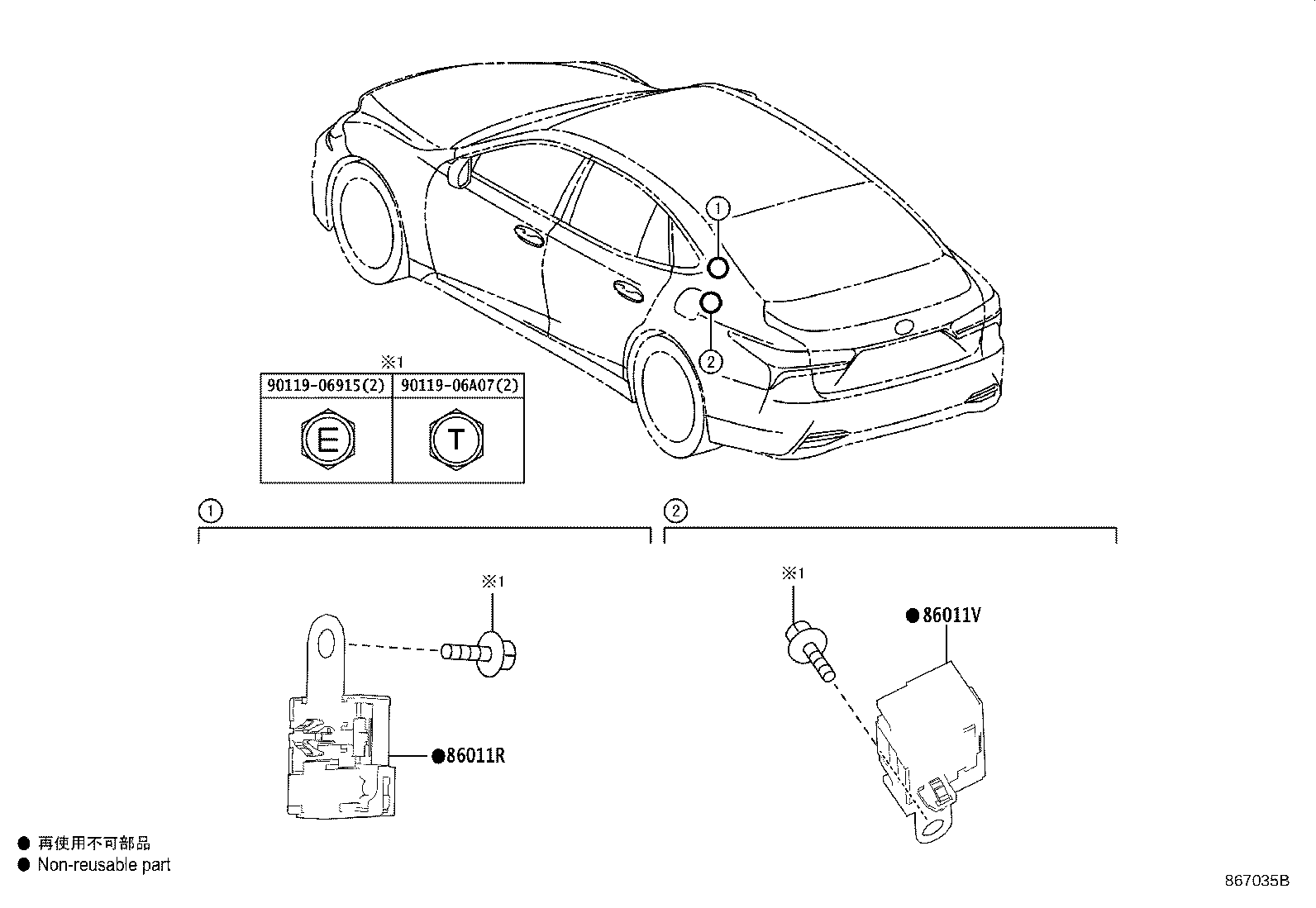

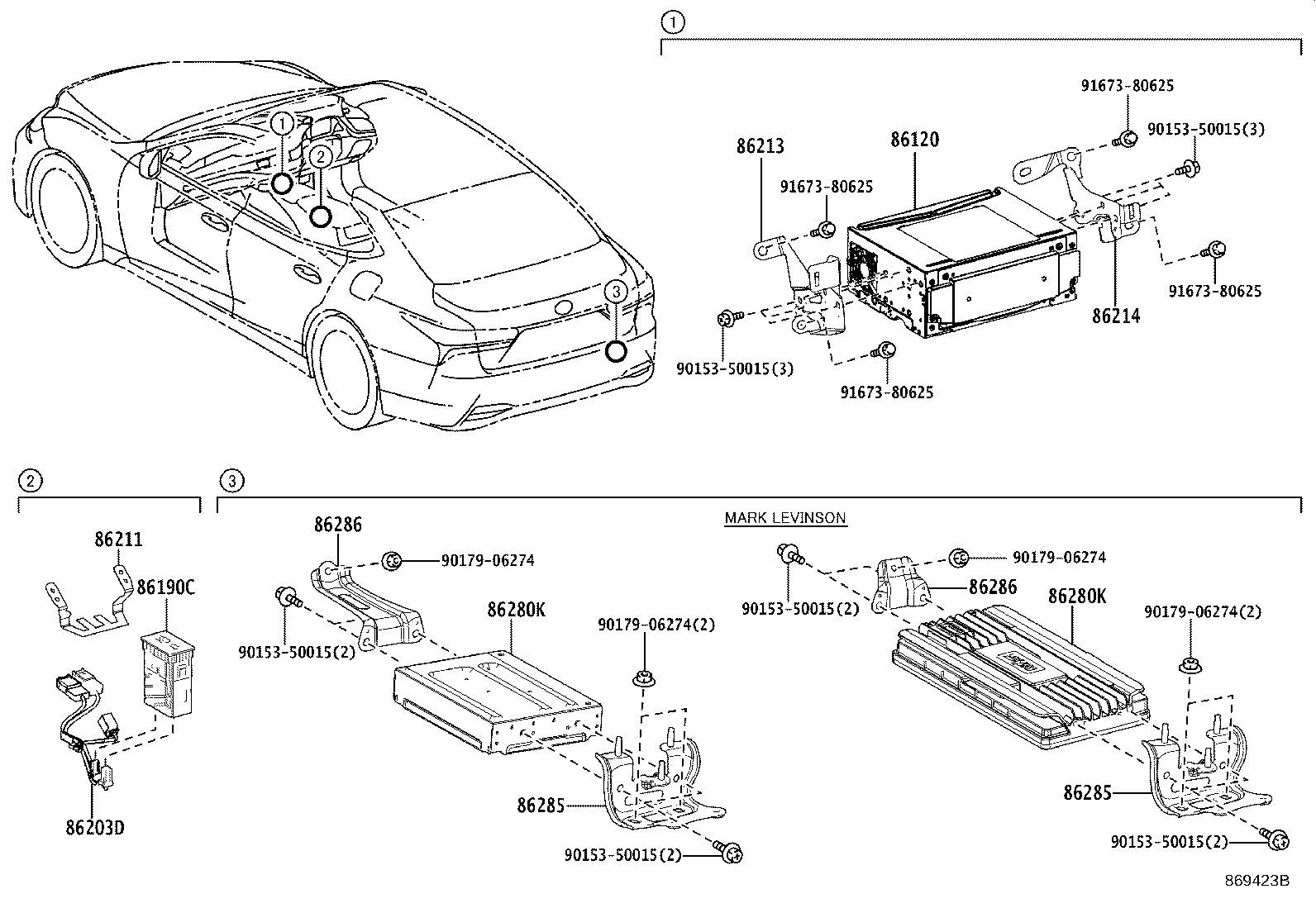

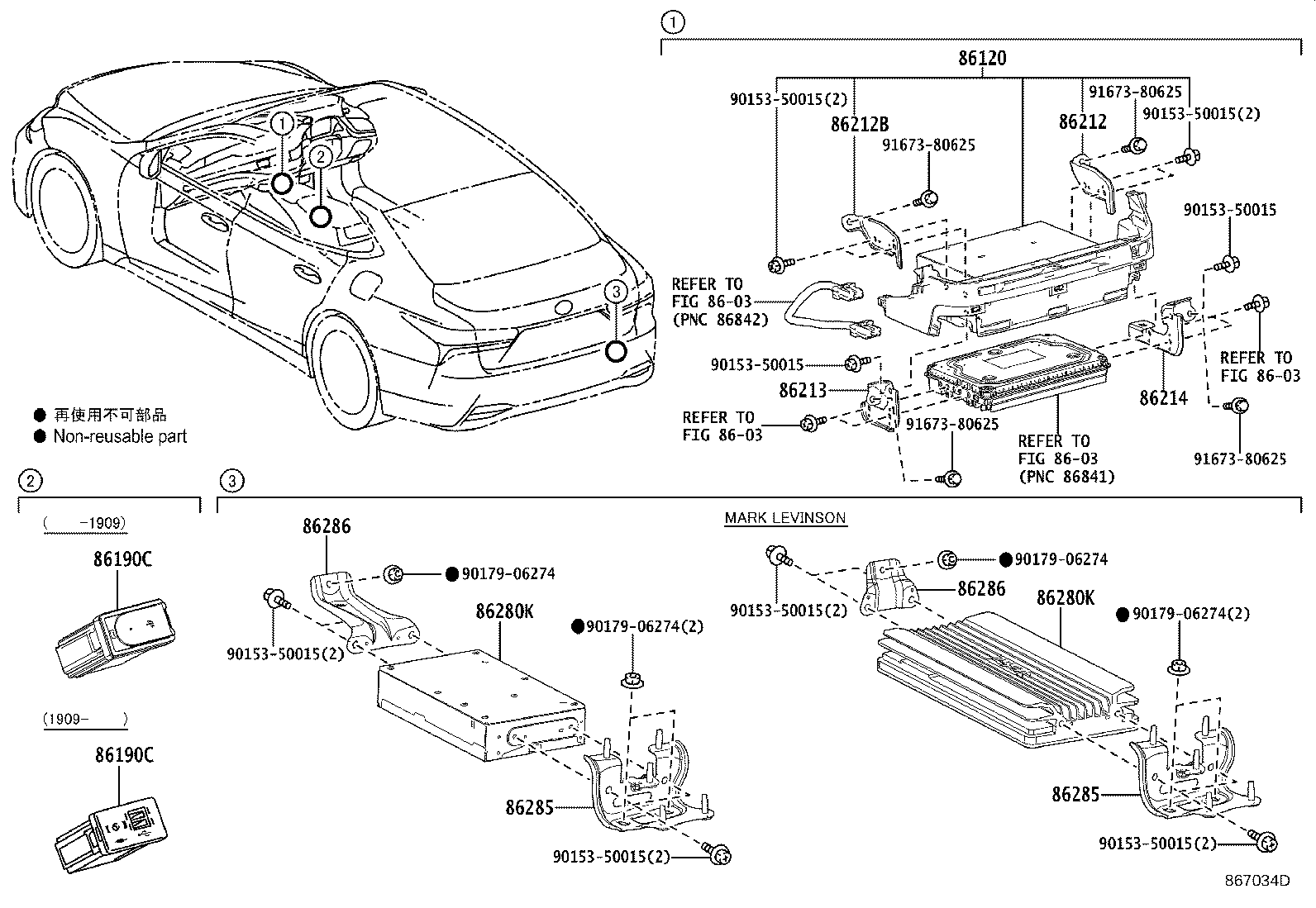

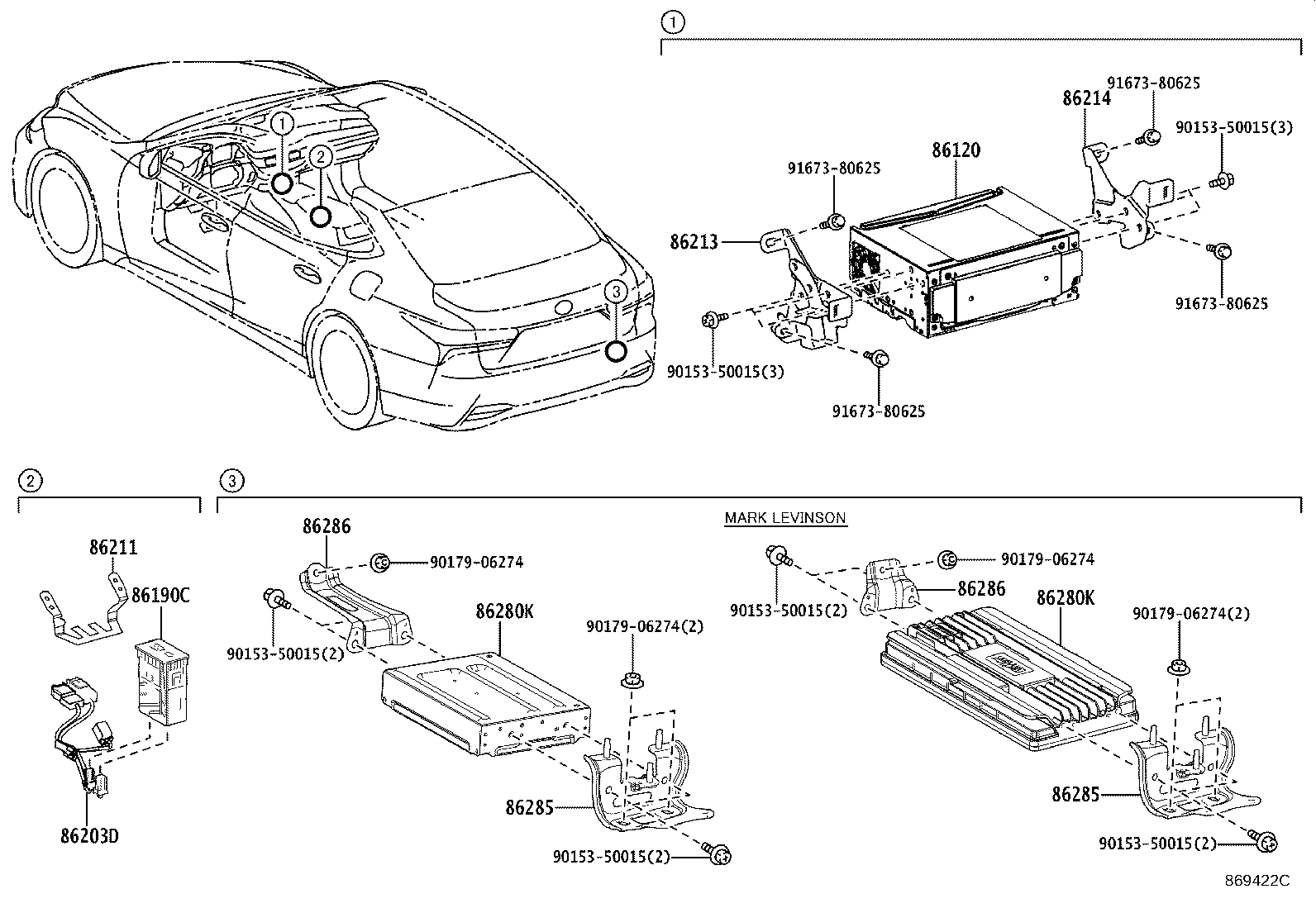

Figure 867033D 867033D 2017-10 → 2022-10 Figure 869422C 869422C 2022-10 → — Figure 867034D 867034D 2017-10 → 2022-10 Figure 869423C 869423C 2022-10 → — Figure 867035B 867035B 2017-10 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86212B Bracket, Radio, NO.1
86213 Bracket, Radio, NO.3
86214 Bracket, Radio, NO.4
86280K Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
