Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 6 illustrations

Illustrations

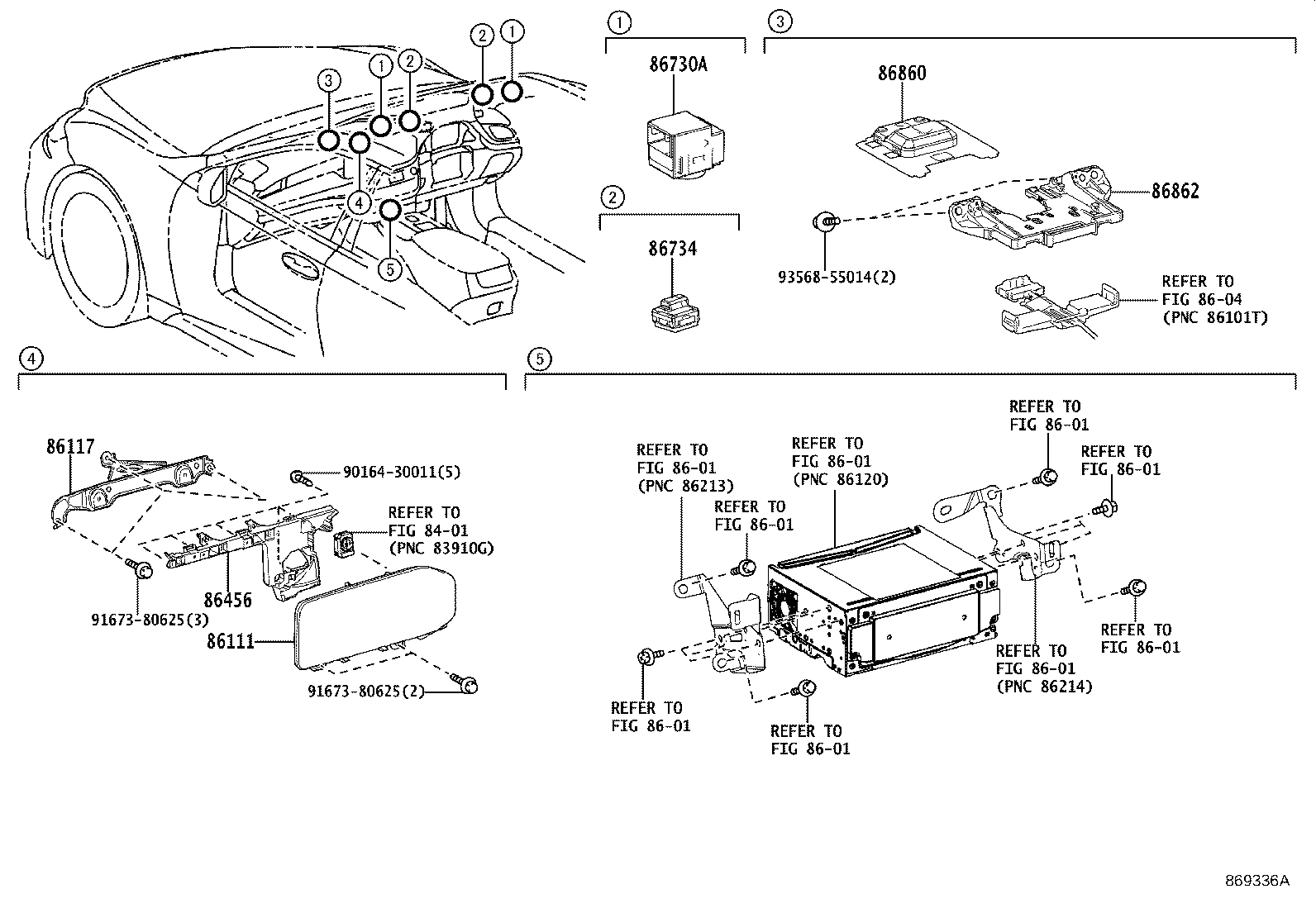

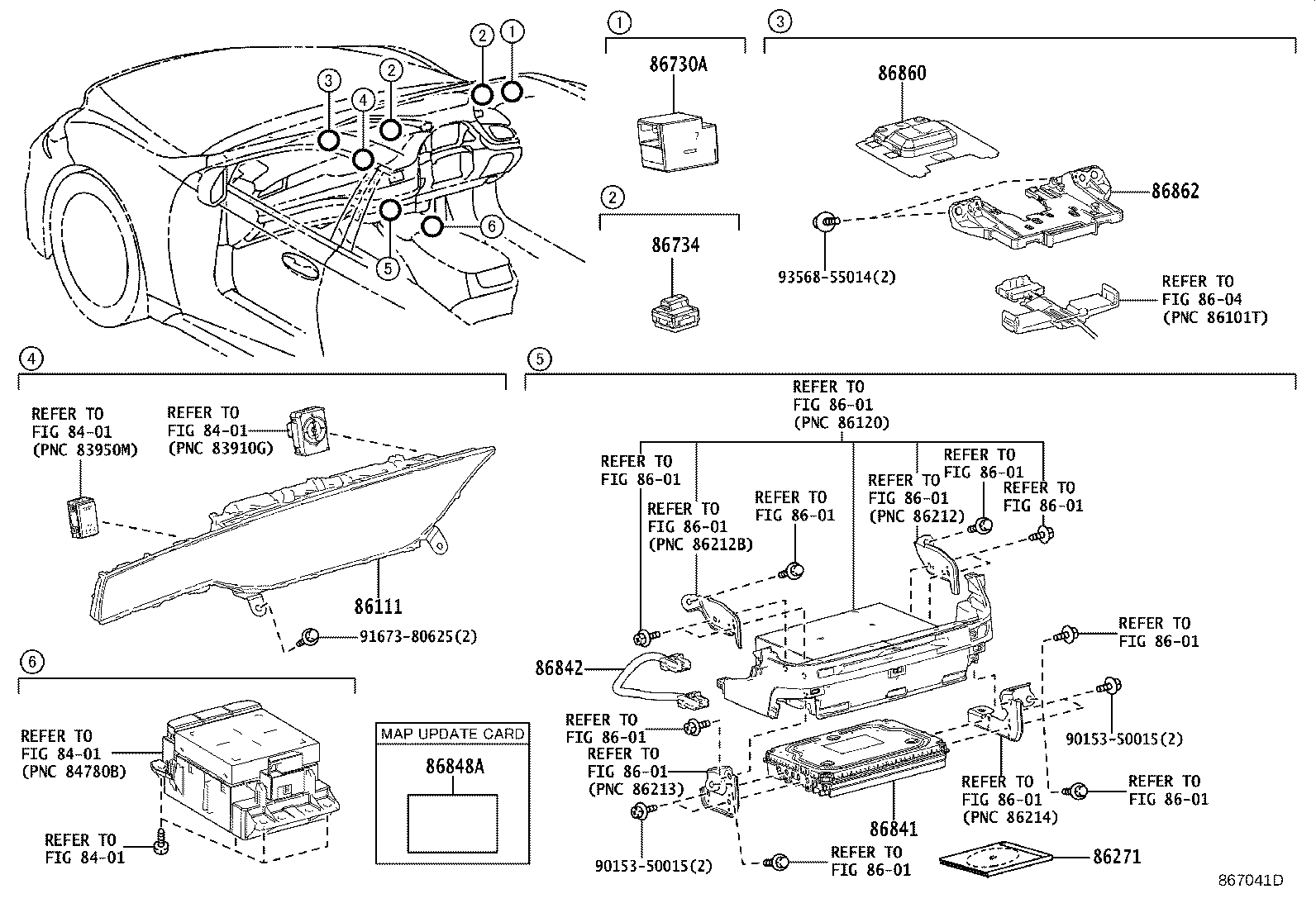

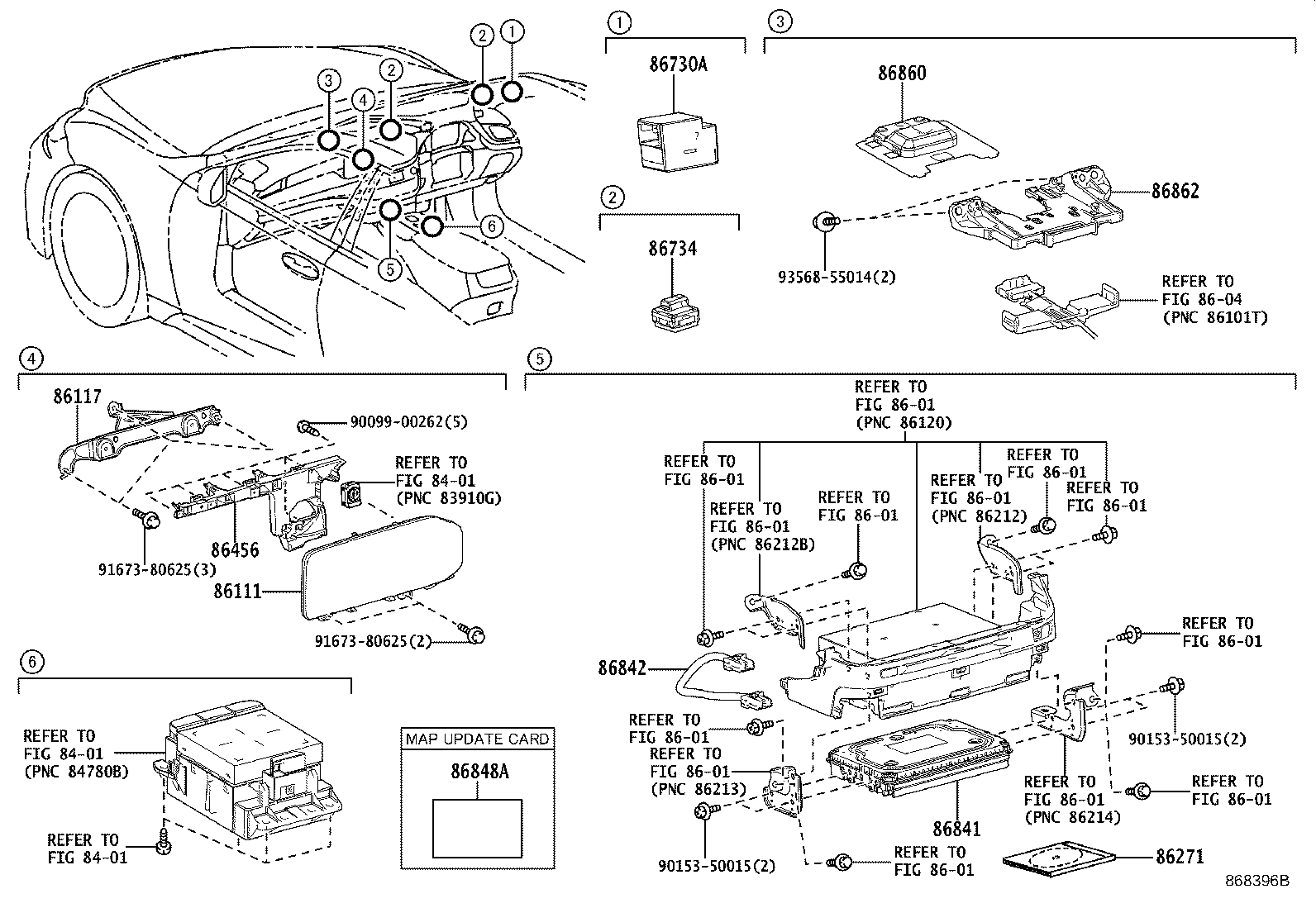

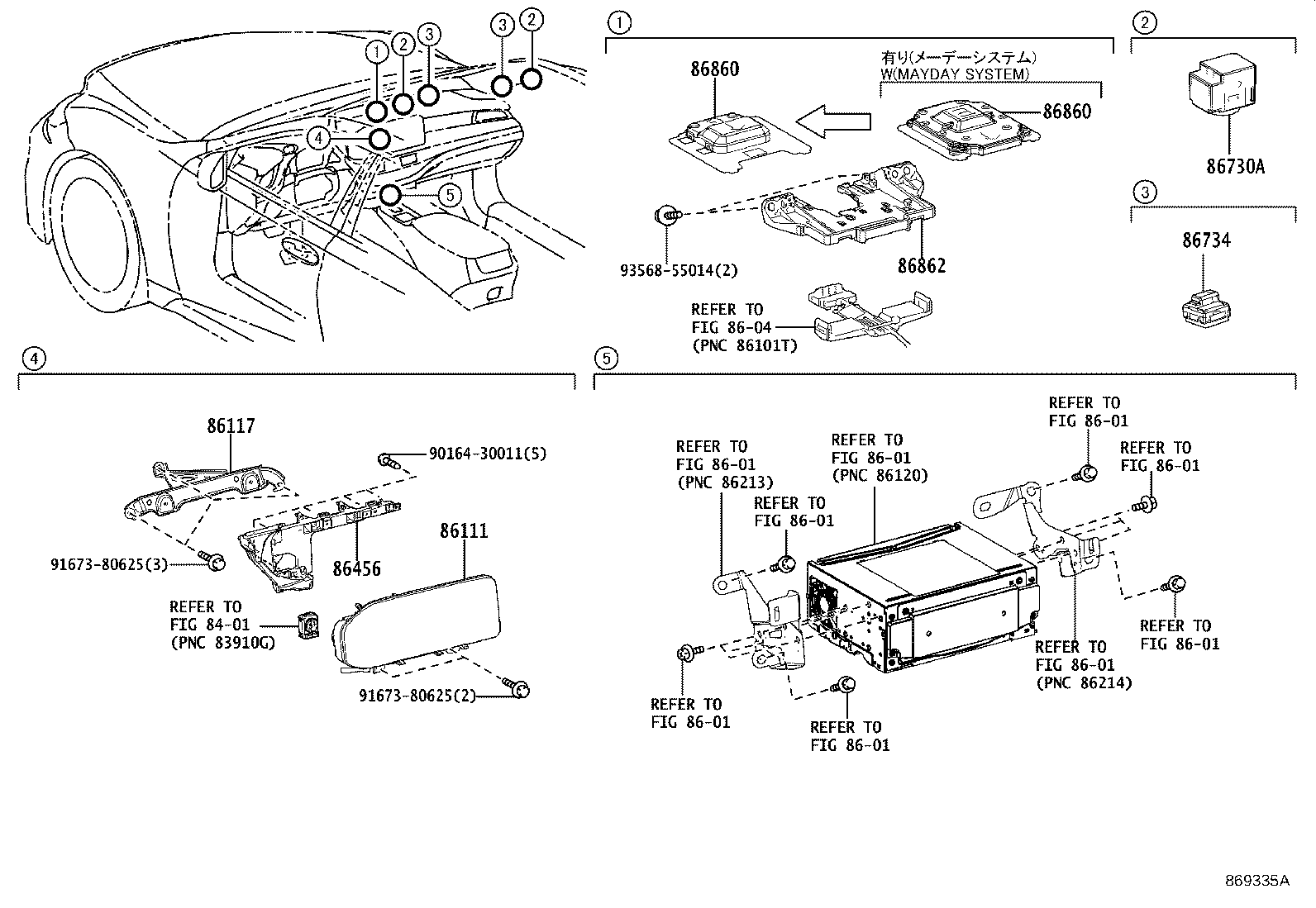

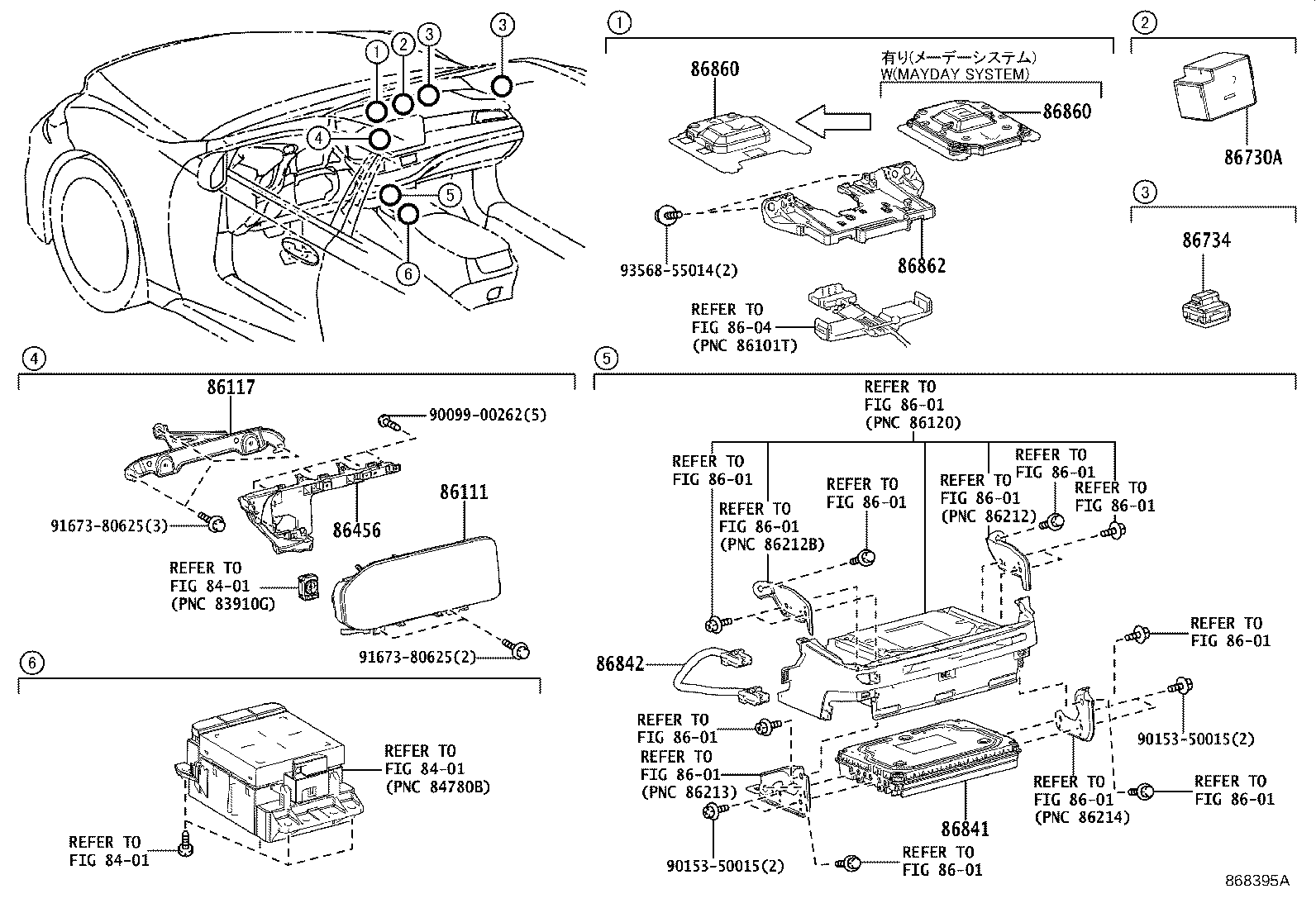

Figure 867040B 867040B 2017-10 → 2020-10 Figure 868395A 868395A 2020-10 → 2022-10 Figure 869335A 869335A 2022-10 → — Figure 867041D 867041D 2017-10 → 2020-10 Figure 868396B 868396B 2020-10 → 2022-10 Figure 869336A 869336A 2022-10 → —

Part groups

PNCDescription
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86271 Disc, Disc Player
86456 Cover, Multi-media Module
86730A Microphone Assy, Telephone
86730D Microphone Assy, Telephone, NO.2
86734 Microphone, Active Noise Control
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
