Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11
Antenna

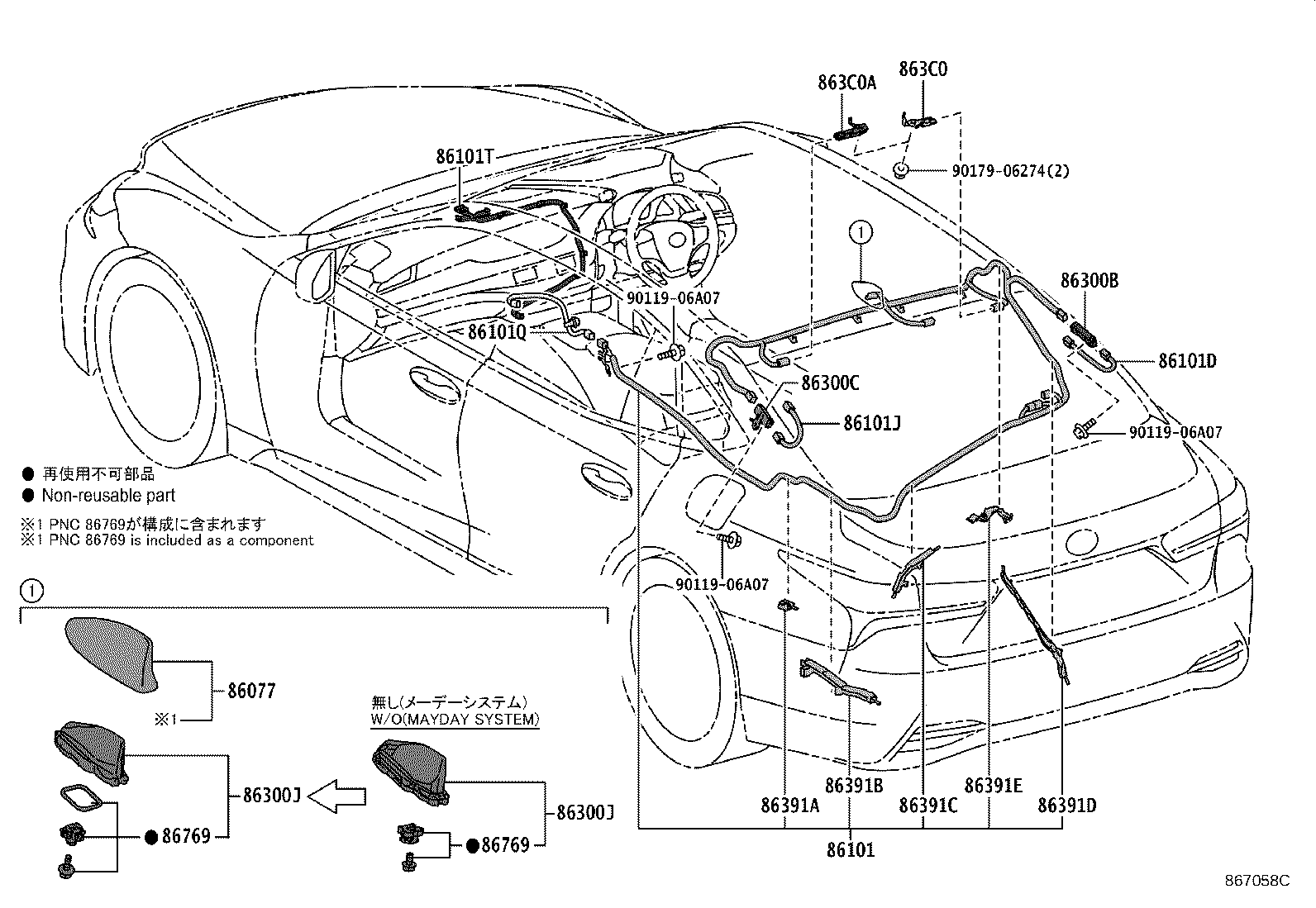

17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101T | Cord Sub-assy, Antenna |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300C | Antenna Assy, Amplifier, NO.2 |
| 86300J | Antenna Assy, Roof |
| 86391A | Protector, Antenna Cord |
| 86391B | Protector, Antenna Cord |
| 86391C | Protector, Antenna Cord |
| 86391D | Protector, Antenna Cord |
| 86391E | Protector, Antenna Cord |
| 863C0 | Antenna Assy, Digital Audio Broadcasting |
| 863C0A | Antenna Assy, Digital Audio Broadcasting |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
