Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

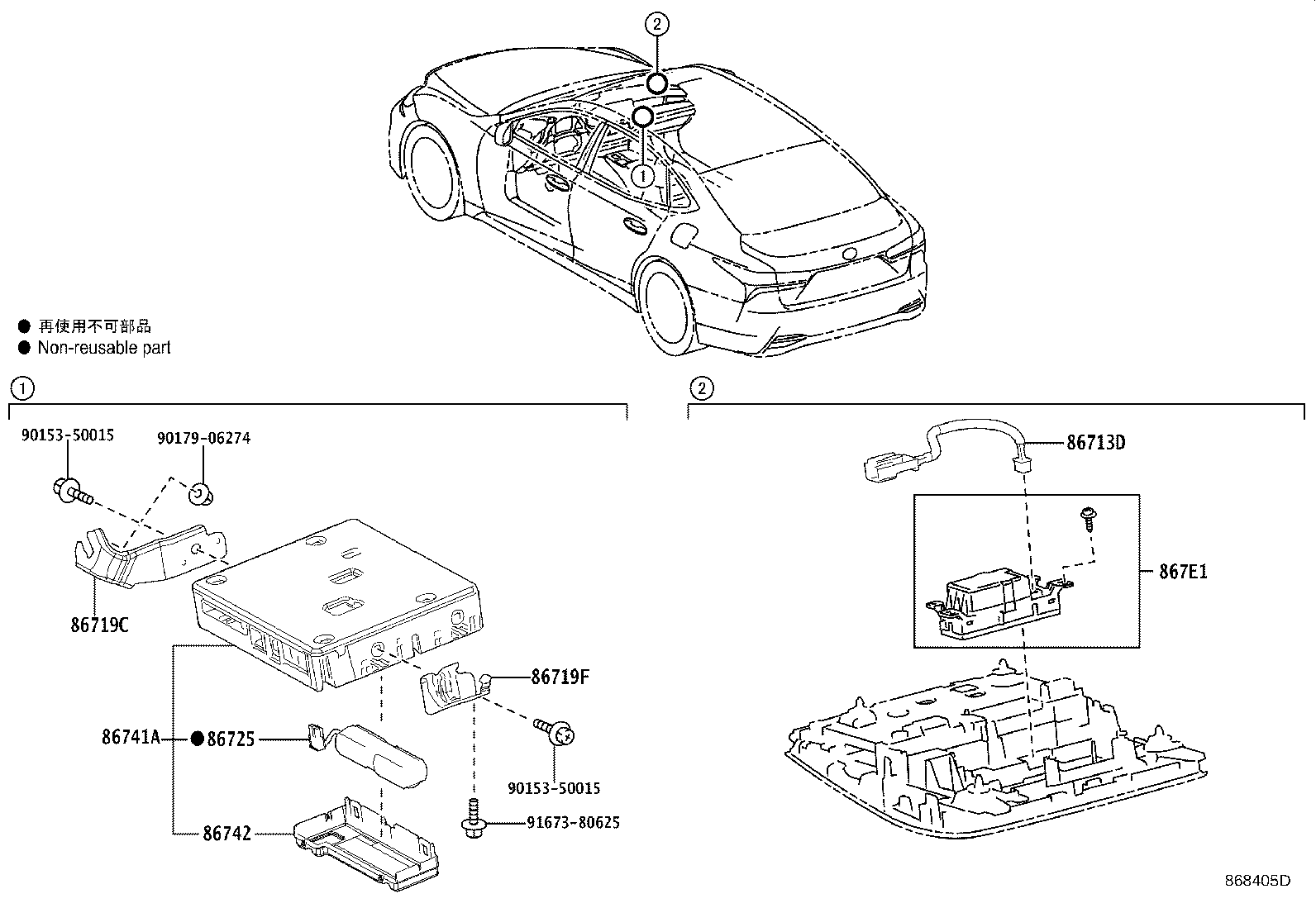

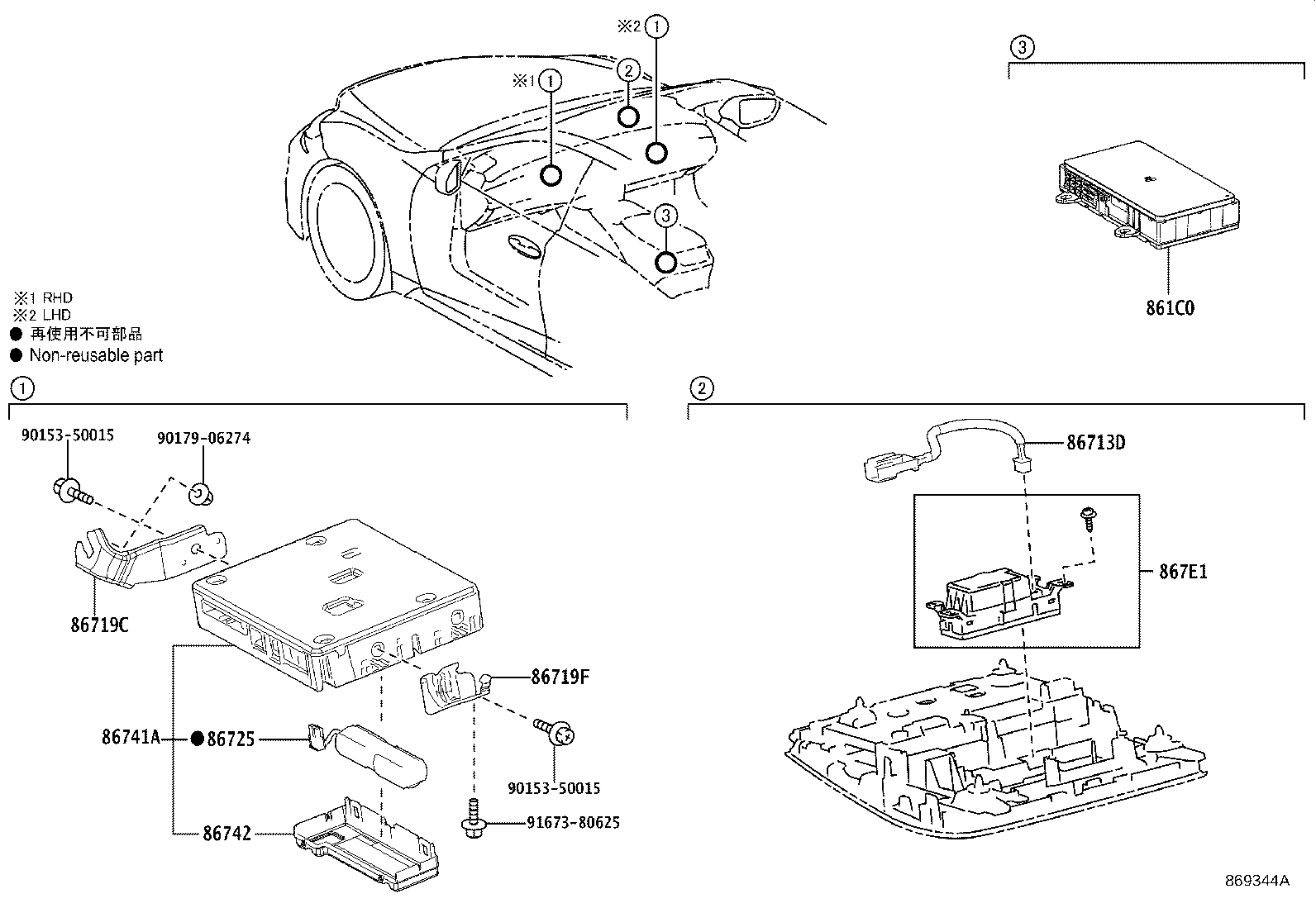

Telephone & Mayday
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86713D | Wire, Mayday |
| 86719C | Bracket, Telephone NO.3 |
| 86719F | Bracket, Telephone NO.4 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
| 867E1 | Box, Communication Telematics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
