Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11
Mirror
17 part groups · 3 illustrations
Part groups

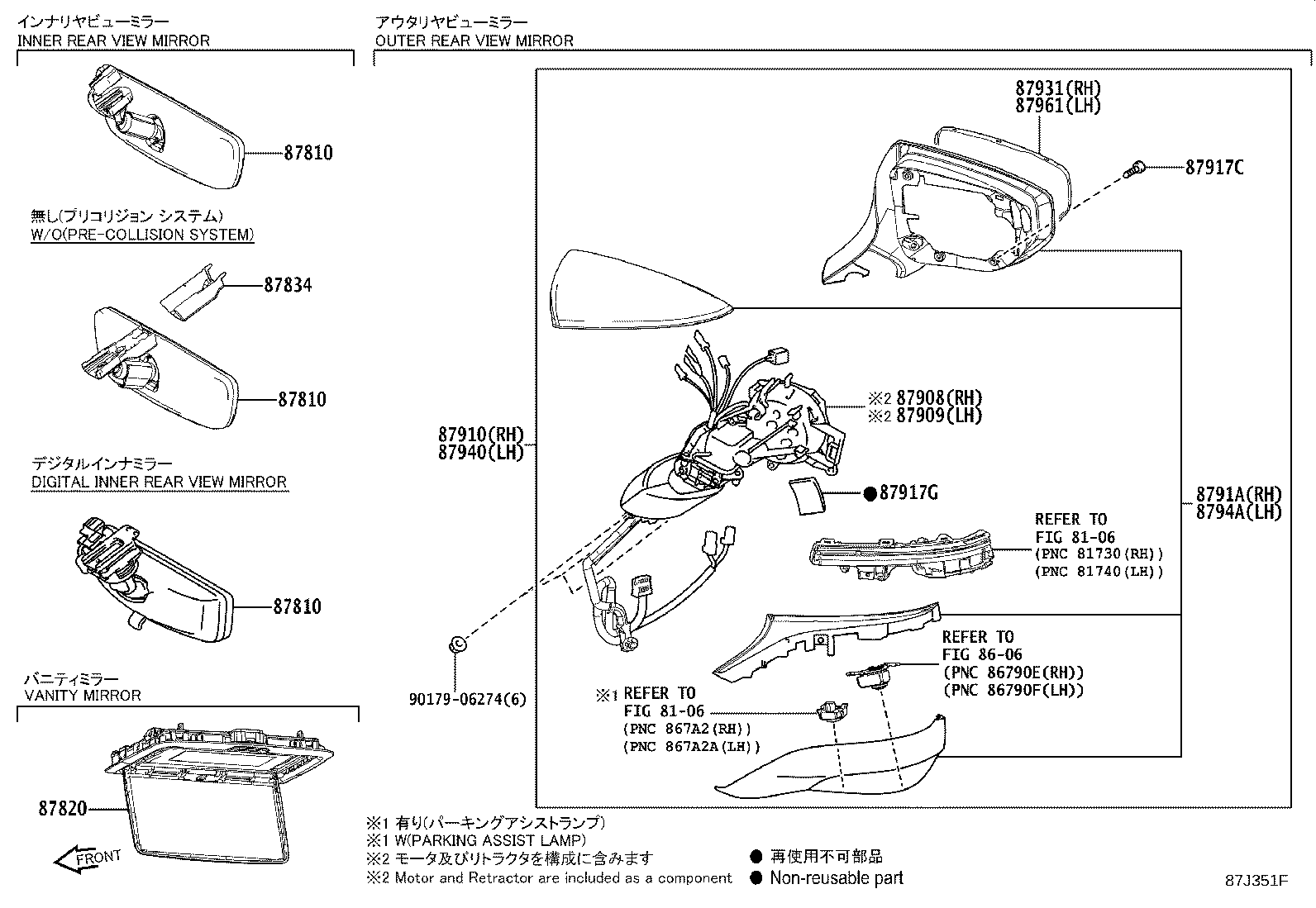

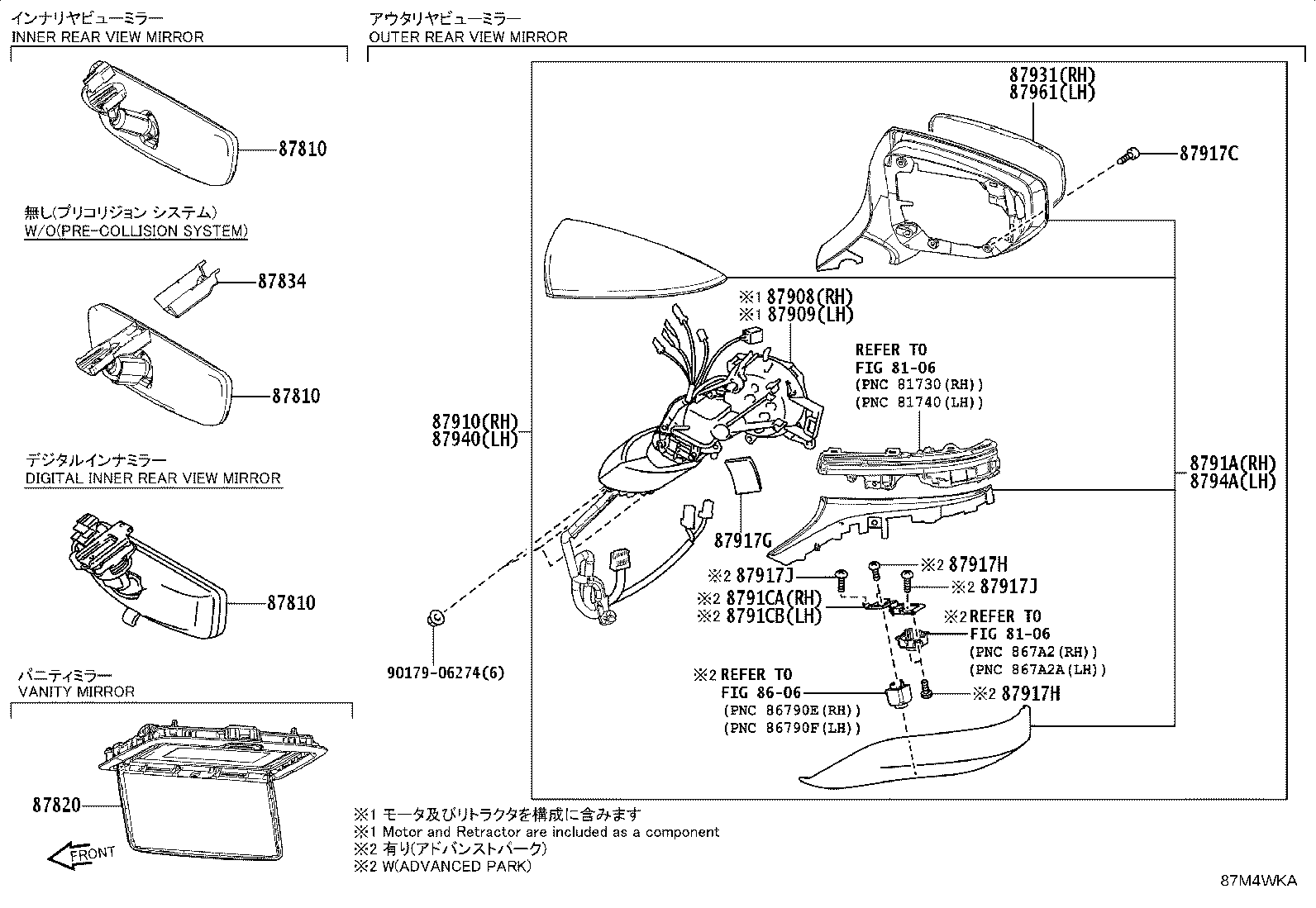

| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87820 | Mirror Assy, Vanity |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87917C | Screw, Outer Mirror |
| 87917G | Tape, Outer Mirror |
| 87917H | Screw, Outer Mirror, NO.2 |
| 87917J | Screw, Outer Mirror, NO.3 |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 8791CA | Bracket, Outer Mirror Cover Adapter, RH |
| 8791CB | Bracket, Outer Mirror Cover Adapter, LH |
| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
