Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 8 illustrations

Illustrations

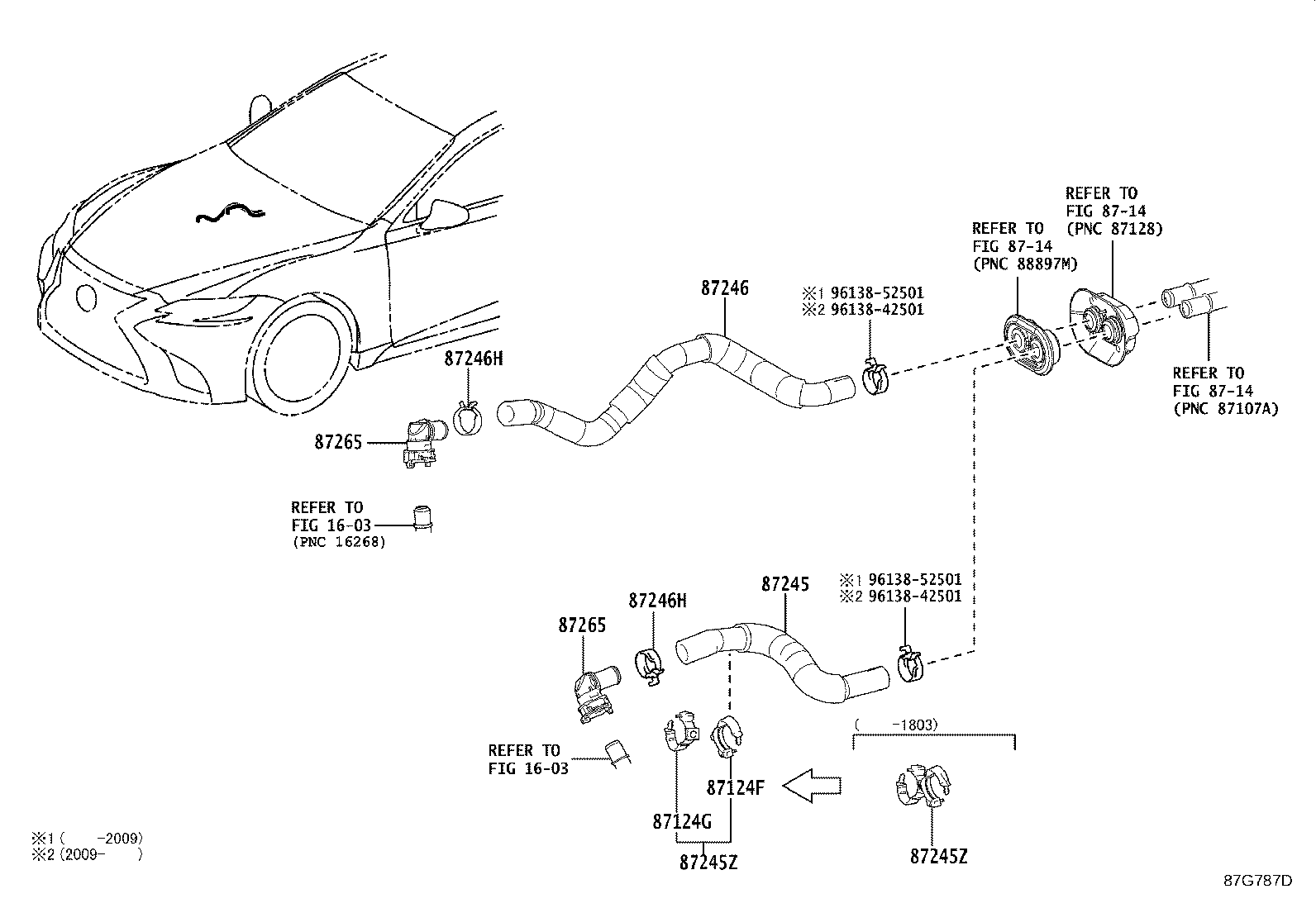

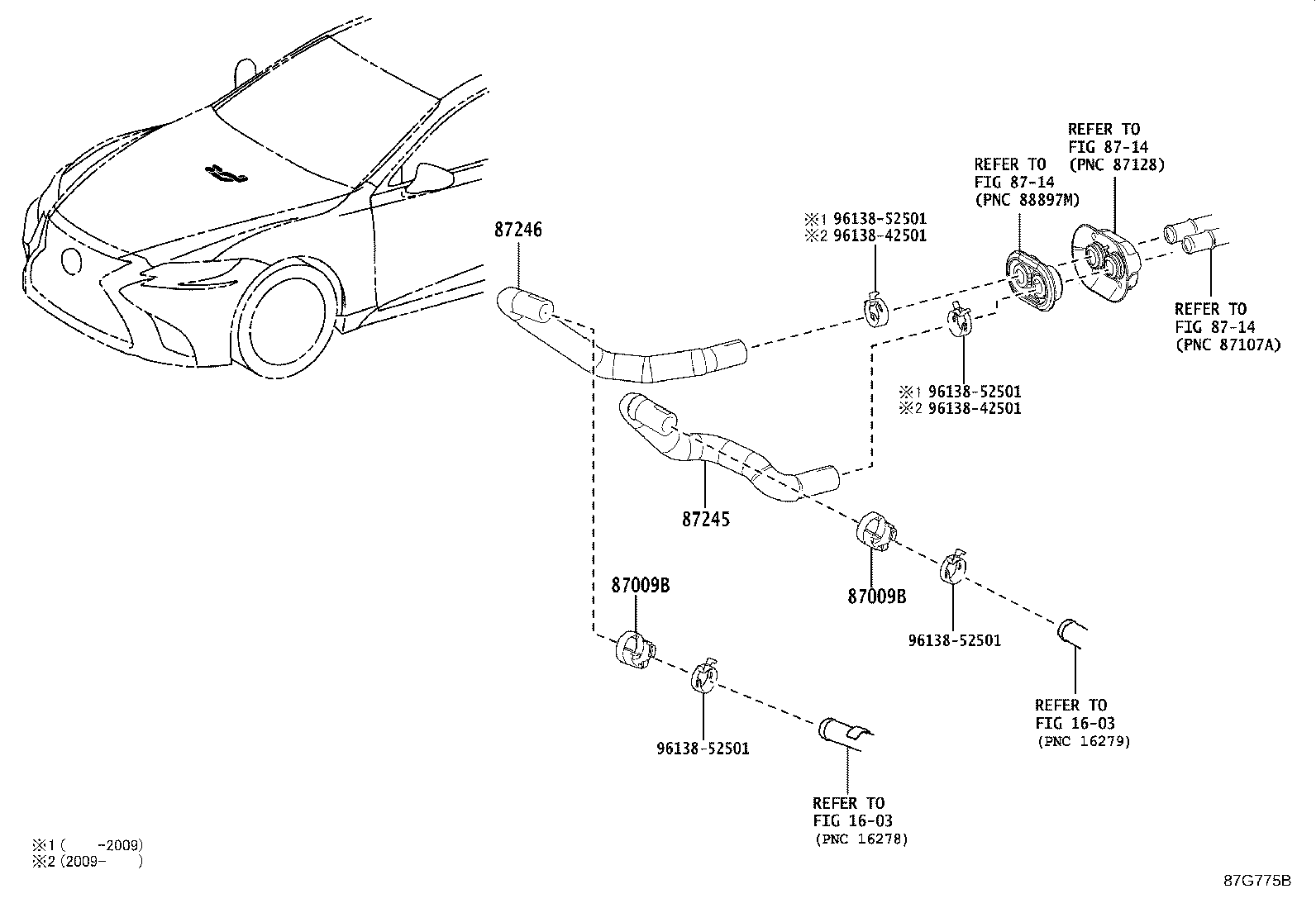

Figure 87G783B 87G783B 2017-10 → 2020-10 Figure 87G783B 87G783B 2020-10 → — Figure 87G774B 87G774B 2017-10 → 2020-10 Figure 87G774B 87G774B 2020-10 → — Figure 87G775B 87G775B 2017-10 → 2020-10 Figure 87G775B 87G775B 2020-10 → — Figure 87G787D 87G787D 2017-12 → 2020-10 Figure 87G787D 87G787D 2020-10 → —

Part groups

PNCDescription
87009B Hose Set, Water
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87245 Hose, Heater Water, Inlet
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
