Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 12 illustrations

Illustrations

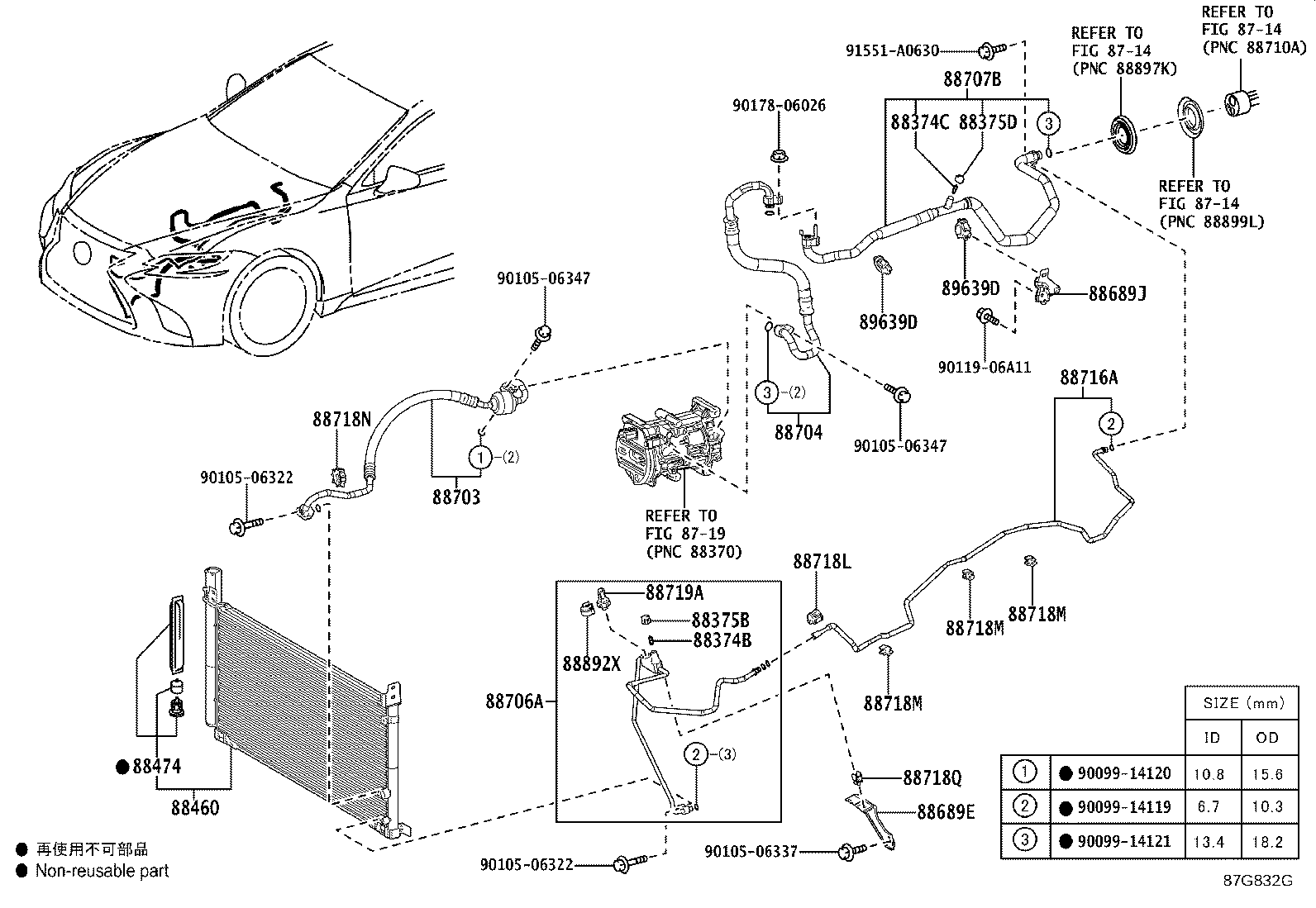

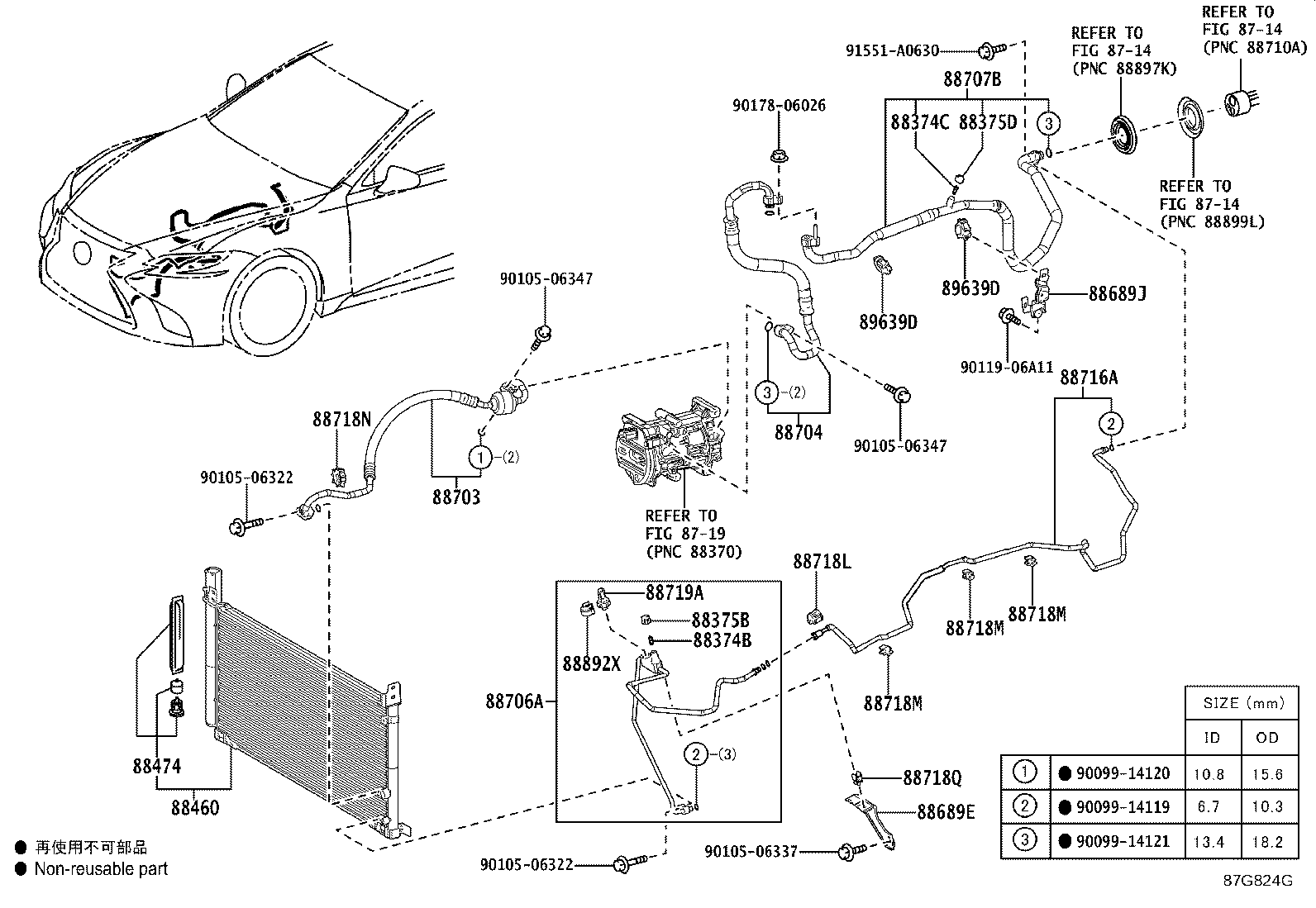

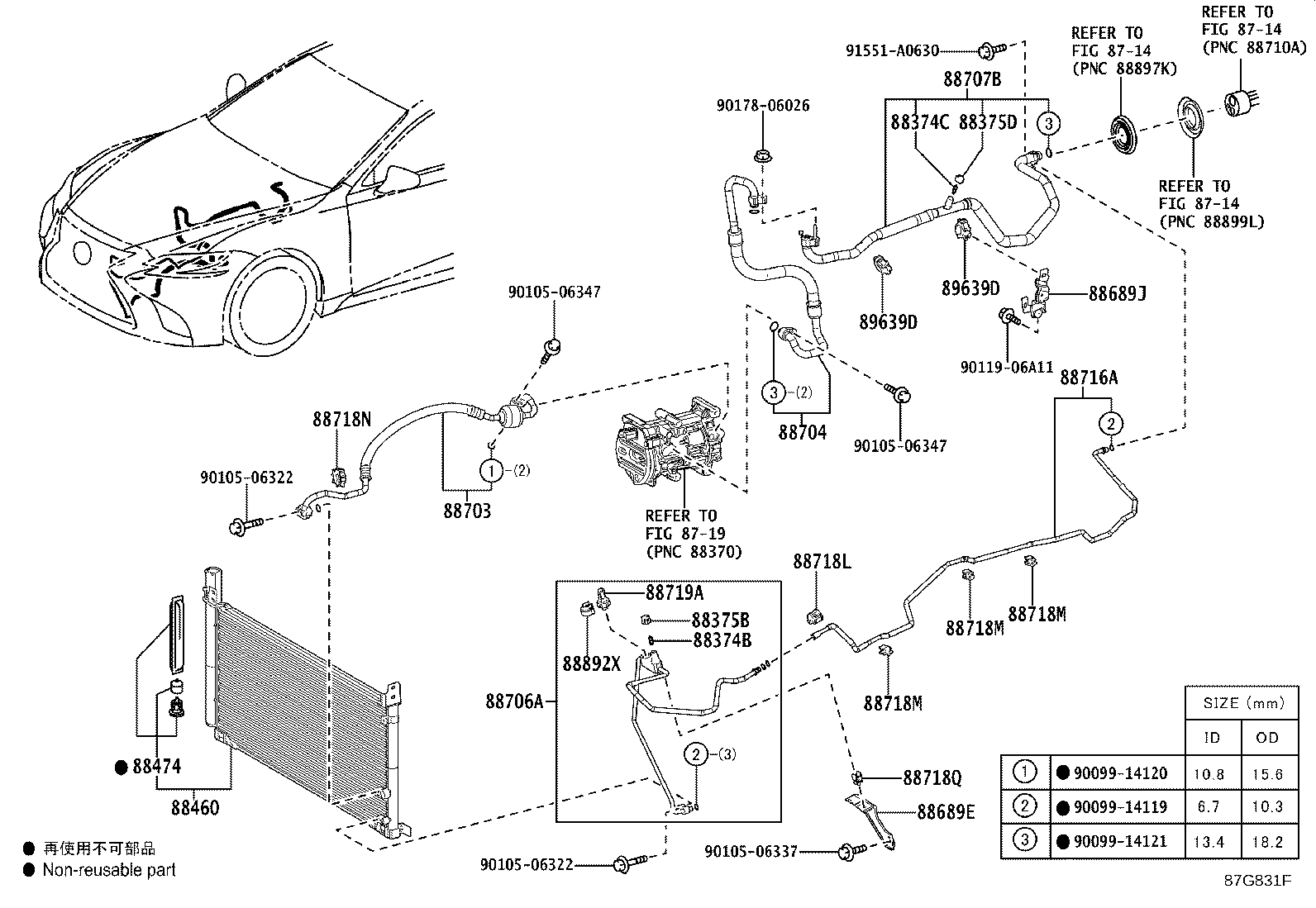

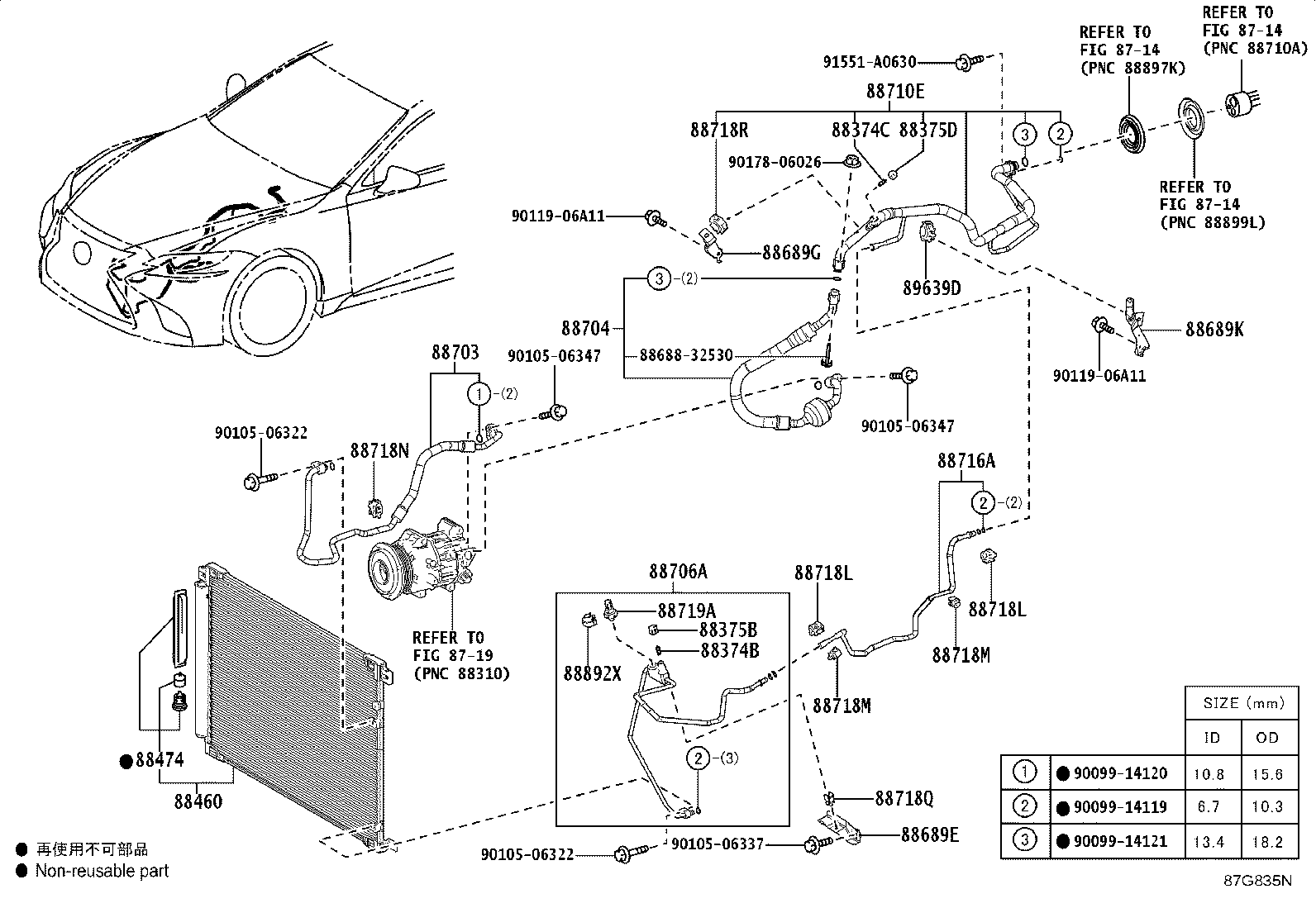

Figure 87G715C 87G715C 2017-10 → 2020-10 Figure 87G715C 87G715C 2020-11 → — Figure 87G831F 87G831F 2017-10 → 2020-10 Figure 87G831F 87G831F 2020-11 → — Figure 87G832G 87G832G 2017-10 → 2020-10 Figure 87G832G 87G832G 2020-11 → — Figure 87G835N 87G835N 2017-12 → 2020-10 Figure 87G835N 87G835N 2020-11 → — Figure 87G711G 87G711G 2017-10 → 2020-10 Figure 87G711G 87G711G 2020-11 → — Figure 87G824G 87G824G 2017-10 → 2020-10 Figure 87G824G 87G824G 2020-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88689E Bracket, Cooler, NO.1
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88689J Bracket, Cooler, NO.5
88689K Bracket, Cooler, NO.6
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710E Tube & Accessory Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88892X Cover, Cooler, NO.2
89639D Clamp, Airconditioner Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
