Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

9 part groups · 8 illustrations

Illustrations

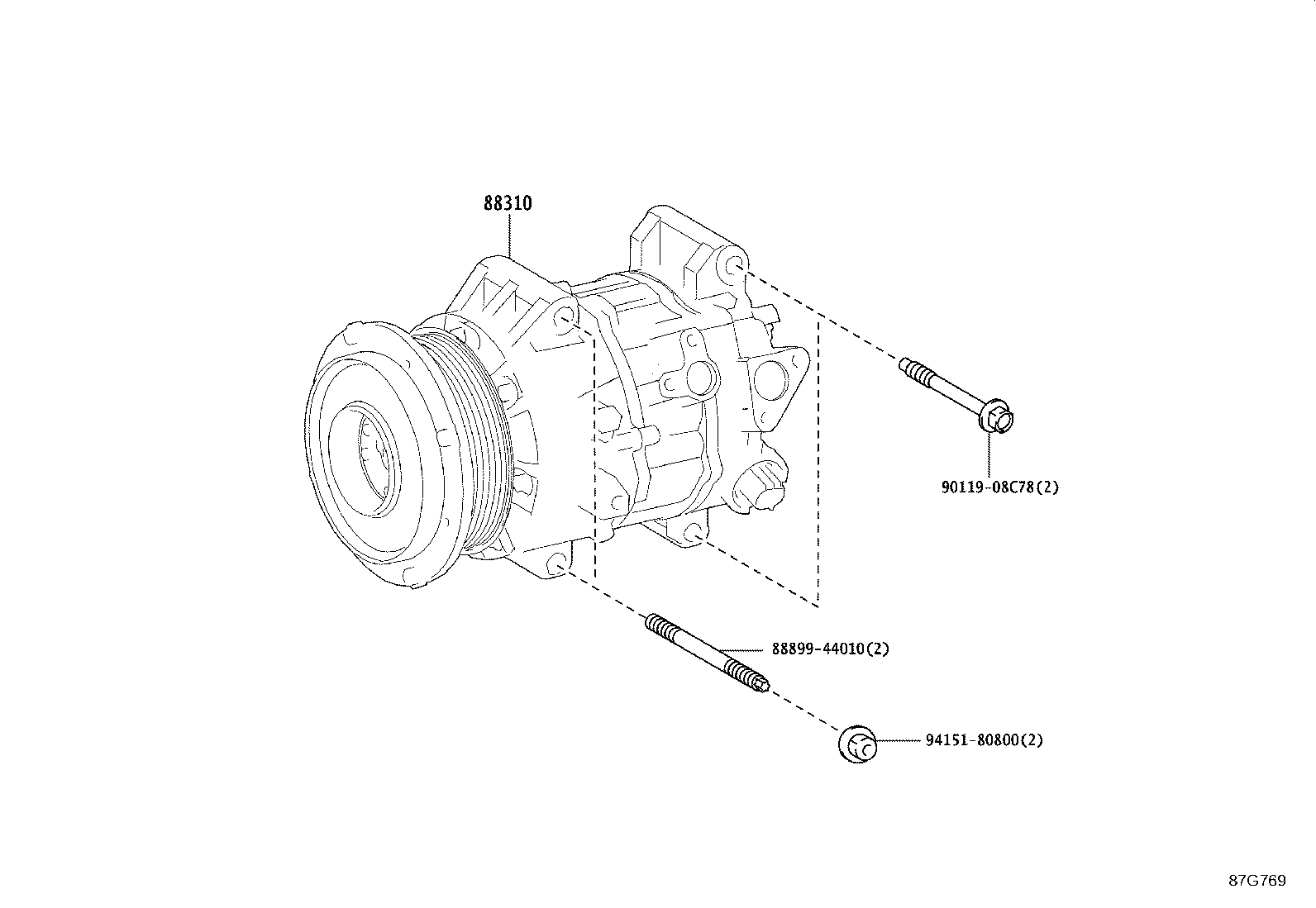

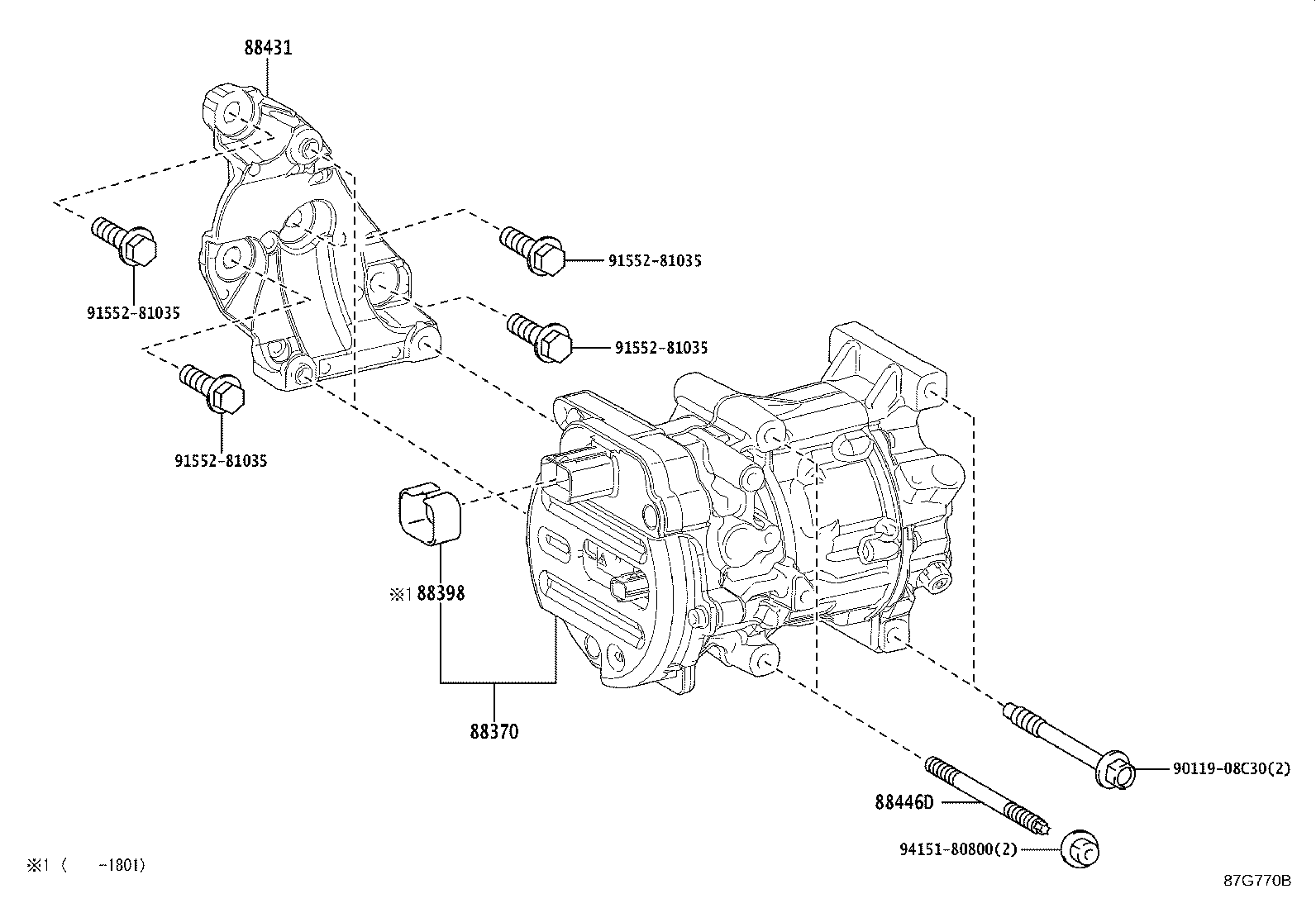

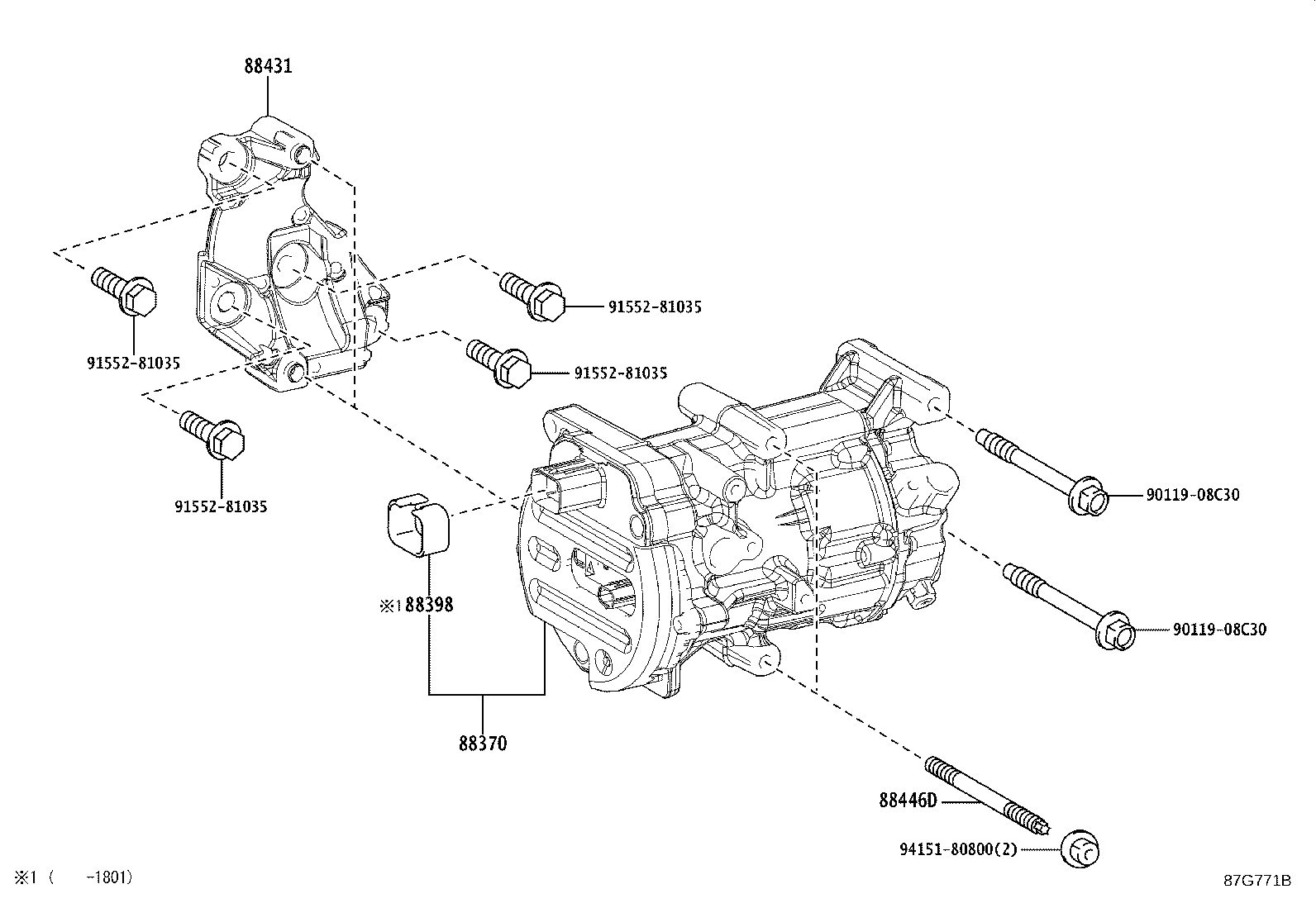

Figure 87G772A 87G772A 2017-10 → 2020-10 Figure 87G772A 87G772A 2020-11 → — Figure 87G770B 87G770B 2017-10 → 2020-10 Figure 87G770B 87G770B 2020-11 → — Figure 87G771B 87G771B 2017-10 → 2020-10 Figure 87G771B 87G771B 2020-11 → — Figure 87G769 87G769 2017-12 → 2020-10 Figure 87G769 87G769 2020-11 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88398 Packing, Compressor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88446D Bolt, Cooler
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
