Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

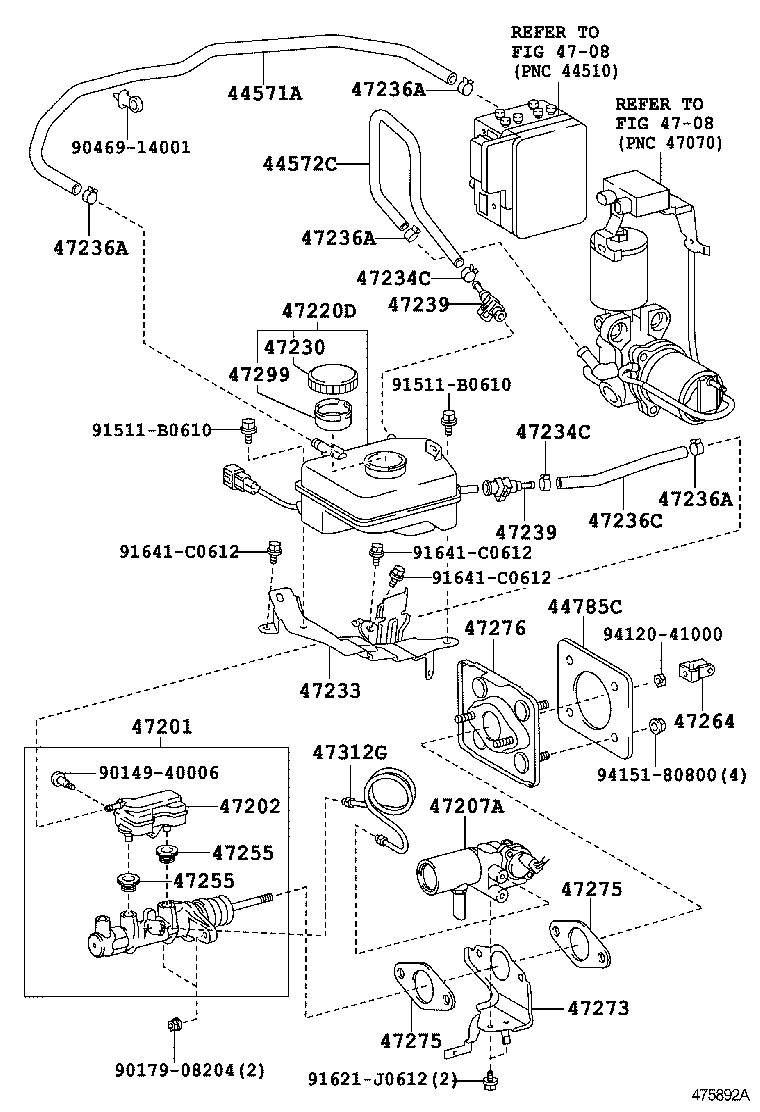

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44571A — Hose, Brake Actuator, NO.1 | ||||
| 44571-50100 |
Hose, Brake Actuator, NO.1
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 44571-50110 |
Hose, Brake Actuator, NO.1
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 44571-50100 |
Hose, Brake Actuator, NO.1
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 44571-50110 |
Hose, Brake Actuator, NO.1
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 44571-50100 |
Hose, Brake Actuator, NO.1
2009-11 → —
|
UVF4# RHD | — | |
| 44571-50110 |
Hose, Brake Actuator, NO.1
2009-11 → —
|
UVF4# LHD | — | |
| 44572C — Hose, Brake Actuator, NO.2 | ||||
| 44572-50070 |
Hose, Brake Actuator, NO.2
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 44572-50080 |
Hose, Brake Actuator, NO.2
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 44572-50070 |
Hose, Brake Actuator, NO.2
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 44572-50080 |
Hose, Brake Actuator, NO.2
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 44572-50070 |
Hose, Brake Actuator, NO.2
2009-11 → 2012-09
ended
|
UVF4# RHD | — | |
| 44572-50080 |
Hose, Brake Actuator, NO.2
2009-11 → 2012-09
ended
|
UVF4# LHD | — | |
| 44785C — Gasket, Brake Booster | ||||
| 44785-47010 |
Gasket, Brake Booster
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 44785-47010 |
Gasket, Brake Booster
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 44785-47010 |
Gasket, Brake Booster
2009-11 → —
|
UVF4# | — | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-50340 |
Cylinder Sub-assy, Brake Master
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47201-50350 |
Cylinder Sub-assy, Brake Master
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47201-50340 |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47201-50350 |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47201-50340 |
Cylinder Sub-assy, Brake Master
2009-11 → —
|
UVF4# RHD | — | |
| 47201-50350 |
Cylinder Sub-assy, Brake Master
2009-11 → —
|
UVF4# LHD | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47221-50070 |
Reservoir Sub-assy, Brake Master Cylinder
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47221-50080 |
Reservoir Sub-assy, Brake Master Cylinder
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47221-50070 |
Reservoir Sub-assy, Brake Master Cylinder
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47221-50080 |
Reservoir Sub-assy, Brake Master Cylinder
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47221-50070 |
Reservoir Sub-assy, Brake Master Cylinder
2009-11 → —
|
UVF4# RHD | — | |
| 47221-50080 |
Reservoir Sub-assy, Brake Master Cylinder
2009-11 → —
|
UVF4# LHD | — | |
| 47207A — Cylinder Sub-assy, Brake Stroke Simulator | ||||
| 47207-50010 |
Cylinder Sub-assy, Brake Stroke Simulator
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47207-50020 |
Cylinder Sub-assy, Brake Stroke Simulator
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47207-50010 |
Cylinder Sub-assy, Brake Stroke Simulator
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47207-50020 |
Cylinder Sub-assy, Brake Stroke Simulator
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47207-50010 |
Cylinder Sub-assy, Brake Stroke Simulator
2009-11 → —
|
UVF4# RHD | — | |
| 47207-50020 |
Cylinder Sub-assy, Brake Stroke Simulator
2009-11 → —
|
UVF4# LHD | — | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-50220 |
Reservoir Assy, Brake Master Cylinder
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47220-50230 |
Reservoir Assy, Brake Master Cylinder
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47220-50220 |
Reservoir Assy, Brake Master Cylinder
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47220-50230 |
Reservoir Assy, Brake Master Cylinder
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47220-50250 |
Reservoir Assy, Brake Master Cylinder
2009-11 → —
|
UVF4# RHD | — | |
| 47220-50260 |
Reservoir Assy, Brake Master Cylinder
2009-11 → —
|
UVF4# LHD | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-58010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47230-58010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47230-58010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2009-11 → —
|
UVF4# | — | |
| 47233 — Bracket, Reservoir | ||||
| 47233-50010 |
Bracket, Reservoir
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47233-50020 |
Bracket, Reservoir
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47233-50010 |
Bracket, Reservoir
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47233-50020 |
Bracket, Reservoir
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47233-50010 |
Bracket, Reservoir
2009-11 → —
|
UVF4# RHD | — | |
| 47233-50020 |
Bracket, Reservoir
2009-11 → —
|
UVF4# LHD | — | |
| 47234C — Clip(FOR RESERVOIR TUBE NO.1) | ||||
| 90467-14034 |
Clip(FOR RESERVOIR TUBE NO.1)
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90467-14034 |
Clip(FOR RESERVOIR TUBE NO.1)
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90467-14034 |
Clip(FOR RESERVOIR TUBE NO.1)
2009-11 → —
|
UVF4# | — | |
| 47236A — Clip(FOR RESERVOIR TUBE) | ||||
| 96135-51300 |
Clip(FOR RESERVOIR TUBE)
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 96135-51300 |
Clip(FOR RESERVOIR TUBE)
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 96135-51300 |
Clip(FOR RESERVOIR TUBE)
2009-11 → —
|
UVF4# | — | |
| 47236C — Hose, Reservoir Tube | ||||
| 47234-50010 |
Hose, Reservoir Tube
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47234-50020 |
Hose, Reservoir Tube
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47234-50010 |
Hose, Reservoir Tube
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47234-50020 |
Hose, Reservoir Tube
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47234-50010 |
Hose, Reservoir Tube
2009-11 → —
|
UVF4# RHD | — | |
| 47234-50020 |
Hose, Reservoir Tube
2009-11 → —
|
UVF4# LHD | — | |
| 47239 — Connector, Brake Master Cylinder Reservoir | ||||
| 47231-50010 |
Connector, Brake Master Cylinder Reservoir
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47231-50010 |
Connector, Brake Master Cylinder Reservoir
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47231-50010 |
Connector, Brake Master Cylinder Reservoir
2009-11 → —
|
UVF4# | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2009-11 → —
|
UVF4# | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-26030 |
Clevis, Master Cylinder Push Rod
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47264-26030 |
Clevis, Master Cylinder Push Rod
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47264-26030 |
Clevis, Master Cylinder Push Rod
2009-11 → —
|
UVF4# | — | |
| 47273 — Bracket, Brake Stroke Simulator | ||||
| 47273-50010 |
Bracket, Brake Stroke Simulator
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 47273-50020 |
Bracket, Brake Stroke Simulator
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 47273-50010 |
Bracket, Brake Stroke Simulator
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 47273-50020 |
Bracket, Brake Stroke Simulator
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 47273-50010 |
Bracket, Brake Stroke Simulator
2009-11 → —
|
UVF4# RHD | — | |
| 47273-50020 |
Bracket, Brake Stroke Simulator
2009-11 → —
|
UVF4# LHD | — | |
| 47275 — Gasket, Brake Master Cylinder | ||||
| 47275-12020 |
Gasket, Brake Master Cylinder
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47275-12020 |
Gasket, Brake Master Cylinder
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47275-12020 |
Gasket, Brake Master Cylinder
2009-11 → —
|
UVF4# | — | |
| 47276 — Bracket, Brake Master Cylinder | ||||
| 47276-30040 |
Bracket, Brake Master Cylinder
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47276-30040 |
Bracket, Brake Master Cylinder
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47276-30040 |
Bracket, Brake Master Cylinder
2009-11 → —
|
UVF4# | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-30190 |
Strainer, Brake Master Cylinder Reservoir
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 47299-30190 |
Strainer, Brake Master Cylinder Reservoir
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 47299-30190 |
Strainer, Brake Master Cylinder Reservoir
2009-11 → —
|
UVF4# | — | |
| 47312G — Tube, Brake Stroke Simulator | ||||
| 44255-50040 |
Tube, Brake Stroke Simulator
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 44255-50050 |
Tube, Brake Stroke Simulator
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 44255-50040 |
Tube, Brake Stroke Simulator
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 44255-50050 |
Tube, Brake Stroke Simulator
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 44255-50040 |
Tube, Brake Stroke Simulator
2009-11 → —
|
UVF4# RHD | — | |
| 44255-50050 |
Tube, Brake Stroke Simulator
2009-11 → —
|
UVF4# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
