Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

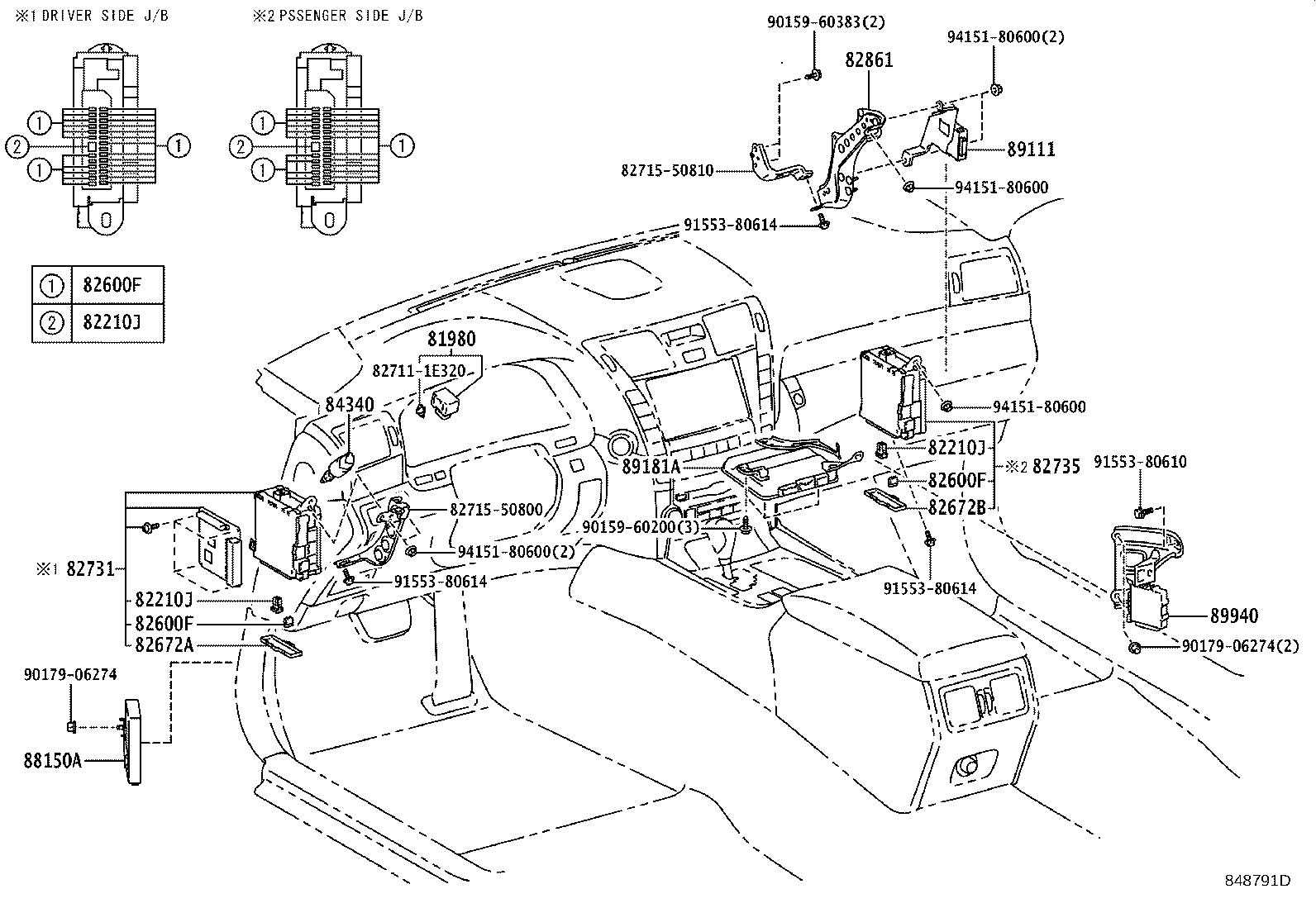

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-50042 |
Flasher Assy, Turn Signal
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 81980-50042 |
Flasher Assy, Turn Signal
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 81980-30170 |
Flasher Assy, Turn Signal
2009-11 → —
|
UVF4# | — | |
| 82210J — Fusible Link | ||||
| 90982-08294 note |
Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-08295 note |
Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-08296 note |
Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-08294 note |
Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-08295 note |
Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-08296 note |
Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-08294 note |
Fusible Link
2009-11 → —
|
UVF4# | — | |
| 90982-08295 note |
Fusible Link
2009-11 → —
|
UVF4# | — | |
| 90982-08296 note |
Fusible Link
2009-11 → —
|
UVF4# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09025 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09019 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09025 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09019 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-50240 |
Cover, Junction Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 82672-50240 |
Cover, Junction Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 82672-50300 |
Cover, Junction Block
2009-11 → —
|
UVF4# | — | |
| 82672B — Cover, Junction Block | ||||
| 82672-50250 |
Cover, Junction Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 82672-50251 |
Cover, Junction Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 82672-50310 |
Cover, Junction Block
2009-11 → —
|
UVF4# | — | |
| 82731 — Block, Driver Side Junction | ||||
| 82730-50550 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50551 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50560 |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50561 |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50570 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50571 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50580 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50580 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50580 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50580 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50581 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50581 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50581 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50581 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50590 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# LHD | — | |
| 82730-50591 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# LHD | — | |
| 82730-50600 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF46 LHD | — | |
| 82730-50601 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 LHD | — | |
| 82730-50610 note |
Block, Driver Side Junction
2007-04 → 2007-07
ended
|
UVF46 LHD | — | |
| 82730-50610 note |
Block, Driver Side Junction
2007-04 → 2007-07
ended
|
UVF46 LHD | — | |
| 82730-50611 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 LHD | — | |
| 82730-50611 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 LHD | — | |
| 82730-50620 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF46 LHD | — | |
| 82730-50621 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 LHD | — | |
| 82730-50630 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# RHD | — | |
| 82730-50630 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# RHD | — | |
| 82730-50631 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# RHD | — | |
| 82730-50631 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# RHD | — | |
| 82730-50640 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# RHD | — | |
| 82730-50641 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# RHD | — | |
| 82730-50650 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF46 RHD | — | |
| 82730-50651 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 RHD | — | |
| 82730-50660 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF46 RHD | — | |
| 82730-50661 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 RHD | — | |
| 82730-50670 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF46 RHD | — | |
| 82730-50671 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 RHD | — | |
| 82730-50680 note |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF46 RHD | — | |
| 82730-50681 note |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF46 RHD | — | |
| 82730-50690 |
Block, Driver Side Junction
2007-04 → 2007-06
ended
|
UVF4# RHD | — | |
| 82730-50691 |
Block, Driver Side Junction
2007-07 → 2008-09
ended
|
UVF4# RHD | — | |
| 82730-50552 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50562 |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50572 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50582 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50582 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50582 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50582 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50592 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82730-50602 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF46 LHD | — | |
| 82730-50612 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF46 LHD | — | |
| 82730-50612 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF46 LHD | — | |
| 82730-50622 note |
Block, Driver Side Junction
2008-09 → 2009-11
ended
|
UVF46 LHD | — | |
| 82730-50632 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF4# RHD | — | |
| 82730-50632 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF4# RHD | — | |
| 82730-50633 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF4# RHD | — | |
| 82730-50633 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF4# RHD | — | |
| 82730-50642 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF4# RHD | — | |
| 82730-50643 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF4# RHD | — | |
| 82730-50652 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF46 RHD | — | |
| 82730-50653 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF46 RHD | — | |
| 82730-50662 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF46 RHD | — | |
| 82730-50663 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF46 RHD | — | |
| 82730-50672 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF46 RHD | — | |
| 82730-50673 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF46 RHD | — | |
| 82730-50682 note |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF46 RHD | — | |
| 82730-50683 note |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF46 RHD | — | |
| 82730-50692 |
Block, Driver Side Junction
2008-09 → 2008-12
ended
|
UVF4# RHD | — | |
| 82730-50693 |
Block, Driver Side Junction
2009-01 → 2009-11
ended
|
UVF4# RHD | — | |
| 82730-50790 |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50800 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50800 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50800 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50800 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50810 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50820 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50830 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# LHD EUR | — | |
| 82730-50840 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50850 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50860 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50860 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50870 |
Block, Driver Side Junction
2009-11 → —
|
UVF4# RHD | — | |
| 82730-50880 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# RHD | — | |
| 82730-50890 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# RHD | — | |
| 82730-50890 note |
Block, Driver Side Junction
2009-11 → —
|
UVF4# RHD | — | |
| 82730-50A00 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A10 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A20 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A30 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A50 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50A60 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A70 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A80 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 RHD | — | |
| 82730-50A90 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50B00 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50B10 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50B20 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 LHD EUR | — | |
| 82730-50B30 |
Block, Driver Side Junction
2009-11 → —
|
UVF46 GCC | — | |
| 82730-50B40 note |
Block, Driver Side Junction
2009-11 → —
|
UVF46 GCC | — | |
| 82735 — Block, Passenger Side Junction | ||||
| 82730-50490 |
Block, Passenger Side Junction
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 82730-50700 |
Block, Passenger Side Junction
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 82730-50740 |
Block, Passenger Side Junction
2009-11 → —
|
UVF4# | — | |
| 82861 — Bracket, Computer Integration, NO.1 | ||||
| 82861-50010 |
Bracket, Computer Integration, NO.1
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 82861-50020 |
Bracket, Computer Integration, NO.1
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 82861-50010 |
Bracket, Computer Integration, NO.1
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 82861-50020 |
Bracket, Computer Integration, NO.1
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 82861-50010 |
Bracket, Computer Integration, NO.1
2009-11 → —
|
UVF4# LHD | — | |
| 82861-50020 |
Bracket, Computer Integration, NO.1
2009-11 → —
|
UVF4# RHD | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-30110 |
Switch Assy, Stop Lamp
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84340-30110 |
Switch Assy, Stop Lamp
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84340-30110 |
Switch Assy, Stop Lamp
2009-11 → —
|
UVF4# | — | |
| 88150A — Computer Assy, Driving Support | ||||
| 88150-50030 note |
Computer Assy, Driving Support
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 88150-50030 note |
Computer Assy, Driving Support
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 88150-50030 note |
Computer Assy, Driving Support
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 88150-50050 note |
Computer Assy, Driving Support
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 88150-50050 note |
Computer Assy, Driving Support
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 88150-50050 note |
Computer Assy, Driving Support
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 88150-50080 note |
Computer Assy, Driving Support
2009-11 → —
|
UVF4# | — | |
| 88150-50080 note |
Computer Assy, Driving Support
2009-11 → —
|
UVF4# EUR | — | |
| 88150-50080 note |
Computer Assy, Driving Support
2009-11 → —
|
UVF46 EUR | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-50050 note |
Computer, Network Gateway
2007-04 → 2008-09
ended
|
UVF45 LHD | — | |
| 89111-50050 note |
Computer, Network Gateway
2007-04 → 2008-09
ended
|
UVF46 LHD | — | |
| 89111-50050 note |
Computer, Network Gateway
2007-04 → 2008-09
ended
|
UVF46 LHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2007-04 → 2008-09
ended
|
UVF45 RHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89111-50050 note |
Computer, Network Gateway
2008-09 → 2009-11
ended
|
UVF45 LHD | — | |
| 89111-50050 note |
Computer, Network Gateway
2008-09 → 2009-11
ended
|
UVF46 LHD | — | |
| 89111-50050 note |
Computer, Network Gateway
2008-09 → 2009-11
ended
|
UVF46 LHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2008-09 → 2009-11
ended
|
UVF46 RHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2008-09 → 2009-11
ended
|
UVF46 RHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2008-09 → 2009-11
ended
|
UVF45 RHD | — | |
| 89111-50050 note |
Computer, Network Gateway
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89111-50050 note |
Computer, Network Gateway
2009-11 → —
|
UVF4# LHD EUR | — | |
| 89111-50050 note |
Computer, Network Gateway
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89111-50060 note |
Computer, Network Gateway
2009-11 → —
|
UVF46 RHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2009-11 → —
|
UVF46 RHD | — | |
| 89111-50060 note |
Computer, Network Gateway
2009-11 → —
|
UVF4# RHD | — | |
| 89181A — Computer, Steering Control | ||||
| 89181-50040 |
Computer, Steering Control
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 89181-50050 |
Computer, Steering Control
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 89181-50060 note |
Computer, Steering Control
2007-04 → 2008-09
ended
|
UVF45 RHD | — | |
| 89181-50070 note |
Computer, Steering Control
2007-04 → 2008-09
ended
|
UVF45 LHD | — | |
| 89181-50040 |
Computer, Steering Control
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 89181-50050 |
Computer, Steering Control
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 89181-50060 note |
Computer, Steering Control
2008-09 → 2009-11
ended
|
UVF45 RHD | — | |
| 89181-50070 note |
Computer, Steering Control
2008-09 → 2009-11
ended
|
UVF45 LHD | — | |
| 89181-50200 |
Computer, Steering Control
2009-11 → 2011-08
ended
|
UVF4# RHD | — | |
| 89181-50201 |
Computer, Steering Control
2011-09 → —
|
UVF4# RHD | — | |
| 89181-50210 |
Computer, Steering Control
2009-11 → 2011-08
ended
|
UVF4# LHD | — | |
| 89181-50211 |
Computer, Steering Control
2011-09 → —
|
UVF4# LHD | — | |
| 89181-50220 note |
Computer, Steering Control
2009-11 → 2011-08
ended
|
UVF45 RHD | — | |
| 89181-50221 note |
Computer, Steering Control
2011-09 → —
|
UVF45 RHD | — | |
| 89181-50230 note |
Computer, Steering Control
2009-11 → 2011-08
ended
|
UVF45 LHD | — | |
| 89181-50231 note |
Computer, Steering Control
2011-09 → —
|
UVF45 LHD | — | |
| 89940 — Computer Assy, Headlamp Swivel | ||||
| 89940-50170 note |
Computer Assy, Headlamp Swivel
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 89940-50170 note |
Computer Assy, Headlamp Swivel
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 89940-50180 note |
Computer Assy, Headlamp Swivel
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 89940-50180 note |
Computer Assy, Headlamp Swivel
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 89940-50190 |
Computer Assy, Headlamp Swivel
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 89940-50200 |
Computer Assy, Headlamp Swivel
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 89940-50170 note |
Computer Assy, Headlamp Swivel
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 89940-50170 note |
Computer Assy, Headlamp Swivel
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 89940-50180 note |
Computer Assy, Headlamp Swivel
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 89940-50180 note |
Computer Assy, Headlamp Swivel
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 89940-50190 |
Computer Assy, Headlamp Swivel
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 89940-50200 |
Computer Assy, Headlamp Swivel
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 89940-50550 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50550 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 RHD | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 note |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 LHD EUR | — | |
| 89940-50560 |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 GCC | — | |
| 89940-50570 |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF45 | — | |
| 89940-50580 |
Computer Assy, Headlamp Swivel
2009-11 → —
|
UVF46 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
