Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

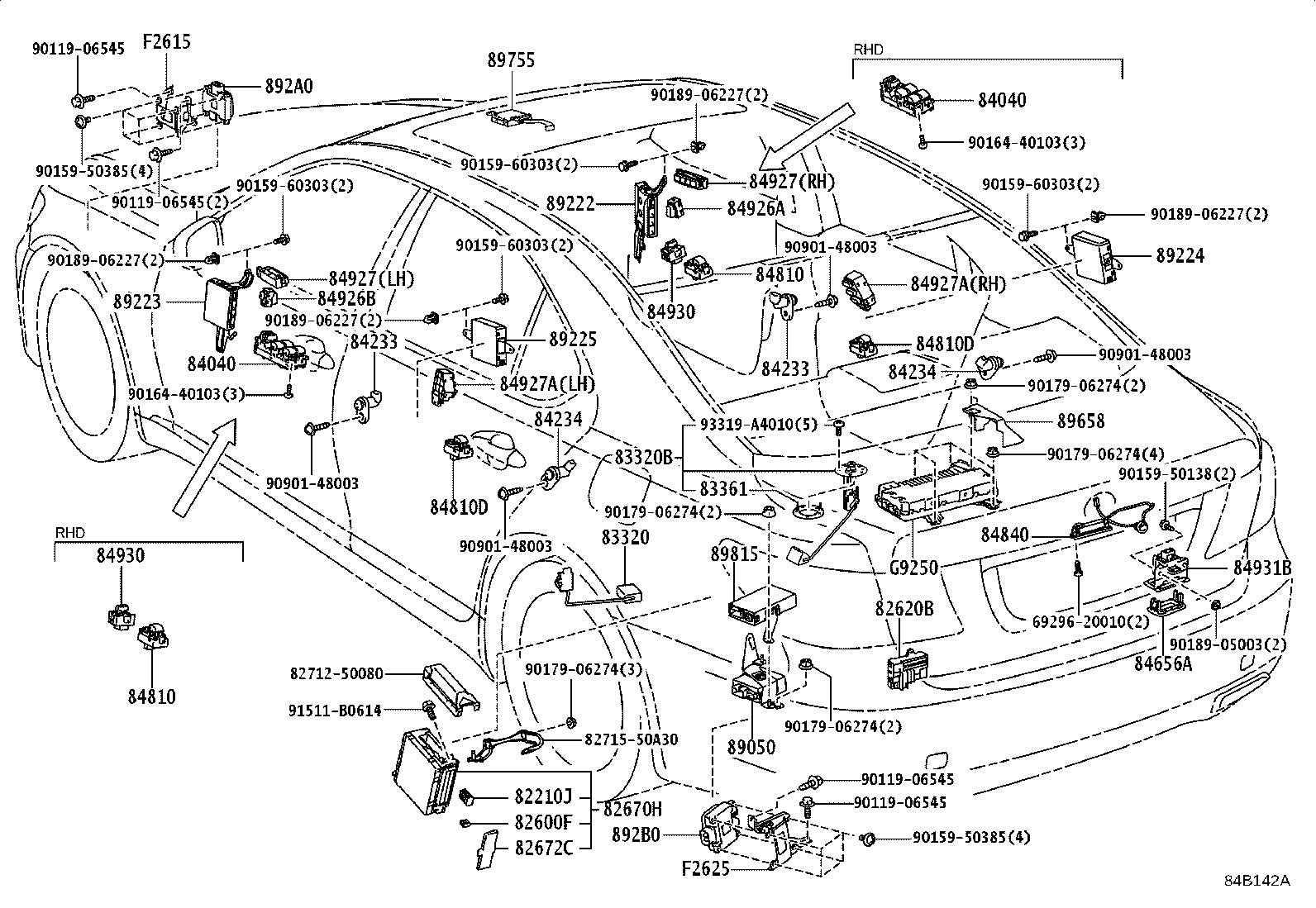

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210J — Fusible Link | ||||
| 90982-08294 note |
Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-08295 note |
Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-08296 note |
Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-08294 note |
Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-08295 note |
Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-08296 note |
Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-08294 note |
Fusible Link
2009-11 → —
|
UVF4# | — | |
| 90982-08295 note |
Fusible Link
2009-11 → —
|
UVF4# | — | |
| 90982-08296 note |
Fusible Link
2009-11 → —
|
UVF4# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09025 note |
Fuse, Fuse Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 90982-09019 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09025 note |
Fuse, Fuse Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 90982-09019 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-11 → —
|
UVF4# | — | |
| 82620B — Block Assy, Fusible Link | ||||
| 82620-50120 |
Block Assy, Fusible Link
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 82620-50120 |
Block Assy, Fusible Link
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 82620-50120 |
Block Assy, Fusible Link
2009-11 → —
|
UVF4# | — | |
| 82670H — Block Assy, Luggage Room Junction | ||||
| 82670-50120 |
Block Assy, Luggage Room Junction
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 82670-50121 |
Block Assy, Luggage Room Junction
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 82670-50140 |
Block Assy, Luggage Room Junction
2009-11 → 2010-03
ended
|
UVF4# | — | |
| 82670-50150 |
Block Assy, Luggage Room Junction
2010-03 → —
|
UVF4# | — | |
| 82672C — Cover, Junction Block | ||||
| 82672-50260 |
Cover, Junction Block
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 82672-50260 |
Cover, Junction Block
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 82672-50290 |
Cover, Junction Block
2009-11 → —
|
UVF4# | — | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-50120 |
Gage Assy, Fuel Sender
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 83320-50120 |
Gage Assy, Fuel Sender
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 83320-50120 |
Gage Assy, Fuel Sender
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 83320B — Gage Assy, Fuel Sender, NO.2 | ||||
| 83320-80441 |
Gage Assy, Fuel Sender, NO.2
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 83320-80441 |
Gage Assy, Fuel Sender, NO.2
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 83320-80441 |
Gage Assy, Fuel Sender, NO.2
2009-11 → —
|
UVF4# | — | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 77169-14020 |
Gasket, Fuel Sender Gage
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 77169-14020 |
Gasket, Fuel Sender Gage
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84040 — Master Switch Assy,Multiplex Network | ||||
| 84040-50120 |
Master Switch Assy,Multiplex Network
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 84040-50130 |
Master Switch Assy,Multiplex Network
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 84040-50120 |
Master Switch Assy,Multiplex Network
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 84040-50130 |
Master Switch Assy,Multiplex Network
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 84040-50120 |
Master Switch Assy,Multiplex Network
2009-11 → 2012-09
ended
|
UVF4# LHD | — | |
| 84040-50130 |
Master Switch Assy,Multiplex Network
2009-11 → 2012-09
ended
|
UVF4# RHD | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2009-11 → —
|
UVF4# | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84231-50190 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2009-11 → —
|
UVF4# | — | |
| 84656A — Bezel, Switch | ||||
| 84656-30110 note |
Bezel, Switch
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 84656-30110 |
Bezel, Switch
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 84656-30110 note |
Bezel, Switch
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 84656-30110 |
Bezel, Switch
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 84656-30110 |
Bezel, Switch
2009-11 → —
|
UVF4# | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-50020 |
Switch Assy, Power Window Regulator
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84810-50020 |
Switch Assy, Power Window Regulator
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84810-50020 |
Switch Assy, Power Window Regulator
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-50020 |
Switch Assy, Power Window Regulator, Rear
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84810-50020 |
Switch Assy, Power Window Regulator, Rear
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84810-50020 |
Switch Assy, Power Window Regulator, Rear
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-21010 |
Switch Assy, Luggage Compartment Door Opening
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84840-21010 |
Switch Assy, Luggage Compartment Door Opening
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84840-21010 |
Switch Assy, Luggage Compartment Door Opening
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84926A — Switch, Height Adjustable Anchor | ||||
| 84926-50090 |
Switch, Height Adjustable Anchor
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84926-50090 |
Switch, Height Adjustable Anchor
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84926-50090 |
Switch, Height Adjustable Anchor
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84926B — Switch, Height Adjustable Anchor | ||||
| 84926-50080 |
Switch, Height Adjustable Anchor
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84926-50080 |
Switch, Height Adjustable Anchor
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84926-50080 |
Switch, Height Adjustable Anchor
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84927 — Switch, Seat Memory | ||||
| 84927-50080 note |
Switch, Seat Memory
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 84927-50090 note |
Switch, Seat Memory
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 84927-50080 note |
Switch, Seat Memory
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84927-50090 note |
Switch, Seat Memory
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84927-50080 note |
Switch, Seat Memory
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84927-50090 note |
Switch, Seat Memory
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84927A — Switch, Rear Seat Memory | ||||
| 84927-50120 note |
Switch, Rear Seat Memory
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 84927-50120 note |
Switch, Rear Seat Memory
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 84927-50130 note |
Switch, Rear Seat Memory
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 84927-50130 note |
Switch, Rear Seat Memory
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 84927-50120 note |
Switch, Rear Seat Memory
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 84927-50120 note |
Switch, Rear Seat Memory
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 84927-50130 note |
Switch, Rear Seat Memory
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 84927-50130 note |
Switch, Rear Seat Memory
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 84927-50120 note |
Switch, Rear Seat Memory
2009-11 → 2012-09
ended
|
UVF46;UVF45 RHD | — | |
| 84927-50120 note |
Switch, Rear Seat Memory
2009-11 → 2012-09
ended
|
UVF45 LHD | — | |
| 84927-50130 note |
Switch, Rear Seat Memory
2009-11 → 2012-09
ended
|
UVF46;UVF45 RHD | — | |
| 84927-50130 note |
Switch, Rear Seat Memory
2009-11 → 2012-09
ended
|
UVF45 LHD | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-50060 |
Switch Assy, Door Control
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 84930-50060 |
Switch Assy, Door Control
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 84930-50060 |
Switch Assy, Door Control
2009-11 → 2012-09
ended
|
UVF4# | — | |
| 84931B — Switch, Door Control | ||||
| 84930-50050 |
Switch, Door Control
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 84930-50050 note |
Switch, Door Control
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 84930-50050 |
Switch, Door Control
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 84930-50050 note |
Switch, Door Control
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 84930-50050 |
Switch, Door Control
2009-11 → —
|
UVF4# | — | |
| 89050 — Computer Assy, Parking Brake | ||||
| 89050-50010 |
Computer Assy, Parking Brake
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 89050-50020 |
Computer Assy, Parking Brake
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 89050-50020 |
Computer Assy, Parking Brake
2009-11 → —
|
UVF4# | — | |
| 89222 — Computer, Multiplex Network Door, Front RH | ||||
| 89222-50290 |
Computer, Multiplex Network Door, Front RH
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 89223-50270 |
Computer, Multiplex Network Door, Front RH
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 89222-50290 |
Computer, Multiplex Network Door, Front RH
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 89223-50300 |
Computer, Multiplex Network Door, Front RH
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 89222-50330 |
Computer, Multiplex Network Door, Front RH
2009-11 → —
|
UVF4# RHD | — | |
| 89222-50360 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 RHD | — | |
| 89222-50360 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 RHD | — | |
| 89222-50360 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 RHD | — | |
| 89222-50360 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 RHD | — | |
| 89222-50360 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 RHD | — | |
| 89222-50360 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 RHD | — | |
| 89223-50330 |
Computer, Multiplex Network Door, Front RH
2009-11 → —
|
UVF4# LHD EUR | — | |
| 89223-50330 |
Computer, Multiplex Network Door, Front RH
2009-11 → 2010-01
ended
|
UVF46 GCC | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 note |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89223-50350 |
Computer, Multiplex Network Door, Front RH
2010-01 → —
|
UVF46 GCC | — | |
| 89223 — Computer, Multiplex Network Door, Front LH | ||||
| 89222-50280 |
Computer, Multiplex Network Door, Front LH
2007-04 → 2008-09
ended
|
UVF4# LHD | — | |
| 89223-50280 |
Computer, Multiplex Network Door, Front LH
2007-04 → 2008-09
ended
|
UVF4# RHD | — | |
| 89222-50280 |
Computer, Multiplex Network Door, Front LH
2008-09 → 2009-11
ended
|
UVF4# LHD | — | |
| 89223-50310 |
Computer, Multiplex Network Door, Front LH
2008-09 → 2009-11
ended
|
UVF4# RHD | — | |
| 89222-50320 |
Computer, Multiplex Network Door, Front LH
2009-11 → 2010-01
ended
|
UVF46 GCC | — | |
| 89222-50320 |
Computer, Multiplex Network Door, Front LH
2009-11 → —
|
UVF4# LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 LHD EUR | — | |
| 89222-50350 |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 GCC | — | |
| 89223-50340 |
Computer, Multiplex Network Door, Front LH
2009-11 → —
|
UVF4# RHD | — | |
| 89223-50360 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 RHD | — | |
| 89223-50360 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 RHD | — | |
| 89223-50360 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 RHD | — | |
| 89223-50360 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 RHD | — | |
| 89223-50360 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 RHD | — | |
| 89223-50360 note |
Computer, Multiplex Network Door, Front LH
2010-01 → —
|
UVF46 RHD | — | |
| 89224 — Computer, Multiplex Network Door, Rear RH | ||||
| 89224-50110 note |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89224-50110 note |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF46 LHD | — | |
| 89224-50110 note |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89224-50110 note |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89224-50110 note |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89224-50110 note |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF46 LHD | — | |
| 89224-50121 |
Computer, Multiplex Network Door, Rear RH
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 89224-50121 |
Computer, Multiplex Network Door, Rear RH
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 89224-50140 |
Computer, Multiplex Network Door, Rear RH
2009-11 → 2011-05
ended
|
UVF46 GCC | — | |
| 89224-50140 |
Computer, Multiplex Network Door, Rear RH
2009-11 → —
|
UVF4# EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 RHD | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 RHD | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 RHD | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 RHD | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 RHD | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89224-50150 |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 GCC | — | |
| 89224-50150 note |
Computer, Multiplex Network Door, Rear RH
2011-05 → —
|
UVF46 RHD | — | |
| 89225 — Computer, Multiplex Network Door, Rear LH | ||||
| 89225-50030 note |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF46 LHD | — | |
| 89225-50030 note |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89225-50030 note |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89225-50030 note |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89225-50030 note |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF46 RHD | — | |
| 89225-50030 note |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF46 LHD | — | |
| 89225-50041 |
Computer, Multiplex Network Door, Rear LH
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 89225-50041 |
Computer, Multiplex Network Door, Rear LH
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 89225-50060 |
Computer, Multiplex Network Door, Rear LH
2009-11 → 2011-05
ended
|
UVF46 GCC | — | |
| 89225-50060 |
Computer, Multiplex Network Door, Rear LH
2009-11 → —
|
UVF4# EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 RHD | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 RHD | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 RHD | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 RHD | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 RHD | — | |
| 89225-50070 |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 GCC | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 RHD | — | |
| 89225-50070 note |
Computer, Multiplex Network Door, Rear LH
2011-05 → —
|
UVF46 LHD EUR | — | |
| 892A0 — Computer Assy, Front Active Stabilizer Control | ||||
| 892A2-50010 note |
Computer Assy, Front Active Stabilizer Control
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 892A2-50010 note |
Computer Assy, Front Active Stabilizer Control
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 892A2-50011 note |
Computer Assy, Front Active Stabilizer Control
2009-11 → —
|
UVF45 | — | |
| 892B0 — Computer Assy, Rear Active Stabilizer Control | ||||
| 892A2-50010 note |
Computer Assy, Rear Active Stabilizer Control
2007-04 → 2008-09
ended
|
UVF45 | — | |
| 892A2-50010 note |
Computer Assy, Rear Active Stabilizer Control
2008-09 → 2009-11
ended
|
UVF45 | — | |
| 892A2-50011 note |
Computer Assy, Rear Active Stabilizer Control
2009-11 → —
|
UVF45 | — | |
| 89658 — Bracket, Power Steering Computer | ||||
| 89658-50020 |
Bracket, Power Steering Computer
2009-11 → —
|
UVF4# | — | |
| 89755 — Transmitter, Garage Door Opener | ||||
| 89755-0W111 note |
Transmitter, Garage Door Opener
2009-11 → 2012-09
ended
|
UVF46 LHD EUR | — | |
| 89815 — Computer, Seat Belt Control | ||||
| 89815-50020 note |
Computer, Seat Belt Control
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2007-04 → 2008-09
ended
|
UVF4# | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2007-04 → 2008-09
ended
|
UVF46 | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2008-09 → 2009-11
ended
|
UVF46 | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2008-09 → 2009-11
ended
|
UVF4# | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2009-11 → —
|
UVF46 EUR | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2009-11 → —
|
UVF4# | — | |
| 89815-50020 note |
Computer, Seat Belt Control
2009-11 → —
|
UVF4# EUR | — | |
| F2615 — Bracket, Front Active Stabilizer Computer | ||||
| F2615-50010 note |
Bracket, Front Active Stabilizer Computer
2007-04 → 2008-09
ended
|
UVF45 | — | |
| F2615-50010 note |
Bracket, Front Active Stabilizer Computer
2008-09 → 2009-11
ended
|
UVF45 | — | |
| F2615-50010 note |
Bracket, Front Active Stabilizer Computer
2009-11 → —
|
UVF45 | — | |
| F2625 — Bracket, Rear Active Stabilizer Computer | ||||
| F2625-50011 note |
Bracket, Rear Active Stabilizer Computer
2007-04 → 2008-09
ended
|
UVF45 | — | |
| F2625-50011 note |
Bracket, Rear Active Stabilizer Computer
2008-09 → 2009-11
ended
|
UVF45 | — | |
| F2625-50011 note |
Bracket, Rear Active Stabilizer Computer
2009-11 → —
|
UVF45 | — | |
| G9250 — Converter Assy, Power Steering | ||||
| G9250-50030 |
Converter Assy, Power Steering
2007-04 → 2008-09
ended
|
UVF4# | — | |
| G9250-50030 |
Converter Assy, Power Steering
2008-09 → 2009-11
ended
|
UVF4# | — | |
| G9250-50040 |
Converter Assy, Power Steering
2009-11 → —
|
UVF4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
