Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10

Fuel Injection System

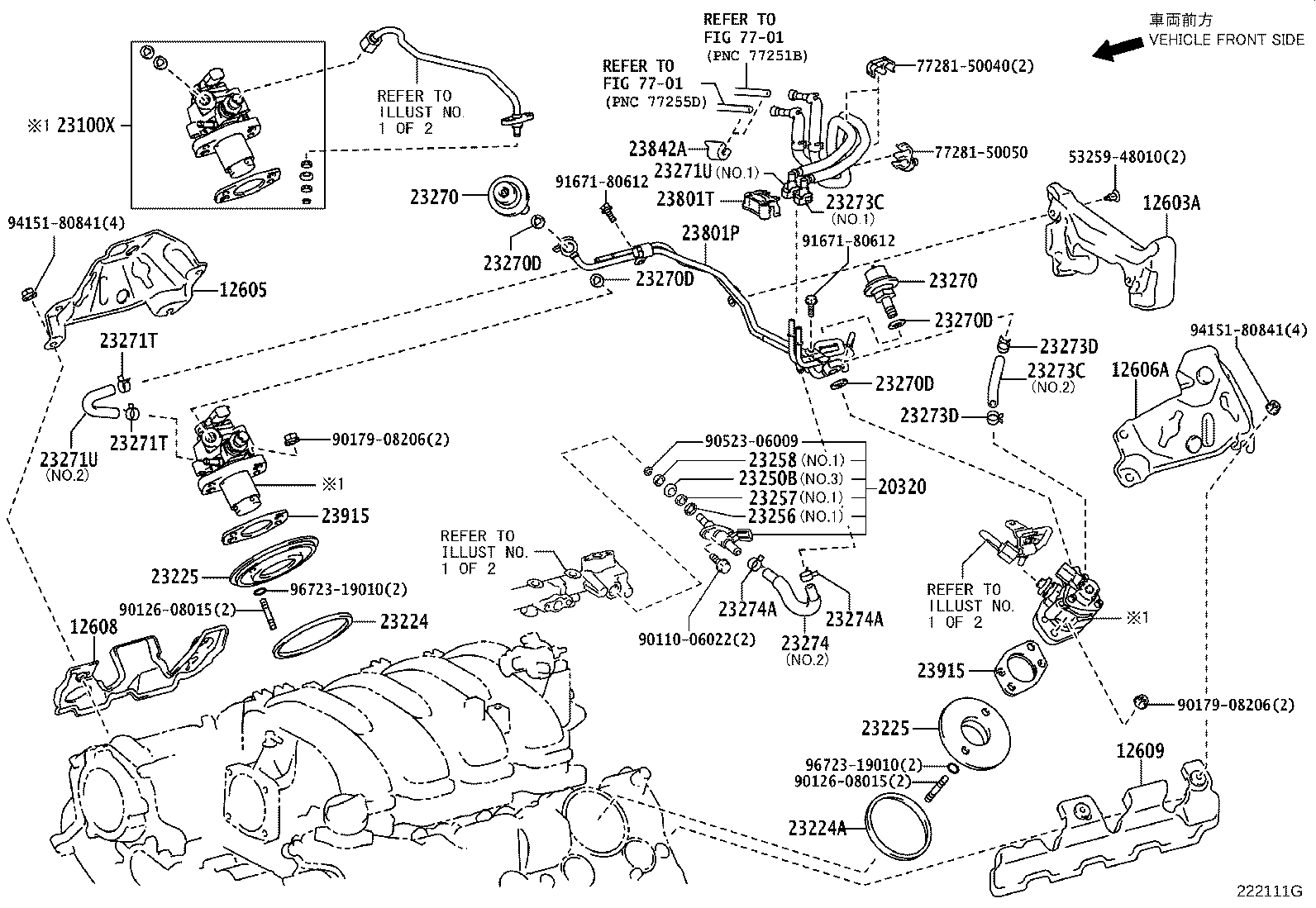

47 part groups · 2 illustrations

PNC	Description
12603A	Cover, Sub-assy, Engine, NO.3
12605	Cover Sub-assy, Engine, RH
12606A	Cover Sub-assy, Engine, LH
12608	Cover Sub-assy, Engine, NO.5
12609	Cover Sub-assy, Engine, NO.6
20320	Valve Assy, Fuel Relief
22210	Body Assy, Throttle
22271	Gasket, Throttle Body
23100X	Pump Assy, Fuel (ENGINE ROOM SIDE)
23224	Gasket, Fuel Pump Spacer, RH
23224A	Gasket, Fuel Pump Spacer, LH
23225	Spacer, Fuel Pump
23250B	Ring, O(FOR FUEL INJECTOR)
23250E	Injector Assy, Fuel(FOR DIRECT)
23250F	Injector Assy, Fuel(FOR PORT)
23255A	Seal, Fuel Injector
23256	Ring, Fuel Injector Back-up, NO.1
23256A	Ring, Fuel Pipe, NO.1
23257	Ring, Fuel Injector Back-up, NO.2
23257A	Ring, Fuel Pipe, NO.2
23258	Ring, Fuel Injector Back-up, NO.3
23270	Damper Assy, Fuel Pressure Pulsation
23270D	Gasket(FOR PULSATION DAMPER)
23271T	Clamp OR Clip(FOR FUEL HOSE)
23271U	Hose, Fuel, NO.1
23273C	Hose, Fuel, NO.2
23273D	Clip(FOR FUEL HOSE NO.2)
23274	Hose, Fuel, NO.3
23274A	Clip(FOR HOSE, FUEL, NO.3)
23291	Insulator, Injector Vibration
23291A	Insulator, Injector Vibration
23695A	Clamp, Nozzle Holder
23801P	Pipe Sub-assy, Fuel, NO.1
23801T	Clamp OR Clip, Fuel Hose(FOR EFI)
23802B	Pipe Sub-assy, Fuel, NO.2
23803B	Pipe Sub-assy, Fuel, NO.3
23804	Pipe Sub-assy, Fuel, NO.4
23807R	Plug, Fuel Delivary Pipe
23807V	Spacer, NO.1(FOR DELIVERY PIPE)
23809	Support Sub-assy, Fuel Pipe
23814B	Pipe, Fuel Delivery
23815	Pipe, Fuel Delivery, NO.2
23841B	Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A	Clamp, Fuel Pipe, NO.2(FOR EFI)
23860	Pipe Assy, Fuel Delivery W/Sensor, LH
23901	Tube Sub-assy, Fuel
23915	Insulator, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
