Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

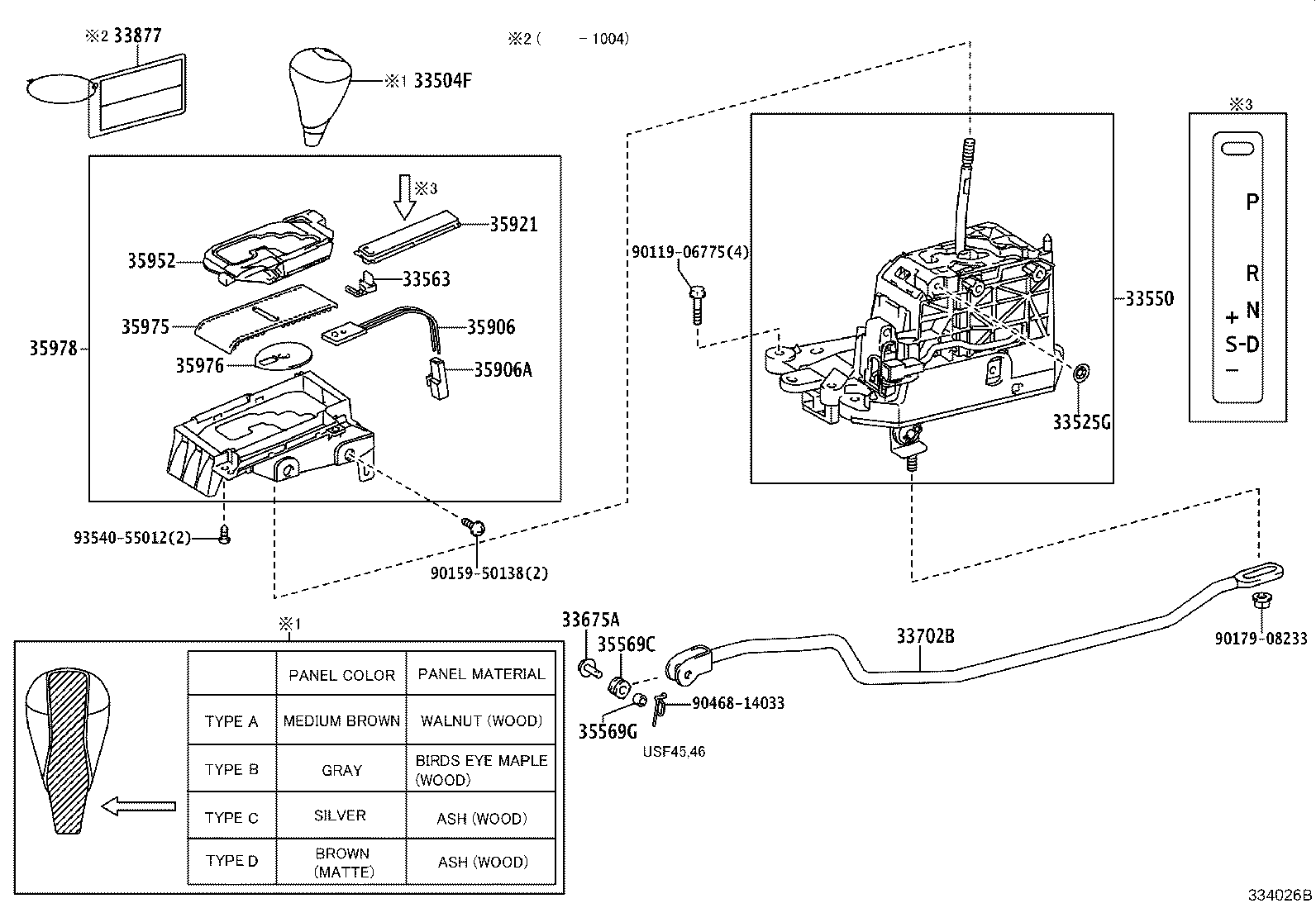

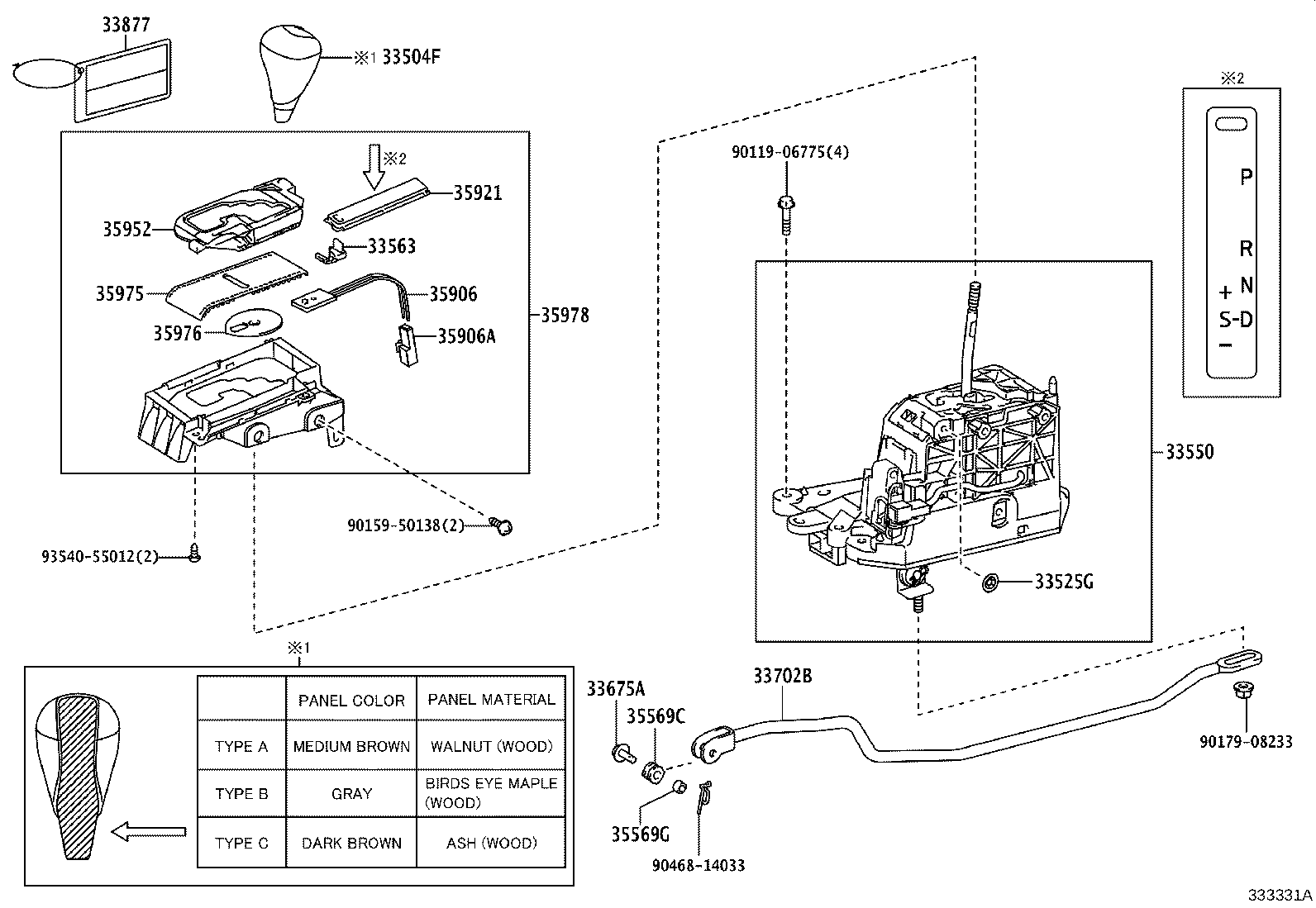

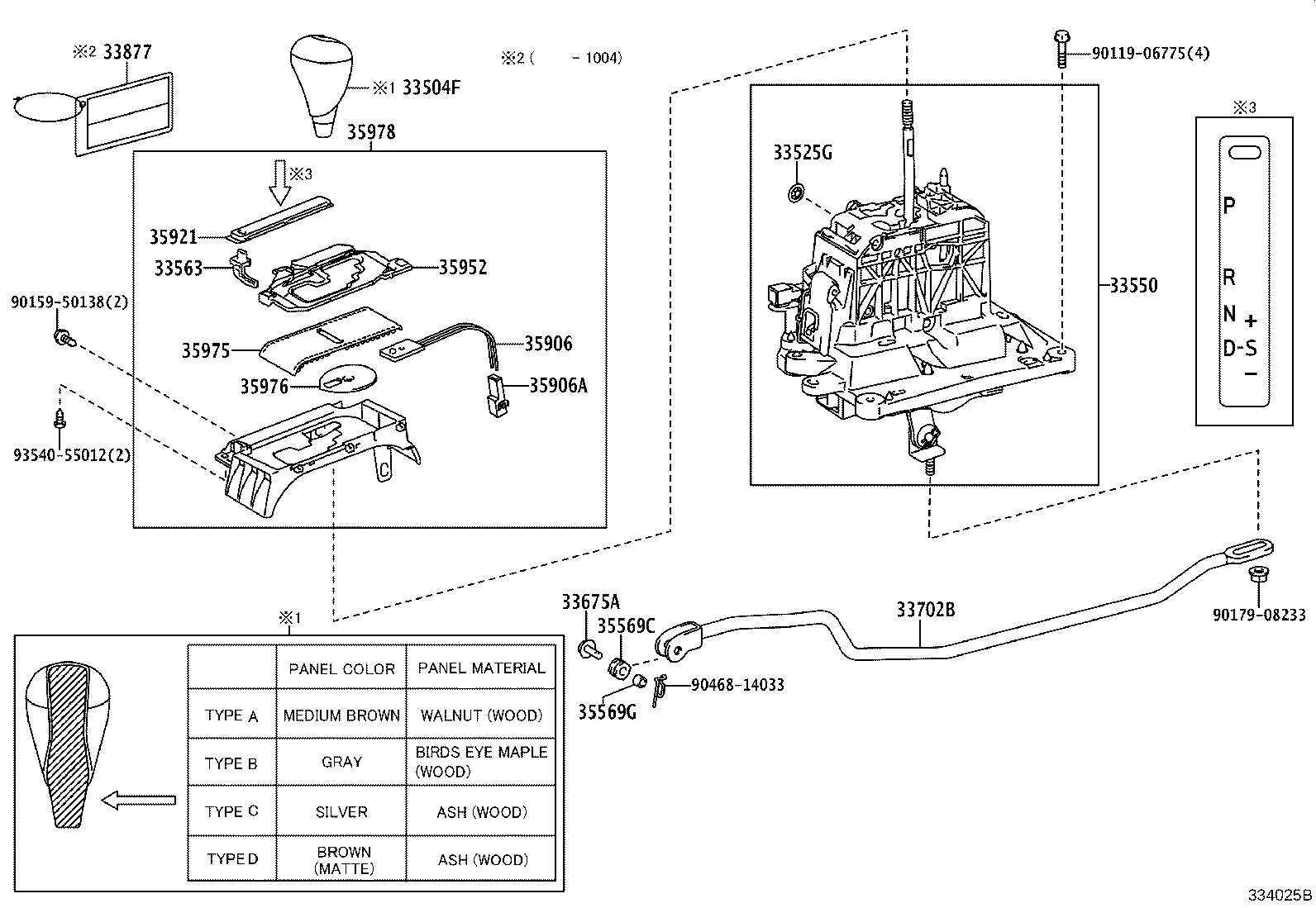

Shift Lever & Retainer
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33525G | Ring, Shift Lever |
| 33550 | Floor Shift Assy, Transmission |
| 33563 | Button, Shift Lock Release |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33877 | Label, Shift Lock Information, NO.1 |
| 35569C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 35569G | Bush (FOR TRANSMISSION CONTROL ROD) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35906A | Housing, Connector Male (FOR INDICATOR LAMP WIRE) |
| 35921 | Plate, Control Position Indicator |
| 35952 | Lens, Position Indicator |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
| 35978 | Indicator, Shift Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
