Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

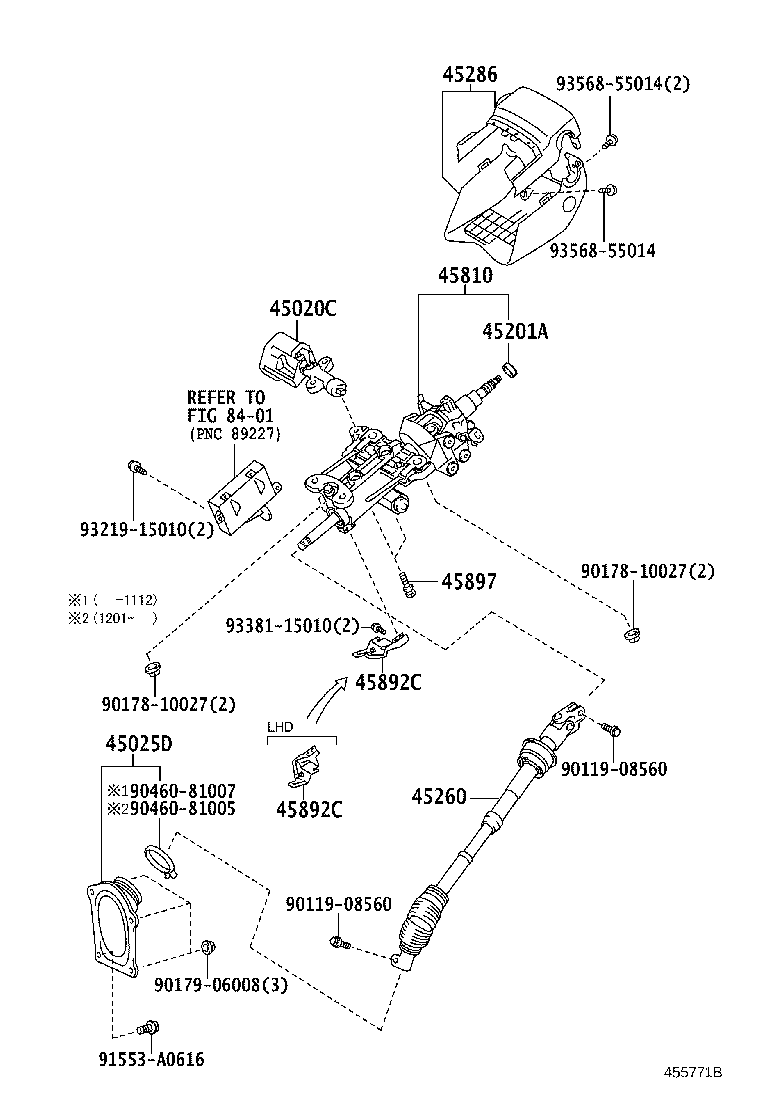

Steering Column & Shaft
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45250 | Column Assy, Steering |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45286 | Cover, Steering Column |
| 45810 | Gear Assy, Tilt Steering, W/Motor |
| 45892C | Bracket, Return Spring |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
