Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

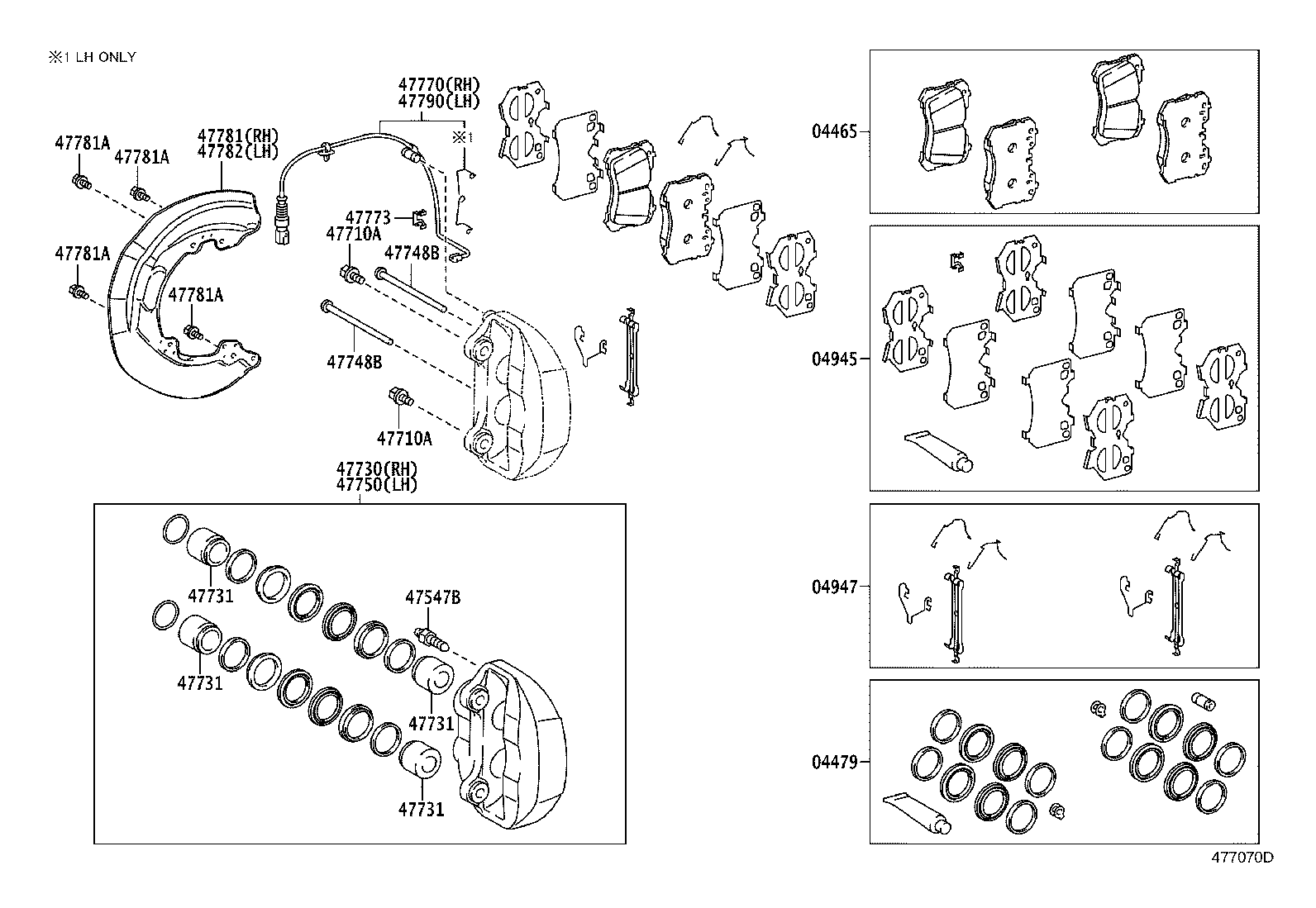

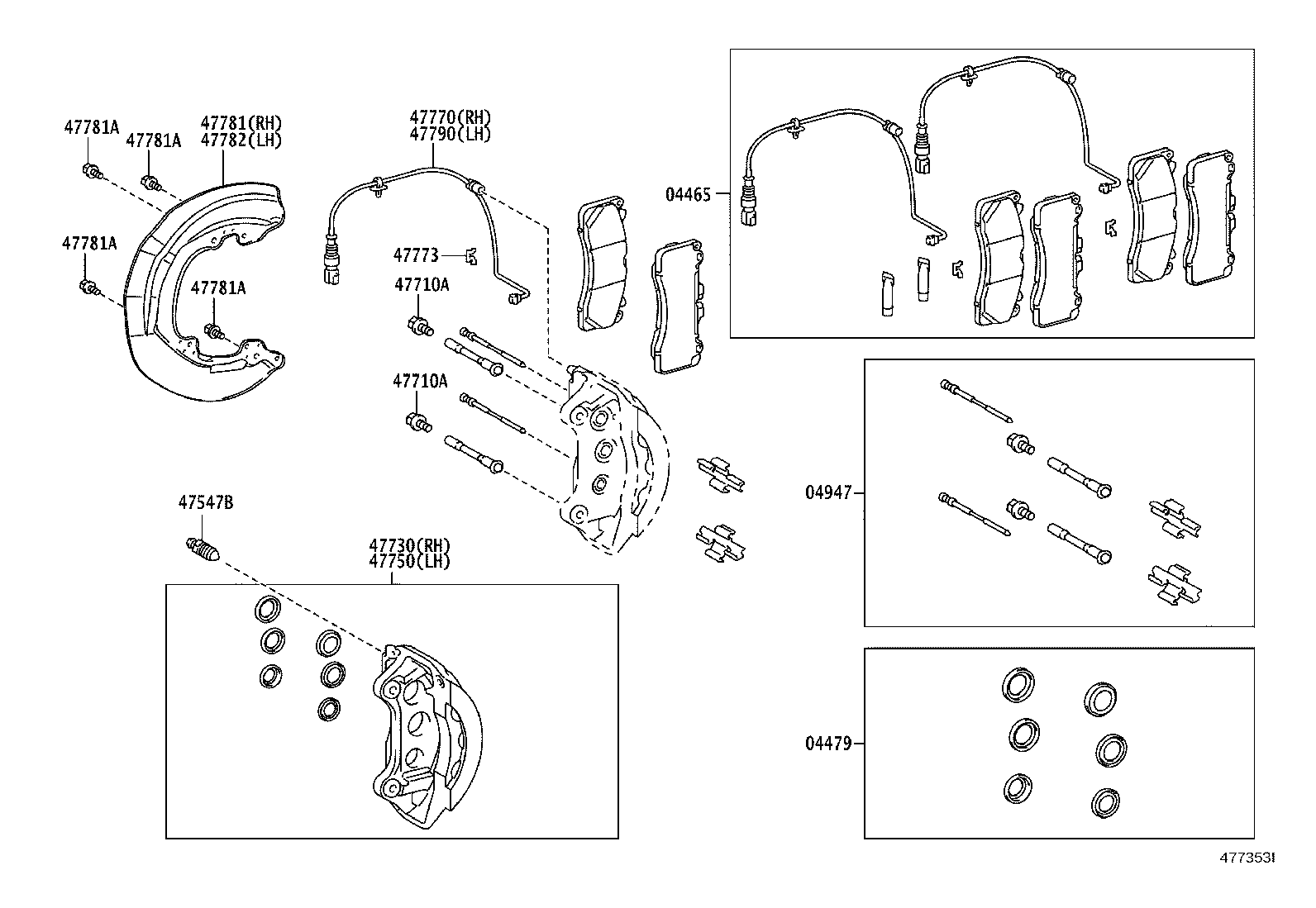

Front Disc Brake Caliper & Dust Cover
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 31478B | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47547B | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47748B | Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47770 | Wire Assy, Pad Wear Indicator, Front RH |
| 47773 | Retainer, Pad Wear Indicator |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47781A | Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) |
| 47782 | Cover, Disc Brake Dust, Front LH |
| 47790 | Wire Assy, Pad Wear Indicator, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
