Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

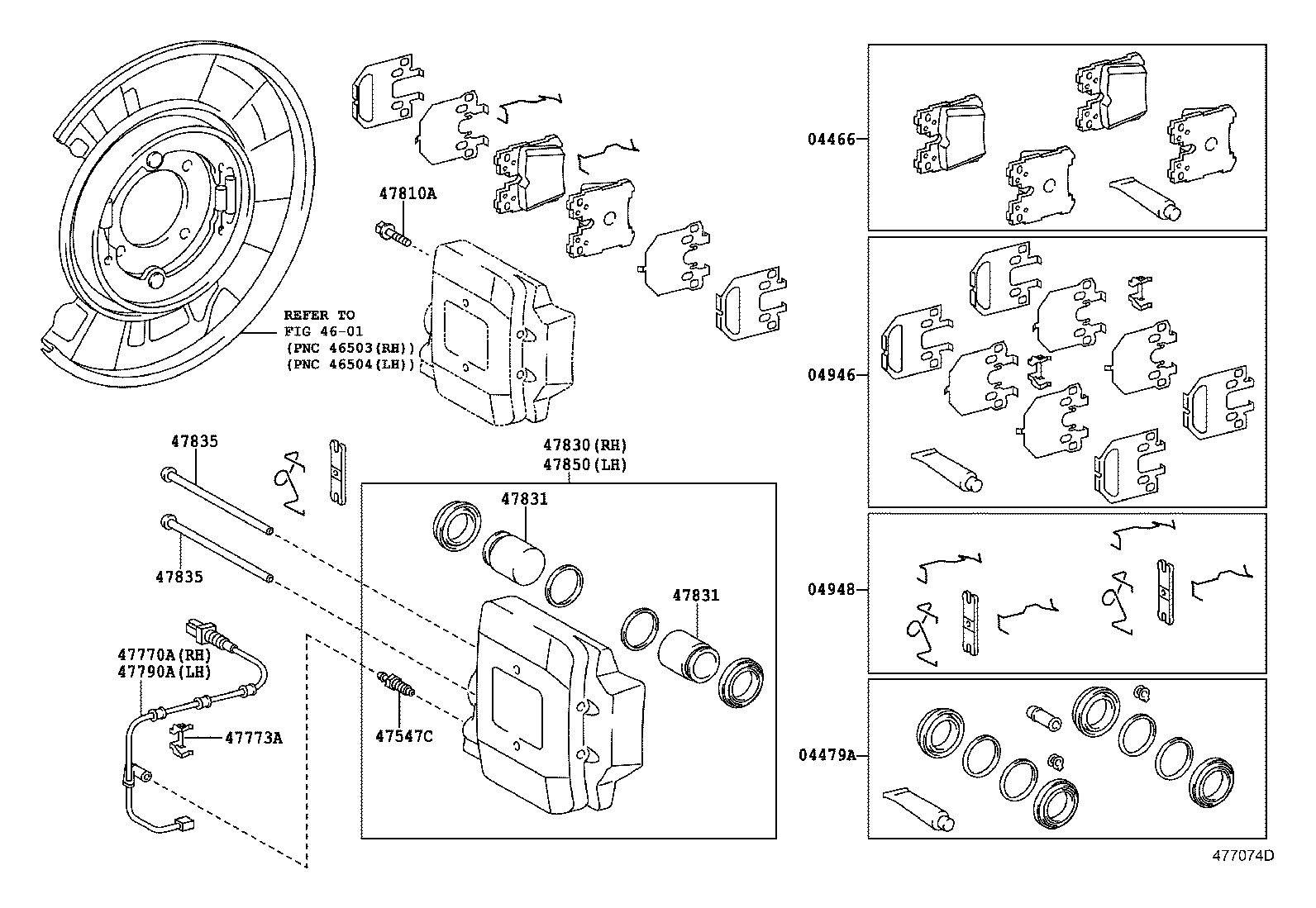

Rear Disc Brake Caliper & Dust Cover
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47770A | Wire Assy, Pad Wear Indicator, RH |
| 47773A | Retainer, Pad Wear Indicator |
| 47790A | Wire Assy, Pad Wear Indicator, LH |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
| 47830 | Cylinder Assy, Disc Brake, Rear RH |
| 47831 | Piston, Rear Disc Brake |
| 47835 | Pin, Rear Disc Brake Pad Guide |
| 47850 | Cylinder Assy, Disc Brake, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
