Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

18 part groups · 2 illustrations

Illustrations

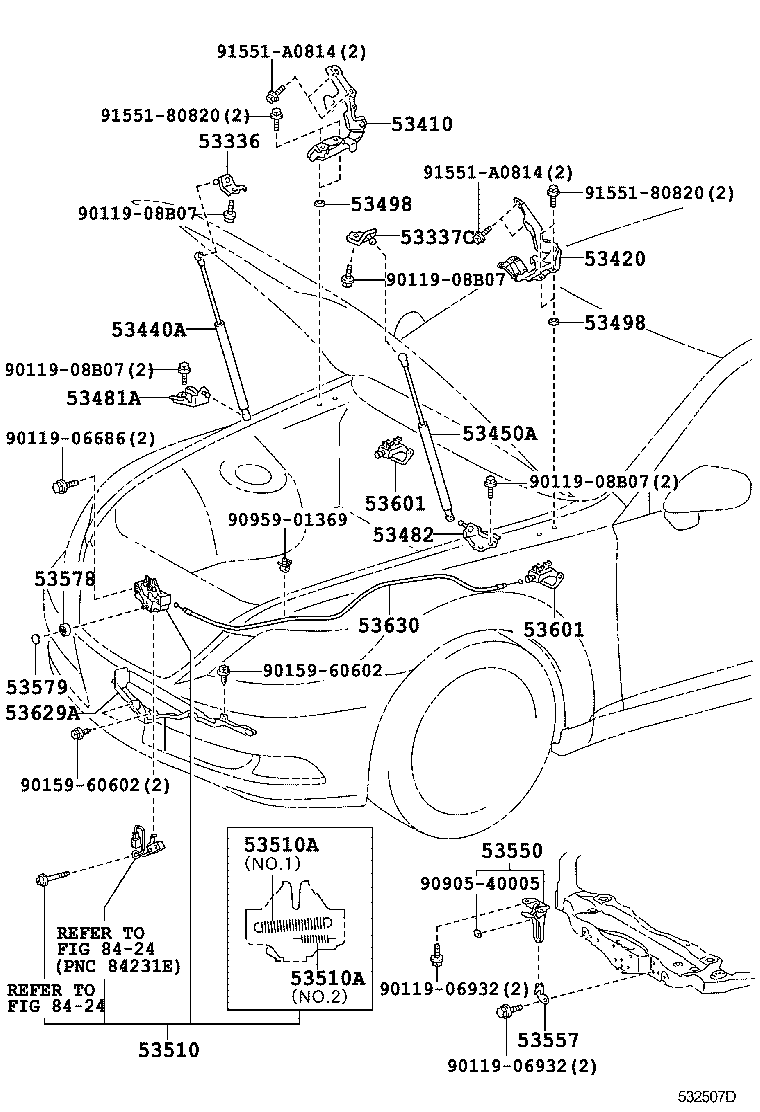

Figure 532506D 532506D 2007-04 → — Figure 532507D 532507D 2007-04 → —

Part groups

PNCDescription
53336 Bracket, Hood Stay, RH
53337C Bracket, Hood Stay, LH
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53450A Support Assy, Hood, LH
53481A Bracket, Hood Support, RH
53482 Bracket, Hood Support, LH
53498 Pad, Hood Hinge, NO.2
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53550 Hook Assy, Hood Auxiliary Catch
53557 Catch, Hood Auxiliary Hook
53578 Nut, Hood Lock
53579 Cap, Hood Lock Nut
53601 Lever Sub-assy, Hood Lock Control
53629A Cover, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
