Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

25 part groups · 2 illustrations

Illustrations

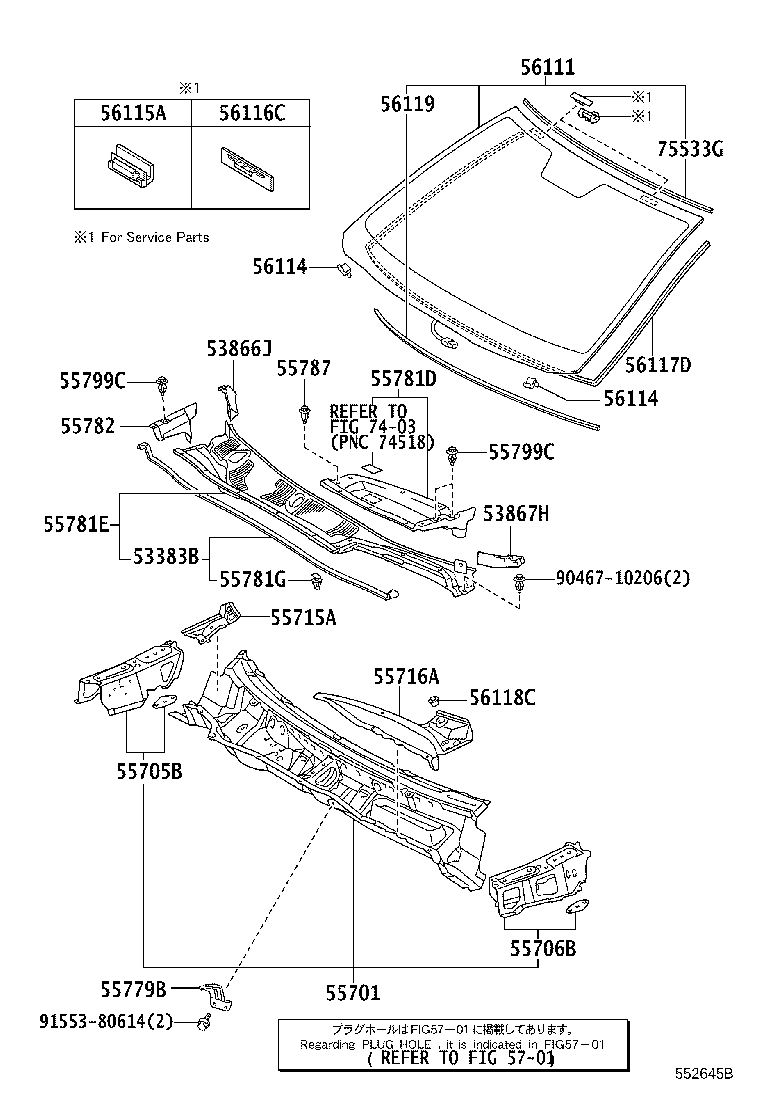

Figure 551872F 551872F 2007-04 → — Figure 552645B 552645B 2007-04 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55779B Bracket, Wiring Harness Mounting
55781D Louver, Cowl Top Ventilator, RH
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55782 Protector, Cowl Top Ventilator Louver, RH
55782D Louver, Cowl Top Ventilator, LH
55783 Protector, Cowl Top Ventilator Louver, LH
55787 Clip, Cowl Ventilator Louver, Inner
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
56118C Retainer, Windshield Glass, NO.2
56119 Seal, Windshield Glass
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
