Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10
Front Seat & Seat Track
77 part groups · 12 illustrations

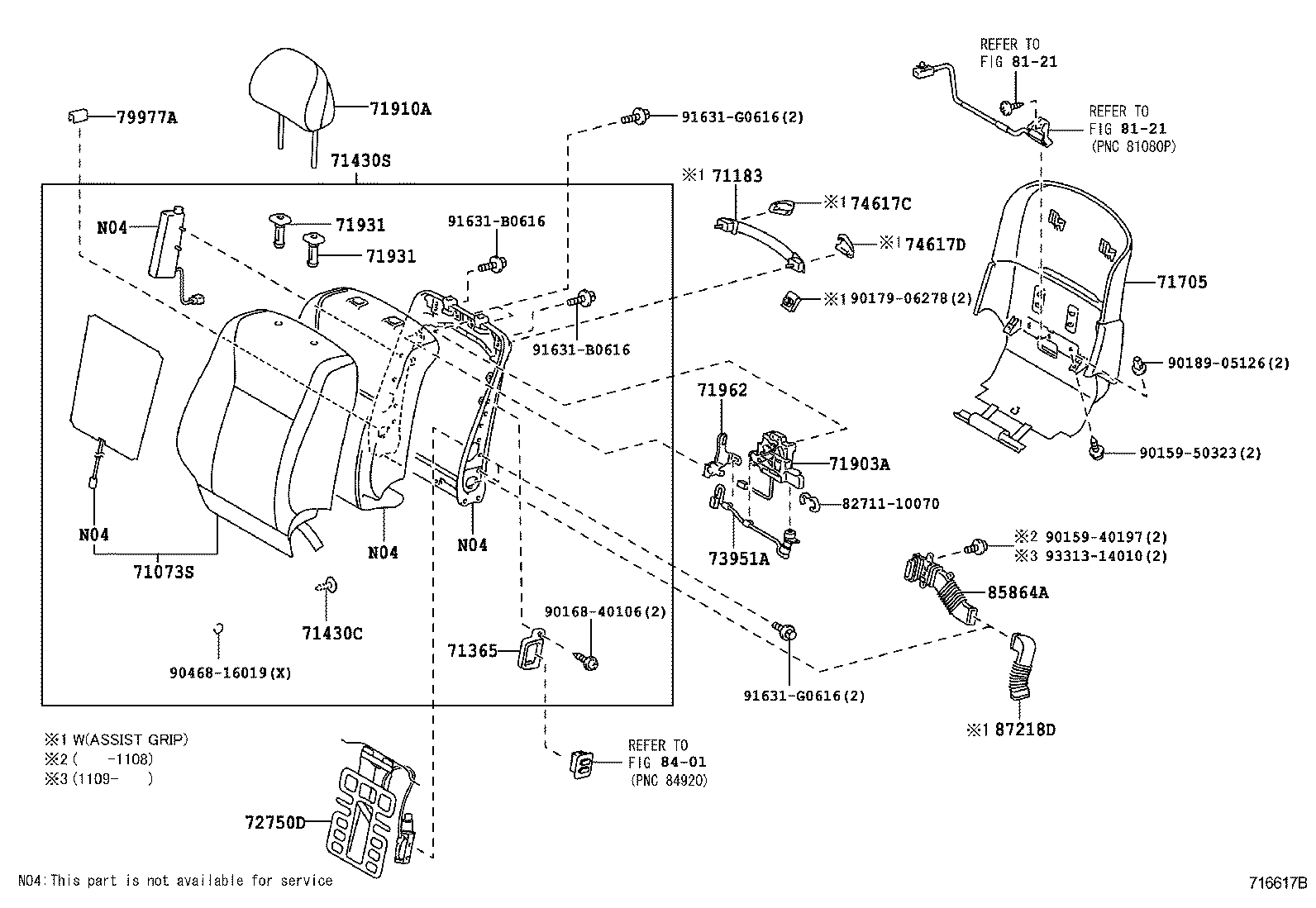

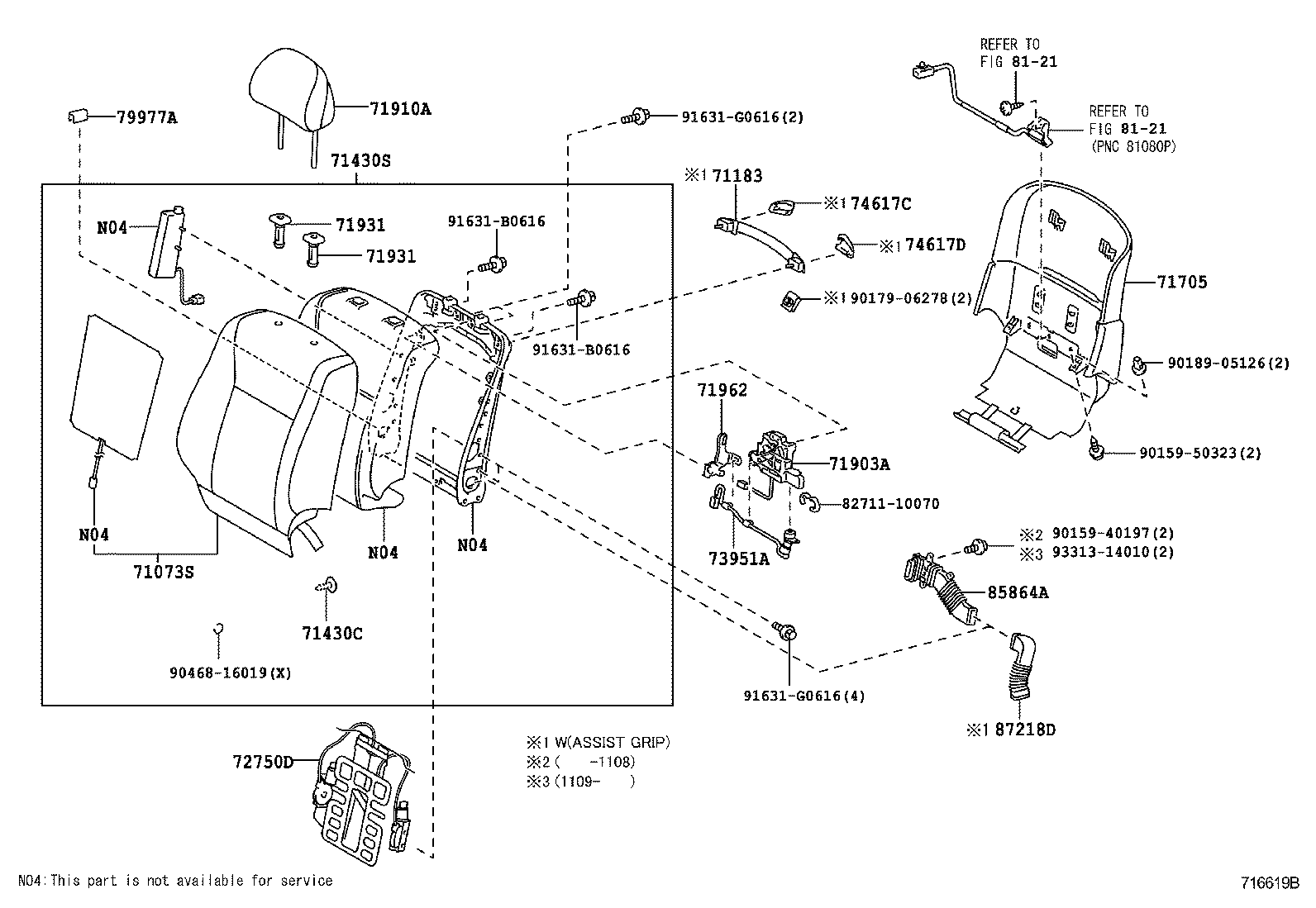

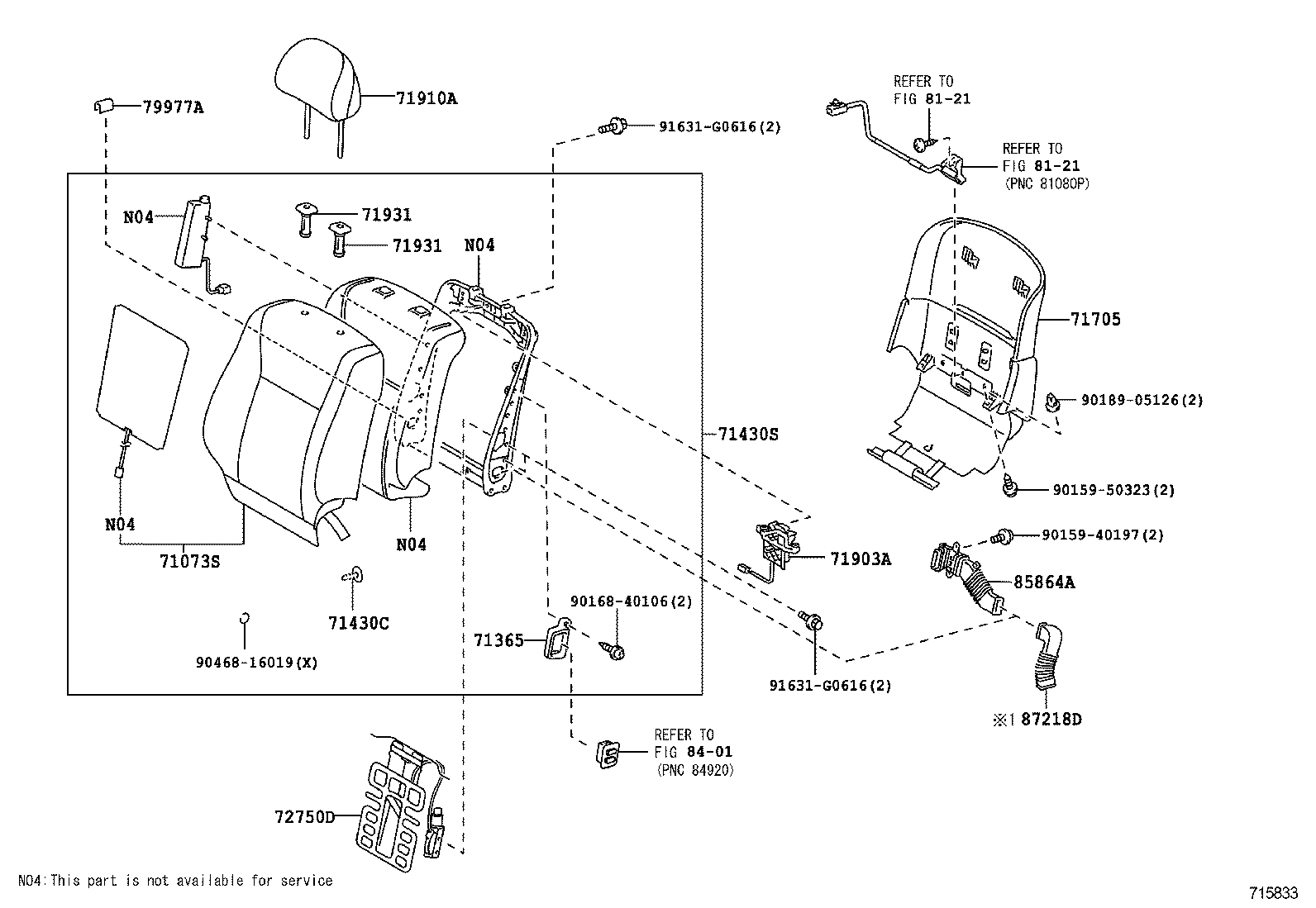

Illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71183 | Support, Front Seatback, RH |
| 71184B | Support, Front Seatback, LH |
| 71365 | Bracket, Front Seat Set, NO.5 |
| 71421A | Spring, Front Seat Cushion |
| 71430C | Clip |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71815 | Clip (FOR FRONT SEAT CUSHION COVER SET) |
| 71821B | Bracket, Front Seat Shield Set, NO.1 |
| 71831B | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71893A | Shield, Power Adjuster, Front RH |
| 71893C | Shield, Power Adjuster, Inner RH |
| 71894A | Shield, Power Adjuster, Front LH |
| 71894C | Shield, Power Adjuster, Inner LH |
| 71903A | Adjuster, Front Seat Headrest |
| 71904B | Adjuster Sub-assy, Front Seat Headrest |
| 71910A | Headrest Assy, Front Seat |
| 71925A | Cover, Front Seat Headrest Stay,RH |
| 71926 | Cover, Front Seat Headrest Stay,LH |
| 71931 | Support, Front Seat Headrest |
| 71962 | Bracket, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123B | Cover, Seat Track Bracket, Outer Front |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72380 | Cable Assy, Seat Adjuster Control, NO.2 |
| 72423 | Hook, Vertical Adjuster Spring |
| 72441A | Link, Front Seat Travel, NO.1 |
| 72442A | Link, Front Seat Travel, NO.2 |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73178H | Cap, Seat Belt Anchor Cover, RH |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73951A | Inflator, Active Headrest |
| 74617C | Plug, Assist Grip |
| 74617D | Plug, Assist Grip |
| 79123 | Plate, NO.1 Seat Cushion |
| 79977A | Felt, Seatback |
| 85820Z | Motor Assy, Power Seat |
| 85862 | Blower, Seat Climate Control, RH |
| 85863 | Blower, Seat Climate Control, LH |
| 85864 | Controller, Seat Climate Control,RH |
| 85864A | Controller, Seat Climate Control, RH |
| 85865 | Controller, Seat Climate Control,LH |
| 85865A | Controller, Seat Climate Control, LH |
| 87218D | Duct, Air, RR NO.6 |
| 87218E | Duct, Air, RR NO.6 |
| 88921D | Filter, Air, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
