Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

43 part groups · 5 illustrations

Illustrations

751894K 2007-04 → 2009-11

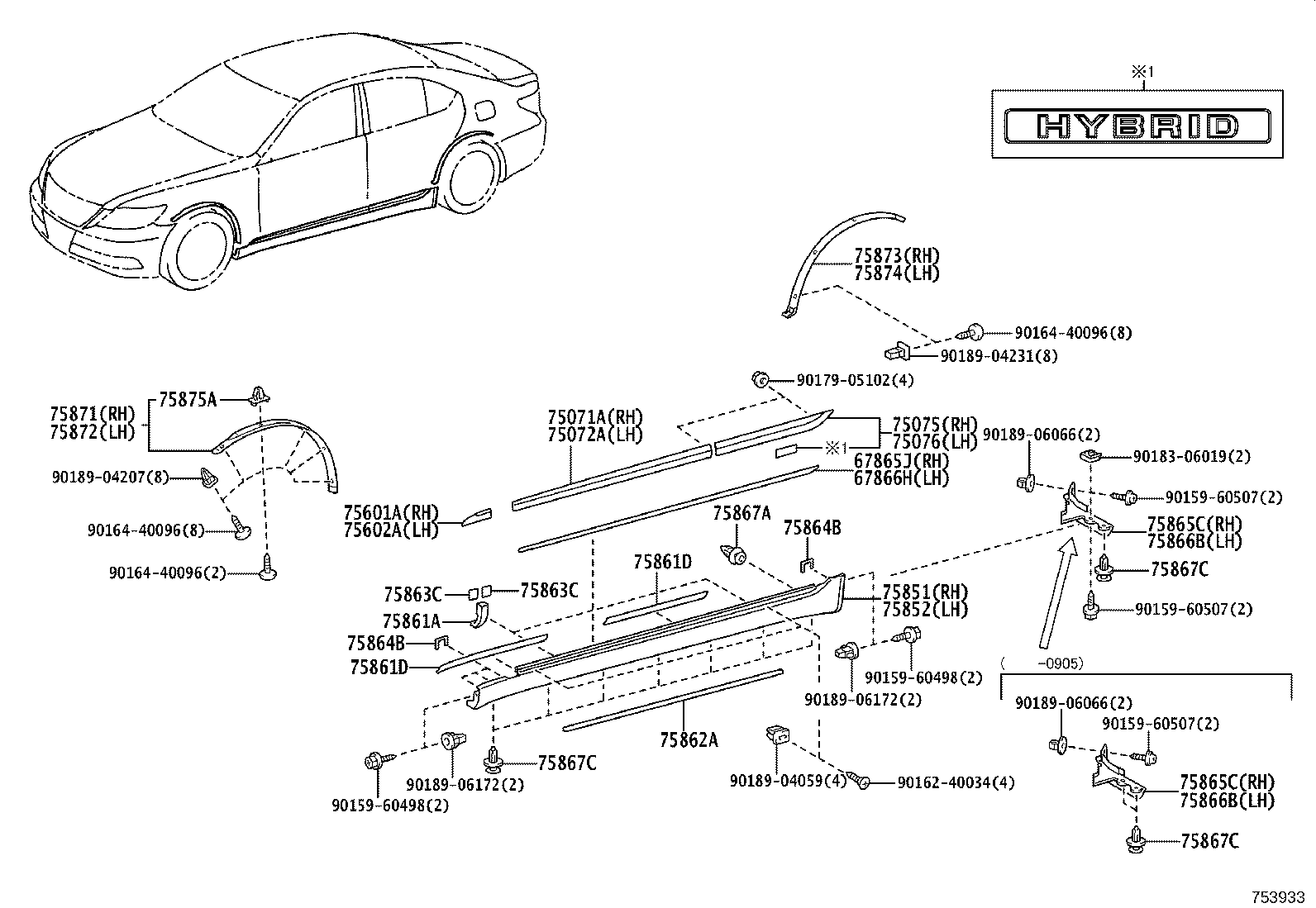

753933 2007-04 → 2009-11

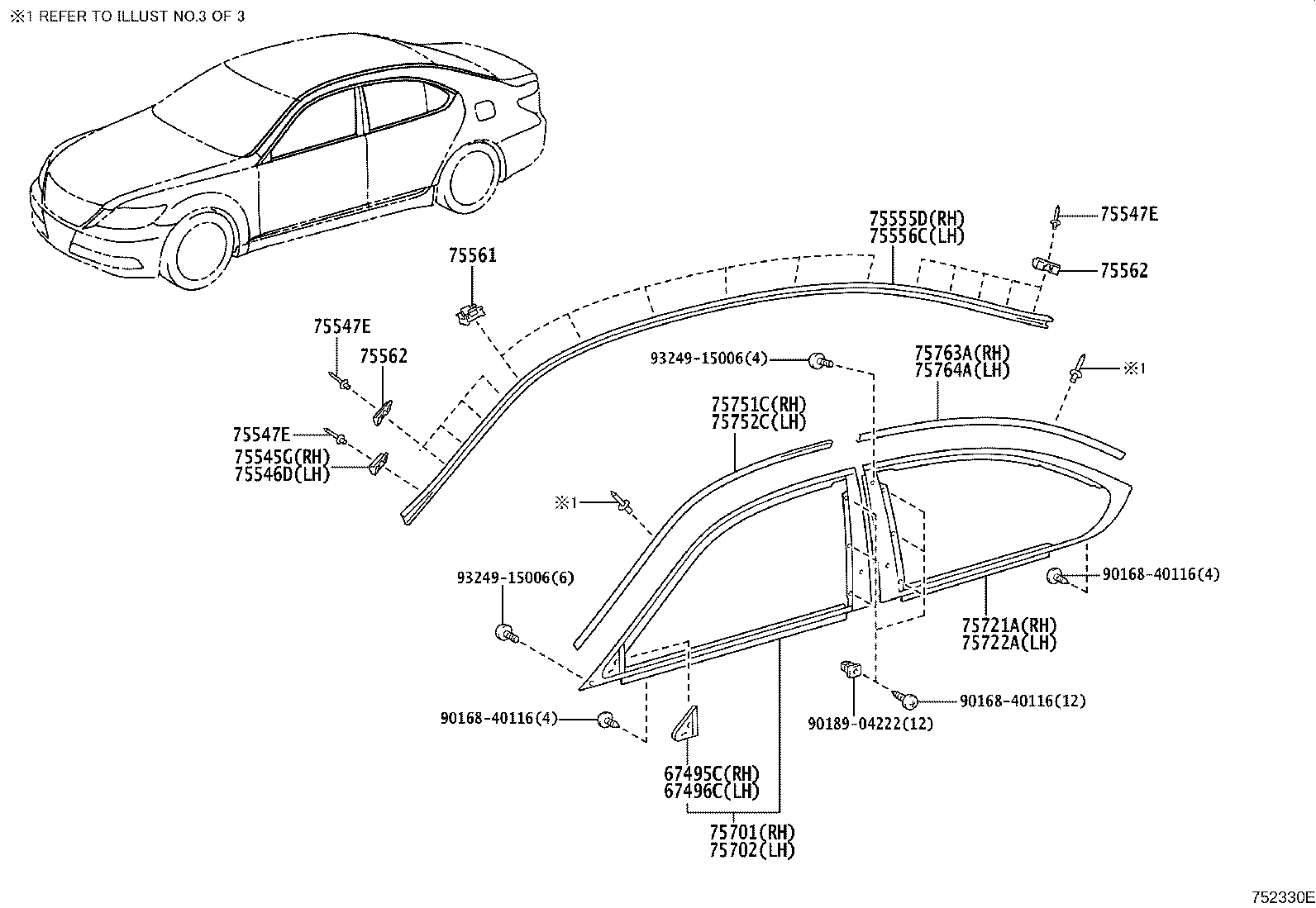

752330E 2009-11 → —

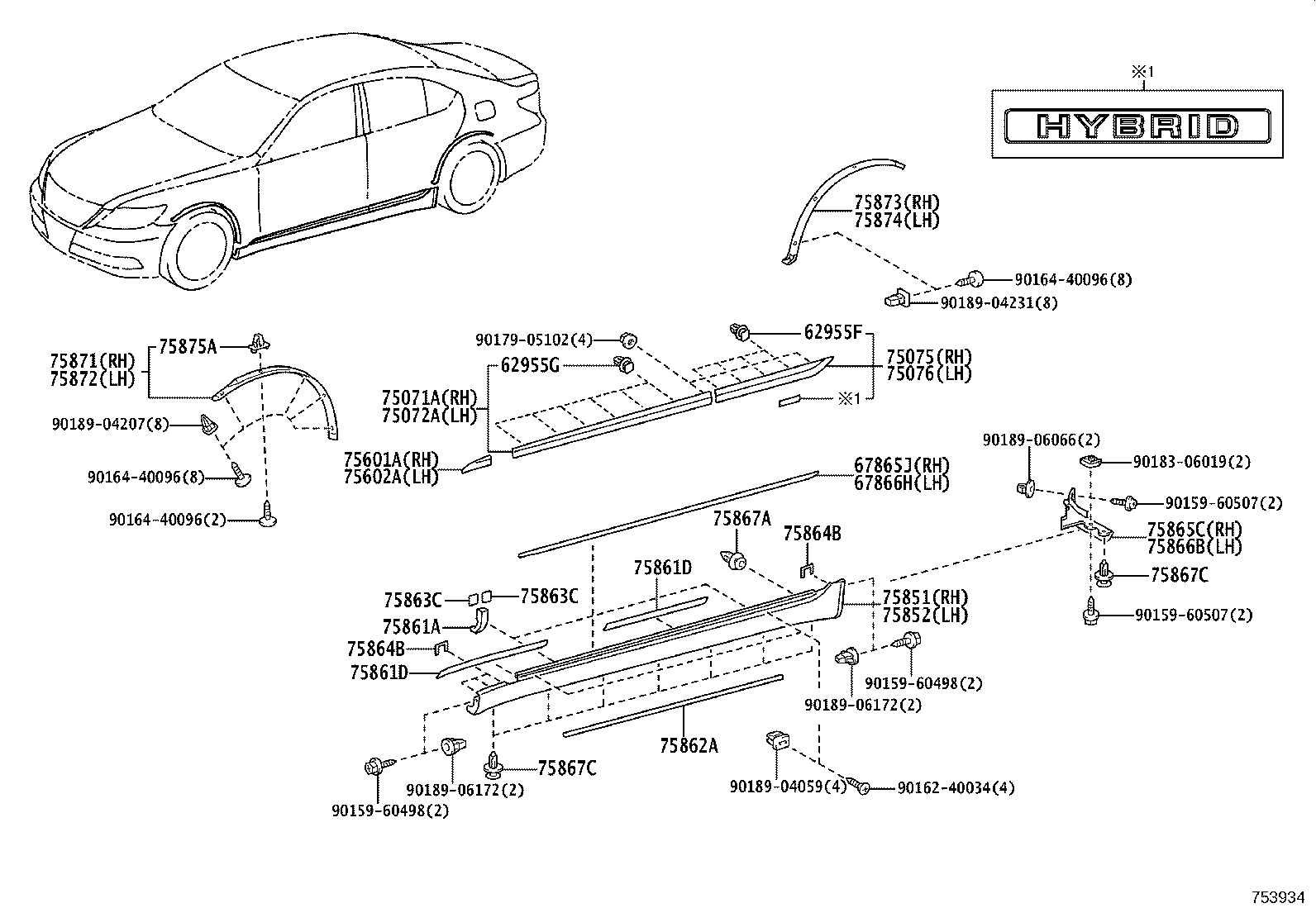

753934 2009-11 → —

752331 2007-04 → —

Part groups

PNC	Description
62955F	Retainer, Quarter Vent Louver
62955G	Retainer, Quarter Vent Louver
67495C	Cover, Front Door Front Lower Frame, Upper RH
67496C	Cover, Front Door Front Lower Frame, Upper LH
67865J	Weatherstrip, Front Door, NO.3 RH
67866H	Weatherstrip, Front Door, NO.3 LH
75071A	Moulding Sub-assy, Front Door, Outside RH
75072A	Moulding Sub-assy, Front Door, Outside LH
75075	Moulding Sub-assy, Rear Door, Outside RH
75076	Moulding Sub-assy, Rear Door, Outside LH
75545G	Clip, Windshield Outside Moulding, NO.1
75546D	Clip, Windshield Outside Moulding, NO.2
75547E	Clip, Windshield Outside Moulding, NO.3
75555D	Moulding, Roof Drip Side Finish, Center RH
75556C	Moulding, Roof Drip Side Finish, Center LH
75561	Clip, Roof Drip Side Finish Moulding, NO.1
75562	Clip, Roof Drip Side Finish Moulding, NO.2
75601A	Moulding Sub-assy, Front Fender, RH
75602A	Moulding Sub-assy, Front Fender, LH
75701	Moulding Sub-assy, Front Door Belt, RH
75702	Moulding Sub-assy, Front Door Belt, LH
75721A	Moulding, Rear Door Belt, RH
75722A	Moulding, Rear Door Belt, LH
75751C	Moulding, Front Door Window Frame, Front RH
75752C	Moulding, Front Door Window Frame, Front LH
75763A	Moulding, Rear Door Window Frame, Upper RH
75764A	Moulding, Rear Door Window Frame, Upper LH
75851	Moulding, Rocker Panel, RH
75852	Moulding, Rocker Panel, LH
75861A	Protector, Rocker Panel Moulding, NO.1
75861D	Protector, Rocker Panel Moulding, NO.1
75862A	Protector, Rocker Panel Moulding, NO.2
75863C	Protector, Rocker Panel Moulding, NO.3
75864B	Protector, Rocker Panel Moulding, NO.4
75865C	Protector, Rocker Panel Moulding, NO.5
75866B	Protector, Rocker Panel Moulding, NO.6
75867A	Clip, Rocker Panel Moulding
75867C	Clip, Rocker Panel Moulding
75871	Moulding, Front Fender Wheel Opening, RH
75872	Moulding, Front Fender Wheel Opening, LH
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH
75875A	Clip, Front Fender Wheel Opening Moulding

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
