Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

4 part groups · 2 illustrations

Illustrations

Figure 814188A

814188A 2007-04 → 2009-11

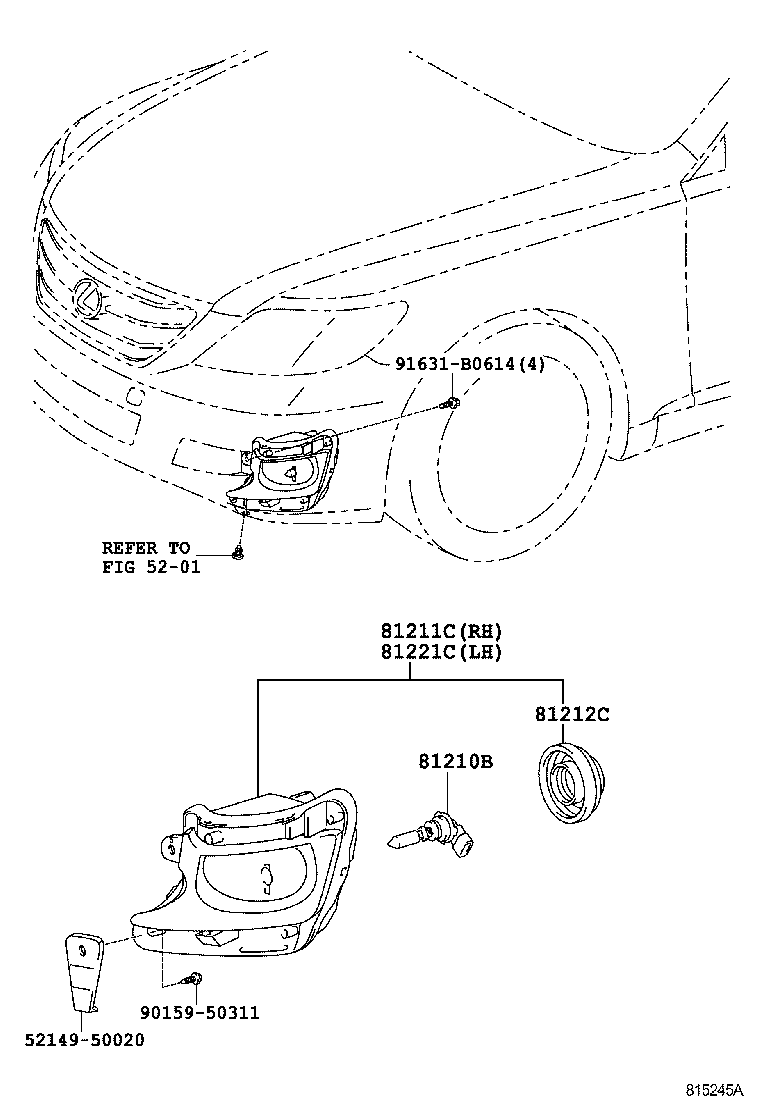

Figure 815245A

815245A 2009-11 → —

Part groups

PNC	Description
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81212C	Cover, Fog Lamp
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
