Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

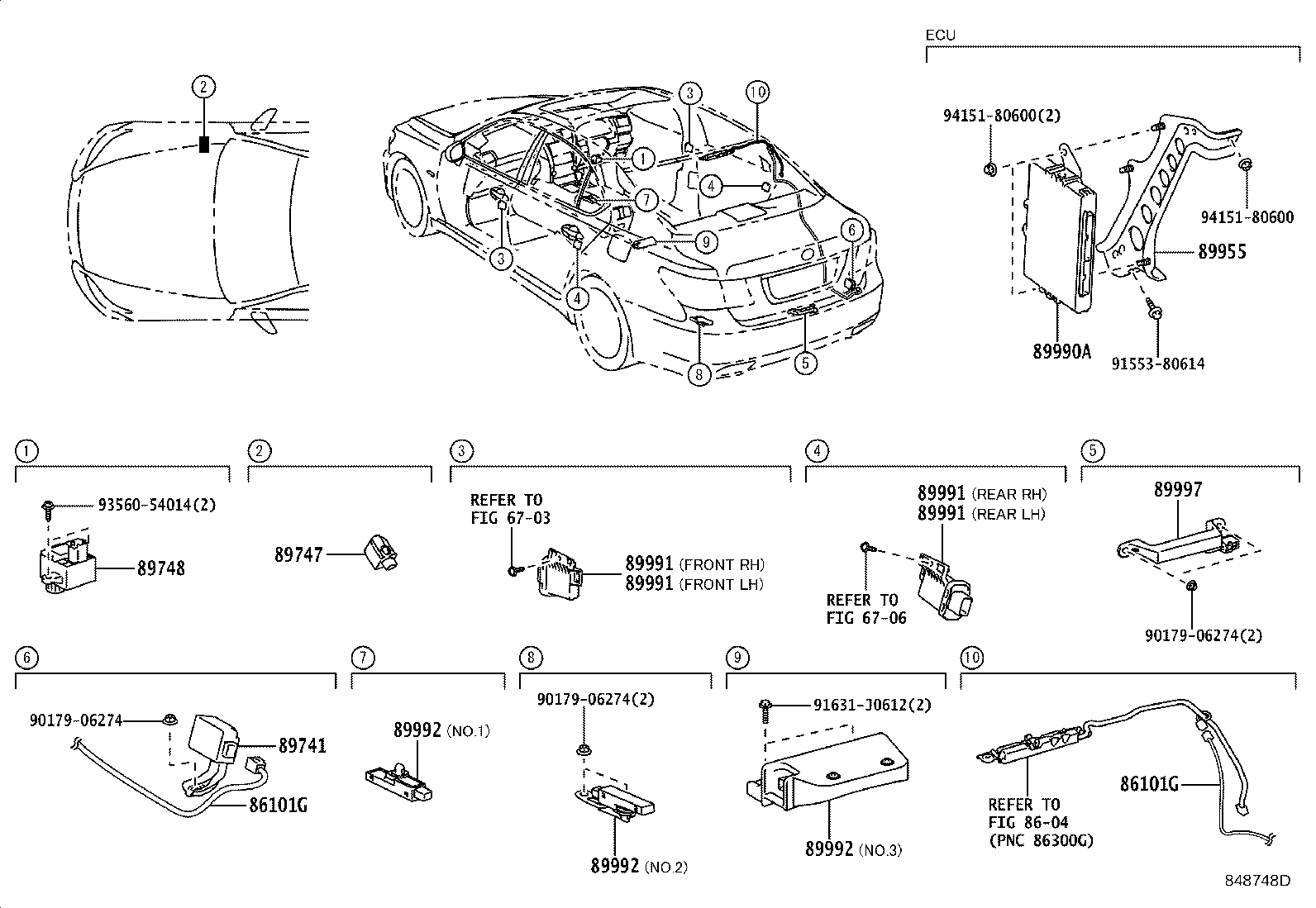

Wireless Door Lock
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101G | Cord Sub-assy, Antenna |
| 89741 | Receiver, Door Control |
| 89747 | Buzzer, Wireless Door Lock |
| 89748 | Controller, Wireless Door Lock Buzzer |
| 89955 | Bracket, Smart Key Computer |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
| 89992 | Oscillator, Indoor Electrical Key |
| 89997 | Antenna, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
