Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 4 illustrations

Illustrations

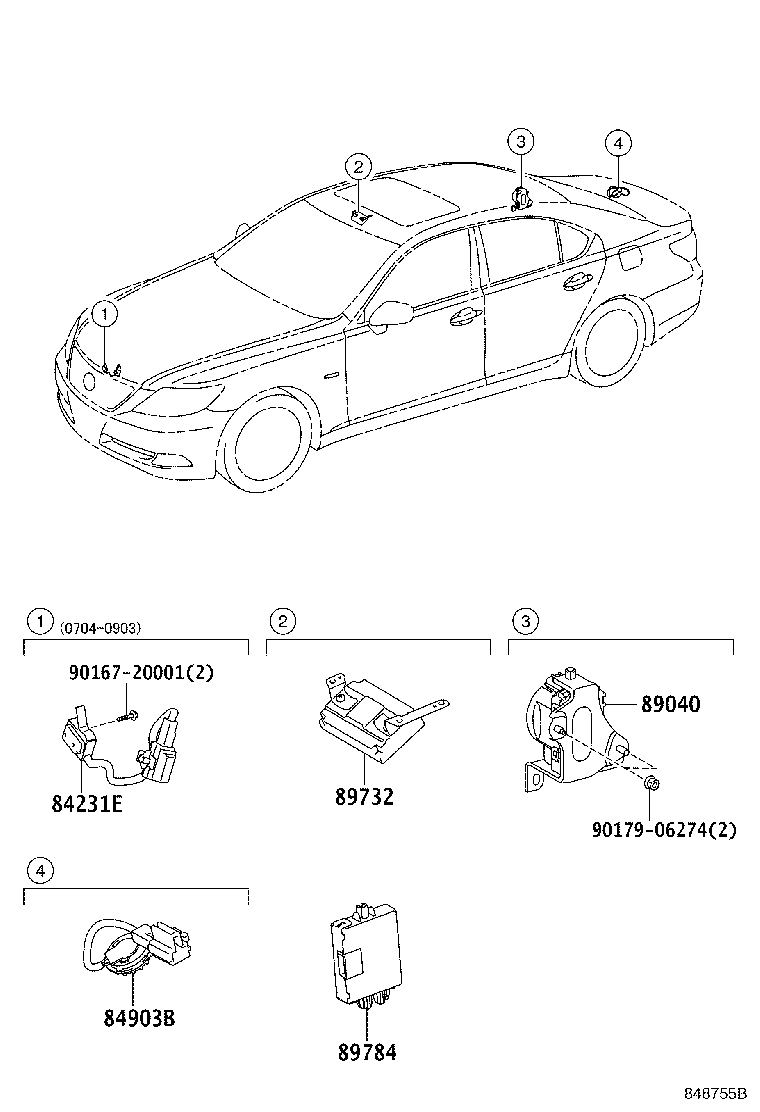

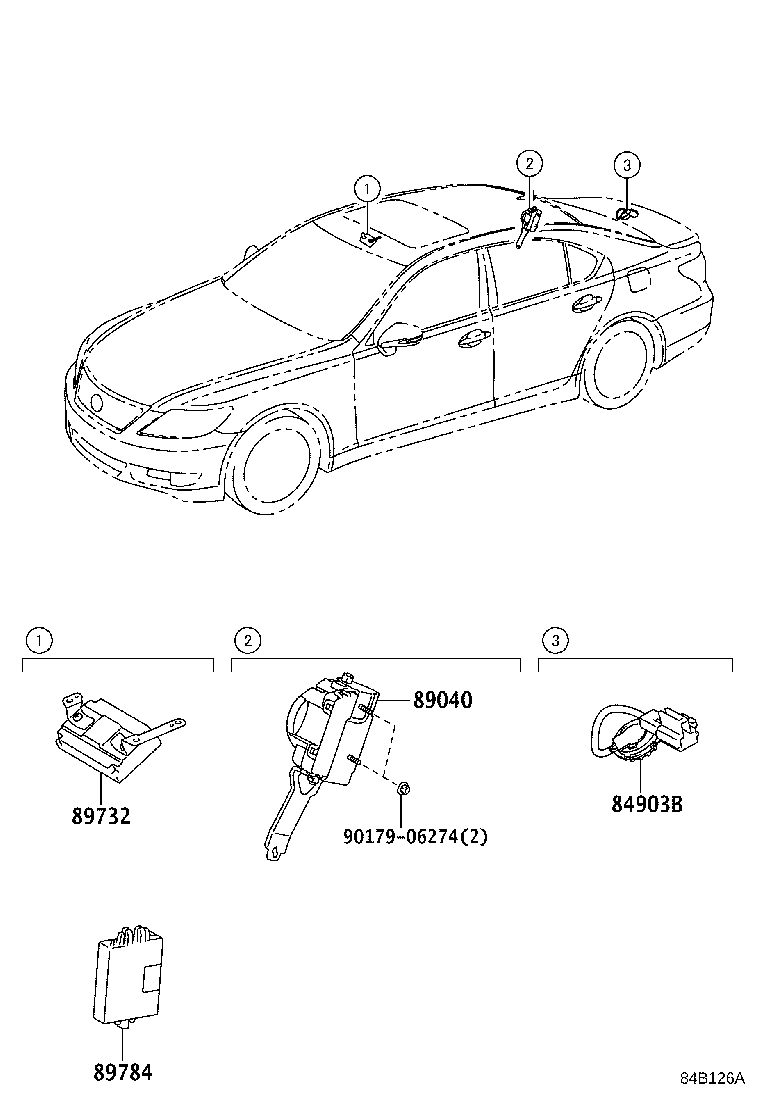

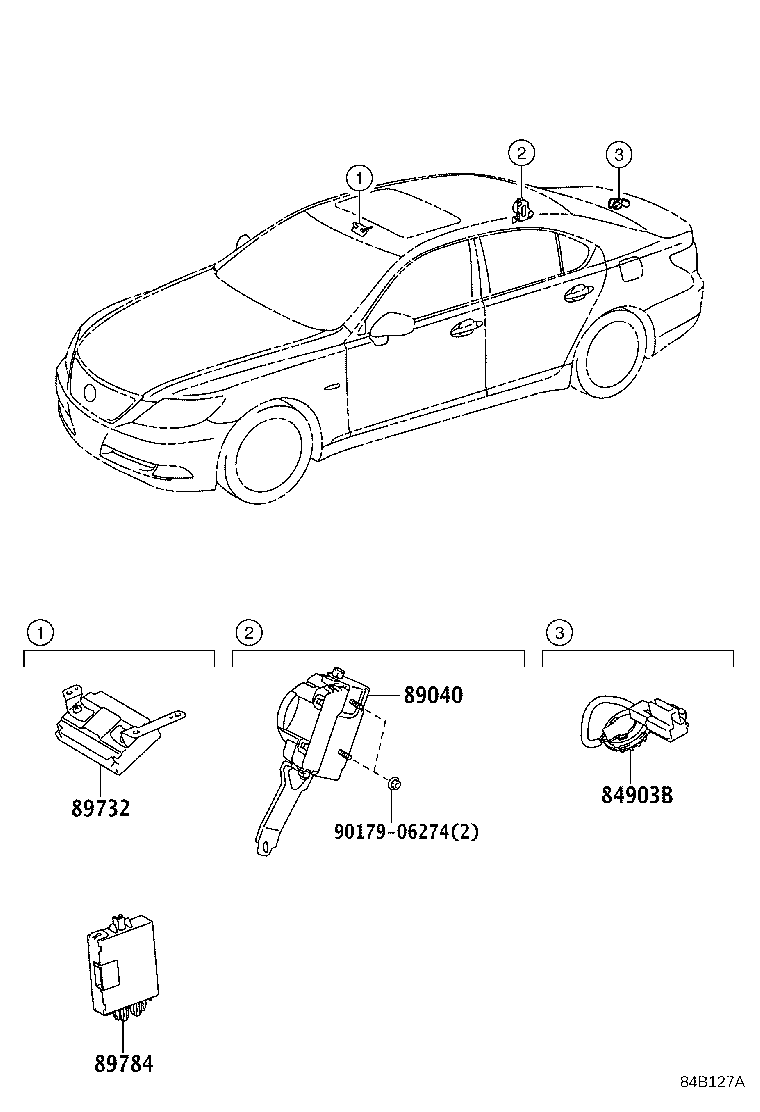

Figure 848754B 848754B 2007-04 → 2009-11 Figure 848755B 848755B 2007-04 → 2009-11 Figure 84B126A 84B126A 2009-11 → — Figure 84B127A 84B127A 2009-11 → —

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
84903B Switch Sub-assy, Door Unlock
89040 Siren Assy, Theft Warning
89732 Sensor, Theft Warning Radar
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
