Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

14 part groups · 2 illustrations

Illustrations

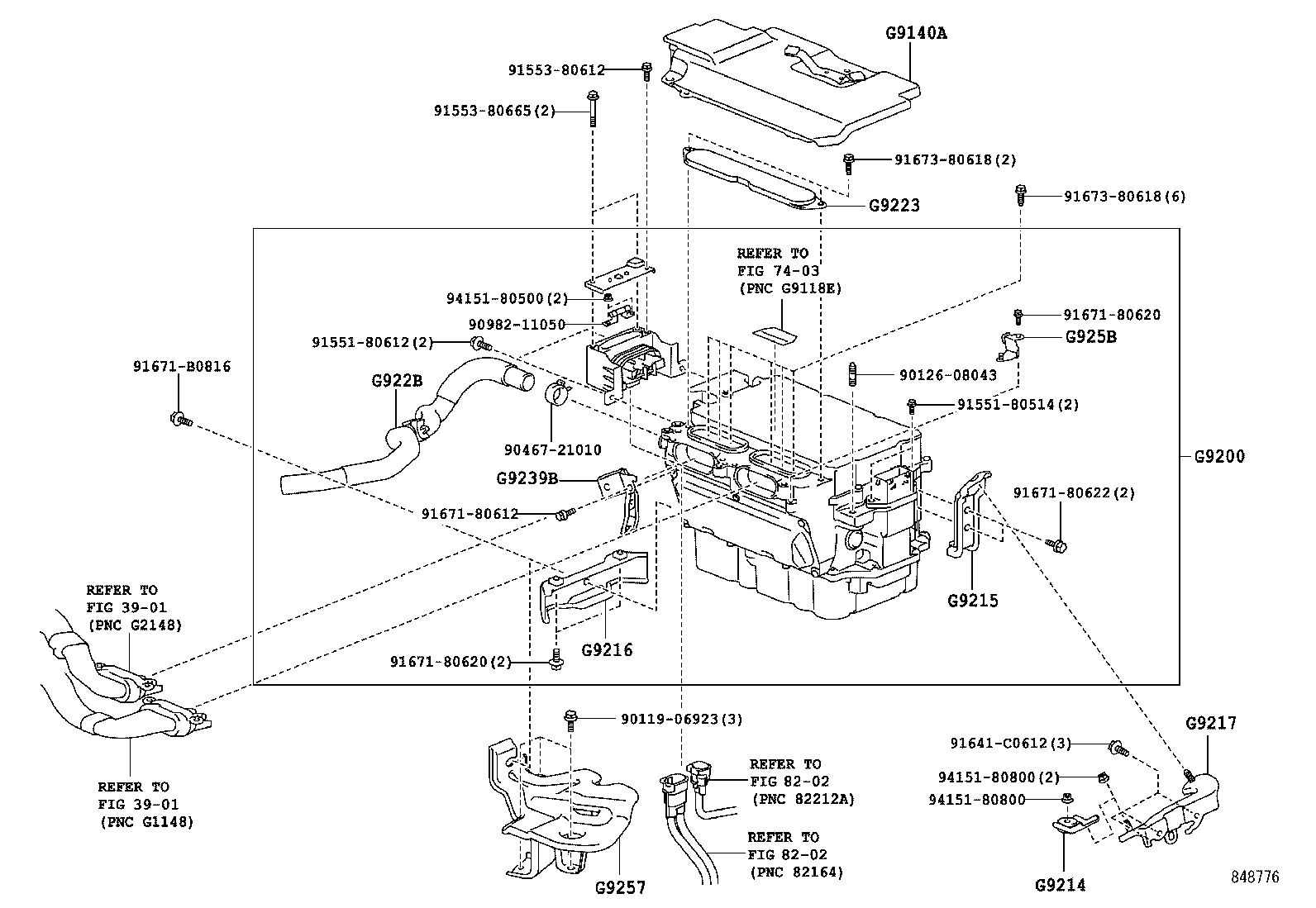

Figure 848775A 848775A 2007-04 → — Figure 848776A 848776A 2007-04 → —

Part groups

PNCDescription
G90A0 Hose Assy, Inverter Cooling, NO.1
G9130A Cover Assy, Inverter, RH
G9140A Cover Assy, Inverter, LH
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G9217 Bracket, Inverter, NO.4
G9223 Cover, Inverter Terminal
G922A Hose, Inverter Cooling Inlet, NO.1
G922B Hose, Inverter Cooling Inlet, NO.2
G9239B Bracket, Inverter Cooling Pipe
G9257 Bracket, Inverter, NO.5
G925B Bracket, Inverter, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
