Toyota Lexus LS600H/600HL
2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe
Supported model
Data version 2012-10

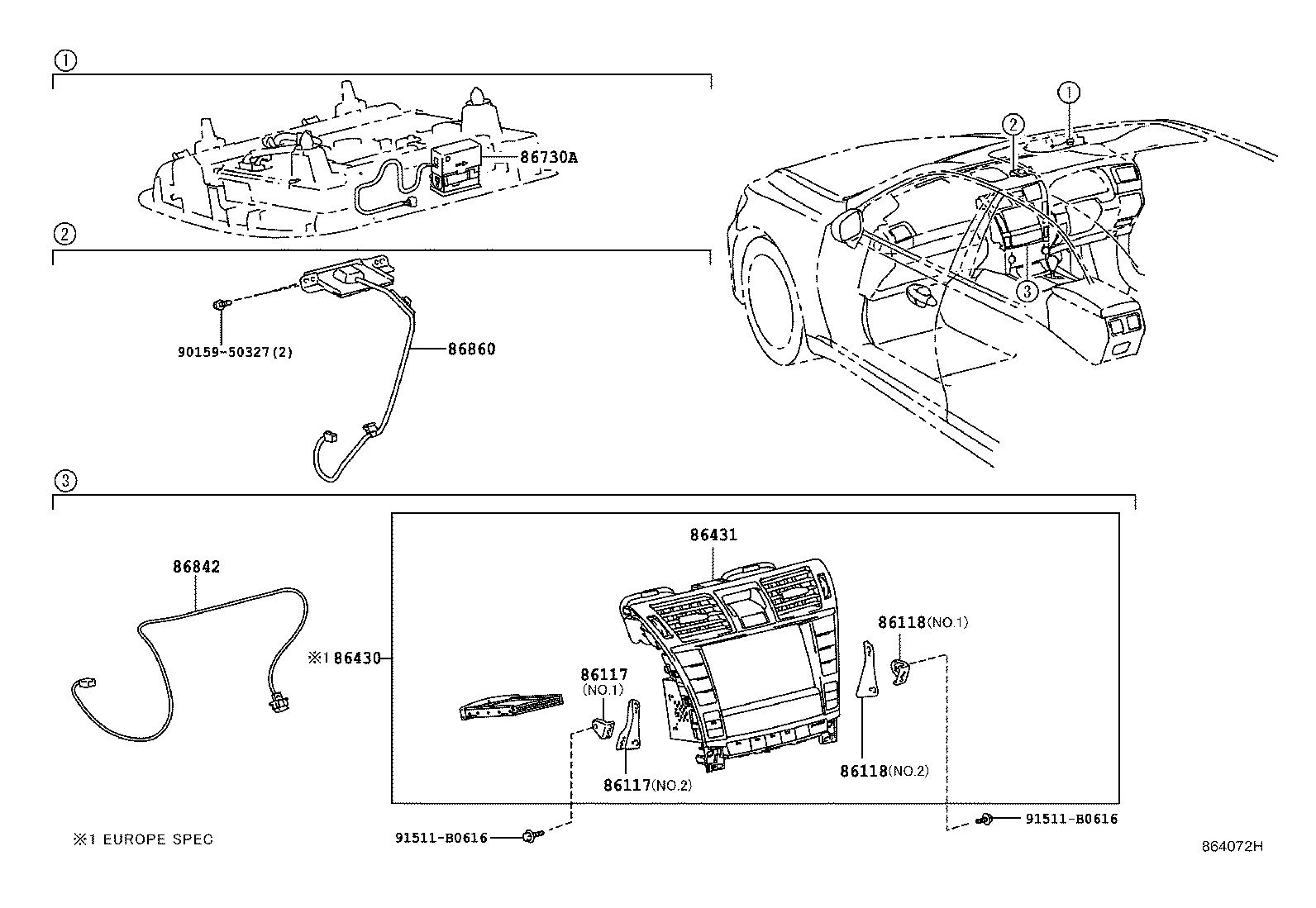

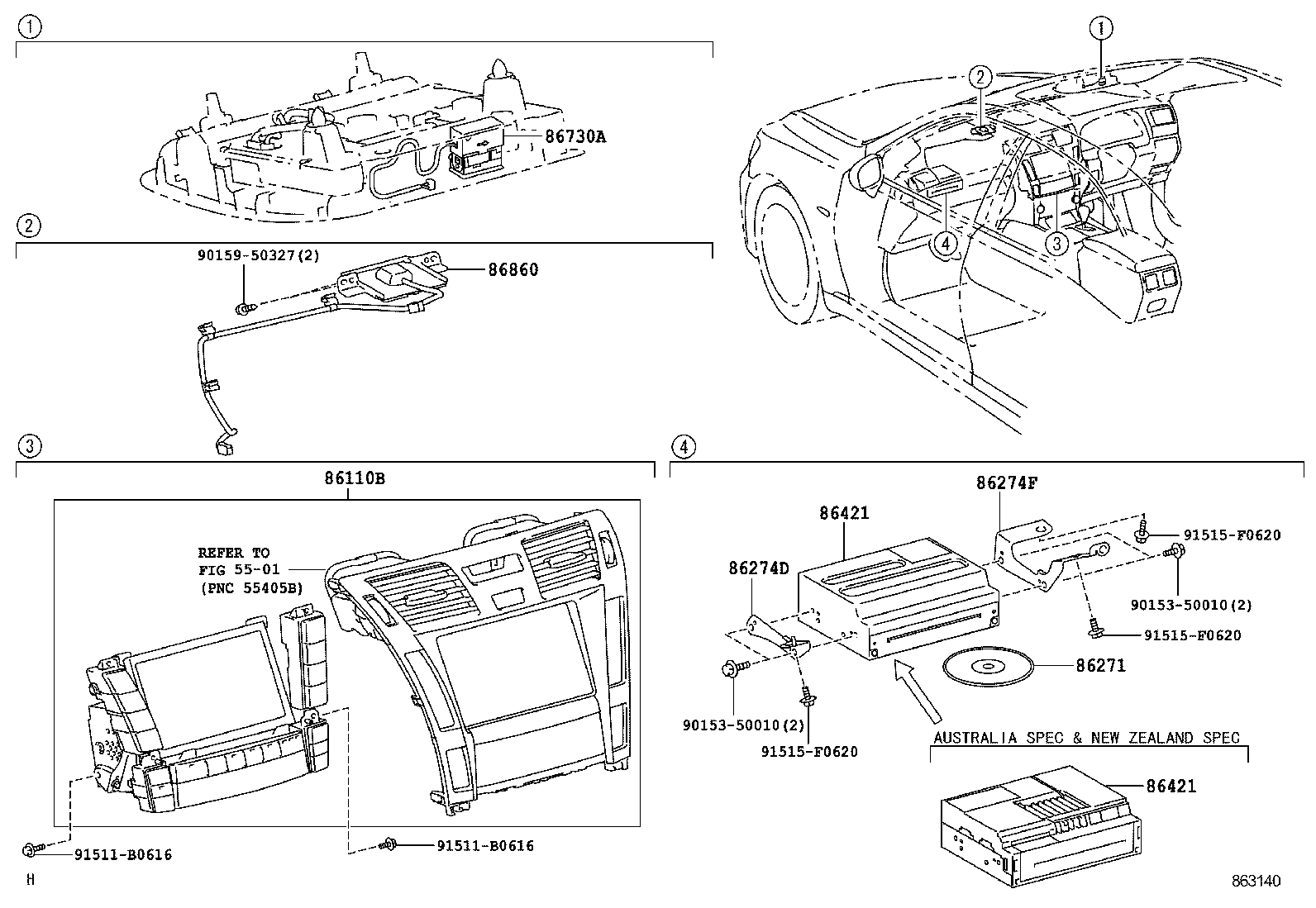

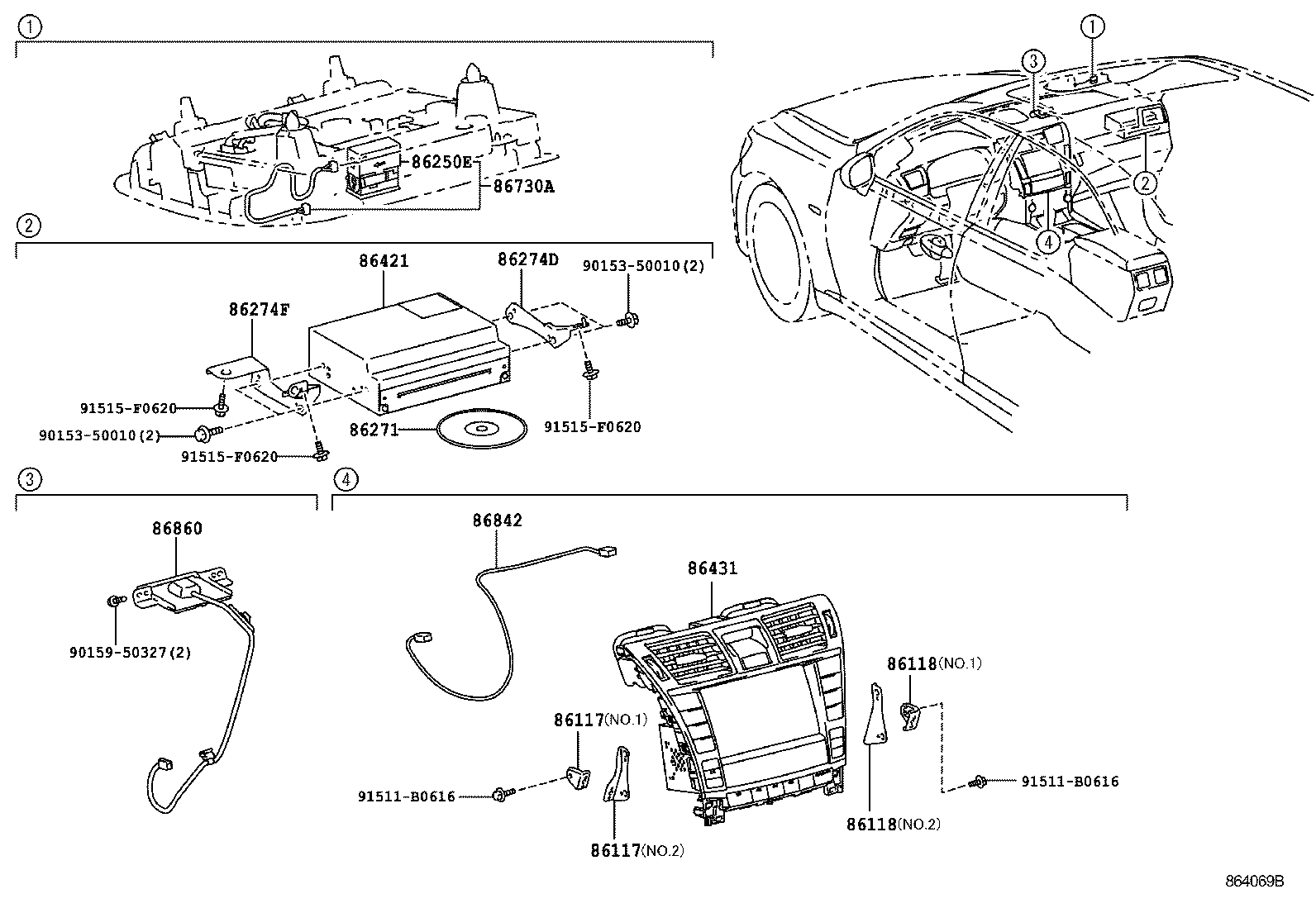

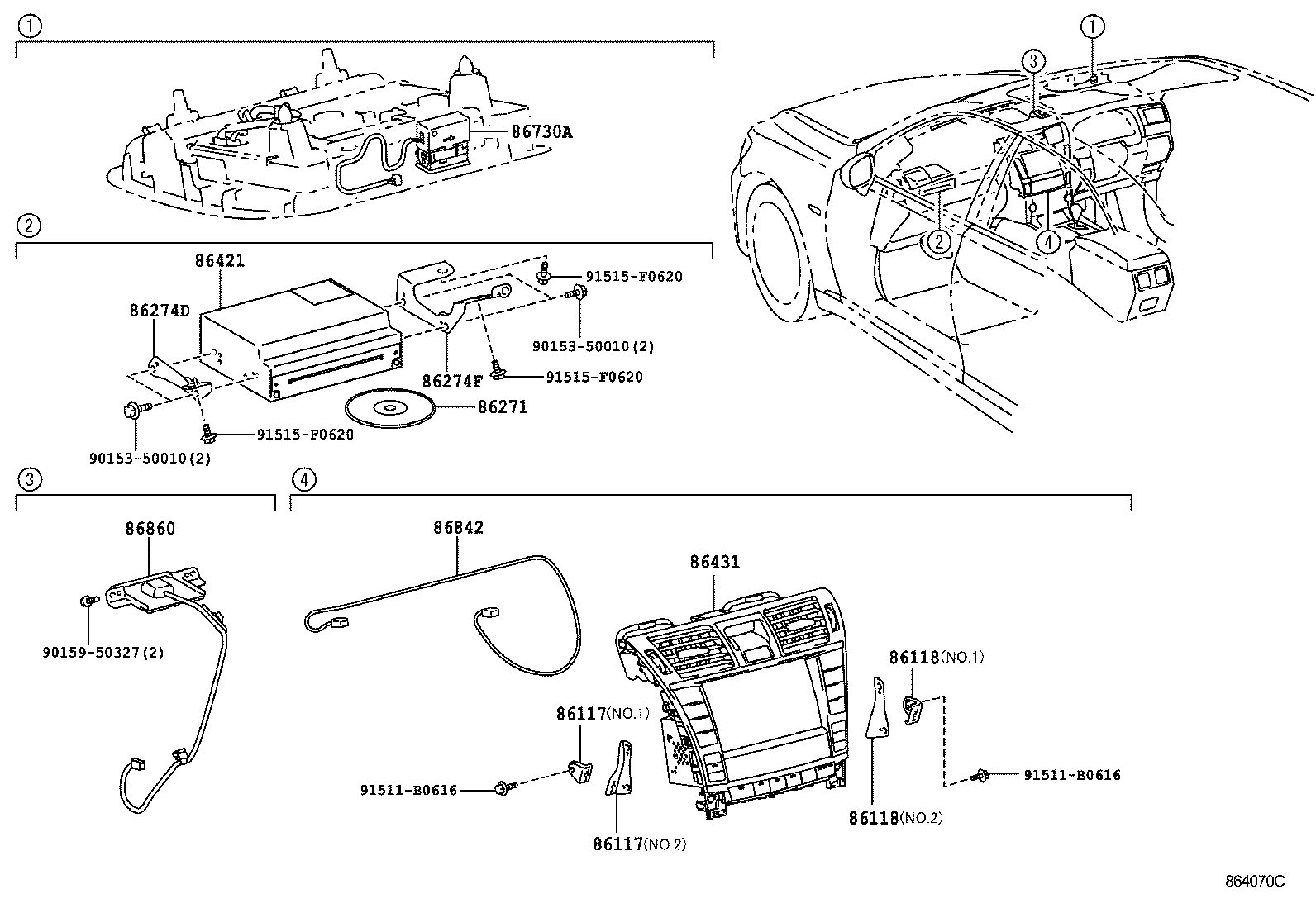

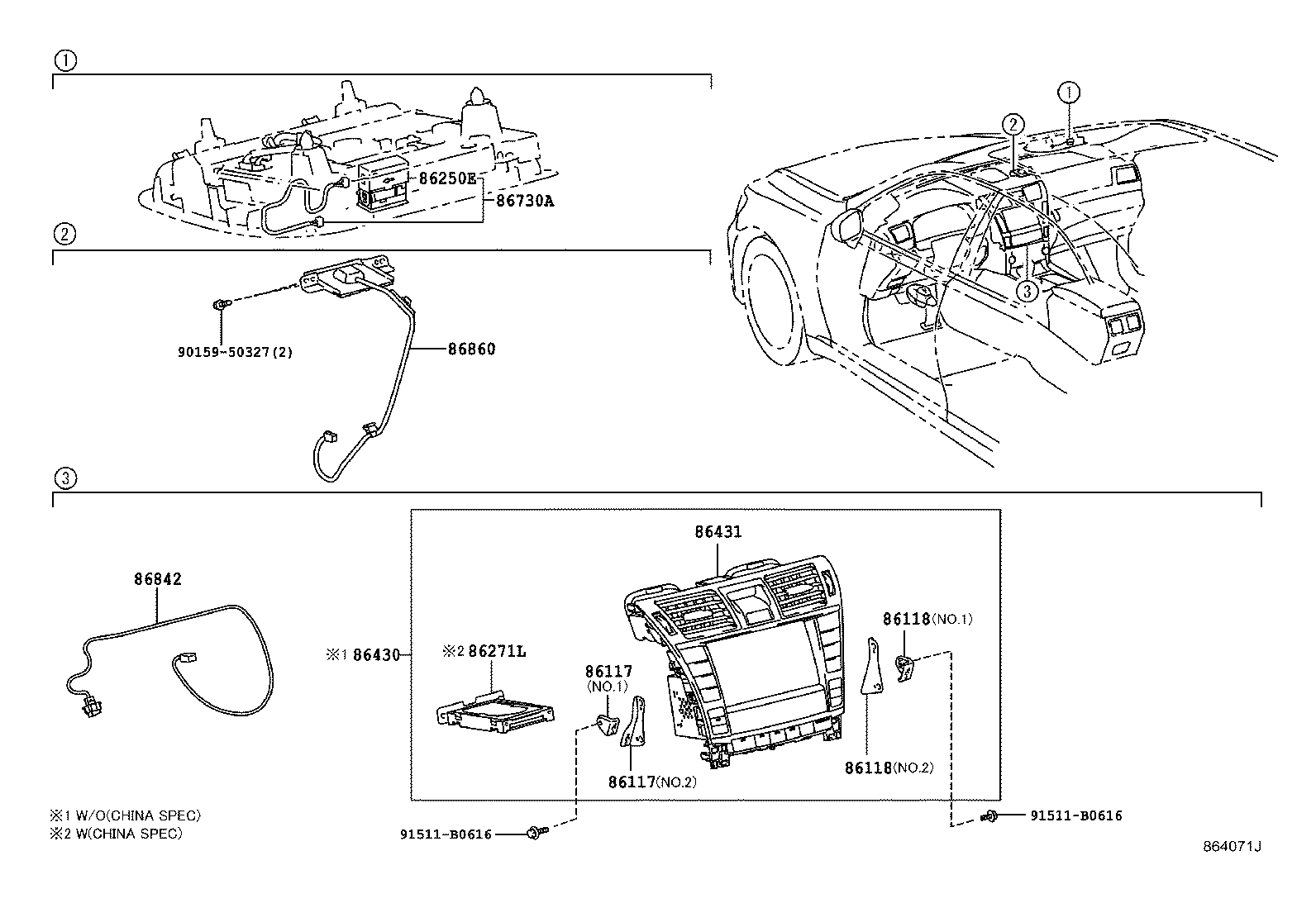

Navigation & Front Monitor Display
14 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86421 | Board, Navigation Module |
| 86430 | Display Assy, Multi-media Module |
| 86431 | Display, Display & Navigation Module |
| 86730A | Microphone Assy, Telephone |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
