Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 3 illustrations

Illustrations

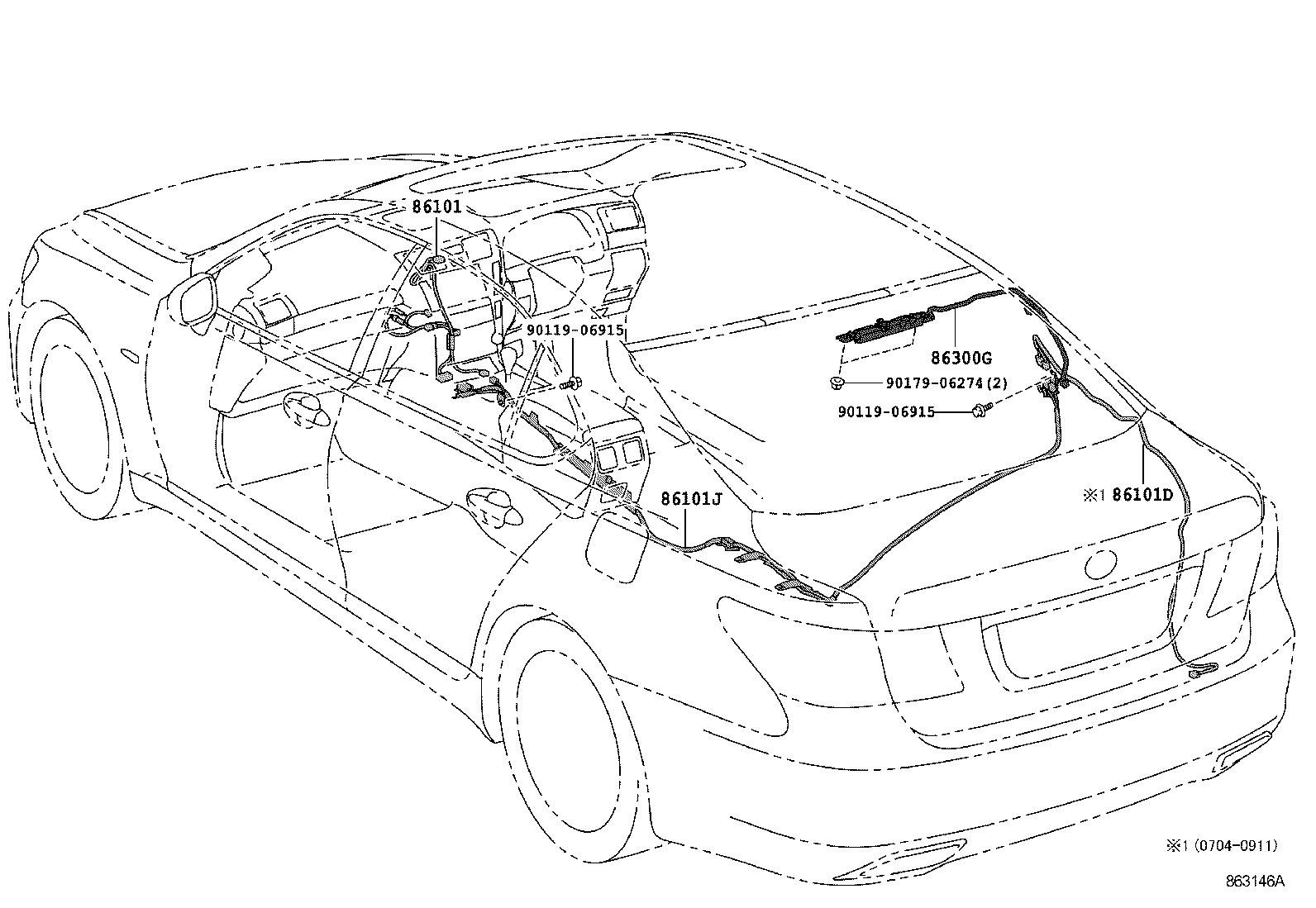

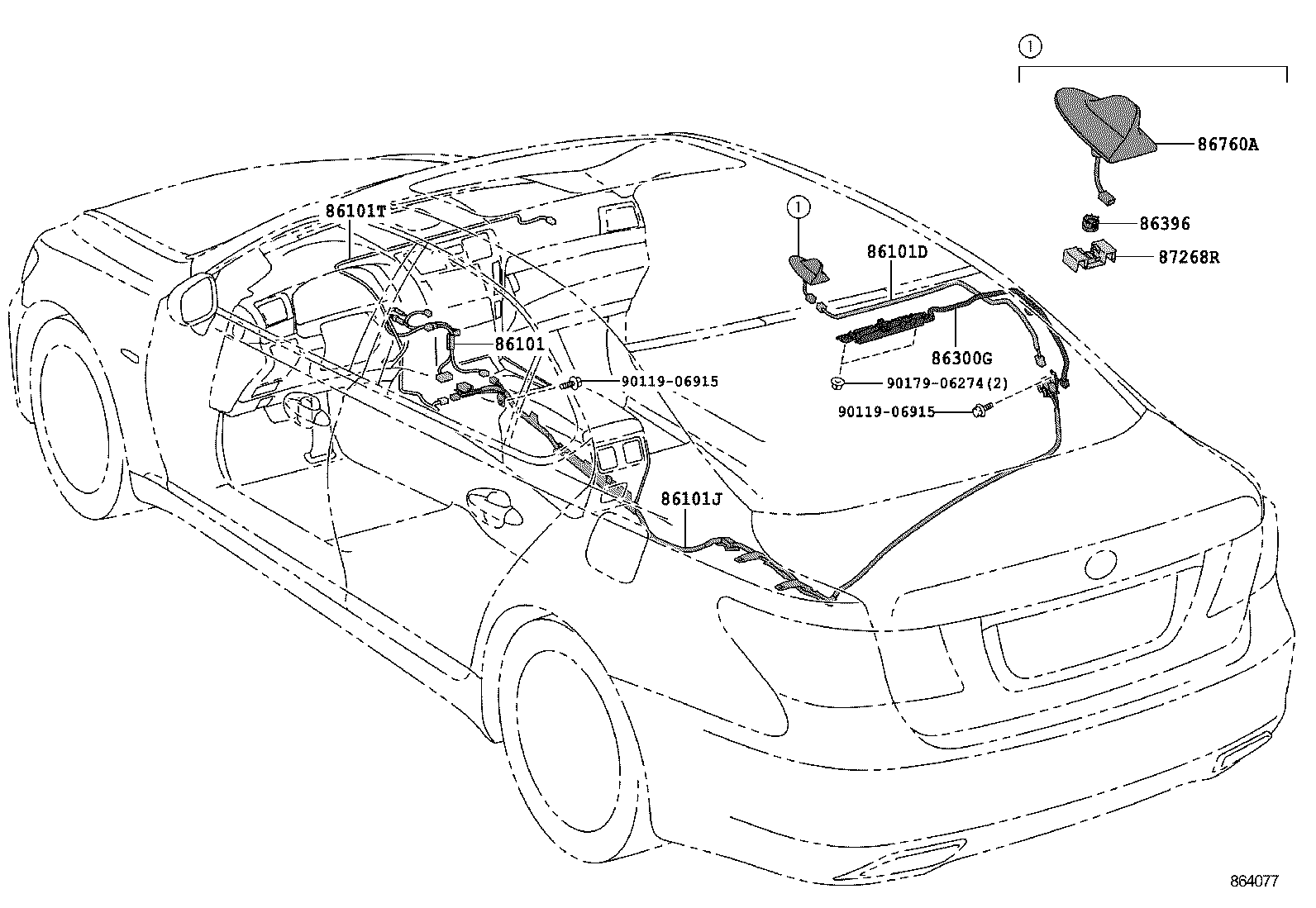

Figure 863145 863145 2007-04 → 2009-11 Figure 863146A 863146A 2007-04 → — Figure 864077 864077 2009-11 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101T Cord Sub-assy, Antenna
86300G Antenna Assy, Television Amplifier
86396 Nut, Antenna
86760A Antenna Assy, Telephone
87268R Protector, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
