Toyota Lexus LS600H/600HL

2007-04 → 2012-09 · chassis UVF4# · catalogue 432210 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

5 part groups · 2 illustrations

Illustrations

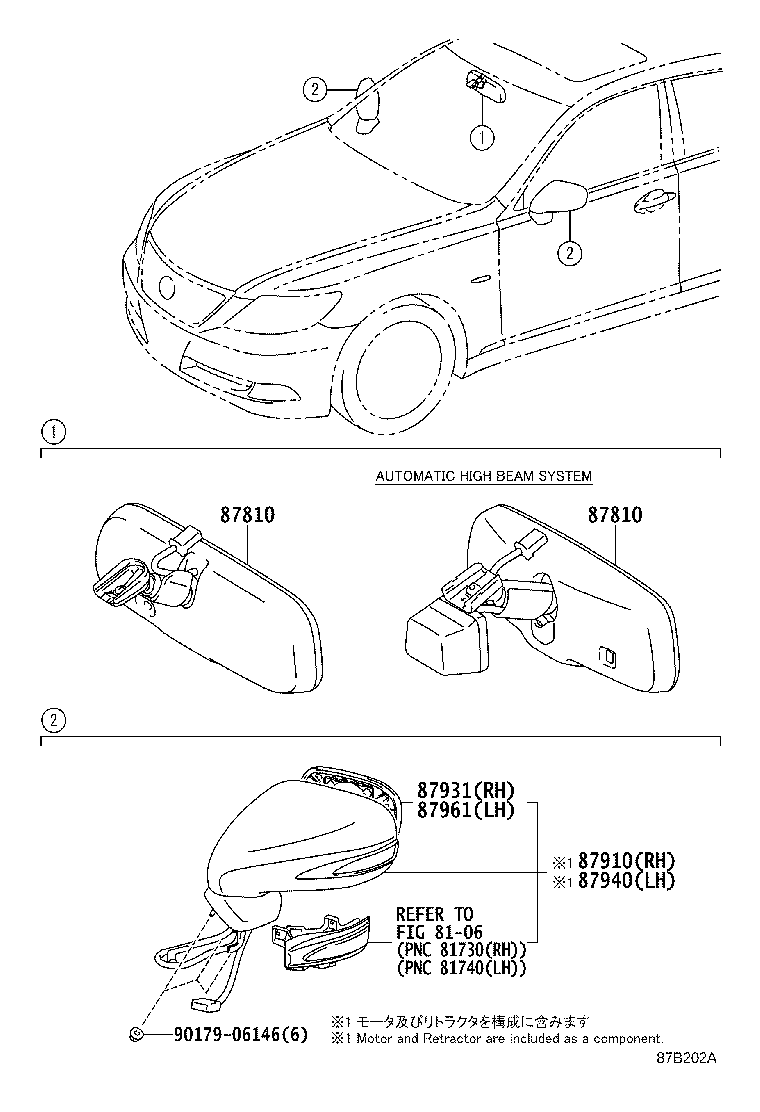

Figure 879303B 879303B 2007-04 → 2009-11 Figure 87B202A 87B202A 2009-11 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87910 Mirror Assy, Outer Rear View, RH
87931 Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87961 Mirror Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
