Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

18 part groups · 2 illustrations

Illustrations

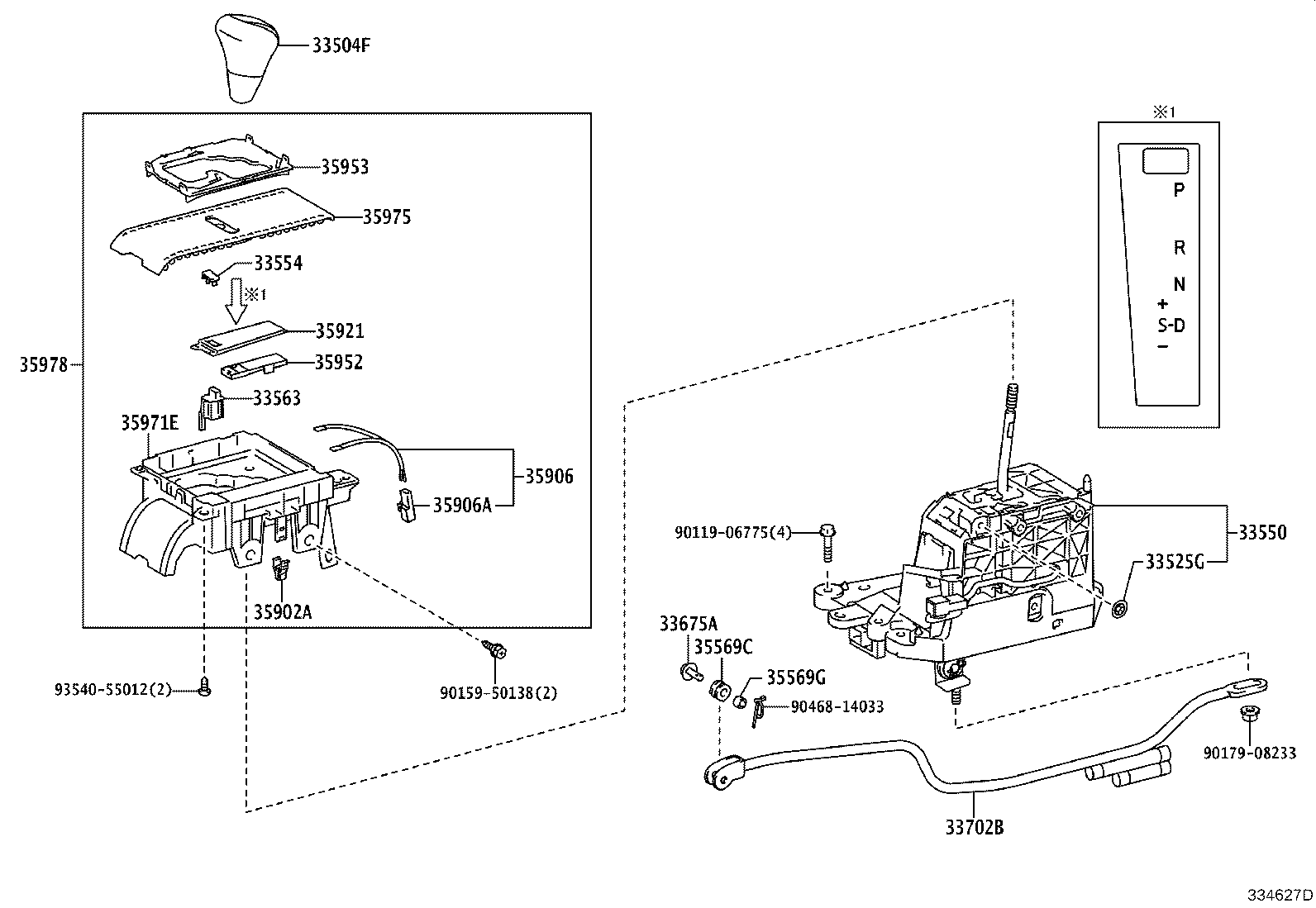

Figure 334626D 334626D 2012-09 → — Figure 334627D 334627D 2012-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525G Ring, Shift Lever
33550 Floor Shift Assy, Transmission
33554 Cap, Shift Lever
33563 Button, Shift Lock Release
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
35902A Clip, Cover Sub-assy, Position Indicator Housing
35906 Wire Sub-assy, Indicator Lamp
35906A Housing, Connector Male (FOR INDICATOR LAMP WIRE)
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35953 Guide, Position Indicator Light
35971E Housing, Position Indicator
35975 Cover, Slide (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
