Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

25 part groups · 2 illustrations

Illustrations

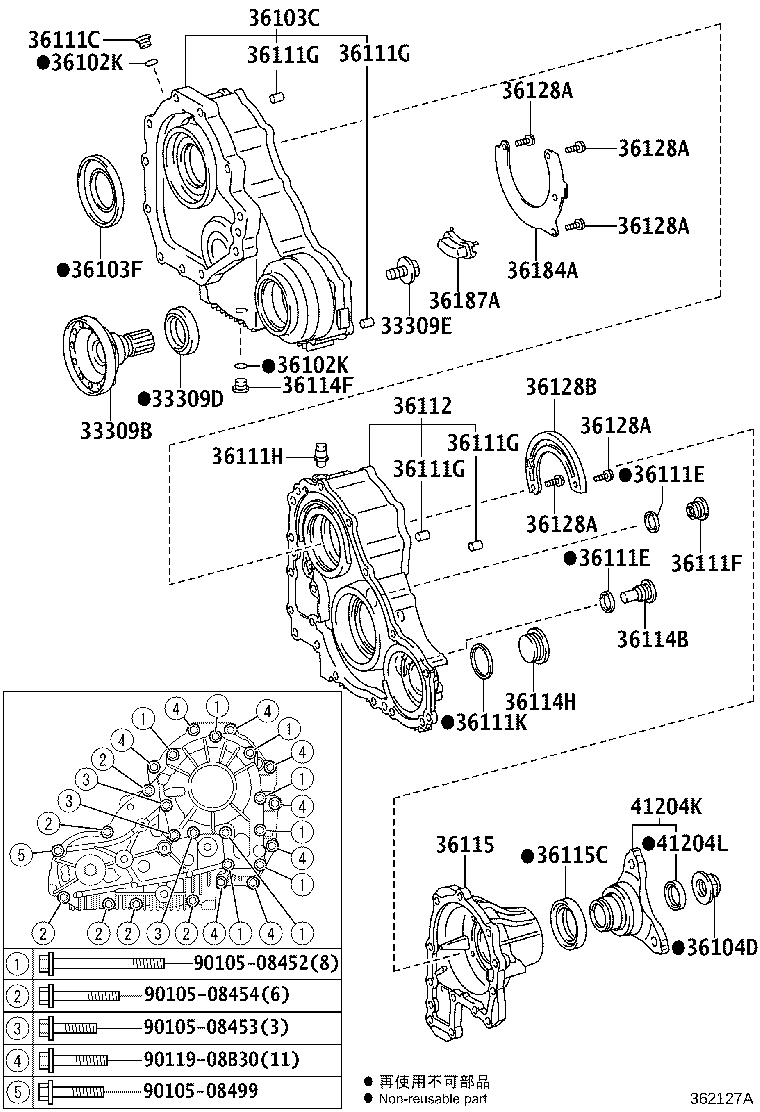

Figure 361807B 361807B 2012-09 → 2016-12 Figure 362127A 362127A 2016-12 → —

Part groups

PNCDescription
33309B Flange Sub-assy, Output Shaft Companion
33309D Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309E Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36102K Ring, O
36103C Case, Transfer, Front
36103F Seal, Type T Oil (FOR TRANSFER FRONT CASE)
36104D Nut (FOR TRANSFER OUTPUT SHAFT)
36111C Plug (FOR TRANSFER CASE)
36111E Gasket (FOR TRANSFER CASE)
36111F Plug (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36111K Gasket (FOR TRANSFER CASE)
36112 Case, Transfer, Rear
36114B Plug, NO.1 (FOR TRANSFER CASE)
36114F Plug (FOR TRANSFER DRAIN)
36114H Plug, NO.2 (FOR TRANSFER CASE)
36115 Housing, Transfer Extension
36115C Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
36128A Bolt (FOR BREATHER OIL DEFLECTOR)
36128B Deflector, Breather Oil
36184A Separator, Transfer Oil
36187A Strainr, Transfer Oil, NO.1
41204K Flange Sub-assy, Drive Pinion Companion
41204L Seal, Type V Oil (FOR DRIVE PINION COMPANION FLANGE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
