Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

18 part groups · 2 illustrations

Illustrations

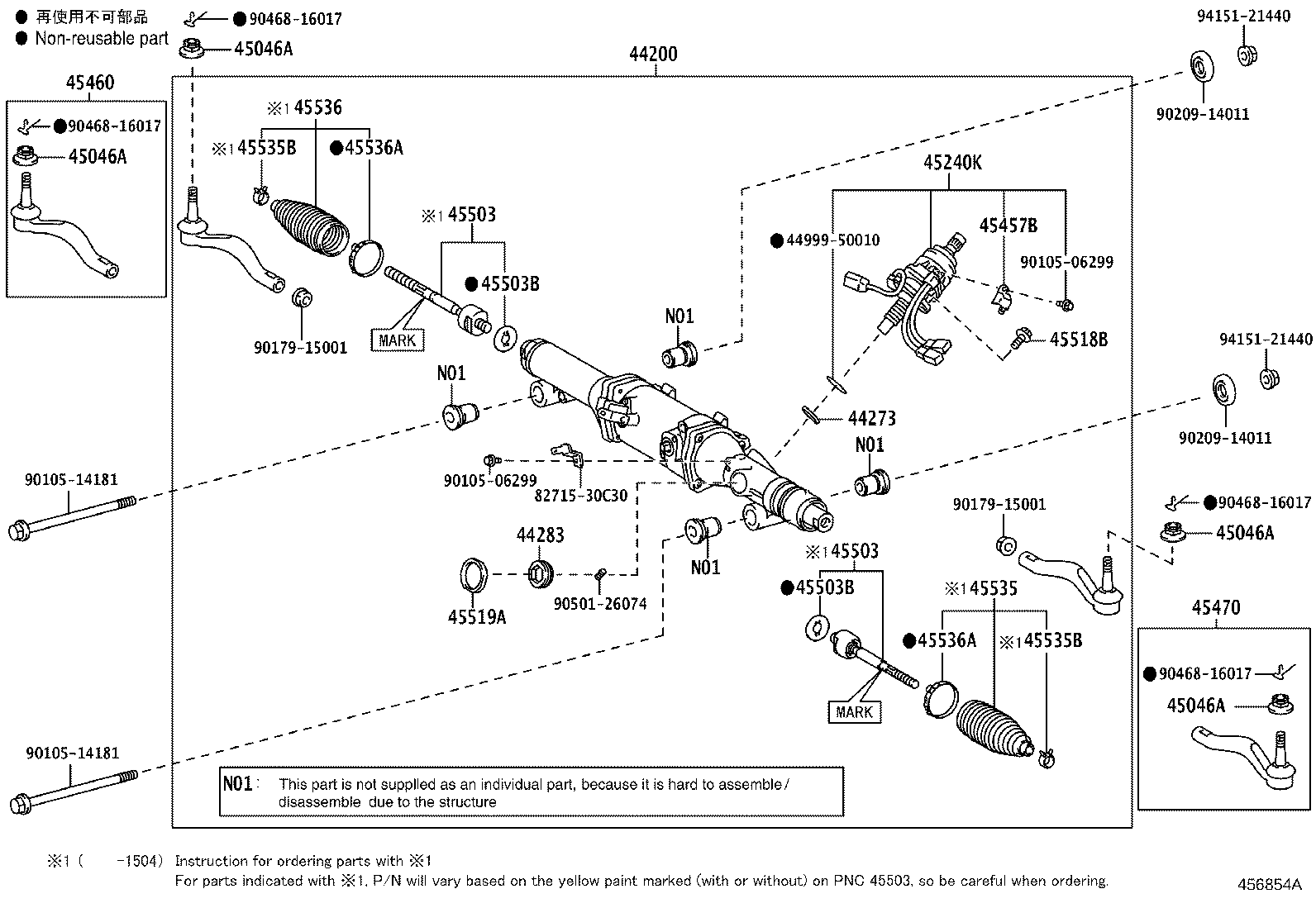

Figure 458655 458655 2012-09 → — Figure 456854A 456854A 2012-09 → —

Part groups

PNCDescription
44200 Link Assy, Power Steering
44273 Plate, Steering Shaft Torque Sensor
44283 Cap, Rack Housing
45046A Nut, Castle(FOR TIE ROD END)
45240K Actuator Assy, Steering
45457B Protector, Steering Link
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45518B Bolt, Steering Rack Housing
45519A Nut, Steering Rack Housing Bracket
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
45816A Bracket, Wire Harness
45818B Bracket, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
