Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03

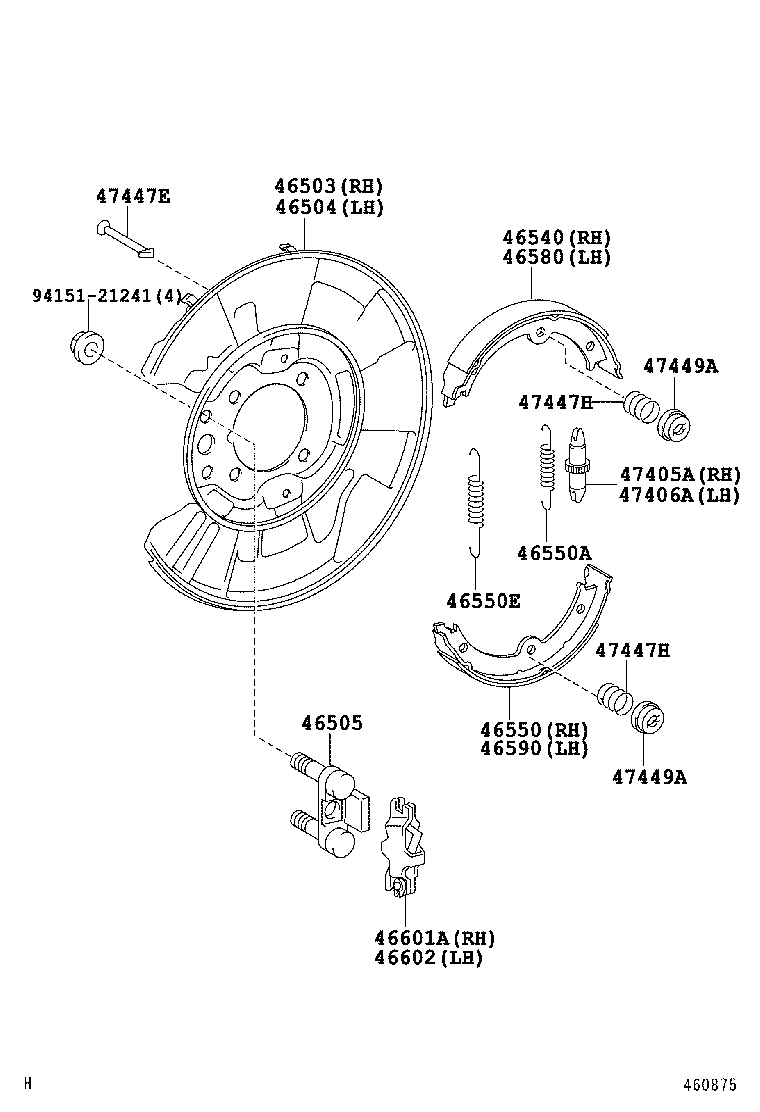

Parking Brake & Cable
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46300 | Actuator Assy, Parking Brake W/Bracket |
| 46451 | Bracket, Cable Support |
| 46451F | Bracket, Cable Support |
| 46451G | Bracket, Cable Support |
| 46452B | Bracket, Cable Support, NO.2 |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46505 | Block Sub-assy, Parking Brake Anchor |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 46601A | Lever Sub-assy, Parking Brake Shoe, RH |
| 46602 | Lever Sub-assy, Parking Brake Shoe, LH |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447E | Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47447H | Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 48596A | Clamp, Actuator Harness, NO.1 |
| 48596B | Clamp, Actuator Harness, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
