Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03

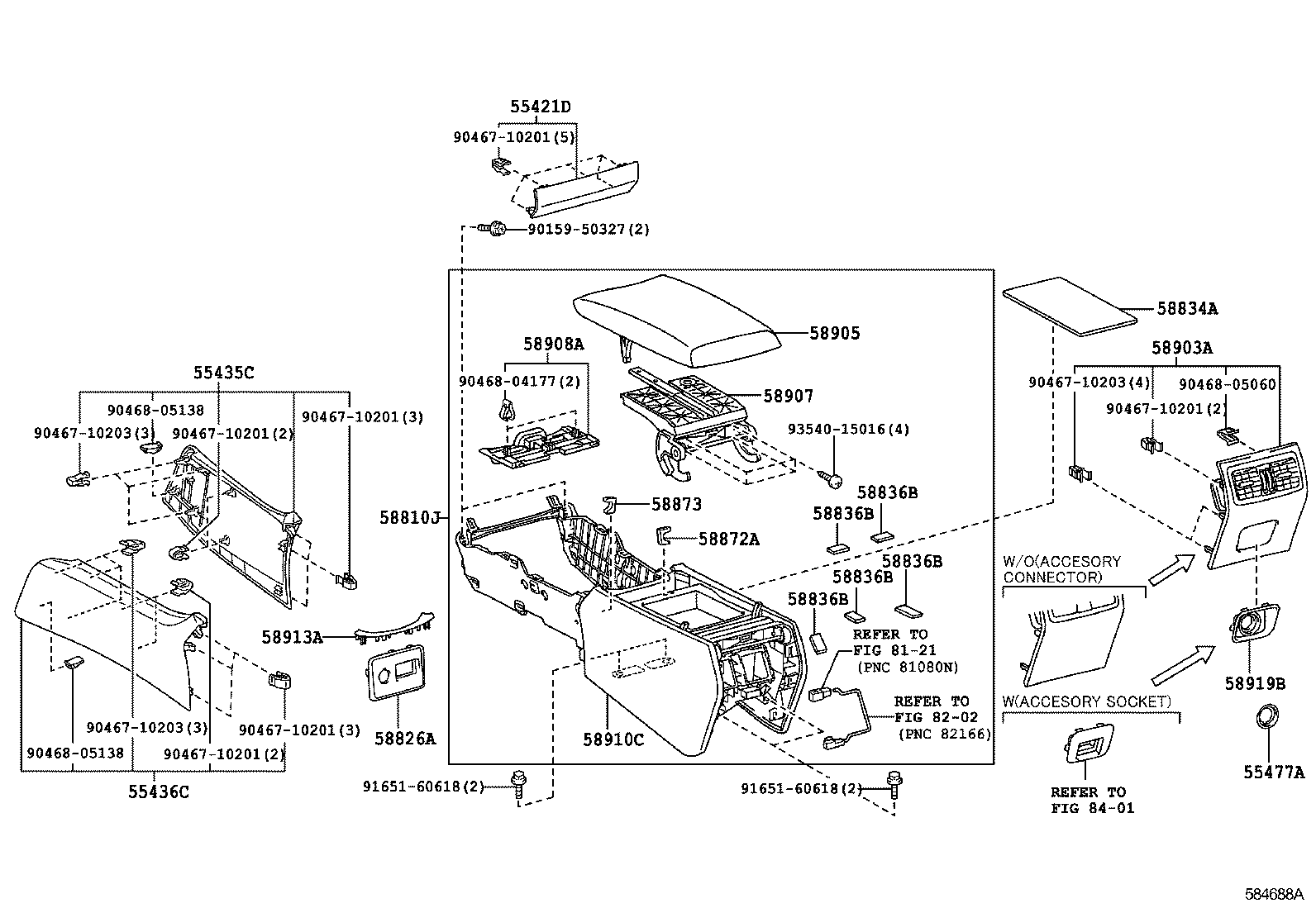

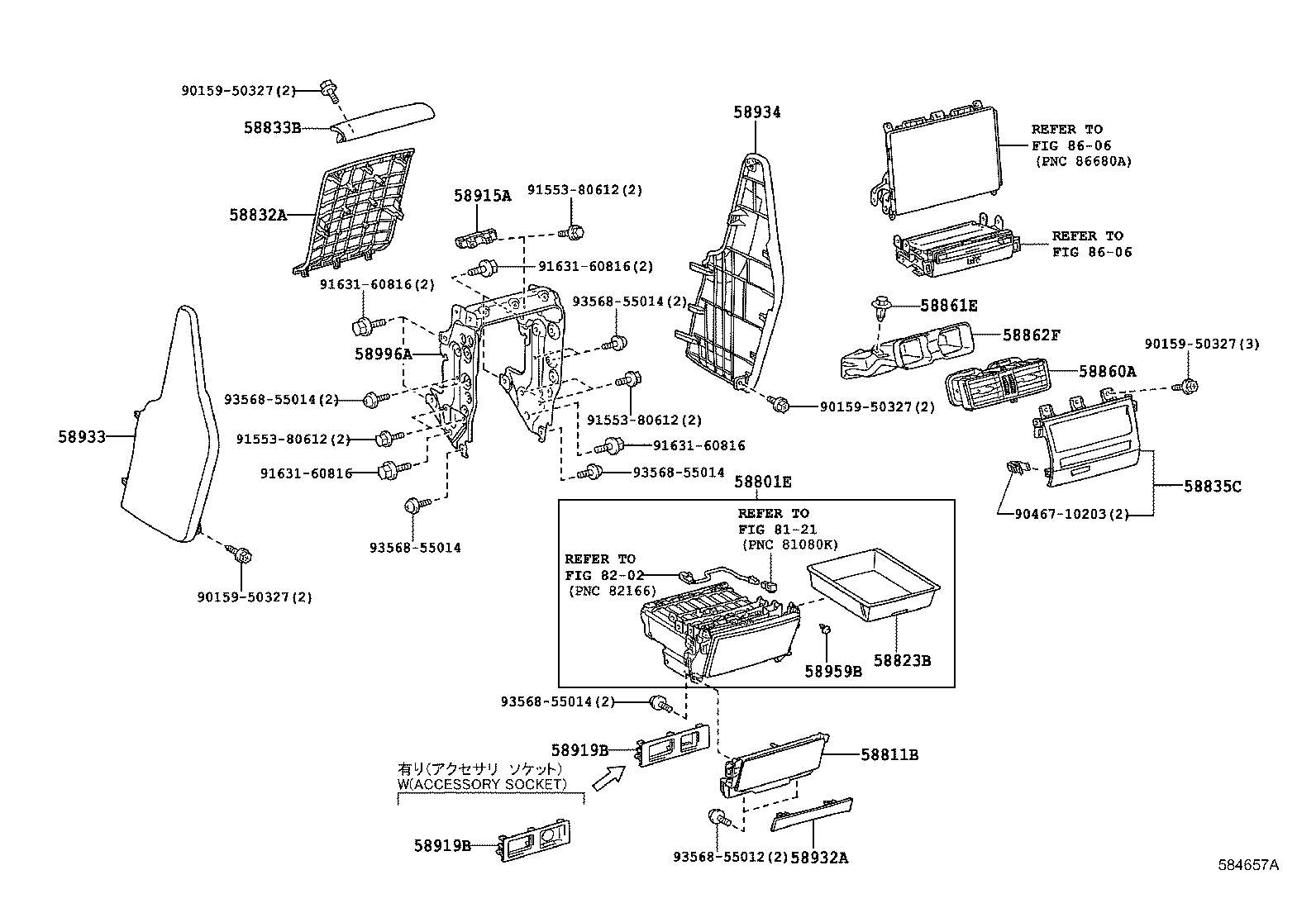

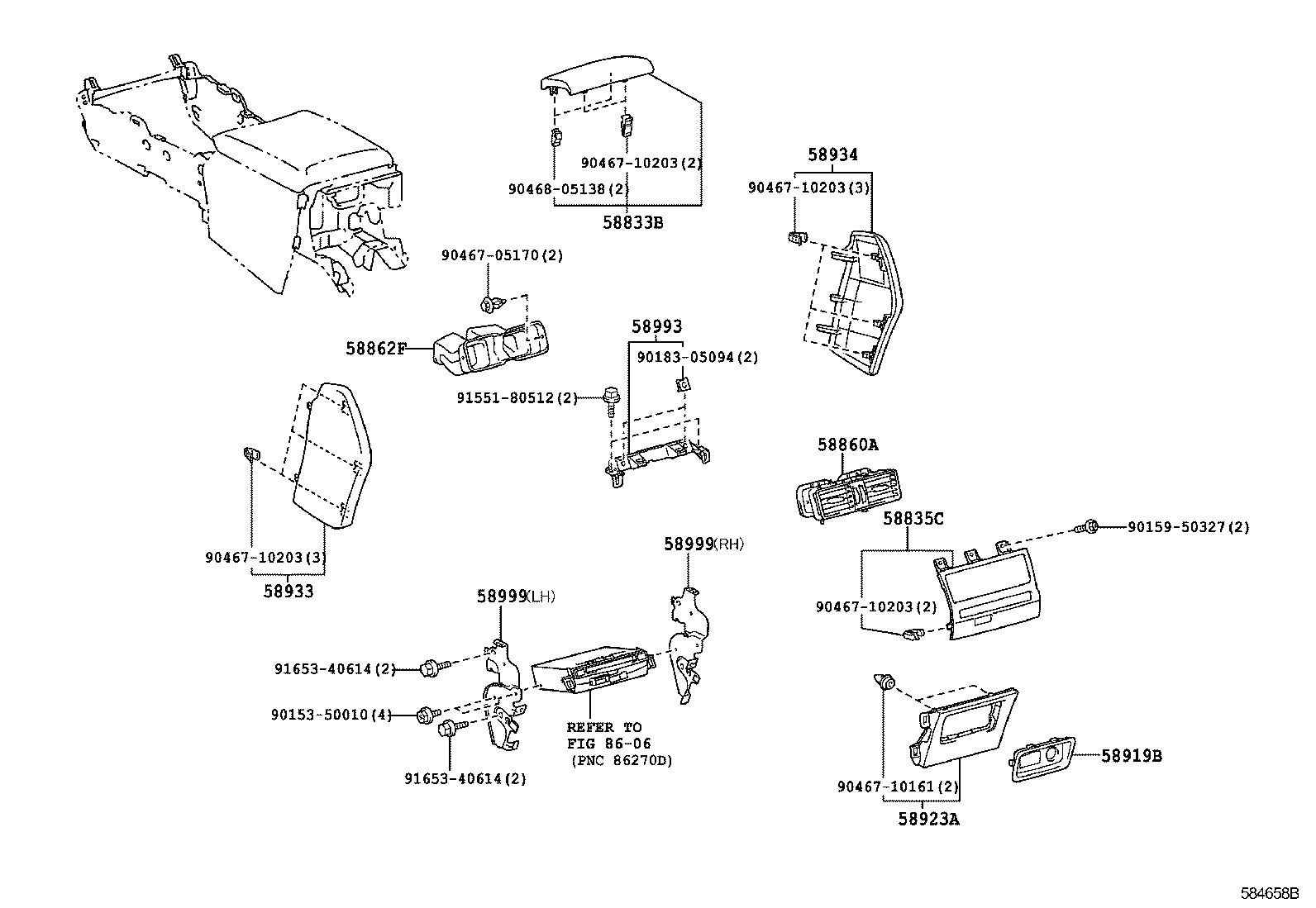

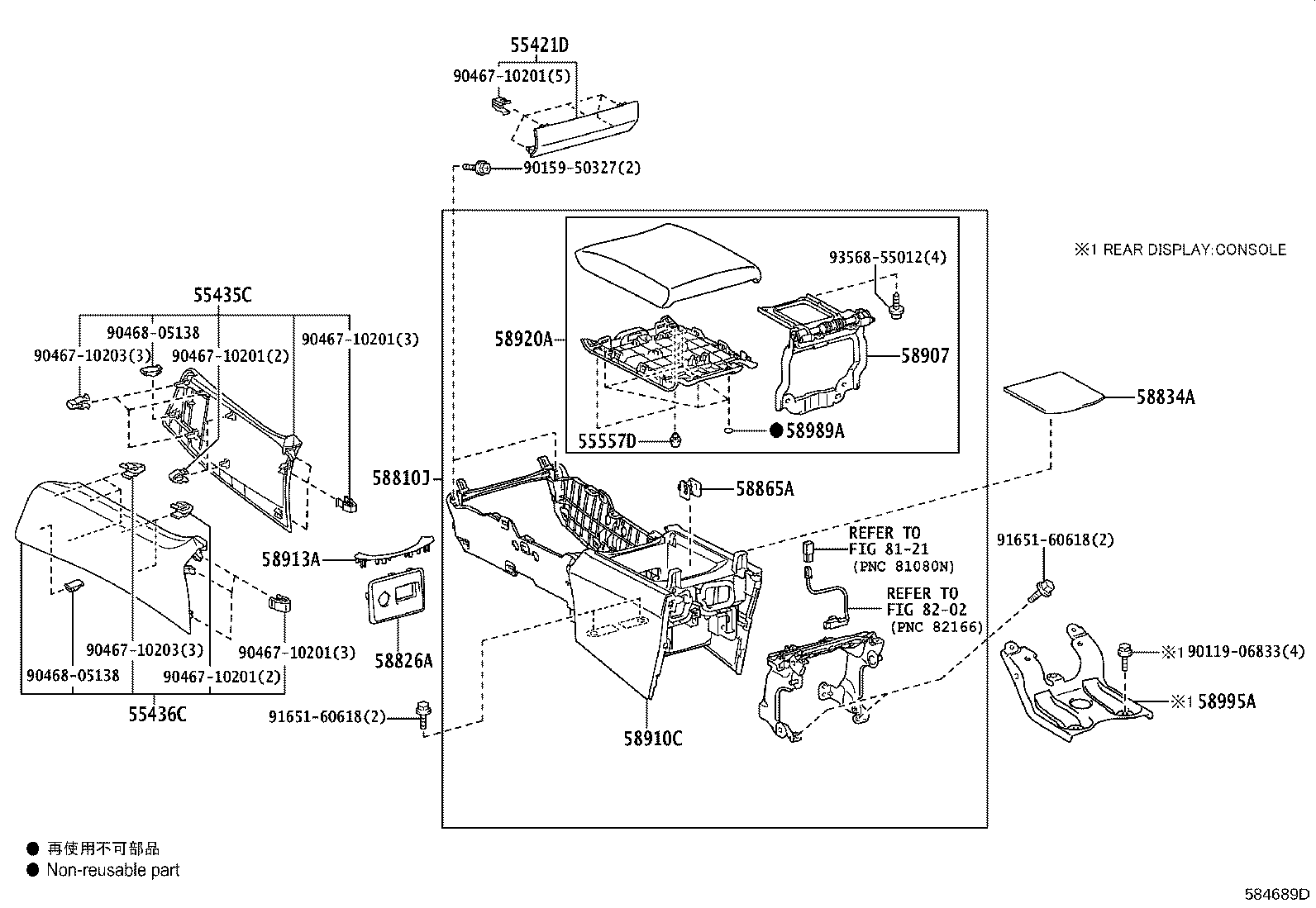

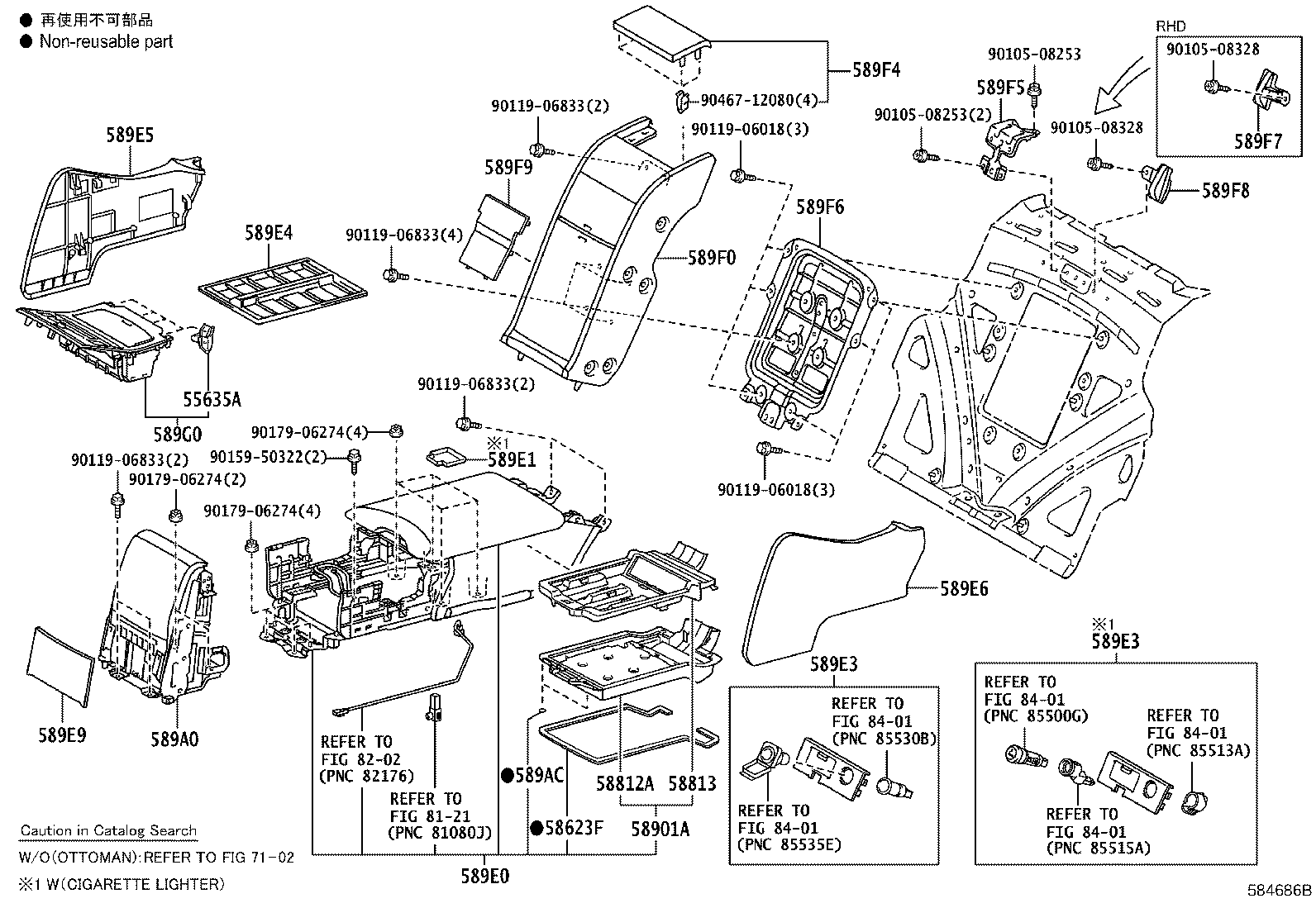

Console Box & Bracket
72 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 55421D | Panel, Instrument Cluster Finish, Upper |
| 55435C | Panel, Instrument Panel Finish, End RH |
| 55436C | Panel, Instrument Panel Finish, End LH |
| 55442L | Door, Instrument Panel |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55557D | Cushion, Glove Compartment Door Check |
| 55604D | Holder Sub-assy, Instrument Panel Cup |
| 55631B | Lock, Instrument Panel Cup Holder, NO.1 |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 55635A | Support, Instrument Panel Cup Holder, NO.2 |
| 58623F | Silencer, Center Console |
| 58801E | Box Sub-assy, Console, Upper |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58810J | Box Assy, Console |
| 58811B | Box, Console |
| 58812A | Box, Console, Lower |
| 58813 | Box, Console, Upper |
| 58821C | Panel, Console, Upper |
| 58823B | Box, Console Compartment |
| 58826A | Pocket, Console Box, Lower |
| 58832A | Garnish, Console Upper Panel, Rear |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834A | Cover, Console, Lower |
| 58835C | Ornament, Console Box |
| 58836B | Pad, Console Box Silencer, NO.1 |
| 58843 | Bezel, Shifting Hole |
| 58860A | Register Assy, Console Box |
| 58861E | Clip, Console Box Duct |
| 58862F | Duct, Console Box, NO.2 |
| 58865A | Lens, Front Console Box, NO.1 |
| 58872A | Cushion, Console Box, NO.2 |
| 58873 | Cushion, Console Box, NO.3 |
| 58890A | Panel Assy, Equipment Set |
| 58901A | Box Sub-assy, Console, Rear |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58913A | Panel, Box, NO.3 |
| 58915A | Damper, Console Box, Rear |
| 58919B | Plate, Console Box |
| 58920A | Armrest Assy, Rear Console |
| 58923A | Panel, Console Rear End |
| 58932A | Garnish, Rear Console Box |
| 58933 | Garnish, Console Rear End Panel |
| 58934 | Ornament, Over Head Console |
| 58959B | Cushion, Console Compartment Door |
| 58959C | Cushion, Console Compartment Door |
| 58989A | Retainer, Console Box |
| 58993 | Bracket, Console Box Mounting, Rear |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58999 | Bracket, Stereo Support, NO.2 |
| 589A0 | Table Assy, Rear Seat Console |
| 589AC | Plug, Rear Seat Console Table, NO.3 |
| 589E0 | Armrest Assy, Rear Seat Console |
| 589E1 | Cover, Rear Seat Console Armrest Tray |
| 589E3 | Base, Rear Seat Console Armrest |
| 589E4 | Cover, Rear Seat Console Armrest |
| 589E5 | Garnish, Rear Seat Console Armrest, RH |
| 589E6 | Garnish, Rear Seat Console Armrest, LH |
| 589E9 | Cover, Rear Seat Console Table, FR |
| 589F0 | Box Assy, Rear Seat Console |
| 589F4 | Panel, Rear Seat Console Box, RR |
| 589F5 | Bracket, Rear Seat Console Box, Upr |
| 589F6 | Bracket, Rear Seat Console Box, Lwr |
| 589F7 | Cover, Rear Seat Console Box, RH |
| 589F8 | Cover, Rear Seat Console Box, LH |
| 589F9 | Cover, Rear Seat Console Box, Lwr |
| 589G0 | Panel Assy, Rear Seat Console |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
