Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03
Rear Seat & Seat Track
70 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 71031S | Cover Sub-assy, Center Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71237 | Bracket, Rear Seat |
| 71301S | Frame Sub-assy, Center Seat Cushion |
| 71305S | Frame Sub-assy, Center Seatback |
| 71398A | Holder, Rear Seatback |
| 71452B | Bracket, Rear Seatback |

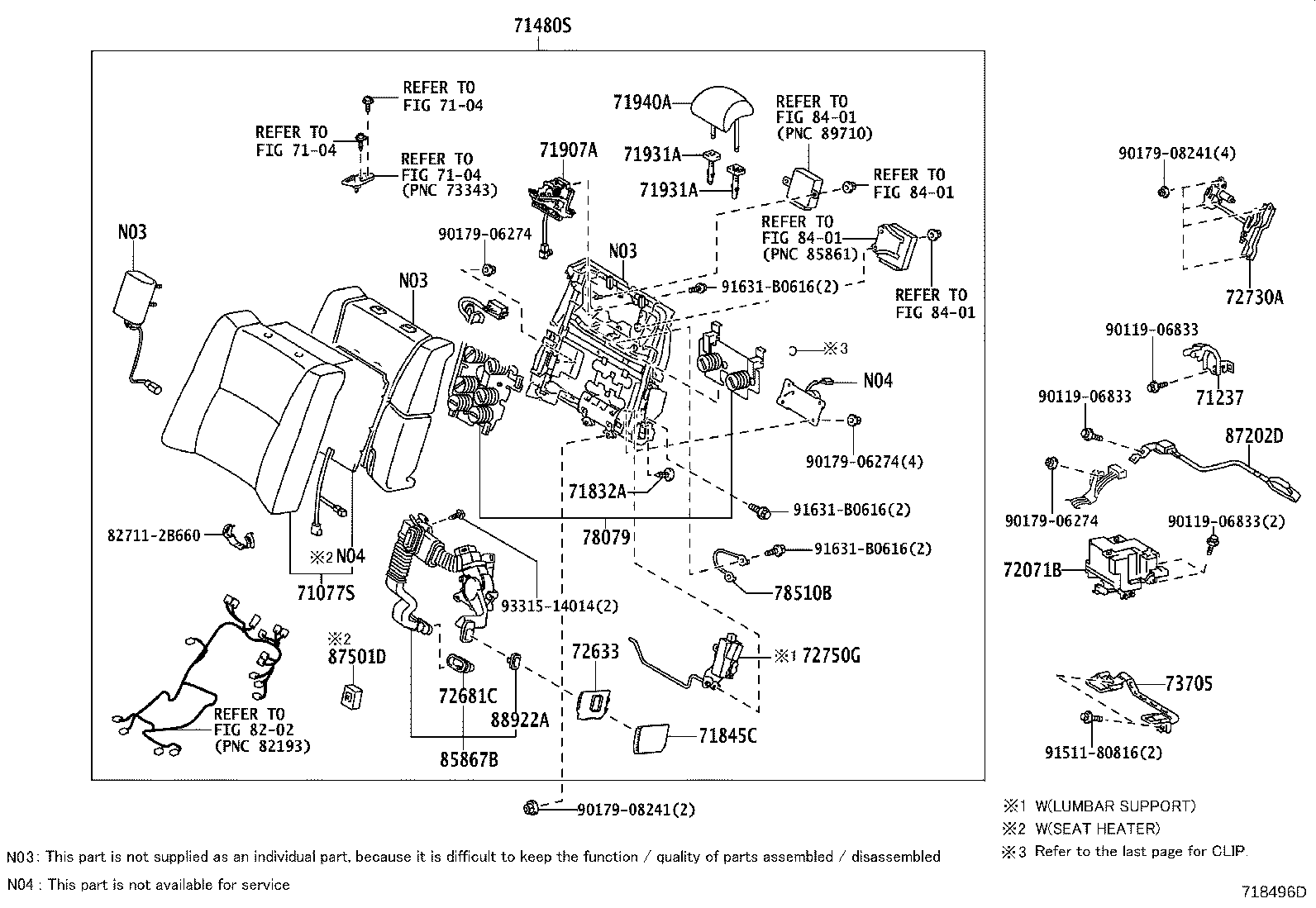

| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71611F | Pad, Rear Seat Cushion, A |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71612B | Pad, Rear Seat Cushion, B |
| 71614 | Pad, Rear Seat Cushion, Center |
| 71616A | Pad, Rear Seat Cushion |
| 71650B | Spring Assy, Rear Seat Cushion, RH |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71660B | Spring Assy, Rear Seat Cushion, LH |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71832A | Clip, Rear Seatback Carpet OR Mat |
| 71845C | Cap, Rear Seat Cover |
| 71846C | Cap, Rear Seatback Board, NO.2 |
| 71877D | Cover, Rear Seat Armrest Hole |
| 71891 | Bracket, Rear Seatback Set, NO.1 |
| 71892 | Bracket, Rear Seatback Set, NO.2 |
| 71898A | Hook, Seat Cover |
| 71907A | Adjuster Sub-assy, Rear Seat Headrest, NO.1 |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |

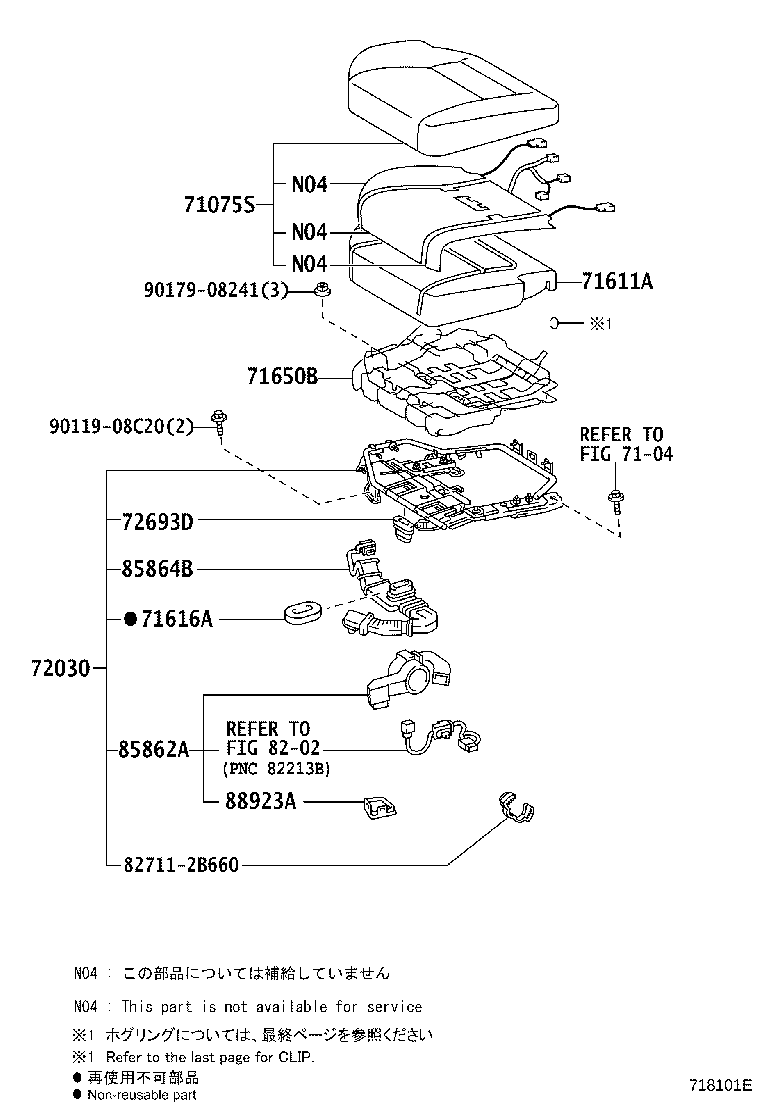

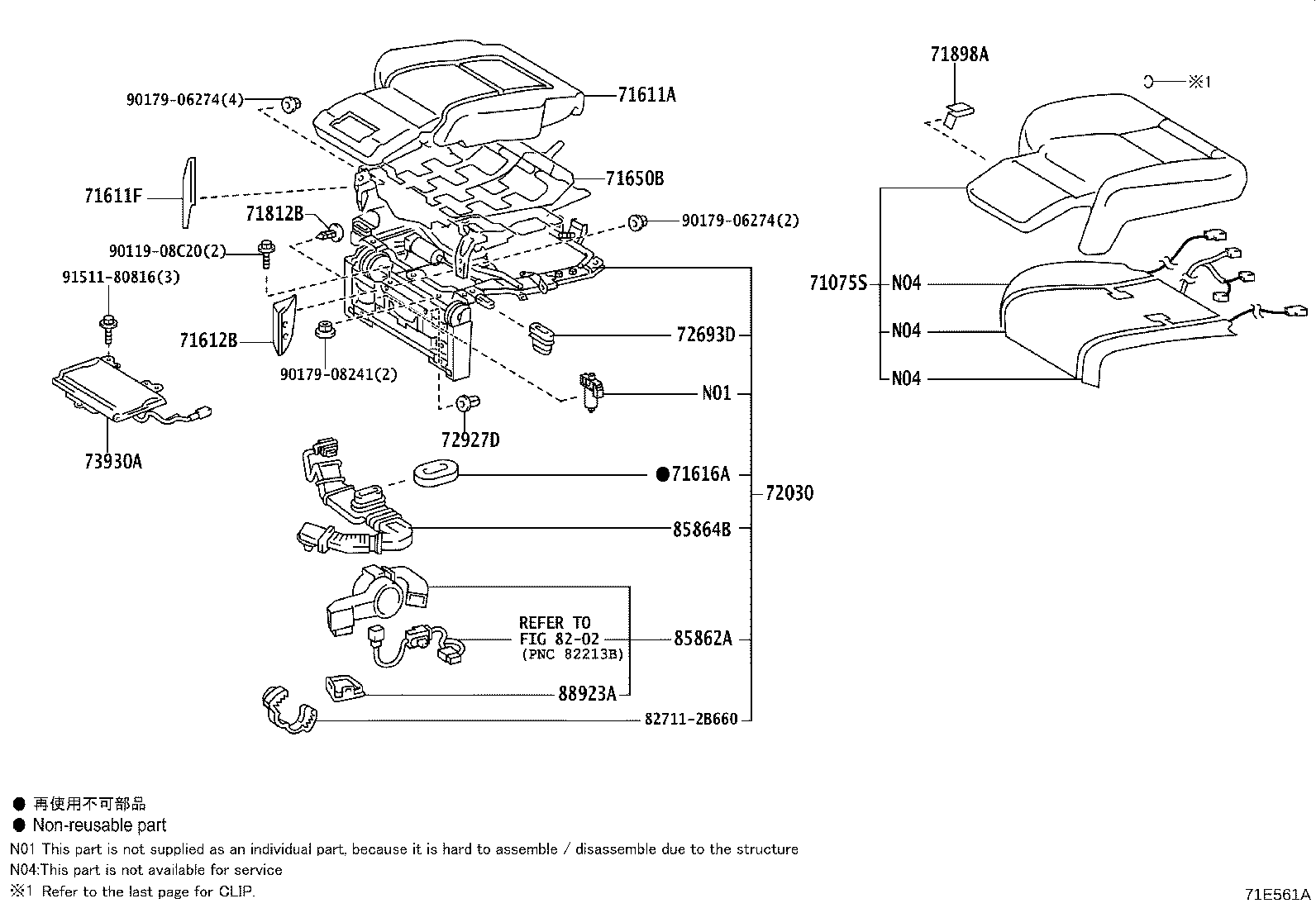

| 72030 | Adjuster Assy, Rear NO.1 Seat |

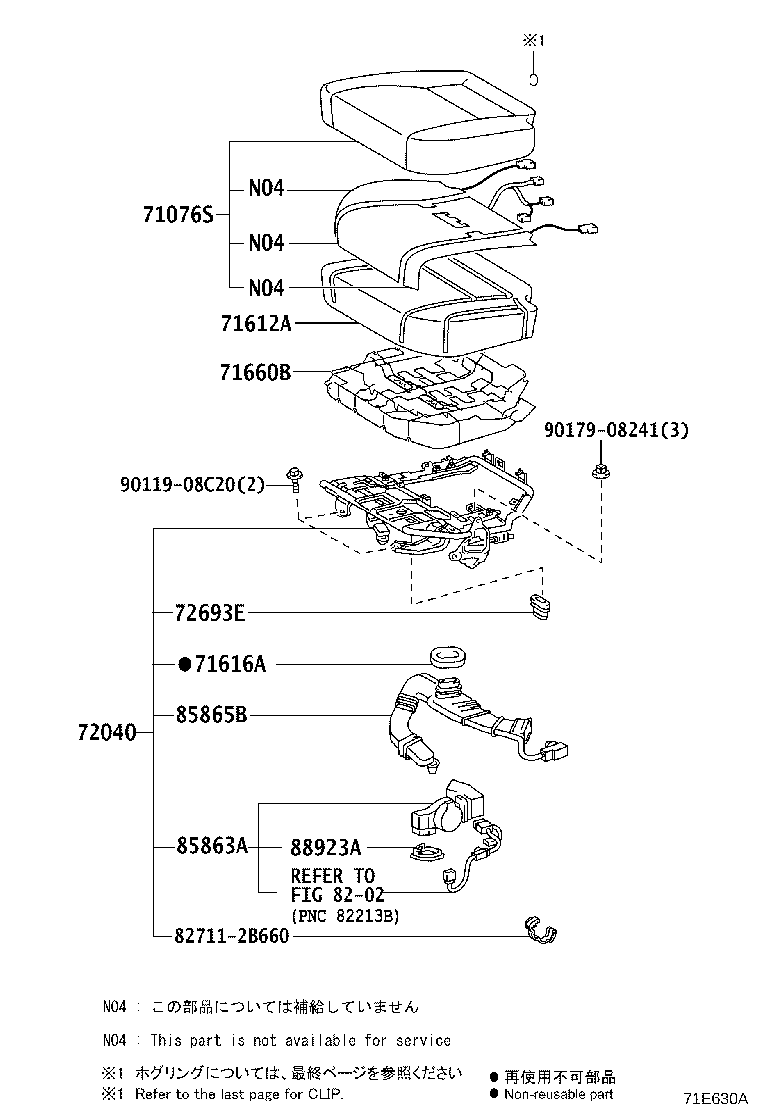

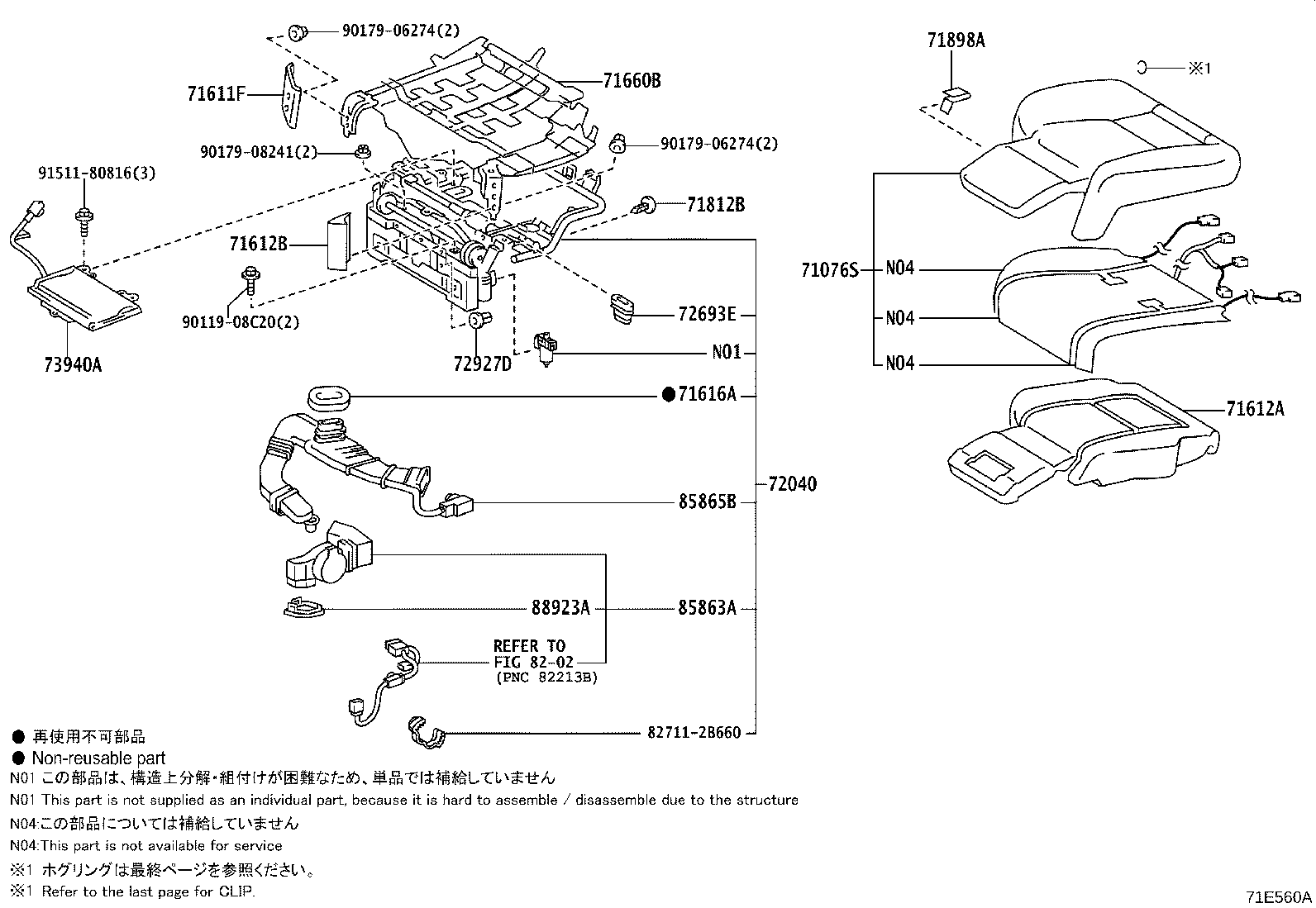

| 72040 | Adjuster Assy, Rear NO.2 Seat |
| 72071B | Pump Sub-assy, Lumber Support |
| 72633 | Base, Rear Seat Lock, RH |
| 72634 | Base, Rear Seat Lock, LH |
| 72681C | Hook, Rear Seatback Lock, Lower |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72693D | Hook, Rear Seat Cushion Lock, RH |
| 72693E | Hook, Rear Seat Cushion Lock, LH |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72750G | Adjuster Assy, Lumbar Support, RH |
| 72760G | Adjuster Assy, Lumbar Support, LH |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |

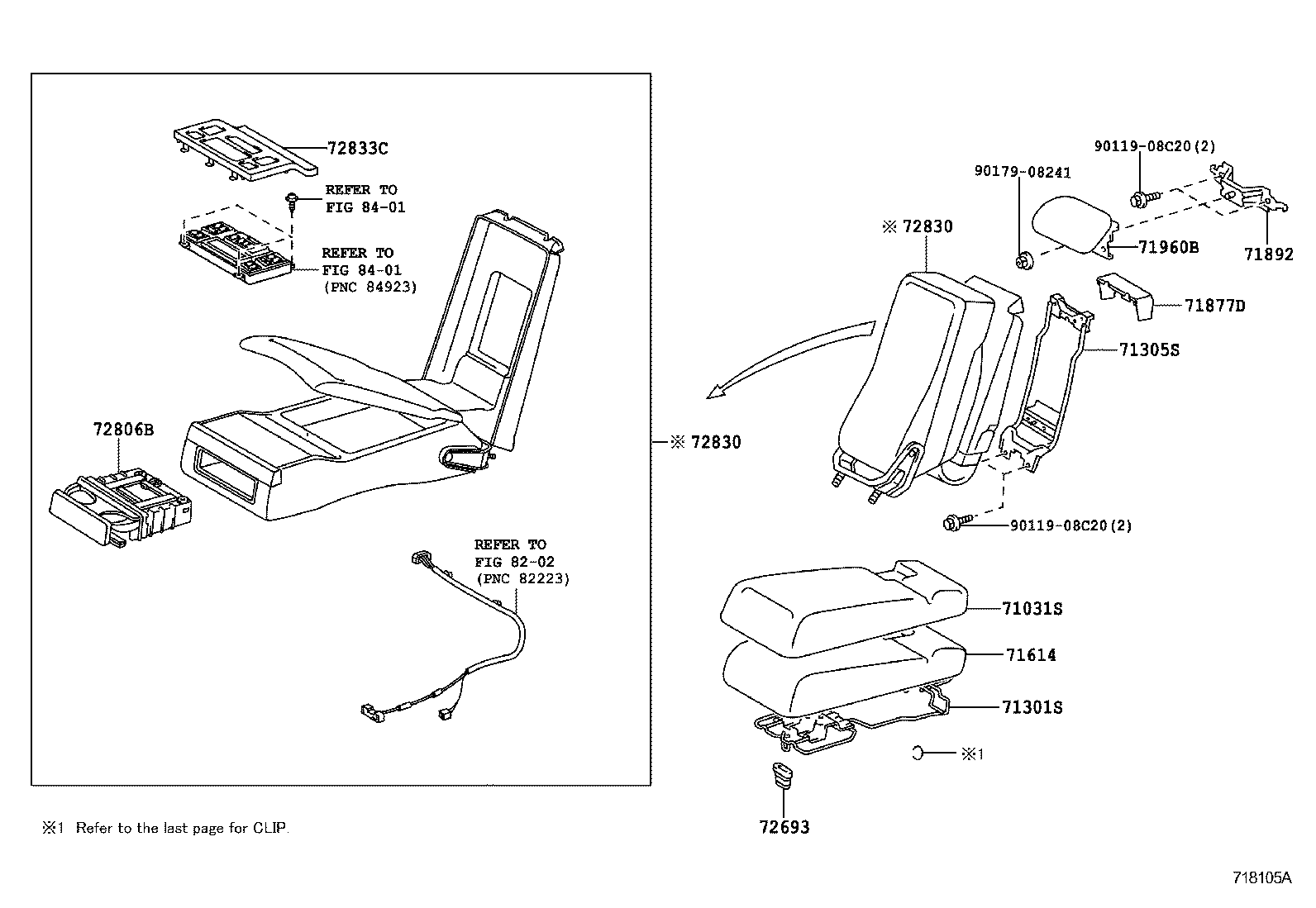

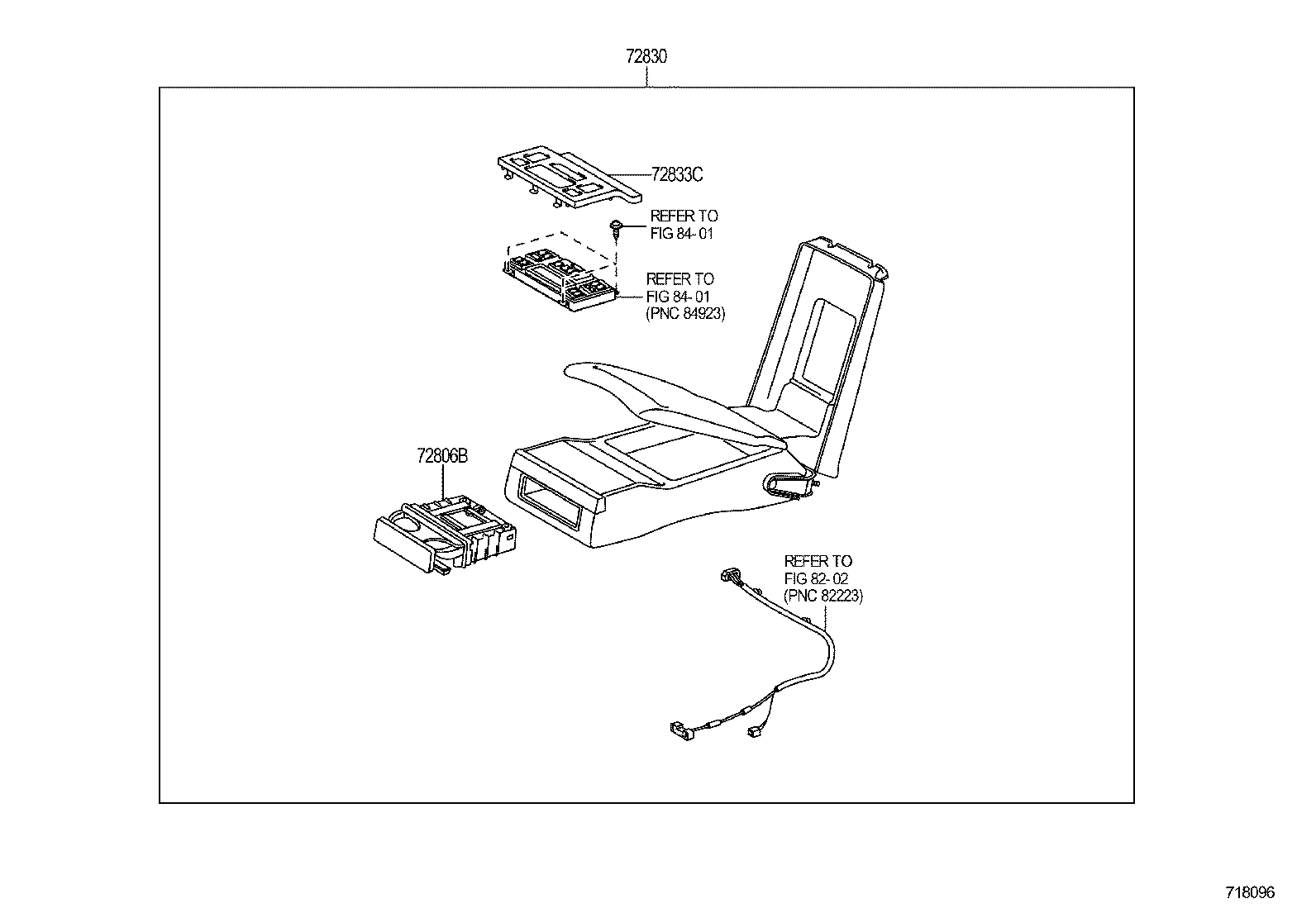

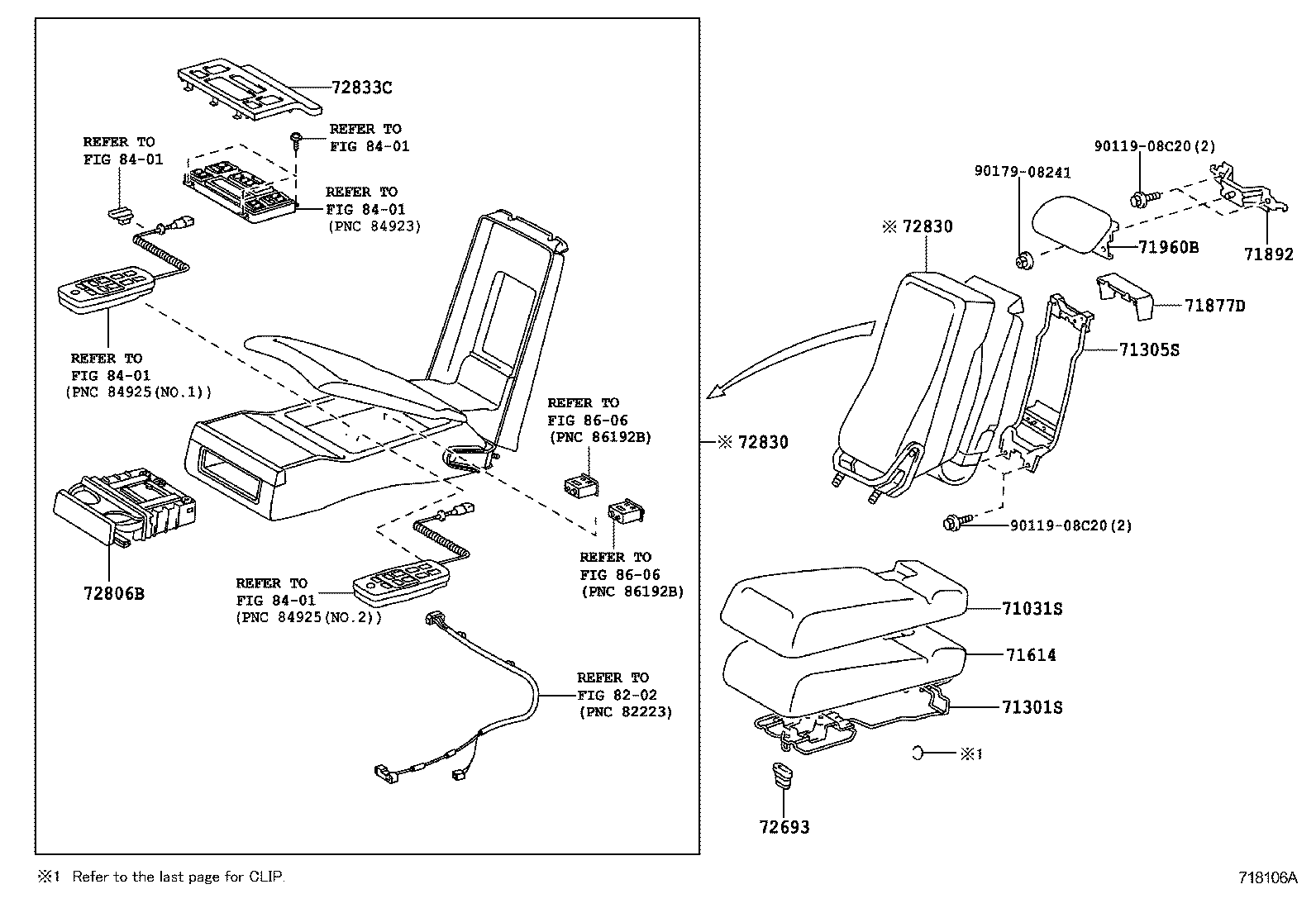

| 72830 | Armrest Assy, Rear Seat, Center |
| 72833C | Panel, Rear Seat Center Armrest, NO.1 |
| 72927D | Clip (FOR REAR SEAT CUSHION UNDER COVER) |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73707 | Bracket Sub-assy, Child Restraint Seat Anchor, Inner |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
| 78079 | Plate Sub-assy, Sub Seatback |
| 78510B | Cable Assy, Stop |
| 85862A | Blower, Rear Seat Climate Control, RH |
| 85863A | Blower, Seat Climate Control, LH |
| 85864B | Controller, Seat Climate Control, RH |
| 85865B | Controller, Seat Climate Control, LH |
| 85867B | Blower, Rear Seatback Climate Control, RH |
| 85867C | Blower, Rear Seatback Climate Control, LH |
| 87202D | Duct, Heater Air, Rear |
| 87203C | Duct, Sub-assy Air, Rear, LH |
| 87501D | Control Sub-assy, Seat Heater |
| 88922A | Filter, Air |
| 88923A | Filter, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
