Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 3 illustrations

Illustrations

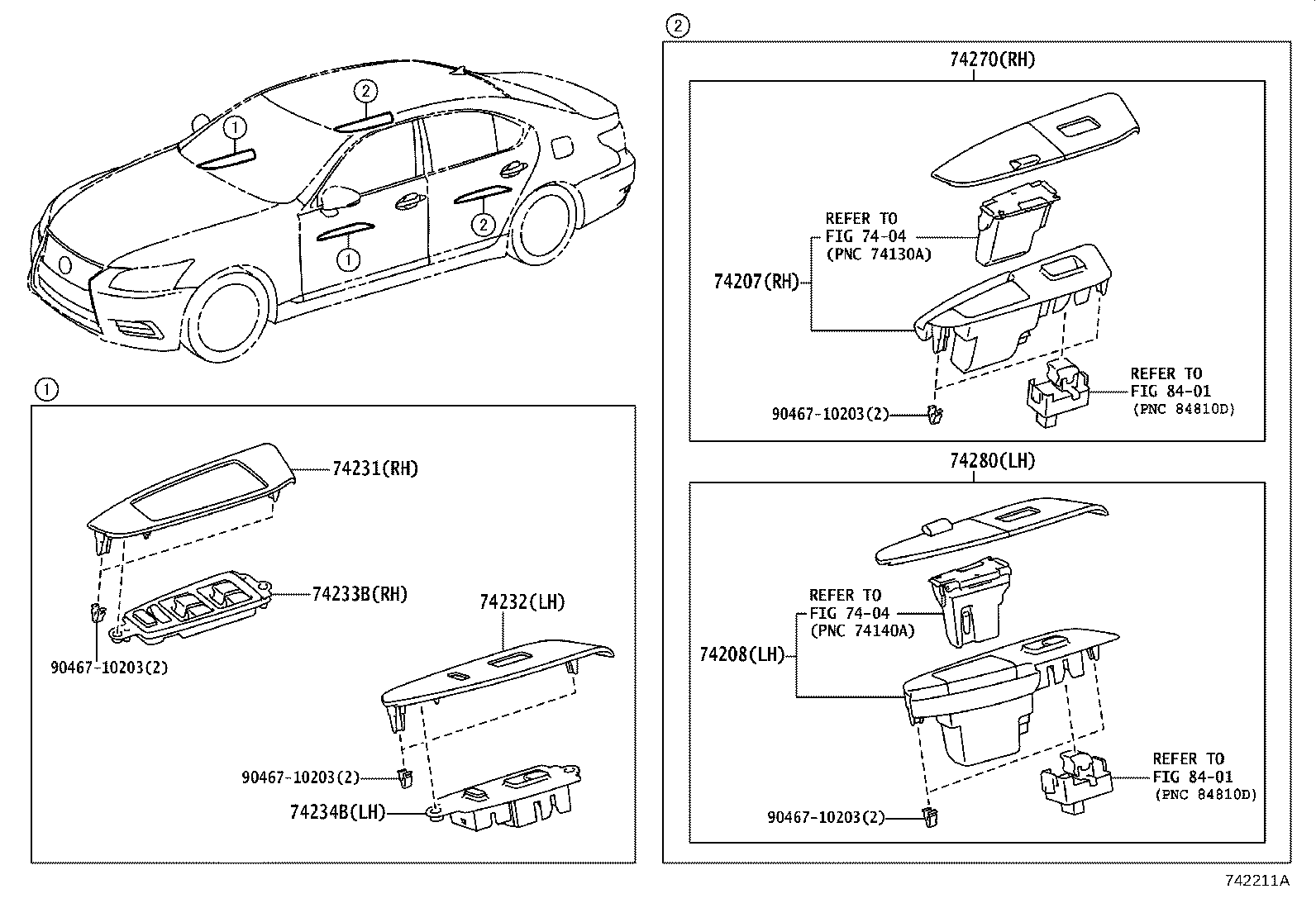

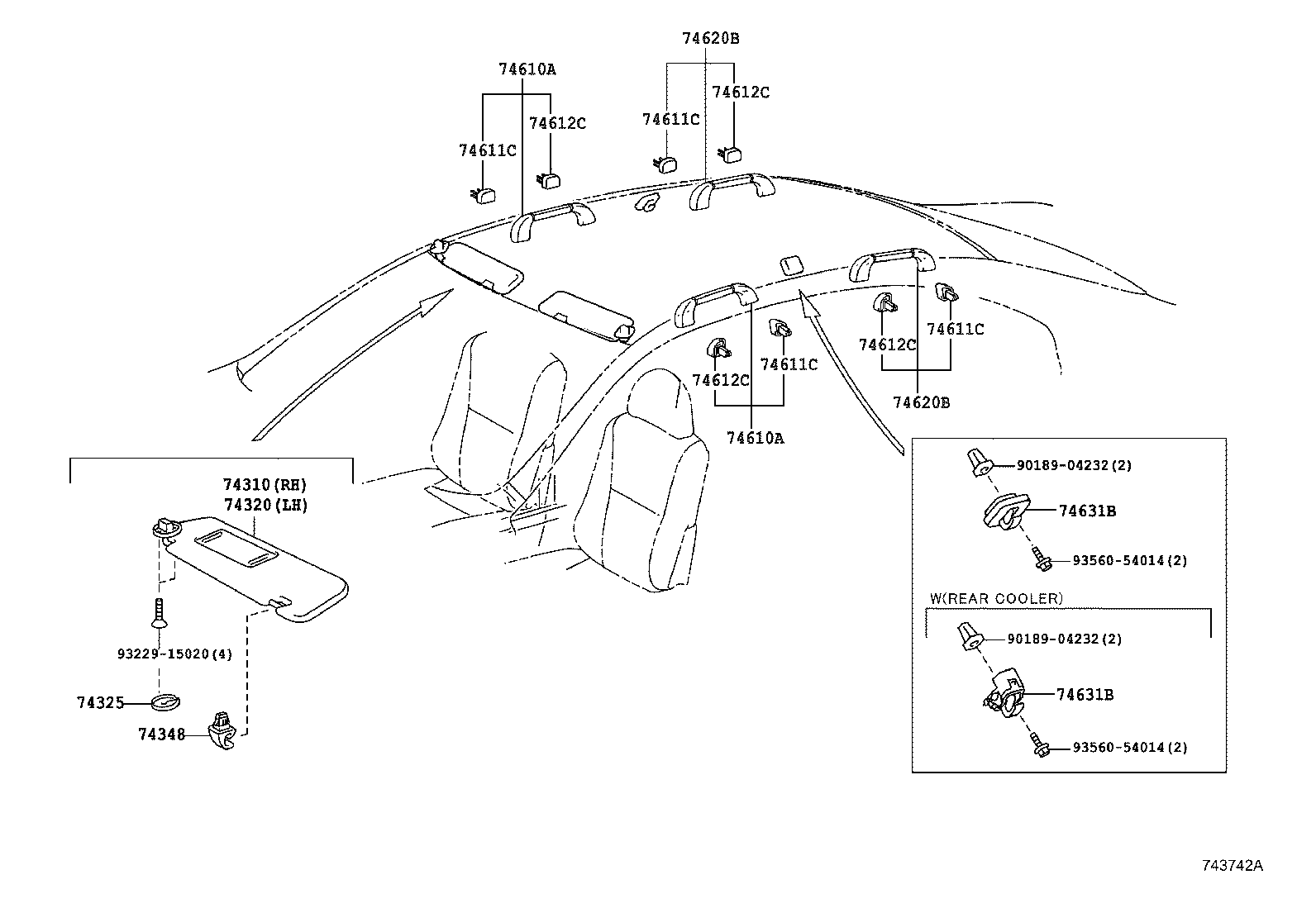

Figure 742212A 742212A 2012-09 → — Figure 742211A 742211A 2012-09 → — Figure 743742A 743742A 2012-09 → —

Part groups

PNCDescription
74207 Panel Sub-assy, Rear Armrest Base, Lower RH
74208 Panel Sub-assy, Rear Armrest Base, Lower LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233B Panel, Front Door Armrest Base, Lower RH
74234B Panel, Front Door Armrest Base, Lower LH
74270 Panel Assy, Rear Door Armrest Base, RH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611C Cover, Assist Grip, LH
74612C Cover, Assist Grip, RH
74620B Grip Assy, Assist, Rear
74631B Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
