Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

26 part groups · 6 illustrations

Illustrations

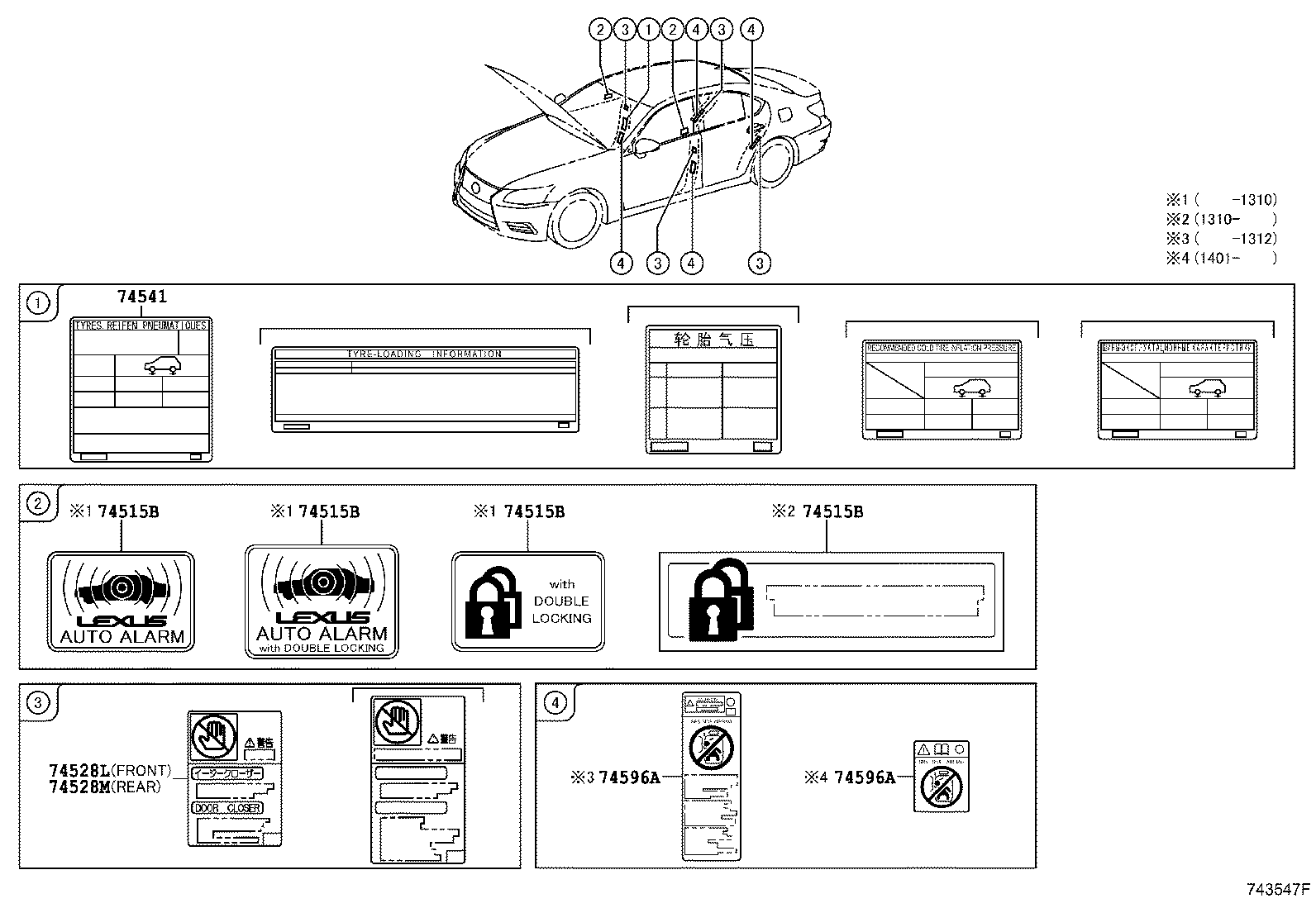

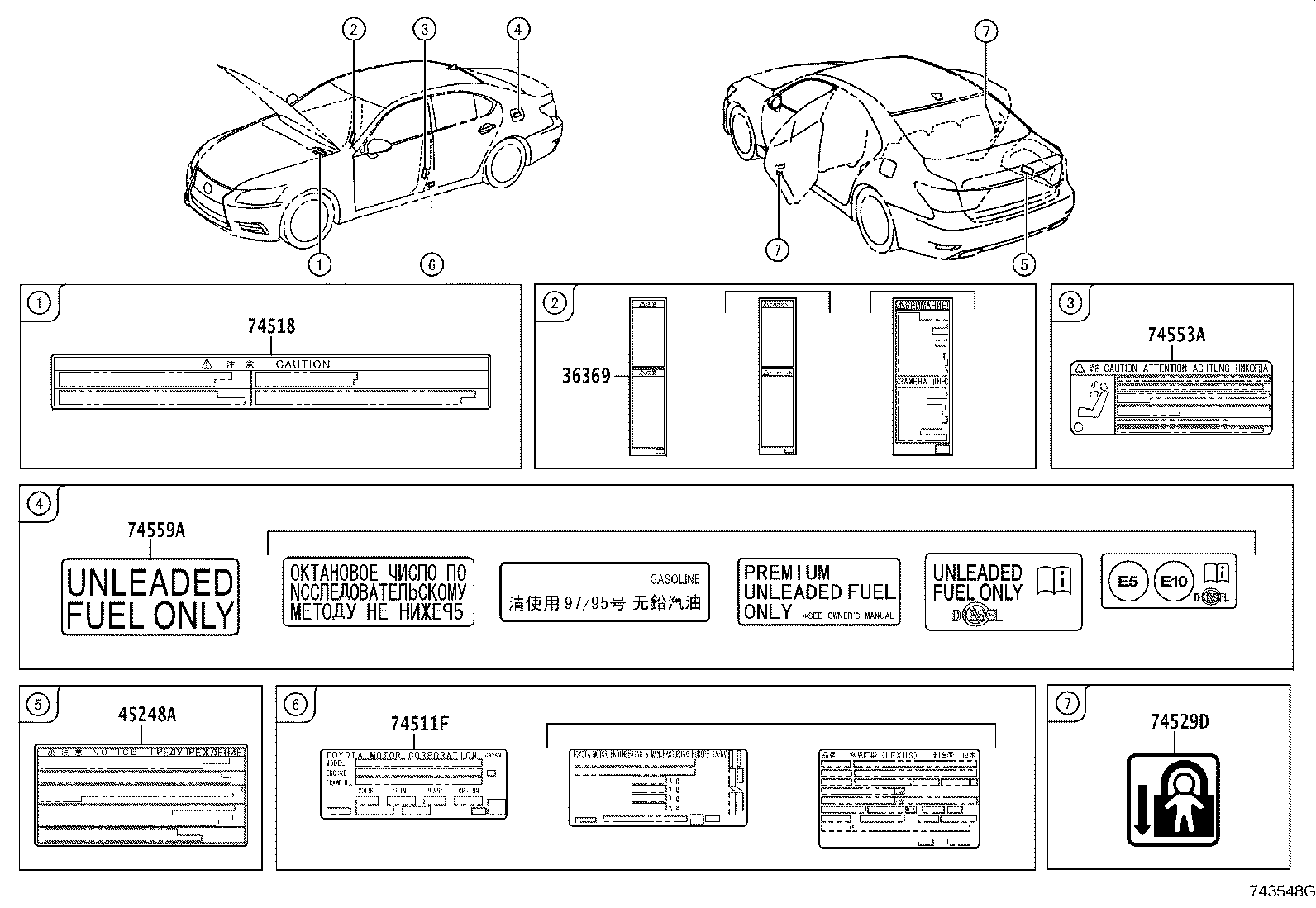

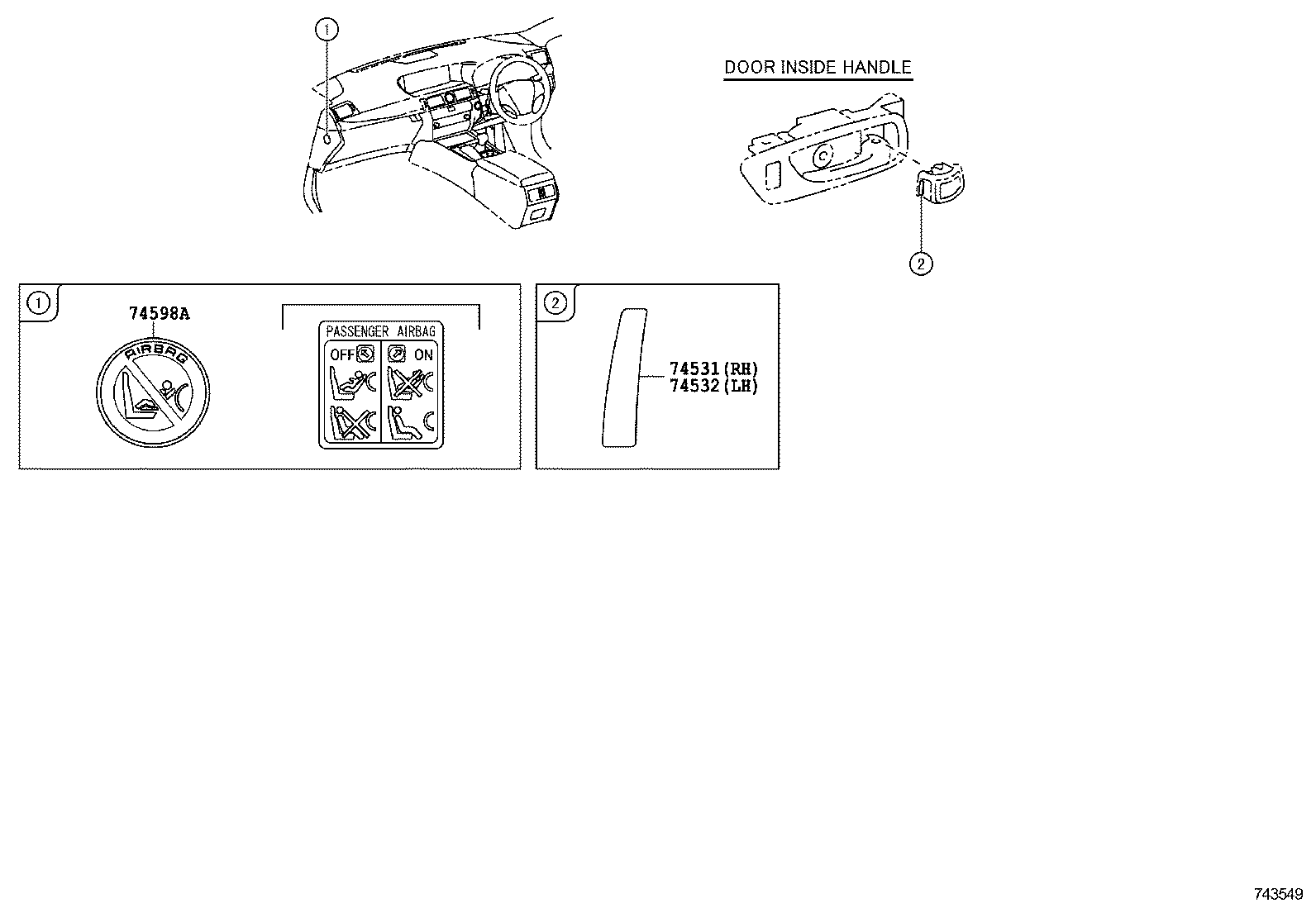

Figure 746144 746144 2012-09 → — Figure 743546D 743546D 2012-09 → — Figure 743547F 743547F 2012-09 → — Figure 743548G 743548G 2012-09 → — Figure 743549 743549 2012-09 → — Figure 744685 744685 2016-09 → 2016-12

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11293D Label, Engine Caution
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
45248A Label, Steering Actuator Caution
47288 Label, Brake Fluid Notice
74501B Label Set, Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74518 Plate, Maintenance Caution
74528L Label, Door Closer Caution, Front
74528M Label, Door Closer Caution, Rear
74529D Plate, Child Protector Lock Caution
74531 Plate, Door Inside Handle Caution, RH
74532 Plate, Door Inside Handle Caution, LH
74541 Plate, Tire Pressure Caution
74553A Plate, Front Seat Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
