Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03
Accelerator Link
6 part groups · 4 illustrations
Part groups

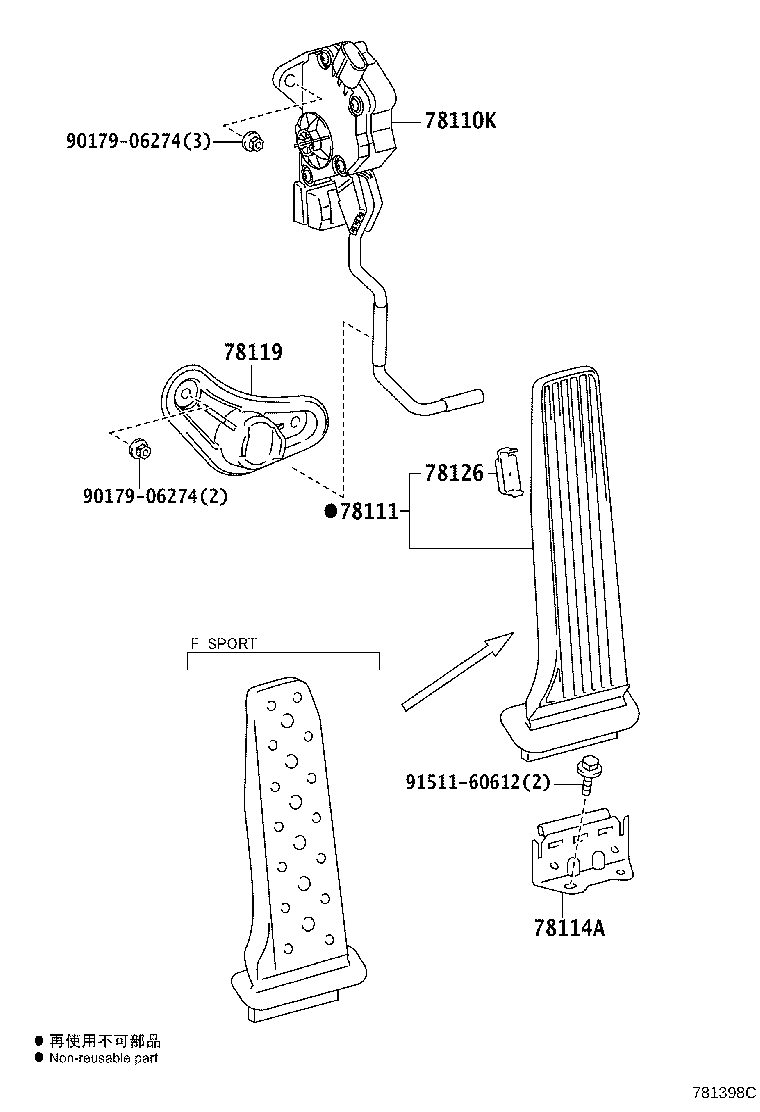

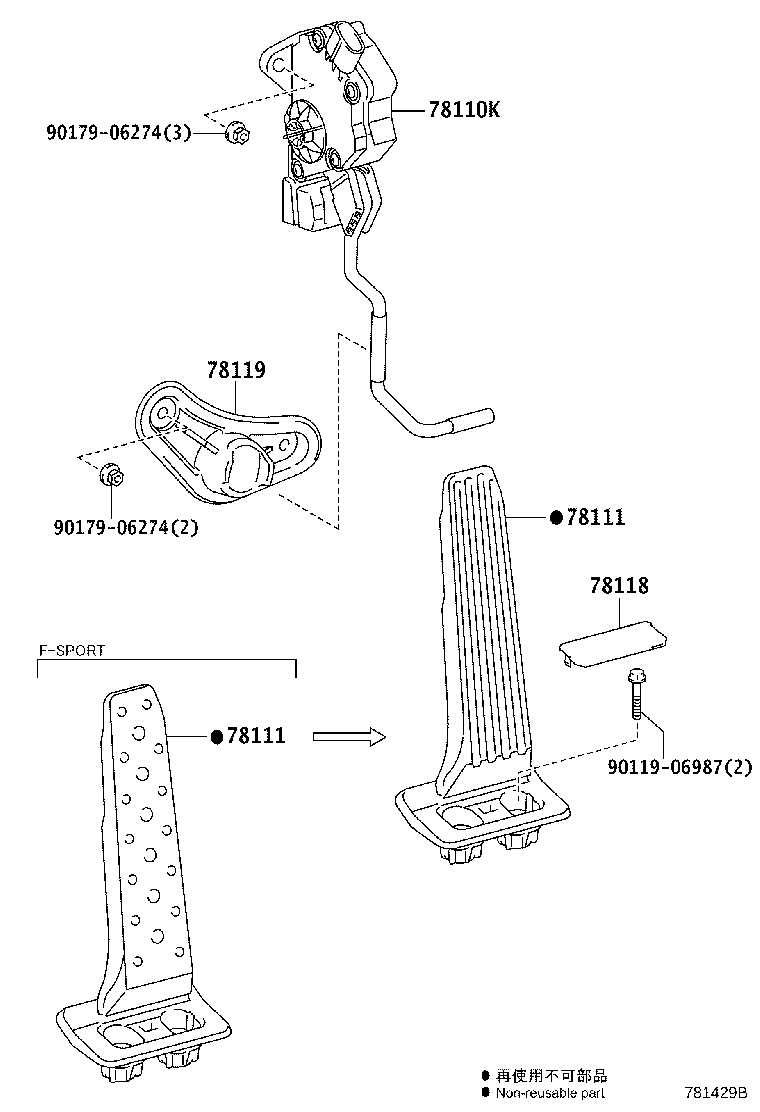

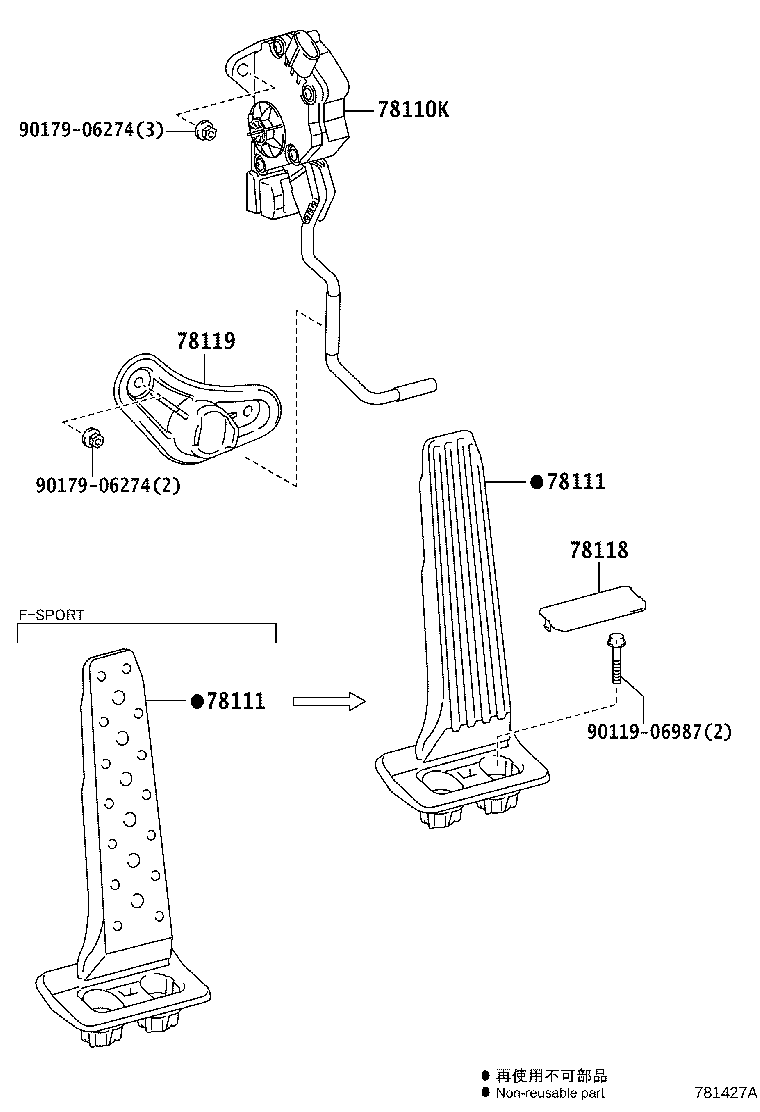

| PNC | Description |
|---|---|
| 78110K | Rod Assy, Accelerator Pedal(W/SENSOR) |
| 78111 | Pedal, Accelerator |
| 78114A | Bracket, Accelerator Pedal Support |
| 78118 | Pad, Accelerator Pedal |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78126 | Bracket, Accelerator Pedal Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
