Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03

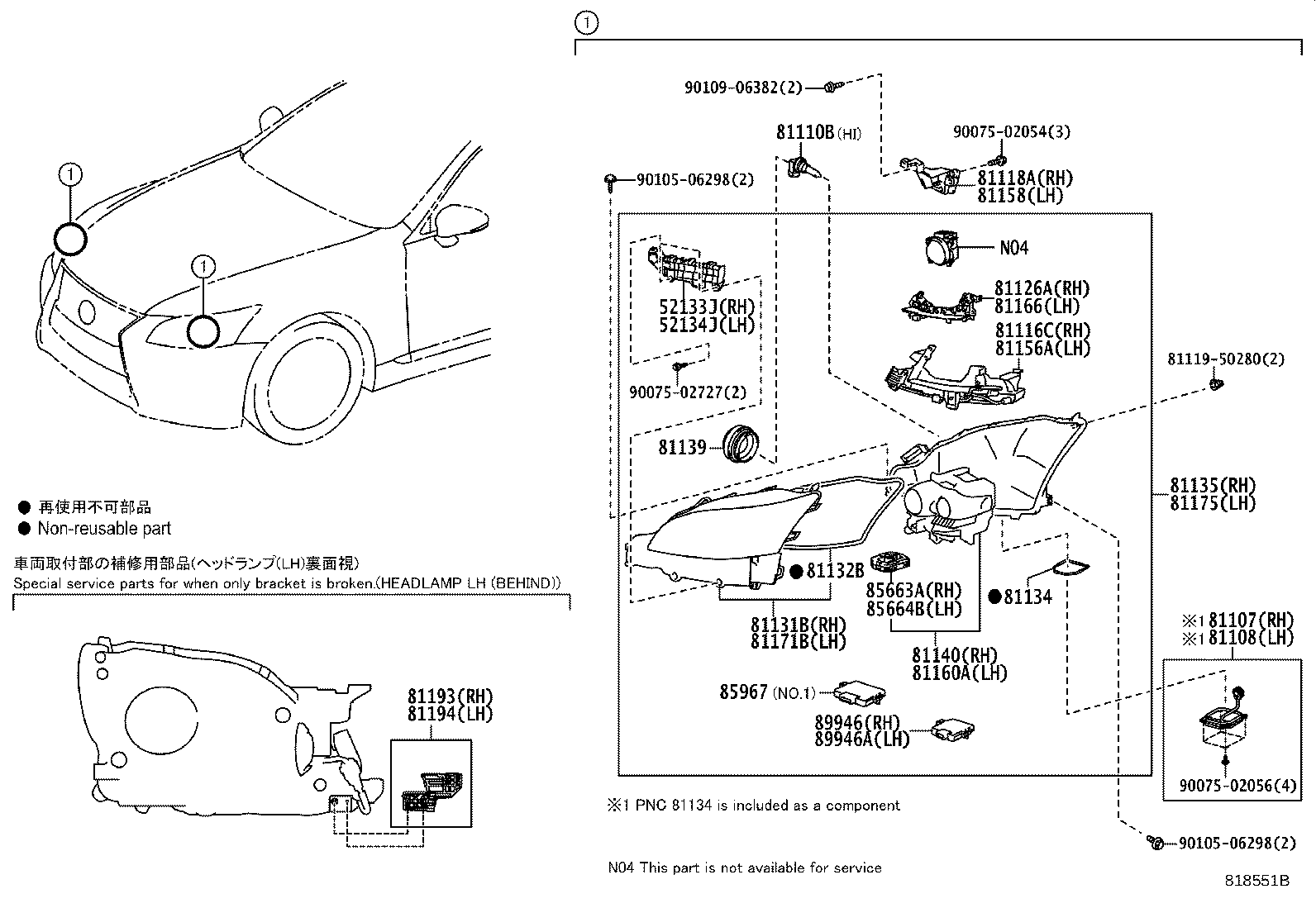

Headlamp
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52133J | Reinforcement, Front Bumper Bar, RH |
| 52134J | Reinforcement, Front Bumper Bar, LH |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81116C | Bracket, Headlamp, RH |
| 81118A | Bracket, Headlamp, RH |
| 81126A | Plate, Headlamp, RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81156A | Bracket, Headlamp, LH |
| 81158 | Bracket, Headlamp, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 81166 | Plate, Headlamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 85663A | Motor, Headlamp Swivel, RH |
| 85664B | Motor, Headlamp Swivel, LH |
| 85967 | Computer, Light Control |
| 89946 | Computer, Headlamp Shade |
| 89946A | Computer, Headlamp Shade |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
