Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03
Fog Lamp

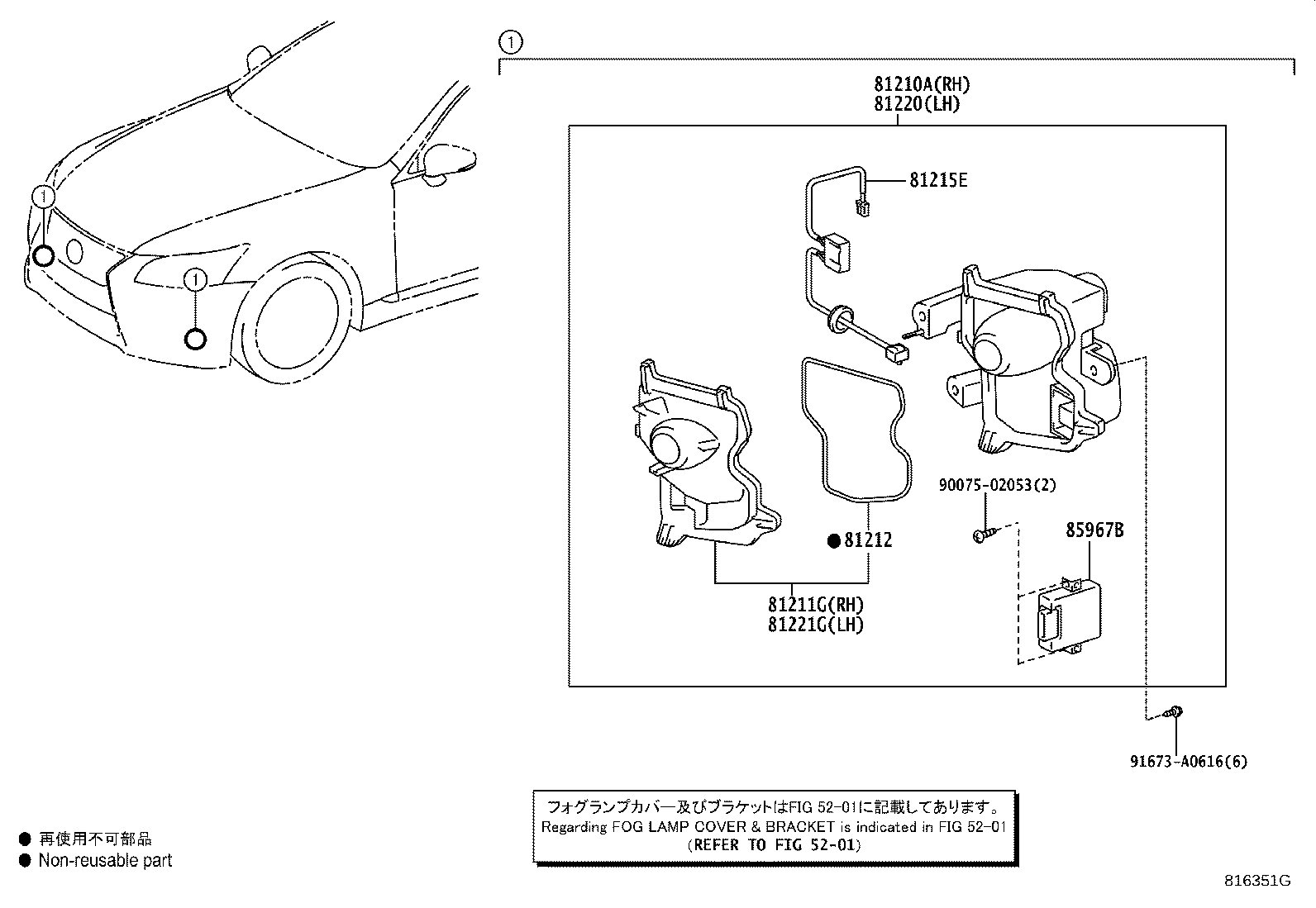

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210A | Lamp Assy, Fog, RH |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81211G | Lens, Fog Lamp, RH |
| 81212 | Gasket, Fog Lamp Lens |
| 81215E | Cord, Fog Lamp |
| 81216B | Rim, Fog Lamp, RH NO.1 |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81221G | Lens, Fog Lamp, LH |
| 81226B | Rim, Fog Lamp, LH |
| 85967B | Computer, Light Control Led |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
