Toyota Lexus LS600H/600HL
2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe
Supported model
Data version 2018-03
Battery & Battery Cable

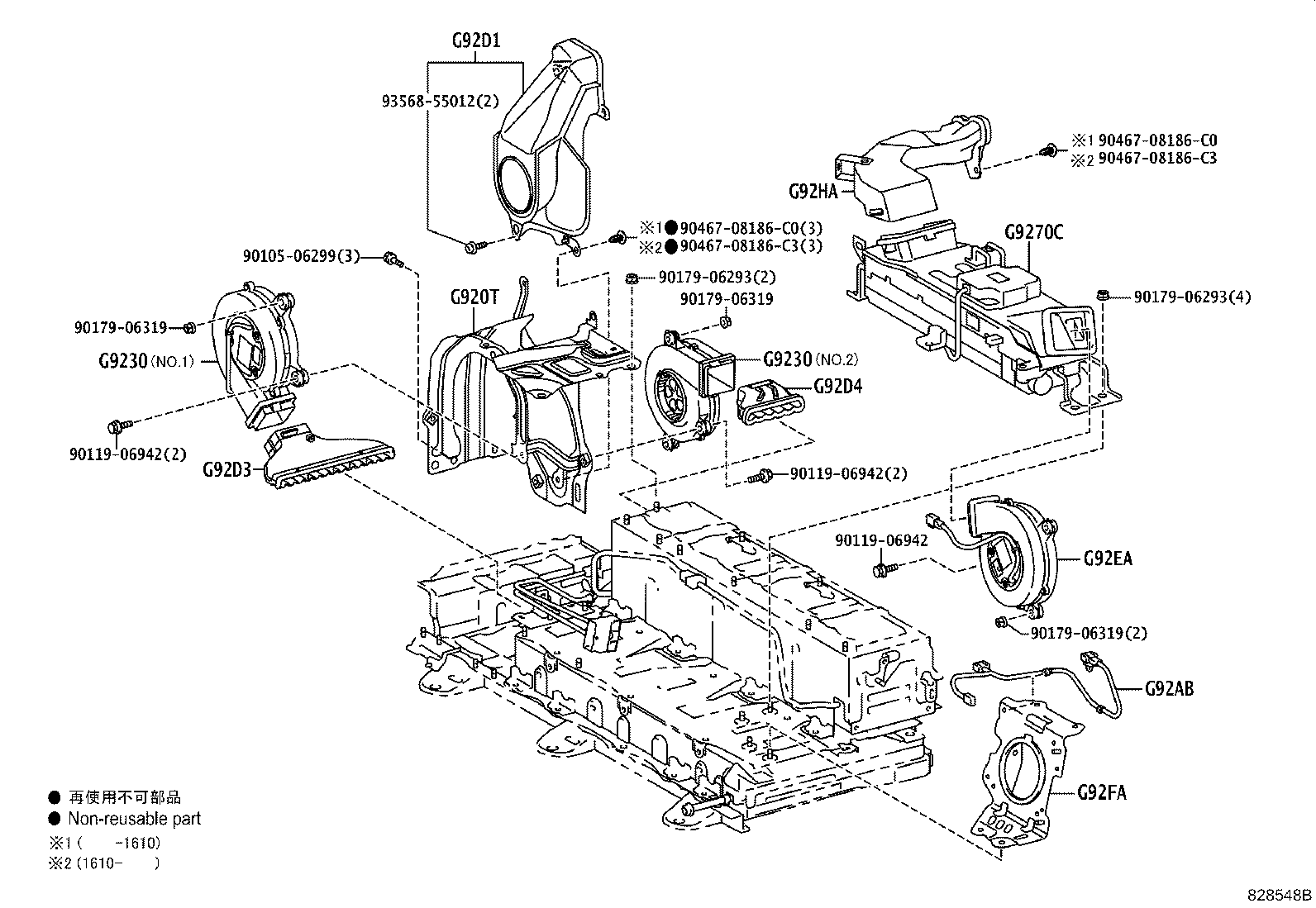

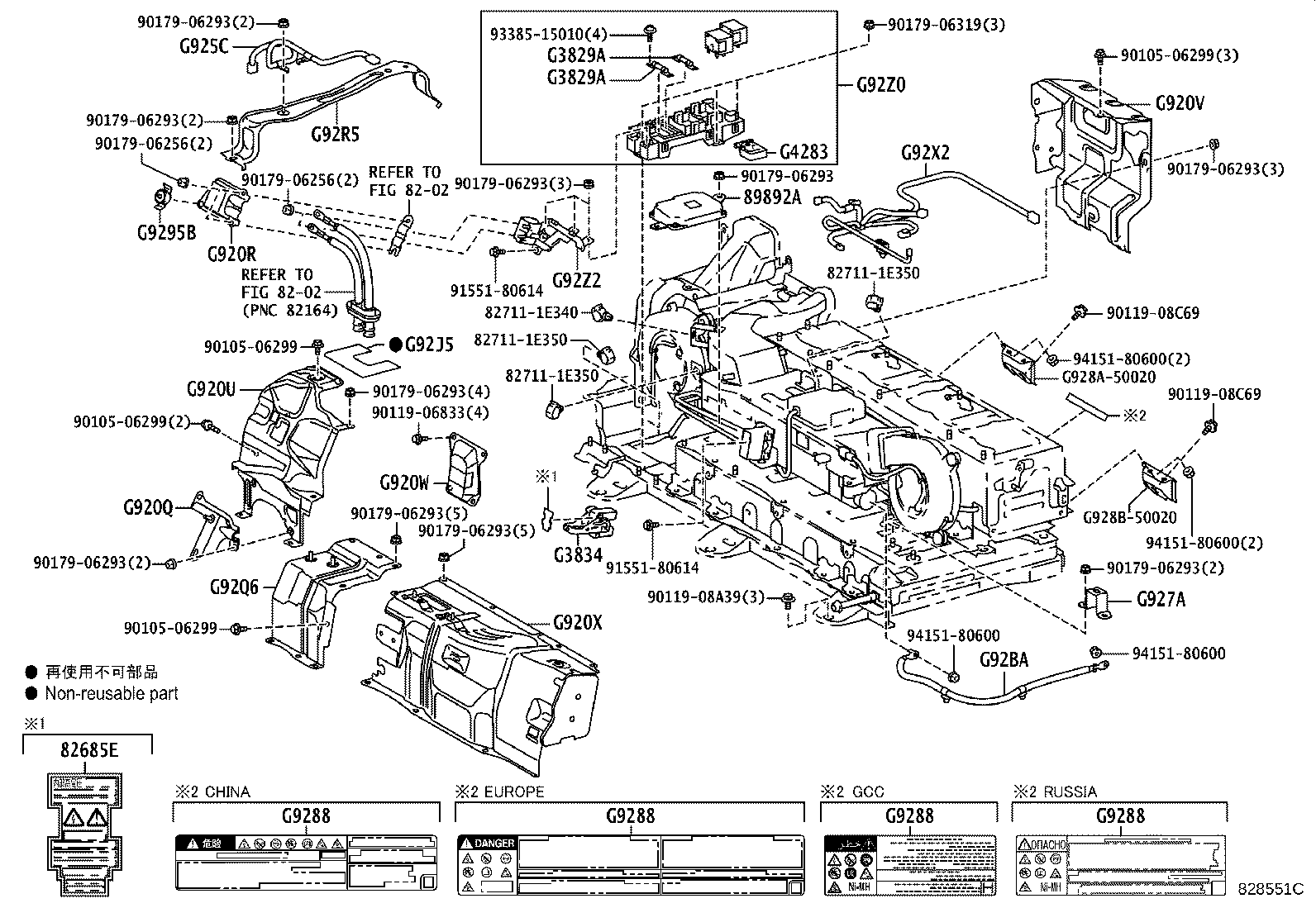

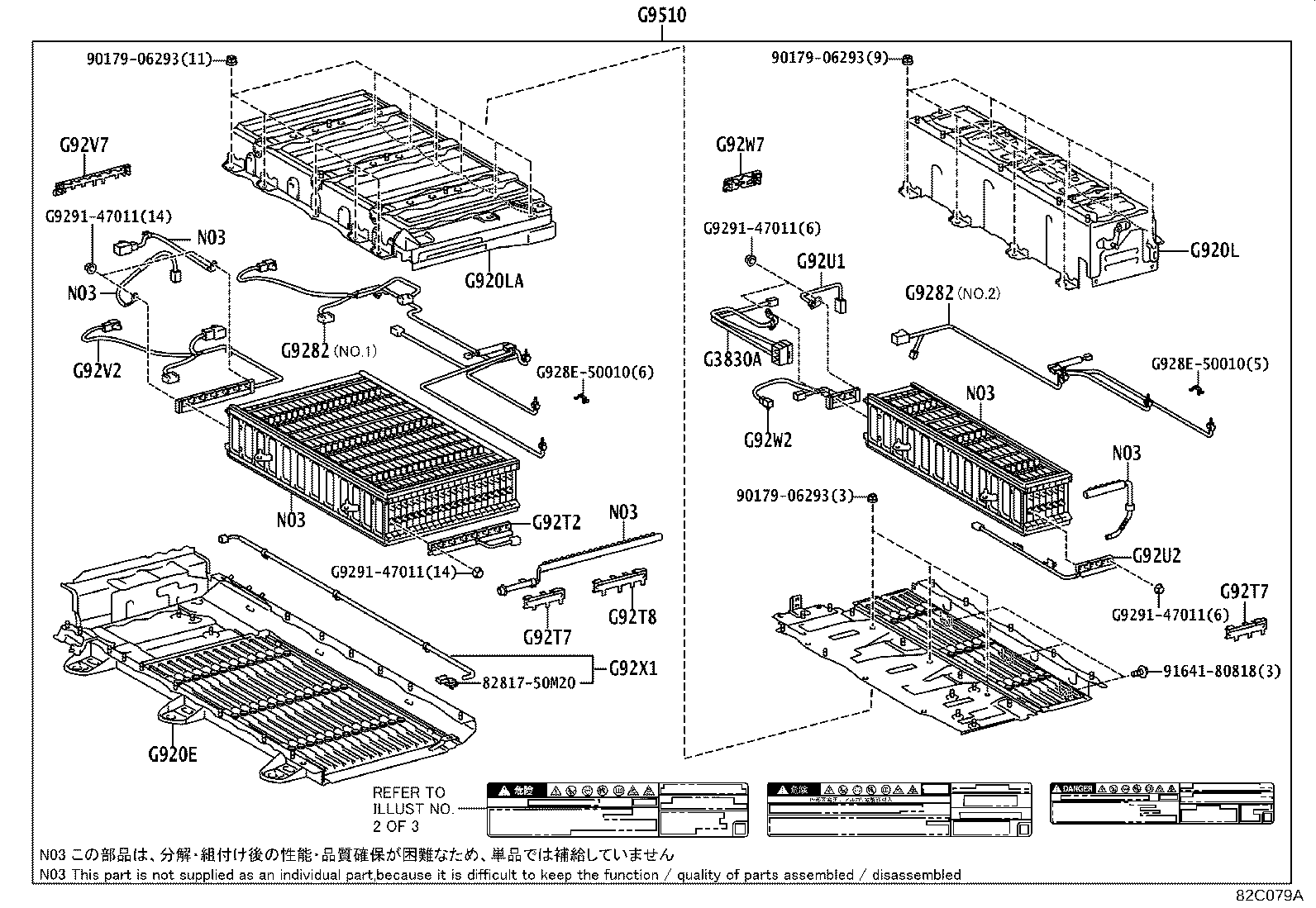

53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800A | Terminal, Battery Positive |
| 28800V | Battery, W/Temperature Sensor |
| 28885 | Hose, Battery Room Ventilation |
| 28897 | Plate, Battery Caution |
| 82621B | Cover, Fusible Link |
| 82685E | Plate, Service Plug Caution |
| 89892A | Sensor, Battery Voltage |
| G3829A | Fuse, Electric Vehicle |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G4283 | Sensor, Battery Current |
| G920E | Carrier Sub-assy, HV Battery, Lower |
| G920L | Cover Sub-assy, Hybrid Battery, Upper NO.1 |
| G920LA | Cover Sub-assy, Hybrid Battery, Lower |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |
| G920R | Shield Sub-assy, Hybrid Battery, NO.2 |
| G920T | Shield, Hybrid Battery W/Label, Rear |
| G920U | Bracket Sub-assy, HV Battery Carrier, NO.4 |
| G920V | Shield Sub-assy, HV Battery, NO.6 |
| G920W | Shield Sub-assy, HV Battery, NO.7 |
| G920X | Shield Sub-assy, HV Battery, NO.8 |
| G9230 | Blower Assy, Battery Cooling |
| G925C | Wire, Power Steering Converter |
| G9270C | Converter, HV |
| G927A | Bracket, Converter Wire |
| G9282 | Thermistor, Hybrid Battery |
| G9288 | Label, Battery Charging Notice |
| G9295B | Striker, Battery Cover Lock |
| G92AB | Wire, HV Converter Signal, NO.2 |
| G92BA | Wire, HV Converter Power Supply |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D3 | Duct, Hybrid Battery Intake, NO.3 |
| G92D4 | Duct, Hybrid Battery Intake, NO.4 |
| G92EA | Blower, Converter Cooling |
| G92FA | Bracket, Converter Cooling Blower |
| G92HA | Duct, Converter Cooling Exhaust |
| G92J5 | Packing, Hybrid Battery, NO.1 |
| G92Q6 | Panel, HV Battery Shield, NO.4 |
| G92R5 | Reinforcement, HV Battery Shield, NO.4 |
| G92T2 | Wire, Hybrid Battery Voltage Detection, NO.1 |
| G92T7 | Cover, Hybrid Battery Bus-bar Block, NO.1 |
| G92T8 | Cover, HV Battery Bus-bar Block, NO.1 B |
| G92U1 | Cable, Hybrid Battery Main, NO.2 |
| G92U2 | Wire, Hybrid Battery Voltage Detection, NO.2 |
| G92V2 | Wire, Hybrid Battery Voltage Detection, NO.3 |
| G92V7 | Cover, HV Battery Bus-bar Block, NO.3 A |
| G92W2 | Wire, HV Battery Voltage Detection, NO.4 |
| G92W7 | Cover, HV Battery Bus-bar Block, NO.4 A |
| G92X1 | Wire, Hybrid Battery Pack, NO.1 |
| G92X2 | Wire, HV Battery Pack, NO.2 |
| G92Z0 | Block Assy, HV Battery Junction |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9510 | Battery Assy, HV Supply |
