Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

6 part groups · 2 illustrations

Illustrations

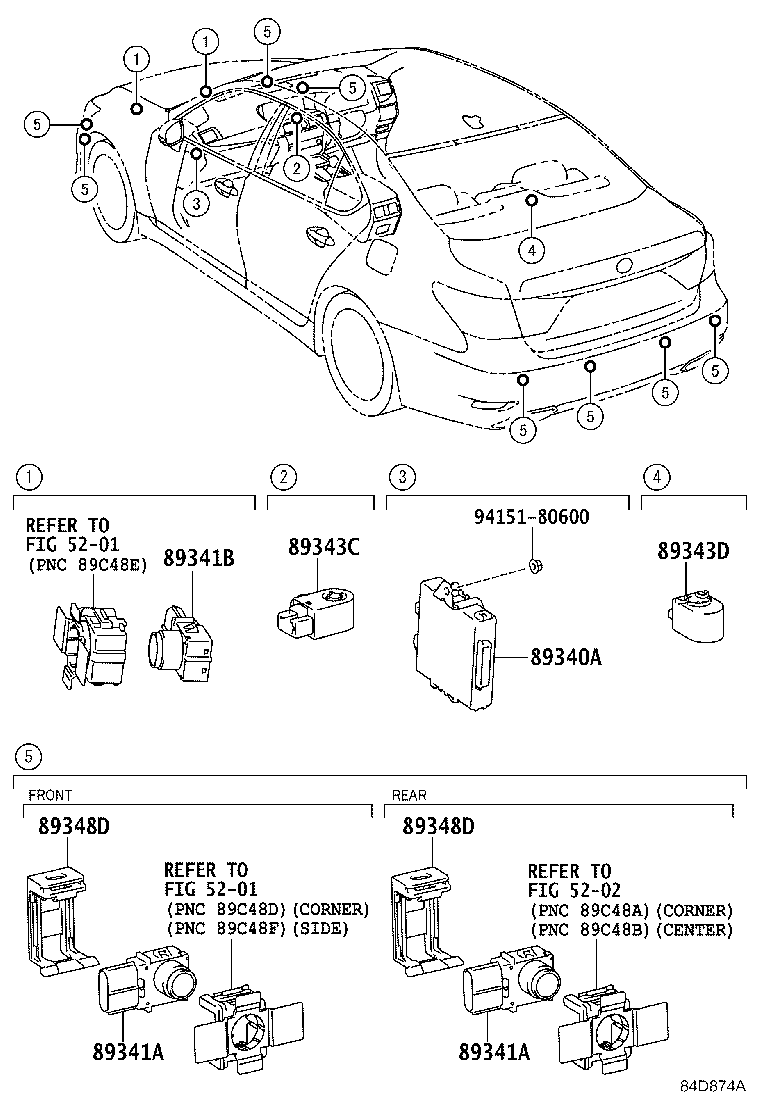

Figure 84D875A 84D875A 2012-09 → — Figure 84D874A 84D874A 2012-09 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
