Toyota Lexus LS600H/600HL

2012-09 → 2017-08 · chassis UVF4# · catalogue 432220 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

9 part groups · 2 illustrations

Illustrations

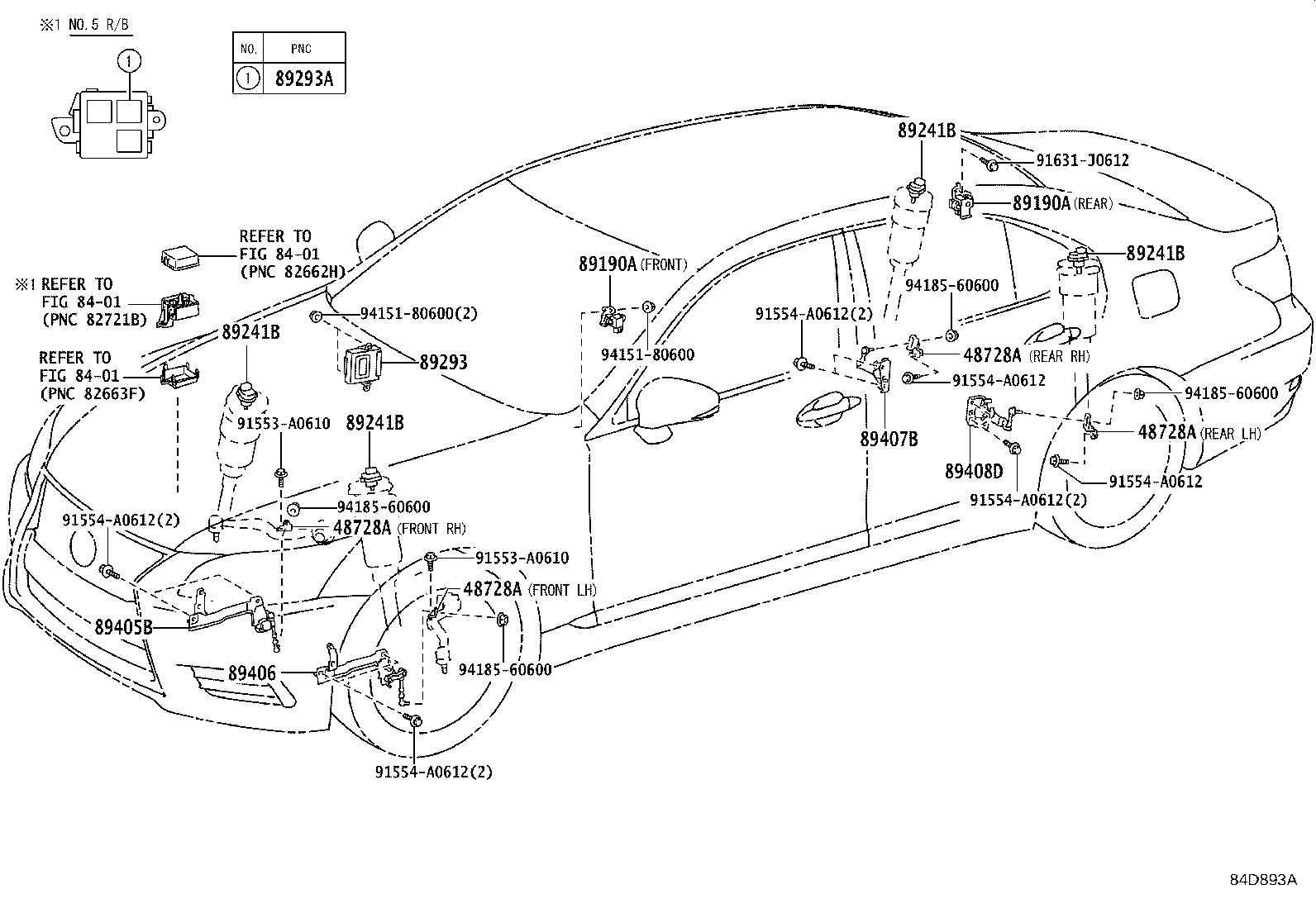

Figure 84D892A 84D892A 2012-09 → — Figure 84D893A 84D893A 2012-09 → —

Part groups

PNCDescription
48728A Bracket, Load Sensing Valve Sensor
89190A Sensor Assy, Acceleration
89241B Actuator, Absorber Control
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89405B Sensor Sub-assy, Height Control, Front RH
89406 Sensor Sub-assy, Height Control, Front LH
89407B Sensor Sub-assy, Height Control, Rear RH
89408D Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
